Instruction Book for

DUAL MASKING ELECTROL®

The Da-Lite Difference.

IMPORTANT SAFETY INSTRUCTIONS

When using your video equipment, basic safety precautions

should always be followed, including the following:

1. Read and understand all instructions before using.

2. Position the cord so that it will not be tripped over, pulled, or

contact hot surfaces.

3. If an extension cord is necessary, a cord with a current rat-

ing at least equal to that of the appliance should be used.

Cords rated for less amperage than the appliance may over-

heat.

4. To reduce the risk of electric shock, do not disassemble this

appliance. Contact an authorized service dealer when repair

work is required. Incorrect reassembly can cause electric

shock when the appliance is used subsequently.

5. The use of an accessory attachment not recommended by

the manufacturer may cause a risk of fire, electric shock, or

injury to persons.

SAVE THESE INSTRUCTIONS

PRE-INSTALLATION

1. Carefully unpack screen.

2. Make sure to recheck measurements of screen location before installation.

3. Remove center support brackets (on 8' and wider screens only), reverse brackets and reinstall flush with the top of the

box.

INSTALLATION

1. Install screen by raising unit into position between joists at one end only. Install one lag screw in each mounting

bracket.

2. Level unit lengthwise with a carpenter’s level and plumb level. Secure opposite end.

CAUTION! Do not seal in until screen has been secured in position and properly tested for satisfactory operation.

3. Detach access panel by removing screws, see figure 1.

4. Remove junction box cover plate.

5. Install electrical hook up that applies to your unit. Make sure to review your electrical installation checklist and wir-

ing diagrams (included) for either 120 volt switch, 220/240 volt switch or DRC low voltage control.

NOTE: Must be installed in accordance with the requirements of the Local Building Codes, the Canadian Electrical Code (CEC),

CAN/CSA C22.1 and the National Electric Code (NEC), NFPA 70.

CAUTION! DO NOT CUT TAPE ON FABRIC WITH KNIFE OR ANY SHARP TOOL. PULL ORANGE STRING.

6. Carefully remove wood boards securing mask surface to case.

7. Carefully remove tape strips securing picture surface around roller. Slats should move freely (Fig. 2).

8. Test installation by carefully running picture and mask surfaces up and down several times. Be prepared to stop

screen. Standard Duty Cycle: 1 MIN. ON / 3 MIN. OFF.

9. Run the picture surface upward. When the picture surface is fully up the limit switch (in the motor) is tripped and

the motor shuts off.

10. Test the mask surface the same as testing the picture surface. The mask will start down off the front of the roller,

travel completely down past the bottom of the viewing surface, then “step back” against the viewing surface to

eliminate shadowing by rolling up the back side of the roller. Do not adjust the limits to change this feature.

11. Check for satisfactory condition by operating screen a few times. Reinstall access panel.

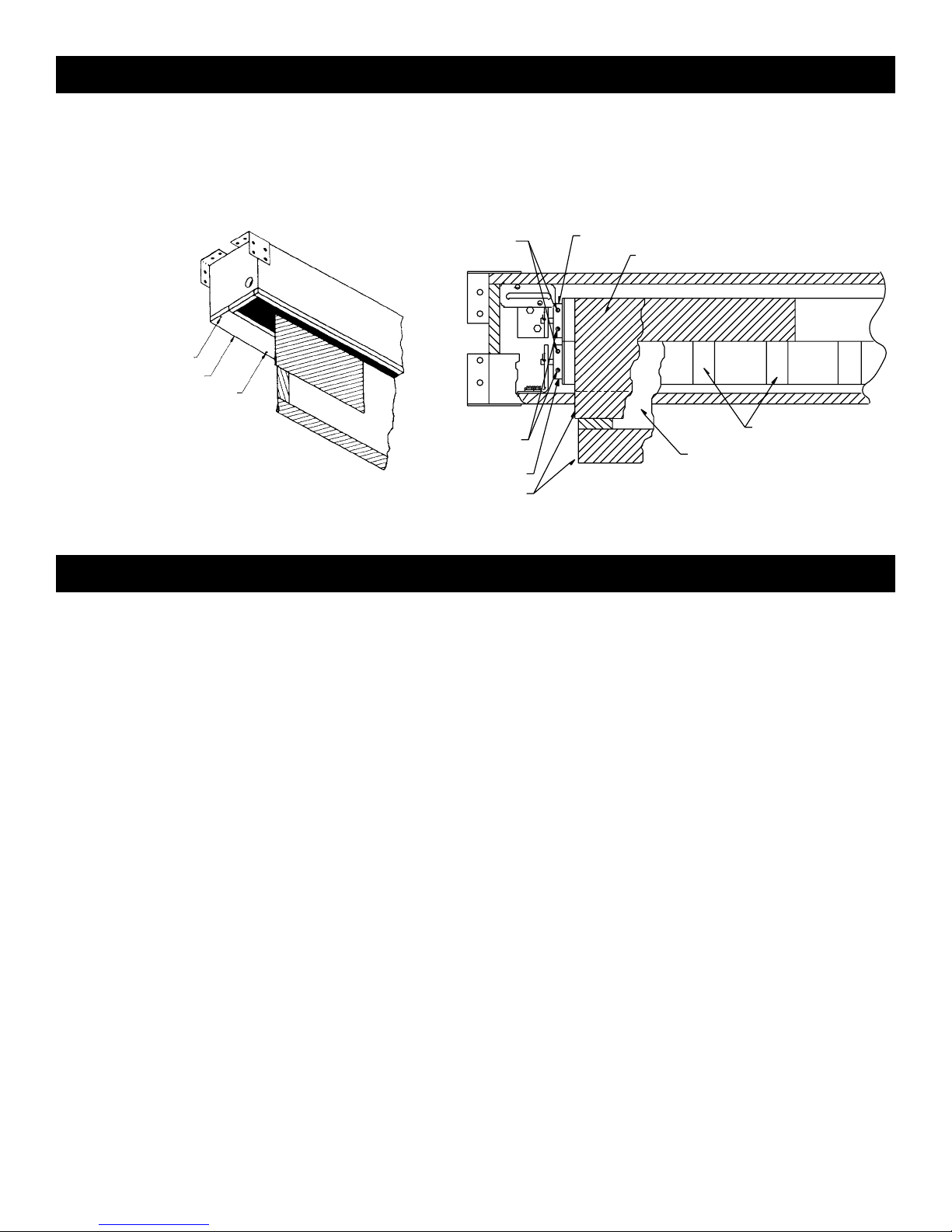

FIGURE 1 FIGURE 2

DRYWALL SCREW

ACCESS PANEL

ADJUSTMENT

KNOB “UP”

TAPE STRIPS

MACHINE SCREW

PICTURE SURFACE

SLATS

MASK SURFACE

ADJUSTMENT

KNOB “DOWN” MASK MOTOR

SCREEN MOTOR

SCREEN ADJUSTMENT FOR 120V SCREENS

CAUTION! THE MASK SHOULD NOT BE FIELD ADjUSTED FOR MORE OR LESS DROP.

Surface travel is stopped automatically in the fully opened and closed positions by limit switches that are properly ad-

justed at Da-Lite. Should it be necessary to adjust for more or less drop of picture, proceed in the following manner:

NOTE: Use a screw driver or allen wrench to make adjustments.

MORE SCREEN DROP

1. Remove access panel (Fig. 1).

2. Place operating switch in “down” position.

3. When the screen stops, turn the “down” limit knob (Fig. 2) one-quarter turn counterclockwise. Test by

raising picture surface approximately two feet, then lower again. Repeat until desired picture surface position is

attained.

NOTE: Must leave 1-1/2 wraps of fabric on roller!

4. Replace access panel.

LESS SCREEN DROP

1. Remove access panel. (Fig. 1).

2. Raise picture surface approximately two feet above desired level.

3. Place operating switch in “off” position.

4. Turn the “down” limit knob (Fig. 2) one-quarter turn clockwise. Test by raising picture surface approximately two

feet, then lower again. Repeat until desired picture surface position is attained.

5. Replace access panel.

DUAL MASkINg ELECTROL® INSTRUCTIONS

DOWN

BLACK

DOWN

COMMON WHITE

COMMON

GROUND GREENGROUND

MASK SCREEN

DOWN

MASK MOTOR

4 – WIRE

MASK MOTOR

OFF

DOWN

4 – WIRE

SCREEN MOTOR

120 V. AC 60 CYCLE

BLACK (HOT)

BLACK

RED

WHITE

WHITE (COMMON)

GREEN

GROUND WIRE

RED

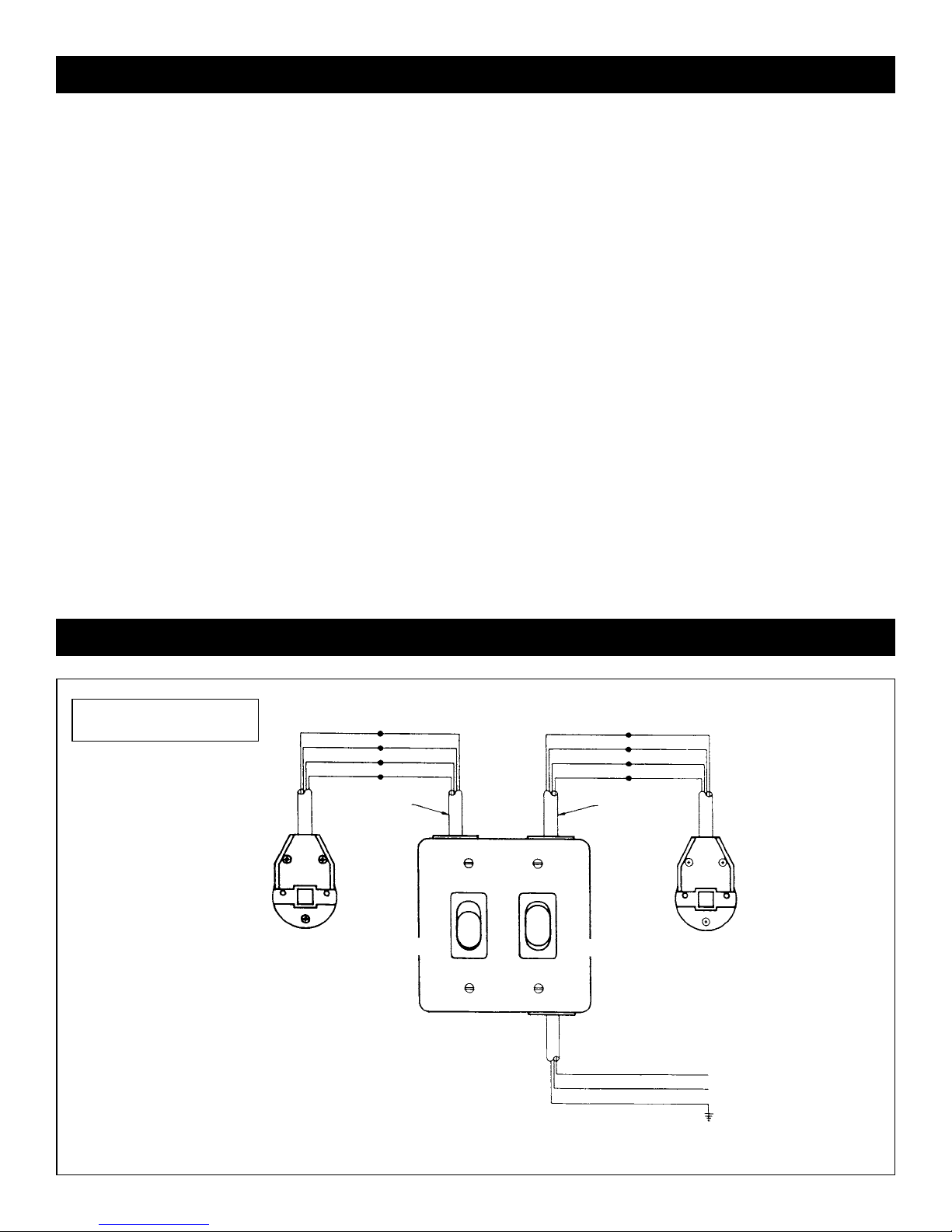

120V WIRING DIAGRAM

DUAL MASkINg ELECTROL® INSTRUCTIONS

UP BROWN

DOWN

COMMON

BLACK

BLUE

GREEN

4 – WIRE

MASK MOTOR

GROUND

MASK MOTOR

MASK SCREEN

OFF

DOWN

BROWN

DOWN

BLACK

COMMON BLUE

GROUND

GREEN

4 – WIRE

SCREEN MOTOR

220/240 V. AC 50 CYCLE

BROWN (HOT)

BLUE (COMMON)

GROUND WIRE

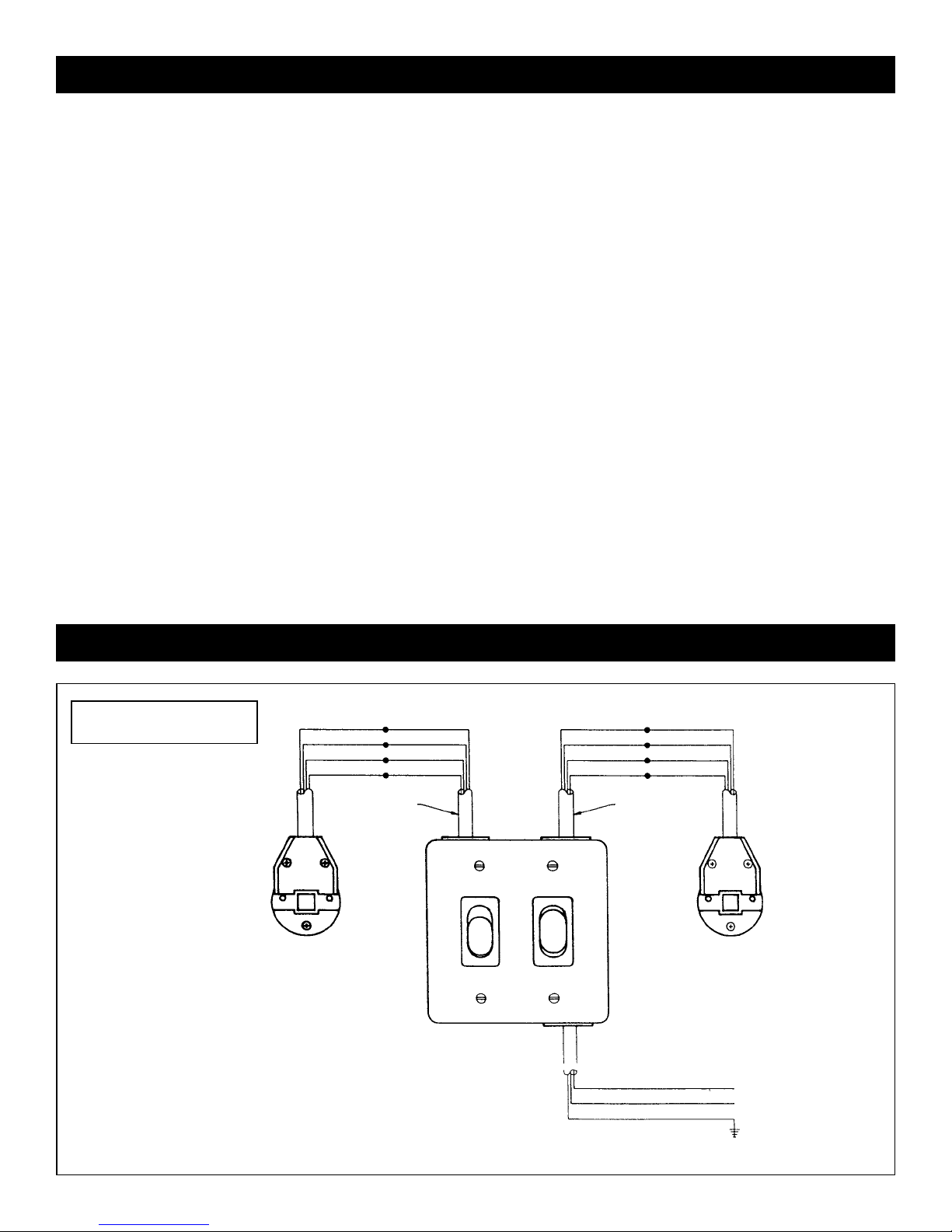

220 / 240V

WIRING DIAGRAM

SCREEN ADJUSTMENT FOR 220/240V SCREENS

CAUTION! THE MASK SHOULD NOT BE FIELD ADjUSTED FOR MORE OR LESS DROP.

Surface travel is stopped automatically in the fully opened and closed positions by limit switches that are properly ad-

justed at Da-Lite. Should it be necessary to adjust for more or less drop of picture, proceed in the following manner:

NOTE: Use a screw driver or allen wrench to make adjustments.

MORE SCREEN DROP

1. Remove access panel (Fig. 1).

2. Place operating switch in “down” position.

3. When the screen stops, turn the “down” limit knob (Fig. 2) one-quarter turn counterclockwise. Test by

raising picture surface approximately two feet, then lower again. Repeat until desired picture surface position is

attained.

NOTE: Must leave 1-1/2 wraps of fabric on roller!

4. Replace access panel.

LESS SCREEN DROP

1. Remove access panel. (Fig. 1).

2. Raise picture surface approximately two feet above desired level.

3. Place operating switch in “off” position.

4. Turn the “down” limit knob (Fig. 2) one-quarter turn clockwise. Test by raising picture surface approximately two

feet, then lower again. Repeat until desired picture surface position is attained.

5. Replace access panel.

METHOD C METHOD D

METHOD A METHOD B

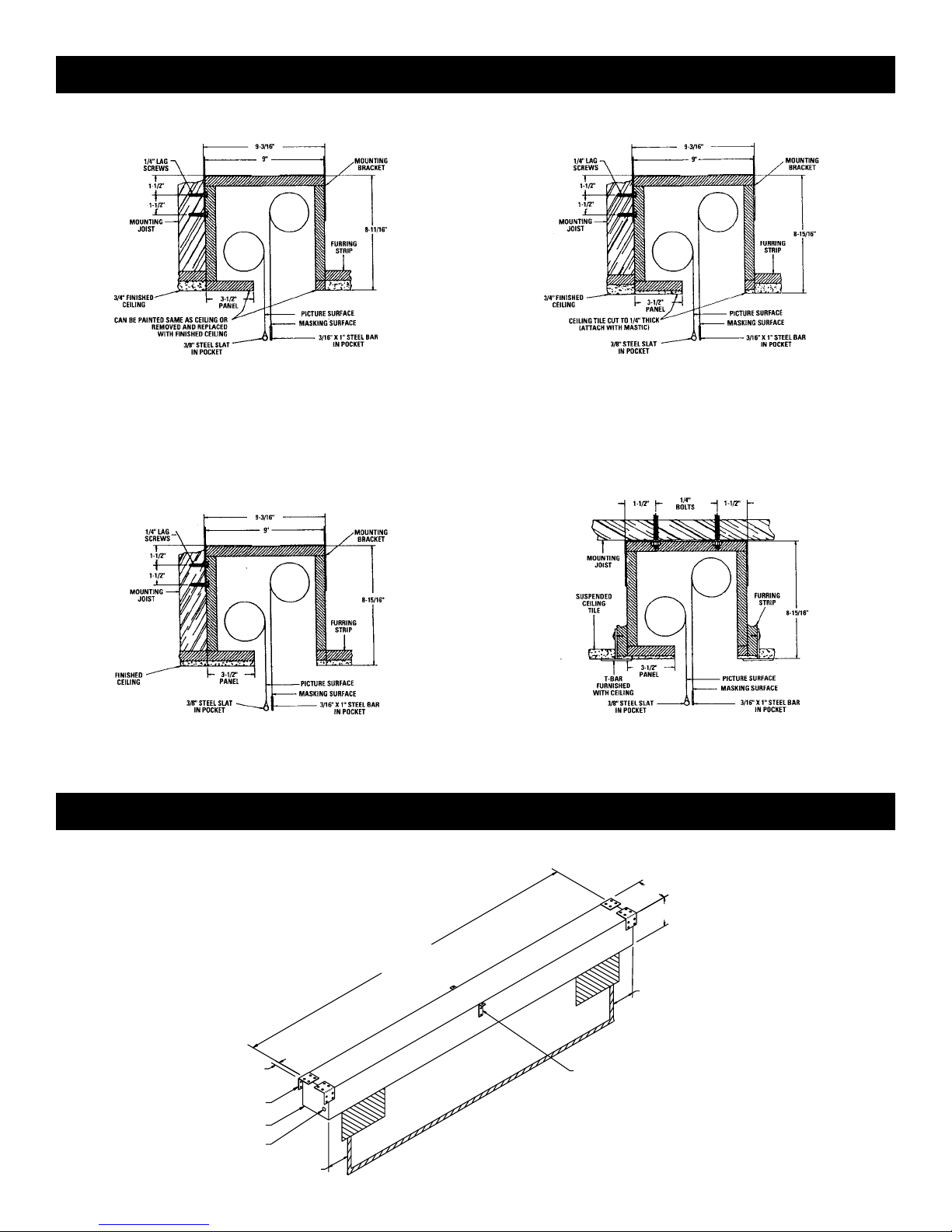

SUggESTED METHODS OF INSTALLATION

Offset mounting, recessed above ceiling. For plaster, dry

wall, tile or paneling. Bottom of case painted same finish

as ceiling.

Offset mounting, recessed above ceiling. May be

adapted for 3/4" ceiling, but cut to 1/4" thick under

screen case and panel.

NOTE:

MUST MARK HOLE LOCATION OF SCREWS IN 3-1/2" PANEL

FOR REMOVAL, IF COVERING WITH TILE.

Offset mounting, recessed above ceiling. May be

adapted for 1/4" paneling for ceiling.

Flush mounting, recessed above ceiling. For use with

dropped ceiling. May also be adapted for use with

acoustical or other ceiling 3/4" thick but cut to 1/4" thick

under screen case and panel.

DUAL MASkINg ELECTROL® INSTRUCTIONS

CASE LENGTH = SCREEN FABRIC WIDTH

+ 13-1/2", ALL SIzES

1-1/2"

MOUNTING BRACKET

MOTOR END

ELECTRICAL

OUTLET

6-3/4"

8-11/16"

8' AND WIDER SCREENS ONLY

TROUBLESHOOTINg

SYMPTOM

1. Screen will not operate.

Motor does not hum.

2. Incorrect stopping position in

downward direction.

3. Incorrect stopping position in

upward direction.

4. Noise.

NOTE: Screen will operate with a

low pitched hum.

5. Coasting.

CAUSE

(a) Incorrect line voltage.

(b) Blown fuse.

(d) No power to operating switch

or junction.

Power at junction box

(e) Thermal overload tripped.

(f) Broken wire in the “down” or “up”

position.

(g) Defective motor, limit switch or

capacitor.

(h) Capacitor burned out.

(a) Lost roller wrap.

(b) “Down” limit switch out of

adjustment

(a) Lost roller wrap.

(b) “Up” limit switch out of

adjustment

(a) Gear Noise.

(a) Defective brake.

RESTORING LOST ROLLER WRAP

1. Tape a strap to the bottom of the

screen surface.

2. Push strap over back of roller.

3. Feed fabric as you pull strap to

draw fabric over top of roller.

4. Remove tape and strap.

SOLUTION

(a) Verify 115-125V (or 220-240V). If

insufficient voltage, rewire incom-

ing electric line.

(b) Replace fuse.

(d) Check above. Tighten all loose

wire connections. Correct any

improper connections.

“Down” Position

Check for power across black

and white leads.

“Up” Position

Check for power across red

and white leads.

(e) Let motor cool down for 15

minutes. Try again.

(f) Check for continuity. Cut off old

splice and reconnect.

(g) Replace motor assembly.

NOTE: Motor is a sealed assembly.

(h) Replace motor assembly.

(a) See instructions below.

(b) See installation instructions.

(a) See instructions below.

(b) Adjust “up” limit switch. See

installation instructions

(a) Replace motor assembly.

7Printed in U.S.A. 77607 Rev. 12/09

LIMITED ONE YEAR WARRANTY

ON DA-LITE PRESENTATION PRODUCTS

Da-Lite Screen Company, Inc. warrants its products to the original purchaser only, to be free from

defects in materials and workmanship for a period of one (1) year from the date of purchase by

the original purchaser provided they are properly operated according to Da-Lite’s instructions and

are not damaged due to improper handling or treatment after shipment from the factory.

This warranty does not apply to equipment showing evidence of misuse, abuse or accidental

damage, or which has been tampered with or repaired by a person other than authorized Da-Lite

personnel.

Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option)

the defective part of the merchandise. Returns for service should be made to your Da-Lite dealer.

If it is necessary for the dealer to return the screen or part to Da-Lite, transportation expenses

to and from Da-Lite are payable by the purchaser and Da-Lite is not responsible for damage in

shipment. To protect yourself against damage or loss in transit, insure the product and prepay all

transportation expenses.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,

INCLUDING WARRANTIES AS TO FITNESS FOR USE AND MERCHANT ABILITY. Any implied

warranties of ﬁtness for use, or merchantability, that may be mandated by statute or rule of law

are limited to the one (1) year warranty period. This warranty gives you speciﬁc legal rights, and

you may also have other rights, which vary from state-to-state. NO LIABILITY IS ASSUMED

FOR EXPENSES OR DAMAGES RESULTING FROM INTERRUPTION IN OPERATION OF

EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY

NATURE.

In the event that there is a defect in materials or workmanship of a Da-Lite product, you may

contact our Sales Partners at PO Box 137, Warsaw, IN 46581-0137, (574) 267-8101, (800) 622-3737.

IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND DA-LITE SHALL NOT BE

BOUND BY THIS WARRANTY IF THE PRODUCT IS NOT OPERATED IN

ACCORDANCE WITH DA-LITE’S WRITTEN INSTRUCTIONS.

Keep your sales receipt to prove the date of purchase and your original ownership.

Indice

Altri manuali Da-Lite Schermo di proiezione

Da-Lite

Da-Lite ViewShare Advantage Electrol Retrofit Manuale utente

Da-Lite

Da-Lite MULTI-MASK IMAGER Manuale utente

Da-Lite

Da-Lite Deluxe Insta-Theater Manuale utente

Da-Lite

Da-Lite Cosmopolitan Electrol Manuale utente

Da-Lite

Da-Lite PROFESSIONAL ELECTROL Manuale utente

Da-Lite

Da-Lite STUDIO ELECTROL Manuale utente

Da-Lite

Da-Lite Slimline Electrol Manuale utente

Da-Lite

Da-Lite Fast-Fold NXT Manuale utente

Da-Lite

Da-Lite LARGE ADVANTAGE DELUXE ELECTROL Manuale utente

Da-Lite

Da-Lite Da-Snap 79982 Manuale utente

Da-Lite

Da-Lite Model C With CSR Manuale utente

Da-Lite

Da-Lite Designer Contour Manual Manuale utente

Da-Lite

Da-Lite IDEA Screen Manuale utente

Da-Lite

Da-Lite ADVANTAGE ELECTROL Manuale utente

Da-Lite

Da-Lite TENSIONED ADVANTAGE ELECTROL Manuale utente

Da-Lite

Da-Lite Da-Snap 74610 Manuale utente

Da-Lite

Da-Lite Picture King Manuale utente

Da-Lite

Da-Lite Tensioned Director Electrol Manuale utente

Da-Lite

Da-Lite LARGE ADVANTAGE DELUXE ELECTROL Manuale utente

Da-Lite

Da-Lite TENSIONED HORIZON ELECTROL Manuale utente

Da-Lite

Da-Lite Designer Contour® Manuale utente

Da-Lite

Da-Lite LARGE ADVANTAGE DELUXE ELECTROL Manuale utente

Da-Lite

Da-Lite DESIGNER MANUAL SCREEN Manuale utente

Da-Lite

Da-Lite TENSIONED LARGE COSMOPOLITAN ELECTROL Manuale utente

Manuali Schermo di proiezione popolari di altre marche

FART PRODUKT

FART PRODUKT Standard SCREEN Manuale utente

Draper

Draper E Series Manuale

Elite Screens

Elite Screens Elite Tripod Series Manuale utente

Laarhoven

Laarhoven Companion II Manuale utente

Renogy

Renogy RMS-LFPS-US Manuale utente

Samsung

Samsung S*H65* Manuale utente

FONESTAR

FONESTAR PPTR-43100-FA Manuale utente

Slide Clear

Slide Clear Varro XL Manuale utente

Elite Screens

Elite Screens M85XWS1-SRM Manuale utente

OS РХ-090Н Manuale utente

Niko

Niko 10-845 Manuale utente

Speaka Professional

Speaka Professional 2357532 Manuale operativo

Sima

Sima XL-72 Manuale utente

Jasic

Jasic EVO 2.0 ET-200P Manuale utente

Elite Screens

Elite Screens Starling 2 Series Manuale utente

InFocus

InFocus SC-WALL GRY-92H Manuale

Barco

Barco OverView MVL-615 Manuale utente

Draper

Draper Envoy Manuale
