INSTRUCTION BOOK FOR

Tensioned Executive Electrol

Pre-Installation

Important Safety Instructions

When using your video equipment, basic safety precautions should

always be followed, including the following:

1. Read and understand all instructions before using.

2. Position the cord so that it will not be tripped over, pulled, or

contact hot surfaces.

3. If an extension cord is necessary, a cord with a current rating at

least equal to that of the appliance should be used. Cords rated

for less amperage than the appliance may overheat.

4. To reduce the risk of electric shock, do not disassemble this

appliance. Contact an authorized service dealer when repair

work is required. Incorrect reassembly can cause electric shock

when the appliance is used subsequently.

5. The use of an accessory attachment not recommended by

the manufacturer may cause a risk of ire, electric shock, or

injury to persons.

1. Carefully unpack screen and remove outer wrapping

from case.

2. Remove instructions cover and please read

instructions. (Fig. 1)

3. Remove fabric and cardboard strips from access

door. (Fig. 1)

4. Remove access door by gently prying from edge of box

toward the fabric door.

5. FOR TYPE 3 INSTALLATION ONLY. Remove wood strips along

bottom of screen case.

NOTE: Screen surface is not centered in box. Screen surface

is 25" from motor end.

6. Make sure to recheck measurements of screen location

before installation.

7. Remove, reverse, and remount center support brackets.

Installation

1. Position screen under mounting location with the case

opening down.

2. Install screen by raising unit into position between joists at

one end only. Install one lag screw in each mounting bracket.

Secure opposite end. Support center of the screen using the

brackets.

3. Level unit lengthwise with a carpenter’s level and

a plum level.

CAUTION! Do not secure access door or seal in unit

until screen has been secured in position and properly

tested for satisfactory operation. Do not it unit so tightly

that the screen surface drop door binds. Door drops by

gravity only.

Fabric

Strip

Cardboard

Strip

Instruction Cover

Figure 1

Case

Fabric Door

Access Door

4. If you are going to cover screen door with paneling or other

materials, allow access (suitable holes or a plug) to screws

for servicing.

5. Use supplied 1/8” nex key and a 7/16” wrench to remove silver

shipping brackets attached to slat and screen case.

6. Picture surface should hang freely. (Fig. 2) Remove any tape

left hanging on back of fabric. Bottom edge should be

positioned between bottom edge of case and center of roller.

7. Install electrical hook up that applies to your unit. Unit should

be installed by a qualiied electrician.

NOTE: Must be installed in accordance with the requirements

of the Local Building Codes, the Canadian Electrical Code

(CEC), CAN/CSA C22.1 and the National Electric Code (NEC),

NFPA 70.

8. Test installation by carefully running picture surface “up” and

“down” several times. Be prepared to stop screen. Fabric door

must open freely to 90˚.

9. Make sure picture surface, when rolled down, has a full wrap

around roller. No part of roller should be exposed. Fabric door

and picture surface will drop simultaneously when switch is

pressed “down”. Door will close simultaneously with picture

surface as picture surface rolls into case.

1. Press switch “down” so that fabric door opens (Fig. 2).

2. Remove screws (2) located on each bumper bracket.

NOTE: The access door is slotted on one edge, permitting the

slotted section to it over the access panel clips on inside of

case.

3. Place access panel so slot can be pushed over clips.

Holes in access panel brackets should align with bumper

bracket holes.

4. Replace screws.

5. Make sure there is approximately 3⁄16" clearance around

access door. Keep paint, plaster, tile or mastic out of hinge.

Fit access panel so it can be removed for maintenance.

The picture surface drop, and the opening and closing of the fabric door, are controlled automatically by limit switches which have been

preset at Da-Lite. When the picture surface is moving upward, it is controlled by a limit switch that shuts of when the door closes. The height

for tensioned screens are adjusted at Da-Lite, changing the height of screen will change the tension on fabric and cause the screen to hang

improperly. Do not adjust.

Installation (Continued)

Access Door Installation

Screen Adjustment

Figure 2

Cross Section

Access Panel

Screw (Painted)

Access Panel

False Top


Surface

Access

Panel Clip

Fabric Door

Bumper

Bracket

Tensioned Executive Electrol®Installation

¼" x2"

Lag Screw

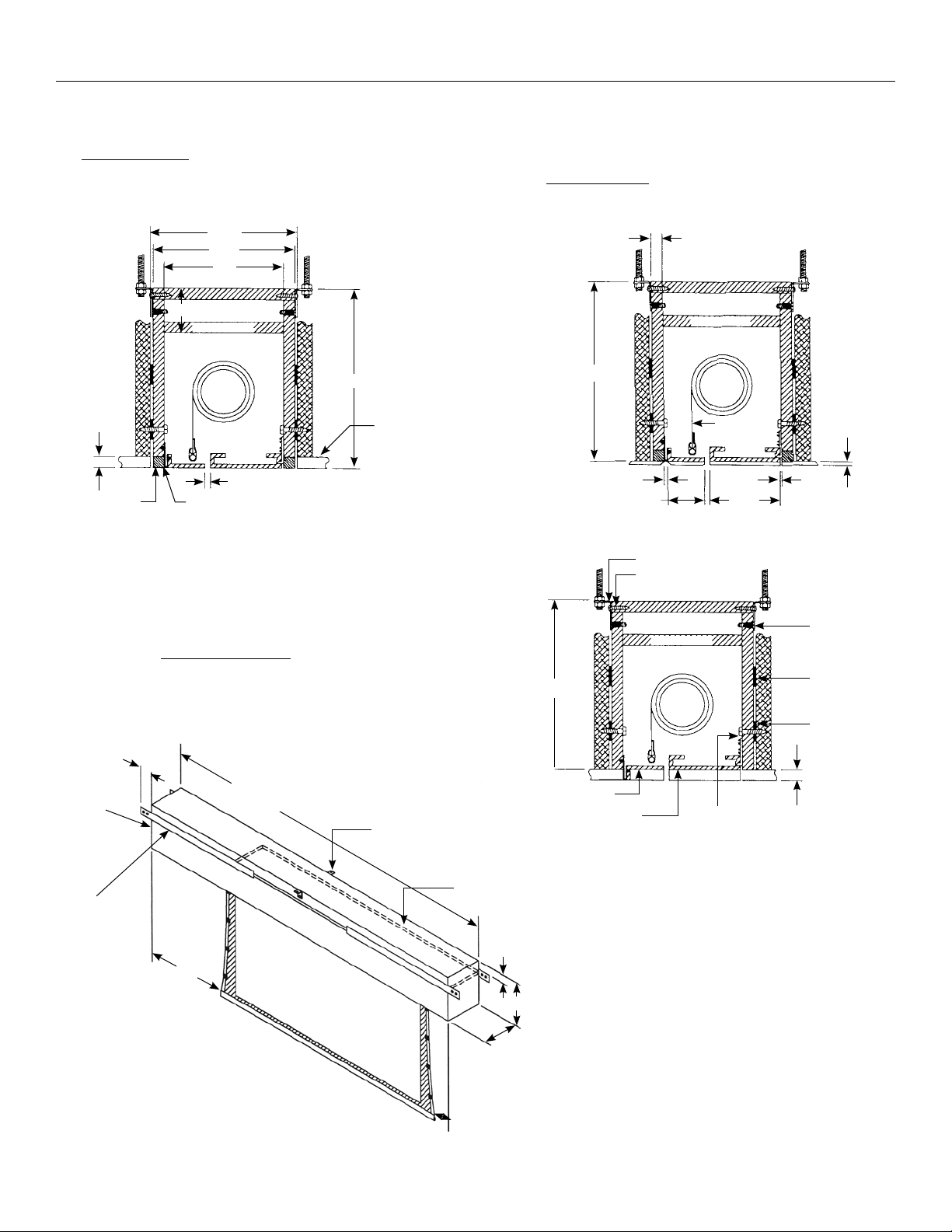

Suggested Methods of Installation

Type 1 & 2

Ofset mounting,recessed above ceiling, for plaster,

dry wall or paneling. Door painted same inish as ceiling.

Type 1 & 2

Allow ⅛" min. clearance all around surface door.

Flush mounting,recessed above ceiling. For use

with ¼" max. paneling or installation in existing ceiling

using molding around door.

Type 3

Allow ¼" min. clearance all around surface door.

Extended mounting, recessed above ceiling. For

use with acoustical or other ceiling tile ¾" thick laid

over door.

3 ½"

9 ½"

2 ⁄"

4 ½"

False Top

Mounting

Brackets

⁄" Thick

“L” Bracket

Electrical

Outlet

NOTE: Paint the same as doors

and ceiling or remove and

replace with ceiling tile.

Including Mounting Brackets

Ceiling

Tile

¾"

⅜" Approx.

Filler

Block

¾"

False Top

¼" Max.

4 ¾"

⅛"

2 ½"

¼"


Surface

Mounting

Brackets

False Top

Surface Door

Access Door 3⁄4"

¼" x 1" Screw

& Nut Insert

Drywall Screw

“L” Bracket

False Top

SHIM

12 ⁄"

11 ⁄"

12 ⁄"

9 ½"

9 ⅞"

12 ⁄"

Length Of Fabric Width

+ 28 ¾", All Sizes

22"

Tensioned Executive Electrol®Installation

Black

Red (Up)

Blue

Black

White

Red

Up Limit Switch

(Operated By Door)

Capacitor

Black

(Down)

Down Limit Switch

Door Solenoid Limit Switch

White (Common)

Motor: 120V.60 Cycles 1/10 HP Intermittent

Duty With Auto-Reset Thermal Protector

Internal

Wiring

External Wiring

to Be Completed

By Installer

Junction Box Mounted In

Screen Case, In Which Internal

Wiring Terminates In

White, Black And Red Leads

White

Down

Adj.

Black (Down)

Red (Up)

In Multiple Control Installations This Switch

Is Replaced By The Low Voltage Control,

Operated From Push-Button Stations.

Black With Yellow

Black

Down

Of AC Hot

AC Common

120VAC 60Hz.

1 Amp. Max

Side View Of

Switch & Box

Green

(Ground)

Black

Blue

Red

Operating Switch,

Switch Box, And

Plate Furnished

With Screen. (SPDT)

With Center Of

This Switch Cannot Be Used With L.V.C.

Solenoid

120V Wiring Diagram

240 Volt Wiring Diagram

For Standard Wall Switch:

Da-Lite ofers two styles of 240 volt wall

switches for standard operation. Please see

wiring diagram included in wall switch box

included with screen.

Symptom Cause Solution

Screen will not operate or will

not go “down”.

Motor does not hum.

Blown fuse. Replace fuse.

Tripped circuit breaker. Reset circuit breaker.

Improper wiring to operating switch.

Tighten all loose wire connections. Correct any improper

connections. Check for power.

“Down” Position

Check for power across black and white leads.

“Up” Position

Check for power across red and white leads.

Improper wiring to junction box in screen.

NOTE: Use low voltage control (LVC) electrical

checklist for either 1- or 3- button control.

Defective wall switch.

Defective LVC unit.

“Down” Position

Check for power at black and white leads.

“Up” Position

Check for power at red and white leads.

Shut power “o” at breaker. Remove wall switch and

check for broken or loose connection. Replace if

defective.

Check LVC electrical checklist.

Thermal overload tripped (excessive

overheating). Let motor cool down for 15 minutes. Try again.

Burned out motor winding.

Disconnect motor leads and check for continuity

between black and white wires for “down” position.

Check for continuity between red and white wires for

“up” position. Replace gear motor if either combination

shows an open circuit.

Defective limit switch.

Disconnect “down” limit switch from circuit. Check for

continuity. Switches are normally closed and open on

contact. Replace if defective.

Motor hums.

Temporary fabric binding. With power “o,” turn roller by hand to free binding.

Shipping bracket not removed. Remove shipping bracket and wooden wedge.

Defective capacitor. Replace capacitor.

Troubleshooting

Visit www.da-lite.com/products/tutorials.php to ind installation

and troubleshooting tutorials. You will also ind a link to

Live Chat for interactive support and you can contact us

by email at inf[email protected] or by phone at (800) 6223737 or

(574) 2678101 with any troubleshooting questions.

Symptom Cause Solution

Screen will not move “up.”

Motor does not hum.

Motor hums.

No power between red and white leads in

junction box.

Check LVC. See above.

Check fuse. Reset circuit breaker.

Correct improper wiring.

Thermal overload tripped (acts as a breaker). Let motor cool for 15 minutes. Try again.

Burned out motor winding. Check for power between red and white motor leads.

Replace motor if there is power.

Temporary fabric binding. With power “o,” turn roller by hand to free binding.

Burned out capacitor. Replace capacitor.

Broken wire or loose connection in “up”

position (red and white leads). Secure connection or replace wire.

Screen starts upward and door closes

immediately shutting o motor.

Defective solenoid limit switch.

Solenoid pin not retracting. Manually retract pin a few times.

Defective solenoid.

Check for power to the solenoid terminals. If there is

power, replace solenoid.

Check blue wire between solenoid switch and solenoid.

It is either crimped or broken. Repair or replace.

Fabric door does not fully open.

Screen runs.

NOTE: Remember, door must

open by gravity.

Door binding. Plaster, paint or adhesive can

cause the hinge to stick. Clean hinge and apply oil.

Case may be put into a bind during installation. Tighten or loosen lag screws located on back of case.

Inadequate clearance around the fabric door

on new installations. Provide adequate clearance.

Clicking noise in each downward

revolution.

Non-energized solenoid.

NOTE: There should be three clicks.

Check for power to solenoid.

Replace solenoid.

Loud buzzing noise. Solenoid not fully retracting.

Check for foreign object caught in solenoid. Remove

object. Tighten 4 mounting screws.

Check for pin binding.

Door closes on fabric, leaving 15" to

20" left hanging out. Lost roller wrap. See installation instructions.

Troubleshooting

Symptom Cause Solution

Screen jammed. Will not operate,

motor hums, door open, closing

mechanism detached from door.

Closing mechanism detached from door,

allowing it to jam into box.

After securing fabric to roller, loosen set screws on

motor gear and manually rotate solenoid assembly back

over top of roller into position, then reattach door. Match

lats on motor drive shaft to gear set screws and tighten.

Scraping or grinding noise.

If metal shipping bracket is left attached

to screen, it may be rubbing on motor

end of roller.

Remove shipping brace.

Gear noise. Gear may need light weight grease. Apply light weight grease.

Incorrect down limit switch setting.

Lost roller wrap. See installation instructions.

Limit switch out of adjustment. See door closure and timing instructions.

Door closes and screen

continues to run upward.

Door limit out of adjustment. Loosen nut holding limit switch.

Rotate adjusting position, then secure.

Door limit switch is shorted. Repair short or replace limit switch.

Troubleshooting

Altri manuali per TENSIONED EXECUTIVE ELECTROL

Indice

Altri manuali Da-Lite Schermo di proiezione

Da-Lite

Da-Lite Large Cosmopolitan Electrol Manuale utente

Da-Lite

Da-Lite TENSIONED LARGE ADVANTAGE ELECTROL Manuale utente

Da-Lite

Da-Lite Parallax Manuale utente

Da-Lite

Da-Lite ADVANTAGE DELUXE ELECTROL Manuale utente

Da-Lite

Da-Lite ASCENDER ELECTROL Manuale utente

Da-Lite

Da-Lite Perm Wall Frame Manuale utente

Da-Lite

Da-Lite Presenter P-50 Manuale utente

Da-Lite

Da-Lite C with CSR Manuale utente

Da-Lite

Da-Lite ADVANTAGE DELUXE ELECTROL Manuale utente

Da-Lite

Da-Lite Tensioned Professional Electrol Manuale utente

Da-Lite

Da-Lite Tensioned large advantage deluxe electrol Manuale utente

Da-Lite

Da-Lite EXECUTIVE ELECTROL Manuale utente

Da-Lite

Da-Lite AdvantageManual With CSR Manuale utente

Da-Lite

Da-Lite Tensioned Advantage Deluxe Electrol Series Manuale utente

Da-Lite

Da-Lite Viewshare tensioned Advantage Electrol Manuale utente

Da-Lite

Da-Lite Horizon Electrol Manuale utente

Da-Lite

Da-Lite ADVANTAGE DELUXE ELECTROL Manuale utente

Da-Lite

Da-Lite Picture King Manuale utente

Da-Lite

Da-Lite ADVANTAGE DELUXE ELECTROL Manuale utente

Da-Lite

Da-Lite MULTI-MASK IMAGER Manuale utente

Da-Lite

Da-Lite IDEA Thin Manuale utente

Da-Lite

Da-Lite LARGE ADVANTAGE DELUXE ELECTROL Manuale utente

Da-Lite

Da-Lite Viewshare tensioned Advantage Electrol Manuale utente

Da-Lite

Da-Lite Contour Electrol Manuale utente

Manuali Schermo di proiezione popolari di altre marche

FART PRODUKT

FART PRODUKT Standard SCREEN Manuale utente

Draper

Draper E Series Manuale

Elite Screens

Elite Screens Elite Tripod Series Manuale utente

Laarhoven

Laarhoven Companion II Manuale utente

Renogy

Renogy RMS-LFPS-US Manuale utente

Samsung

Samsung S*H65* Manuale utente

FONESTAR

FONESTAR PPTR-43100-FA Manuale utente

Slide Clear

Slide Clear Varro XL Manuale utente

Elite Screens

Elite Screens M85XWS1-SRM Manuale utente

OS РХ-090Н Manuale utente

Niko

Niko 10-845 Manuale utente

Speaka Professional

Speaka Professional 2357532 Manuale operativo

Sima

Sima XL-72 Manuale utente

Jasic

Jasic EVO 2.0 ET-200P Manuale utente

Elite Screens

Elite Screens Starling 2 Series Manuale utente

InFocus

InFocus SC-WALL GRY-92H Manuale

Barco

Barco OverView MVL-615 Manuale utente

Draper

Draper Envoy Manuale
