INSTRUCTION BOOK FOR

Multi Format Imager

Preparation: Have ample space for this available on a lat clean surface such as a large table or loor. The work area should be larger

than the frame size. If the loor is used, clean papers should be spread to keep all dirt from the Pro-Trim surfaces.

Tools Required for Assembly: 1/8" Allen Wrench, 5/64" Allen Wrench, Carpenter's Level, Tape Measure, Electric Screw Gun, Utility Knife.

Unpackaging the Frame:

1. The frame will arrive in two separate cardboard boxes. One box

will be very long and will house the top and bottom pieces. The

smaller cardboard box will house the side frame pieces, hanger

hardware, assembly hardware and the wall switch.

2. To open the boxes, there is a side lap that is taped down the

length of the box. It will be labeled "Open This Side". Refer to

picture A. Carefully cut tape down the length of the box with a

utility knife and fold box open. You will have to pull hard as it is

stapled on the ends.

3. Inside each box the frame pieces will be individually paper

wrapped and taped. Remove all paper from pieces. Do not use

a utility knife to remove paper from pieces.

4. Remove all paper and styrofoam blocks from top frame

assembly after unwrapping.

Multi Format Imager Assembly

Important Safety Instructions

When using your video equipment, basic safety precautions should always be followed, including the following:

1. Read and understand all instructions before using equipment.

2. Close supervision is necessary when any appliance is used by or

near children. Do not leave appliance unattended while in use.

3. Care must be taken as burns can occur from touching hot parts.

4. Do not operate appliance if it has been dropped or damaged

until it has been examined by a qualiied service technician.

5. To reduce the risk of electric shock, do not immerse this

appliance in water or other liquids.

6. The use of an accessory attachment not recommended by

the manufacturer may cause risk of ire, electric shock or

injury to persons.

Cut Tape Here

Open This Side

Picture "A"

Frame Assembly:

1. In the hardware package, you will receive (12) #10 x .375" long button head screws and (8) #10 x .500" long button head screws

required for frame assembly.

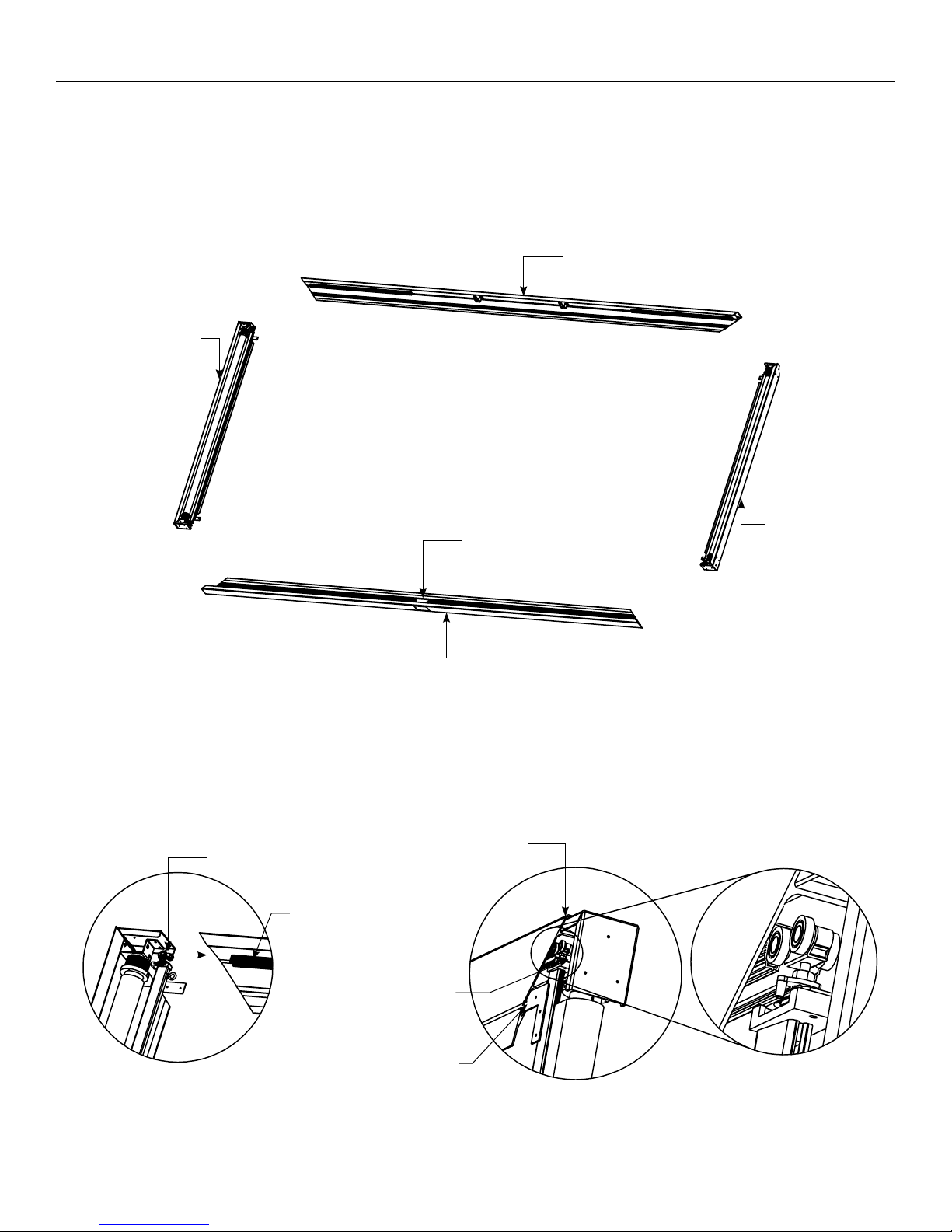

2. Lay frame pieces out on loor or table as shown in Figure 1. The right and left side frame assemblies have the rollers and motors

attached to them. The bottom frame piece has (2) guide rails and the wiring junction box attached to it. The top frame piece will

have the (2) guide rails attached to it.

3. Assemble left side of frame to the top of frame. (NOTE: Figure 2 is looking from the back of the frame.) The large black metal L

bracket will slide into the aluminum extrusion while the small L bracket will slide into the aluminum channel. When sliding the

bracket into the top frame assembly, guide the slat roller carriage into the top aluminum guide channel as shown in Figure 3.

Multi Format Imager Assembly

Left Frame

Assembly

Right Frame

Assembly

Bottom Frame Assembly

Junction Box

Assembly

Top Frame Assembly

Figure 1

Small L

Bracket

Large L

Bracket

Slat Roller

Carriage

Aluminum

Guide Channel

Make Sure Carriage

Rollers Are Seated

Properly in Aluminum

Channel

Figure 2 Figure 3

Tighten Set Screws

Until Front Surfaces

Are Flush

Fasten Screws

Through Top Frame

Assembly Into

Connecting Bracket

Small L

Bracket

Aluminum Guide

Channel

Large L

Bracket

Plug Motor Power In

Route Power

Cable Behind

Motor Bracket

Tuck Excess Wire

Underneath Motor

Bracket

Tuck RJ45 Coupler

Underneath

Motor Bracket

Data Cable

From Motor Head

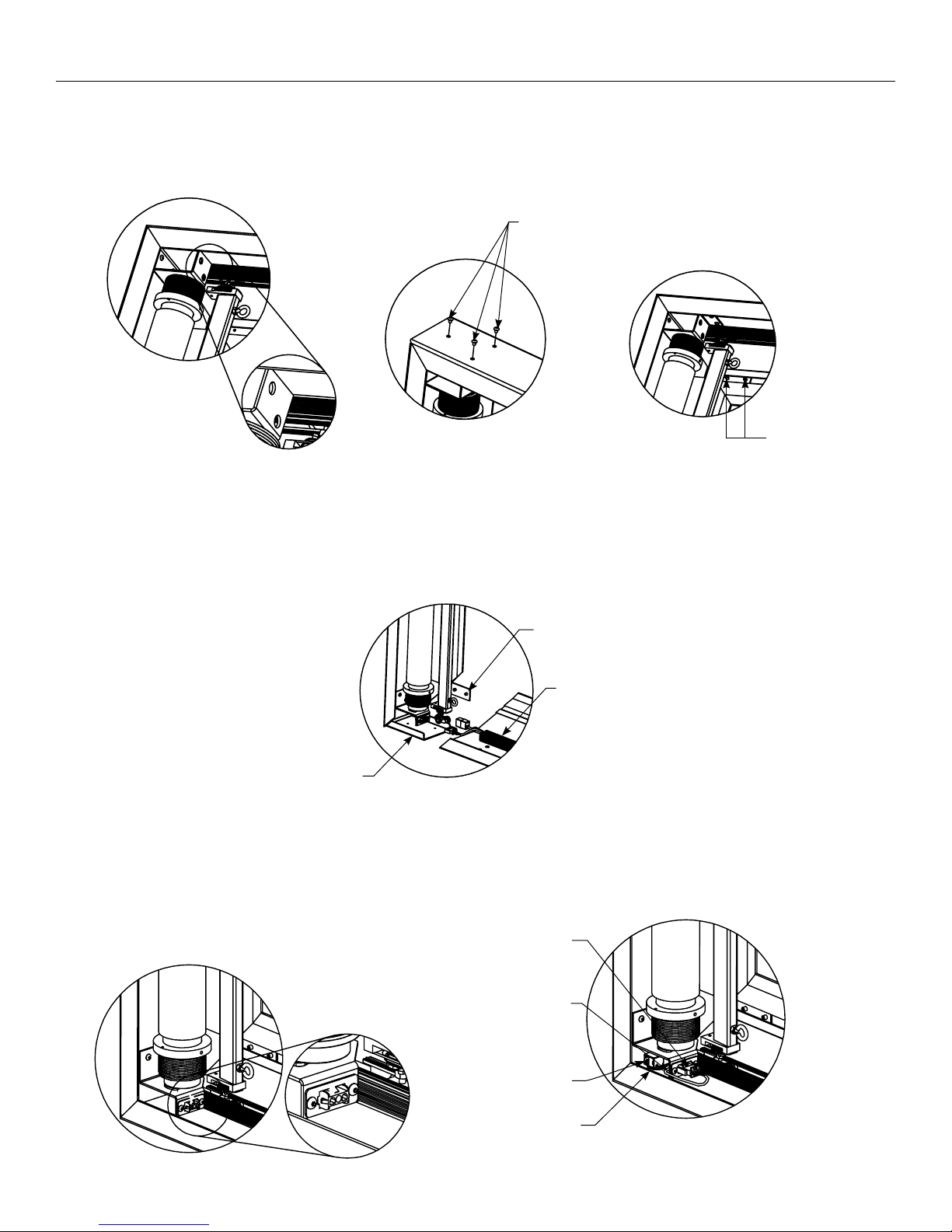

4. Fasten (3) #10 x .375" long button head screws through top of frame into the corner connector bracket. See Figure 5.

Tighten two set screws on lat "L" bracket to line up the front faces as shown in Figure 6.

5. Assemble bottom side of frame to left frame. The large metal L bracket will slide into the aluminum extrusion while the small

L bracket will slide into the aluminum channel. When sliding the bracket into the bottom frame assembly, guide the slat roller

carriage into the bottom aluminum guide channel. See Figure 7.

6. Route the two cable assemblies around motor bracket and plug the 3 wire male connector into the 3 wire female connector

on the motor bracket. The motor will have a gray data cable with an RJ45 connector on the end coming out of the head of the

motor. Plug this end into the RJ45 coupler. Tuck the RJ45 coupler underneath motor bracket securely to prevent entanglement

as shown in Figure 9.

Multi Format Imager Assembly

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8

Figure 9

Tighten Set Screws

Until Front Surfaces

Are Flush

Fasten Screws

Through Bottom Frame

Assembly Into

Connecting Bracket

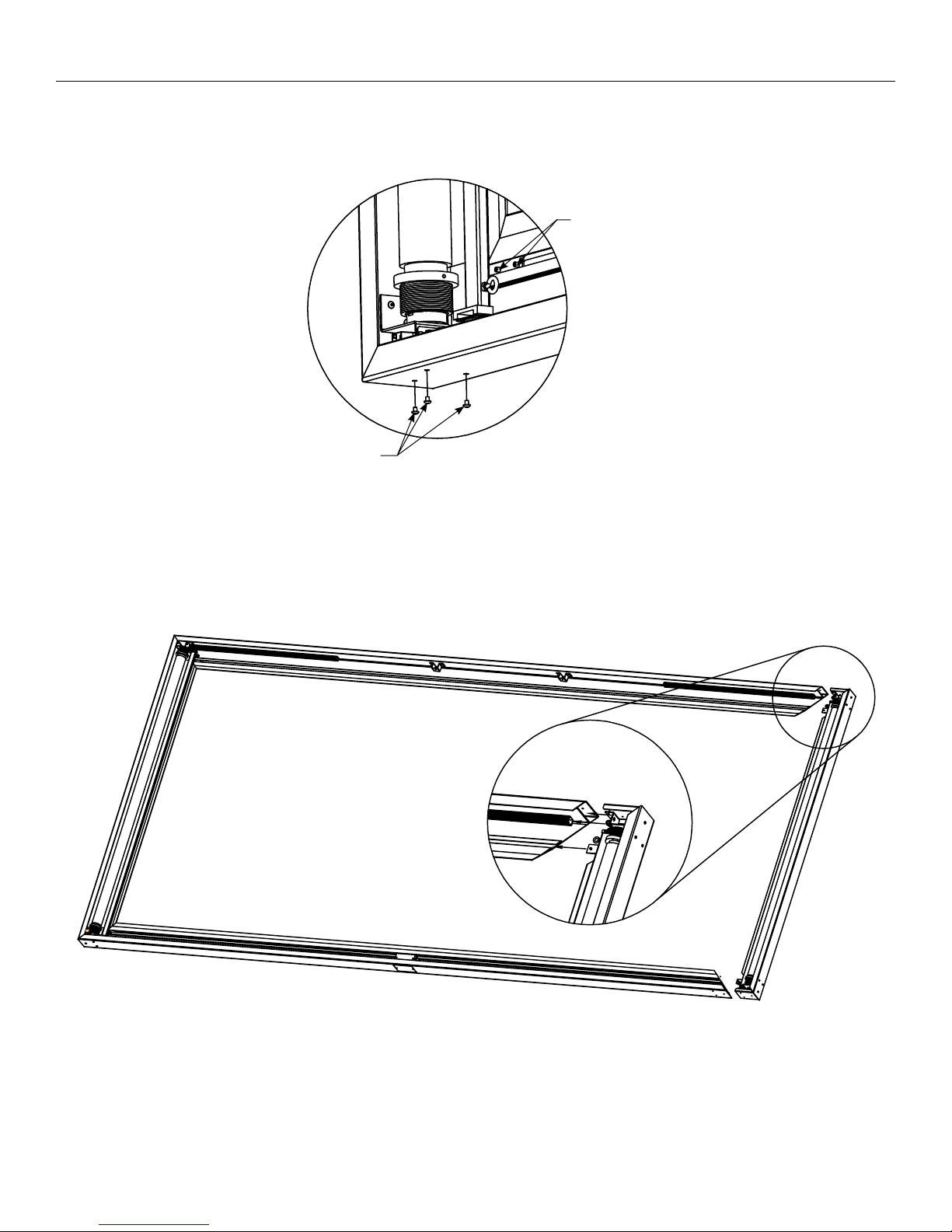

7. Finish assembling corner assembly by inserting (3) #10 x .375" long button head screws through bottom of frame into the corner

L connector bracket. Tighten two set screws on lat "L" bracket to line up the front faces as shown in Figure 10.

8. Assemble right side of frame to top and bottom frame assemblies. The two large black metal L brackets will slide into top and

bottom aluminum extrusion while the two small metal L brackets will slide into the aluminum channel. When sliding the right side

assembly into the aluminum extrusion, guide the slat roller carriage into the top and bottom guide channels as shown in Figure 11.

Multi Format Imager Assembly

Figure 10

Figure 11

9. Assemble top right and bottom right corner assembly by inserting (3) #10 x .375" long button head screws through bottom of frame

into the corner L connector bracket. Tighten two set screws on lat "L" bracket to line up the front faces as shown in Figure 12.

10. Route the two cable assemblies around motor bracket and plug the 3 wire male connector into the 3 wire female connector

on the motor bracket. The motor will have a gray data cable with an RJ45 connector on the end coming out of the head of the

motor. Plug this end into the RJ45 coupler. Tuck the RJ45 coupler underneath motor bracket securely to prevent entanglement

as shown in Figure 13.

Multi Format Imager Assembly

Figure 12

Figure 13

Tighten Set Screws

Until Front Surfaces

Are Flush

Plug Motor

Power In

Data Cable

From Motor Head

Tuck RJ45 Coupler

Underneath Motor

Bracket

Route Power

Cable Behind

Motor Bracket

Tuck Excess

Wire Underneath

Motor Bracket

Fasten Screws

Through Top Frame

Assembly Into

Connecting Bracket

Tighten Set Screws

Until Front Surfaces

Are Flush

Fasten Screws

Through Bottom Frame

Assembly Into

Connecting Bracket

11. Untape black steel wire tension cable from bottom left side assembly. Un-wire tie the cable assembly. Run black steel wire tension

cable down around pulley at end and bring back towards the end. You may have to pull slightly hard and clip the tension cable to

the eyebolt secured in the slat bar as shown in Figure 14. Be careful not to pinch your ingers in the spring. Repeat this step for

bottom right corner of screen.

Multi Format Imager Assembly

Figure 14

Pinch Guard

Wrap Wire

Tension Cable

Around Pulley

Clip Wire Tension

Cable To Eyebolt

12. Assemble pinch guard bracket using (2) #10 x .375" long button head screws to opposite side of pulley bracket as shown in Figure 15.

Repeat this step for bottom right corner of screen.

13. Untape black steel wire tension cable from top left side assembly. Un-wire tie the cable assembly. This cable assembly will have an

extra safety wire ran through the spring. Run black steel wire tension cable down around pulley at end and bring back towards the

end. You may have to pull slightly hard and clip the tension cable to the eyebolt secured in the slat bar as shown in Figure 16.

Be careful not to pinch your ingers in the spring. Repeat this step for top right corner of screen.

Multi Format Imager Assembly

Figure 15

Figure 16

Fasten Screws Through

Pinch Guard Bracket

Into Pulley Bracket

Wrap Wire

Tension Cable

Around Pulley

Pinch Guard

Bracket

Pinch Guard

14. Assemble pinch guard bracket using (2) #10 X .375" long button head screws to opposite side of pulley bracket as shown in Figure 17.

Repeat this step for top right corner of screen.

15. Attach irst side of safety cable to eyebolt in middle of screen. Attach other side of safety cable to the eyebolt in side of frame

in front of wind up pulley. Repeat this step for top right corner of screen.

Multi Format Imager Assembly

Figure 17

Figure 18

Fasten Screws Through

Pinch Guard Bracket

Into Pulley Bracket

Safety Cable

Passes Through

Middle Of Spring

Pinch Guard

Bracket

Clip Safety Cable

To Middle Eyebolt

Wall Mounting Assembly:

1. Depending on size of screen it will be shipped with either

2 wall brackets that are 48" long or 2 wall brackets that are

64" long. Two small "L" brackets included will be used to hold

frame securely to wall at bottom.

2. To install the Multi-Format Imager over a Da-Lite Perm-Wall

screen you will need to place the supplied wooden spacers

between the screen and the wall.

Da-Snap, Imager and Cinema Contour frame do not require

any spacers.

3. Refer to Figure 16 for hanger bracket location. Dimension "A"

will vary depending on the type of screen you have.

Dimension "A" is measured from the top of the screen

frame to the top of the hanger bracket.

Screen Type: Dimension "A"

Cinema Contour 33/4"

Perm-Wall 43/4"

Imager 43/4"

Da-Snap 51/4"

4. Both wall brackets must be mounted into at least two wall

studs. Two mounting points must be spaced at least 24" away

from each other. Wall studs must be 2 x 4 construction.

Check to make sure both brackets are vertically level with

each other.

5. Drill hole for mounting bracket in to wall. Dimension for hole

is shown from the top bracket to center hole position. It is

recommended to use a 1/4" x 11/2" Lag Screw (not supplied)

to fasten bracket to wall.

Multi Format Imager Installation

Figure 20

Figure 19

Mount Locations Must

Be Spaced At Least Three

Holes From One Another.

"A"

1 ½"
