Dacor DMW2420 Manuale di istruzioni

DMW2420

Page # Sheet Title

2 Oven Parts

4 Control Panel / Door Parts

Technical Service |14425 Clark Avenue |City of Industry, CA 91745 |PH 800-353-2267 |FAX 909-348-5601

Revised 04-04-2011

Technical Service |14425 Clark Avenue |City of Industry, CA 91745 |PH 800-353-2267 |FAX 909-348-5601 2

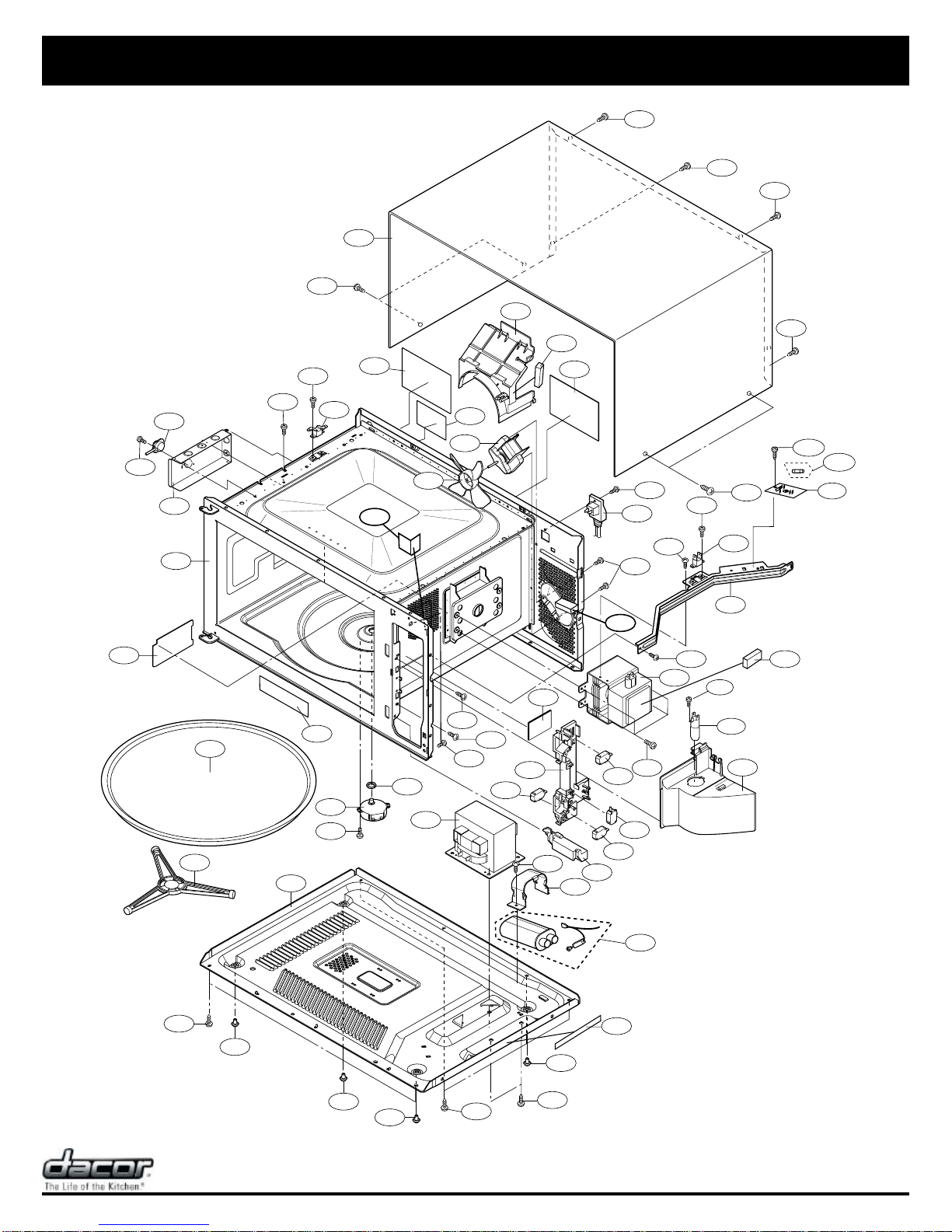

DMW2420 - Oven Parts

2-3

4-7

6-10

1-5

4-6

4-8

4-11

7-6

7-2

1-2

4-9

6-4

6-3

7-4

1-11

4-10

7-2

1-12

1-9

7-3 7-6

7-6

1-8

7-8

4-2

7-4

1-10

7-1

4-4

1-1

4-12

6-5

4-5

1-13

7-5

7-7

7-5

7-9

7-7

4-3 1-7

1-7

1-6

1-7

7-5

6-9

6-6

7-5

1-6

1-4

1-3

7-4

6-12

7-1

4-1

2-1

2-2

7-5

4-13

4-14

4-15

4-16

Technical Service |14425 Clark Avenue |City of Industry, CA 91745 |PH 800-353-2267 |FAX 909-348-5601 3

Ref # Part # Description

1-1 105418 High Voltage Assembly

1-2 105419 AH Sensor

1-3 105420 Oven Lamp

1-4 101937 Noise Filter

1-5 86805 Fan Motor

1-6 66179 Monitor Switch & Fuse Assembly

1-7 66236 Secondary Interlock Switch

1-8 86794 Magnetron Temperature Fuse

1-9 86795 Cavity Temperature Fuse

1-10 105421 Magnetron

1-11 66245 Turntable Motor

1-12 105422 Power Transformer

1-13 105423 Power Supply Cord

2-1 105424 Base Plate

2-2 105425 Foot

2-3 105426 Outer Case Cabinet

3-1 105427 CPU Unit

3-2 105428 Control Panel Frame Assy

3-3 66337B Open Button Assy

3-4 76170 Open Button Spring

3-5 86780 Screw, 3mm x 10mm

4-1 105429 H.V. Capacitor Band

4-2 105430 Chassis Support

4-3 105431 Latch Hook

4-4 86824 Switch Lever

4-5 105432 Magnetron Duct

4-6 105433 Fan Blade

4-7 105434 Fan Duct

4-8 N/A Oven Cavity (Not Replaceable)

4-9 105435 Waveguide Cover

4-10 105436 Turntable Motor Packing

4-11 105437 Sensor Duct

4-12 105438 Cushion

DMW2420 - Oven Parts

Technical Service |14425 Clark Avenue |City of Industry, CA 91745 |PH 800-353-2267 |FAX 909-348-5601 4

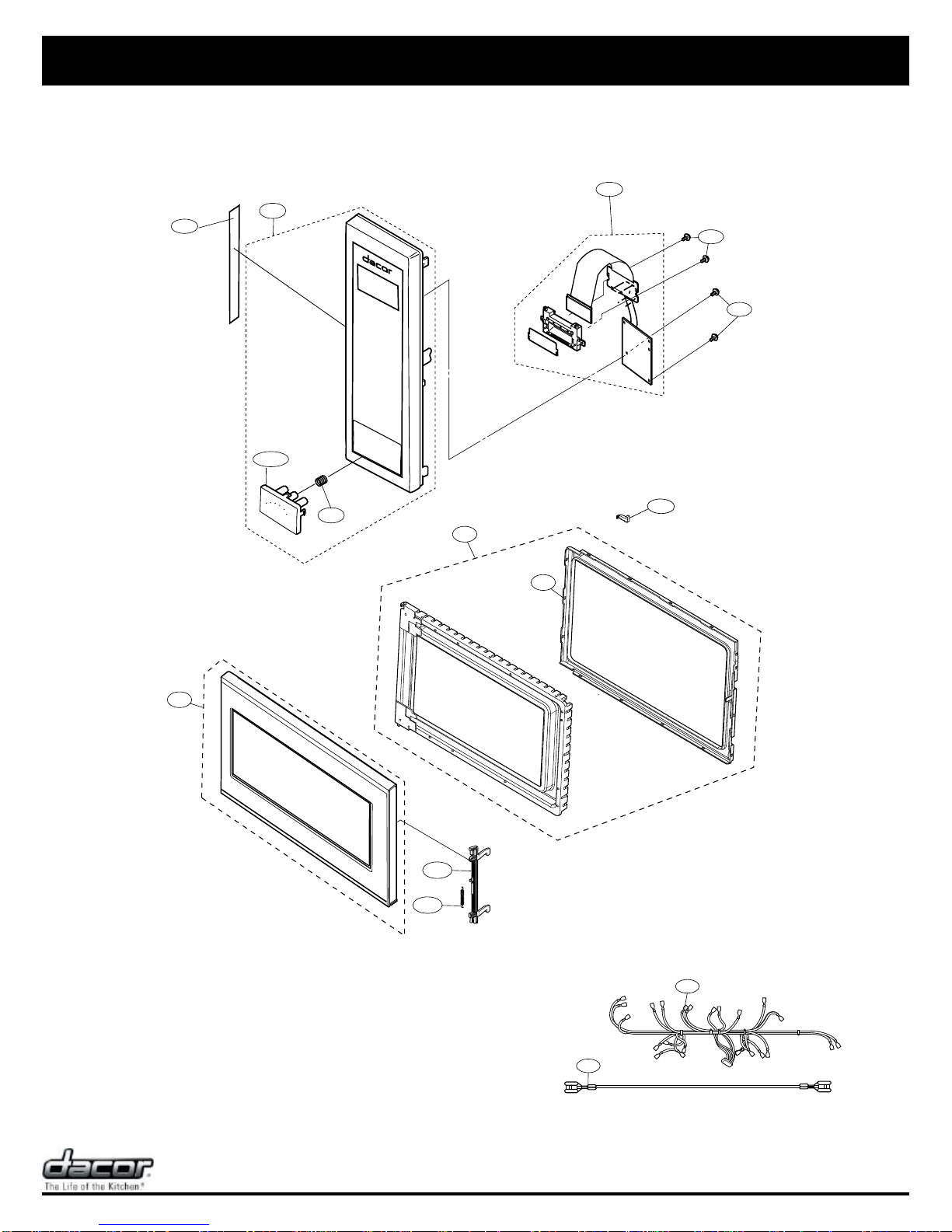

DOOR PARTS

MISCELLANEOUS

CONTROL PANEL PARTS

5-5

Actual wire harness may be dierent from illustration.

6-8

6-2

5-1

5-3

5-2

5-4

6-11

3-4

3-2

3-3

3-5

3-1

5-6

3-5

DMW2420 - Control Panel / Door Parts

Technical Service |14425 Clark Avenue |City of Industry, CA 91745 |PH 800-353-2267 |FAX 909-348-5601 5

DMW2420 - Control Panel / Door Parts

Ref # Part # Description

5-1 105439 Door Frame Assy

5-2 86785 Latch Head

5-3 86786 Latch Spring

5-4 105440 Door Panel

5-5 105441 Choke Cover

5-6 105442 Door Stopper

6-1 N/A Recipe Card

6-2 105443 Main Wire Harness

6-3 105444 Turntable Support

6-4 66344 Turntable Tray

6-5 N/A Monitor Caution Label

6-6 86845 DHHS/Screw Caution Label

6-7 N/A Operation Manual

6-8 86799 High Voltage Wire A

6-9 101273 DHHS/GRD/BIK Caution

6-10 N/A Health Canada Label

6-11 N/A User Caution Label

6-12 N/A Menu Label

7-1 105445 Special Screw

7-2 86820 Special Screw (Latch Hook)

7-3 86902 Screw, 4mm x12mm

7-4 86847 Screw

7-5 86905 Screw, 4mm x 12mm

7-6 101233 Screw, 3mm x 8mm

7-7 66866 Special Screw

7-8 86901 Screw, 4mm x 8mm

7-9 105446 Screw, 4mm x 12mm
