Dacor PMOR3021 Manuale di istruzioni

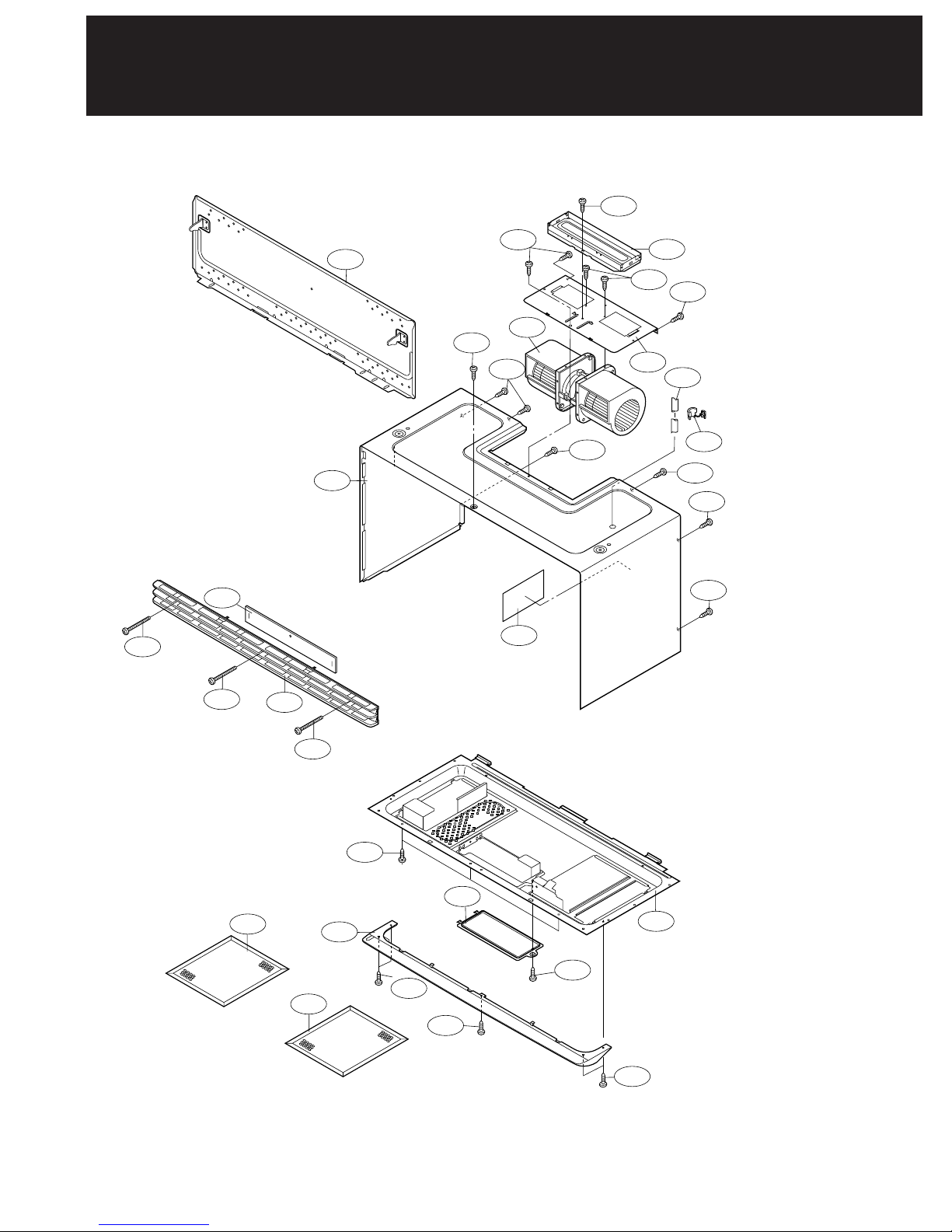

Exploded View Door/Control Panel Packing

Complete Parts List

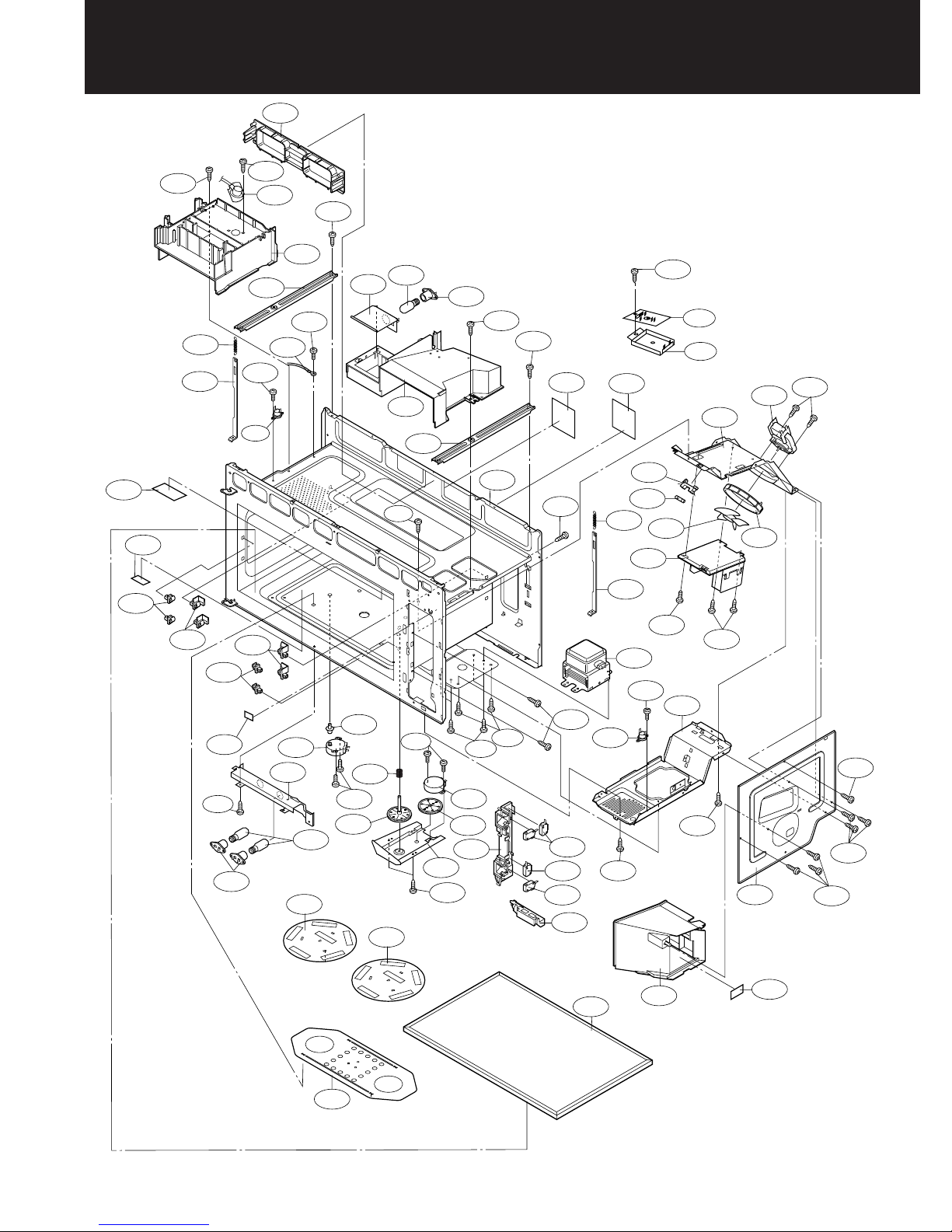

PMOR3021 Microwave

Oven Parts

4-20

1-13

1-9

1-11

4-11 4-21

1-1

7-2

4-16

4-13

1-2

7-3

7-6

1-6

4-9

7-5

7-2

7-1

6-9

4-6

1-10

1-11

2-3

4-14 7-2

7-2

4-5

7-3

7-2

6-14

7-6

4-2

4-3

7-6

1-14

7-6

1-5

4-30 1-8

1-7

4-29

4-19

4-16

4-13

4-31

6-8

4-18

4-4

7-2

4-17

4-27

4-26

4-22

4-8

7-6

4-15

6-8 1-4

4-28

6-10

7-2

4-7

7-2

7-3

7-2

7-6

4-24

1-8

4-25 4-23

1-4

1-7

1-15

4-32

7-2

6-17

OVEN PARTS

6-12

7-2

2-4

6-12

2-8

7-2

7-7

2-7

7-4

2-2

6-11

6-13

7-2

7-2 7-2

7-2

6-1-5

2-1

1-12

1-3

4-12

7-2

4-10

2-5

2-6

7-2

6-1

6-1-1

6-1-2

6-1-3 6-1-7

6-1-5

6-1-6

6-1-4

6-6

6-2

6-7

6-5

6-15

6-14

6-16

7-2

3-3

3-4

3-2

3-1

3-6

3-7

5-3

5-4

5-5

5-1

5-2

5-6

5-6 5-6

4-1

3-5

6-18

6-19

Attached to HV wire

@ Mag Terminals

Attached to Red & Blue

wires @ Inverter unit

DOOR PARTS

CONTROL PANEL PARTS

MISCELLANEOUS

TOP PAD

BOTTOM PAD

PACKING CASE

ACCESSORY PACK

WRAP COVER

DOOR PAD

Non-replaceable items

DOOR PROTECTOR

GREASE FILTER (x 2)

6-12

INSTALL MATERIAL ASSEMBLY

6-1

6-3 OPERATION MANUAL

6-4

SCALE PLATE (x 2)

6-15

Rack

Deflector

6-2

2-4

TOP AND WALL TEMPLATE

EXHAUST DAMPER

ASSEMBLY

6-13

PACKING AND ACCESSORIES

PMOR3021 Parts List

REF. NO. DESCRIPTION

ELECTRIC PARTS

1- 1 76227 Inverter unit

1- 2 76228 Magnetron

1- 3 66171 Power supply cord

1- 4 76229 Stirrer motor

1- 5 76230 Thermal cut-out (Oven) Open at 145

1- 6 76231 Thermal cut-out (Hood fan) N.O. Close at 60C Open at 45

1- 7 76232 Lamp socket

1- 8 76233 Oven lamp and hood lamps

1- 9 86796 Fuse holder

1-10 66236 Primary interlock/ Secondary interlock/ stop switches

1-11 66179 Monitor switch (V-16G-2C25) with fuse (20A) assembly

1-12 76234 Hood fan motor

1-13 76235 Fan motor

1-14 76236 Humidity sensor

1-15 76242 Noise Filter

CABINET PARTS

2- 1 76146 Rear stay

2- 2 76147 Hood louver [PMOR3021S] [PMOR3021B]

2- 2 76148 Hood louver [PMOR3021R]

2- 3 76149 Base plate R

2- 4 66607B Bottom sash [PMOR3021S] [PMOR3021B]

2- 4 66607R Bottom sash [PMOR3021R]

2- 5 76152 Outer case cabinet [PMOR3021S] [PMOR3021B]

2- 5 76153 Outer case cabinet [PMOR3021R]

2- 6 76154 Schematic diagram

2- 7 76155 Hood lamp glass assembly [PMOR3021S] [PMOR3021B]

2- 7 76156 Hood lamp glass assembly [PMOR3021R]

2- 8 76157 Base cover [PMOR3021S] [PMOR3021B]

2- 8 76158 Base cover [PMOR3021R]

CONTROL PANEL PARTS

3- 1 76159 Control unit

3- 2 76160 Screw; 3mm x 8mm

3- 3 76161 Key fixing angle

3- 4 76162 Key sheet assy [PMOR3021S] [PMOR3021B]

3- 4 76163 Key sheet assy [PMOR3021R]

3- 5 76164 Control panel frame assy [PMOR3021S]

3- 5 76165 Control panel frame assy [PMOR3021B]

3- 5 76166 Control panel frame assy [PMOR3021R]

3- 6 76167 Open button [PMOR3021S]

3- 6 76168 Open button [PMOR3021B]

3- 6 76169 Open button [PMOR3021R]

3- 7 76170 Button spring

PMOR3021

Dacor Technical Service 800-353-2267

Technical Service |14425 Clark Avenue |City of Industry, CA 91745 |PH 800-353-2267 |FAX 909-348-5601

PMOR3021 Parts List

Oven Parts

Ref # Part # Description

4-1 76171 Door Stopper

4-2 76172 Chassis Support

4-3 76173 Table Tray Assembly

4-4 76174 Stirrer Fan Assembly

4-5 76175 Magnetron Duct

4-6 86824 Open Lever

4-7 N/A Oven Cavity (Not Replaceable Part)

4-8 76177 Shield Spring

4-9 66871 Latch Hook

4-10 76179* Unit Mounting Plate Assembly*

4-11 76180 Fan Blade

4-12 66196 Cord Bushing

4-13 76473 Mounting Lever

4-14 76182 Hood Intake Duct R

4-15 76183 Hood Lamp Mount

4-16 86786 Latch Spring

4-17 76474 Distribution Plate Assembly

4-18 76185 Hood Duct R

4-19 76186 Hood Duct L

4-20 76187 Fan Duct

4-21 76188 Orice

4-22 76189 Left Stirrer Shaft

4-23 76190 Stirrer Motor Gear

4-24 76191 Motor Mounting Angle

4-25 76192 Stirrer Shaft Assembly

4-26 76193 Rack Holder

4-27 76194 Left Rear Rack Holder

4-28 76195 Right Rear Rack Holder

4-29 76196 Center Duct

4-30 76197 Oven Lamp Angle

4-31 66227 Lamp Filter

4-32 100894 Unit Angle

*Use P/N 76179 for models with numerical S/N.

Use P/N 105301 for models which S/N starts

with X-B.

Door Parts

Ref # Part # Description

5-1 76475 Door Assembly PMOR3021S

5-1 76199 Door Assembly PMOR3021B

5-1 76200 Door Assembly PMOR3021R

5-2 76201 Sealer Film

5-3 86785 Latch Head

5-4 86786 Latch Spring

5-5 76476 Choke Cover

5-6 66261 Screw, 4mm x 8mm

PMOR3021 Parts List

REF. NO. DESCRIPTION

MISCELLANEOUS

6- 4 76477 Top and Wall template

6- 5 76205 Oven lamp harness

6- 7 76206 Stop/ PWM wire harness

6-1 76207 Installation material assembly

6-10 76208 DHHS/GRD/CAUTION label

6-11 76209 Charcoal filter

6-1-1 66197 Grommet

6-12 76211 Grease filter

6-1-2 66204 Toggle screw

6-13 66180 Exhaust damper assembly

6-1-3 66209 Cord holder

6-14 76214 Sensor ground wire

6-1-4 66257 Screw : 5mm x 60mm

6-15 76215 Scale plate

6-1-5 86905 Screw : 4mm x 12mm

6-16 76216 Main wire harness

6-1-6 66267 Screw : 5mm x 35mm

6-1-7 66268 Washer

6-2 76217 Rack

6-3 76218 Operation manual

6-6 76219 High voltage wire assembly

6-8 76220 DHHS service caution label

6-9 76221 Monitor caution label

6-17 76239 NWH Caution

6-18 76240 Harness Ferrite

6-19 76241 Harness Ferrite

SCREWS,NUTS AND WASHERS

7- 5 86820 Special screw

7-1 76223 Screw : 5mm x 8mm

7-2 86905 Screw : 4mm x 12mm

7-3 86901 Screw : 4mm x 8mm

7-4 76225 Special screw [PMOR3021R]

7-4 76226 Special screw [PMOR3021S] [PMOR3021B]

7-6 86847 Screw : 3mm x 8mm

7-7 66847 Screw : 4mm

PMOR3021

Dacor Technical Service 800-353-2267
