Dacor PF36BNDFAGPA Manuale utente

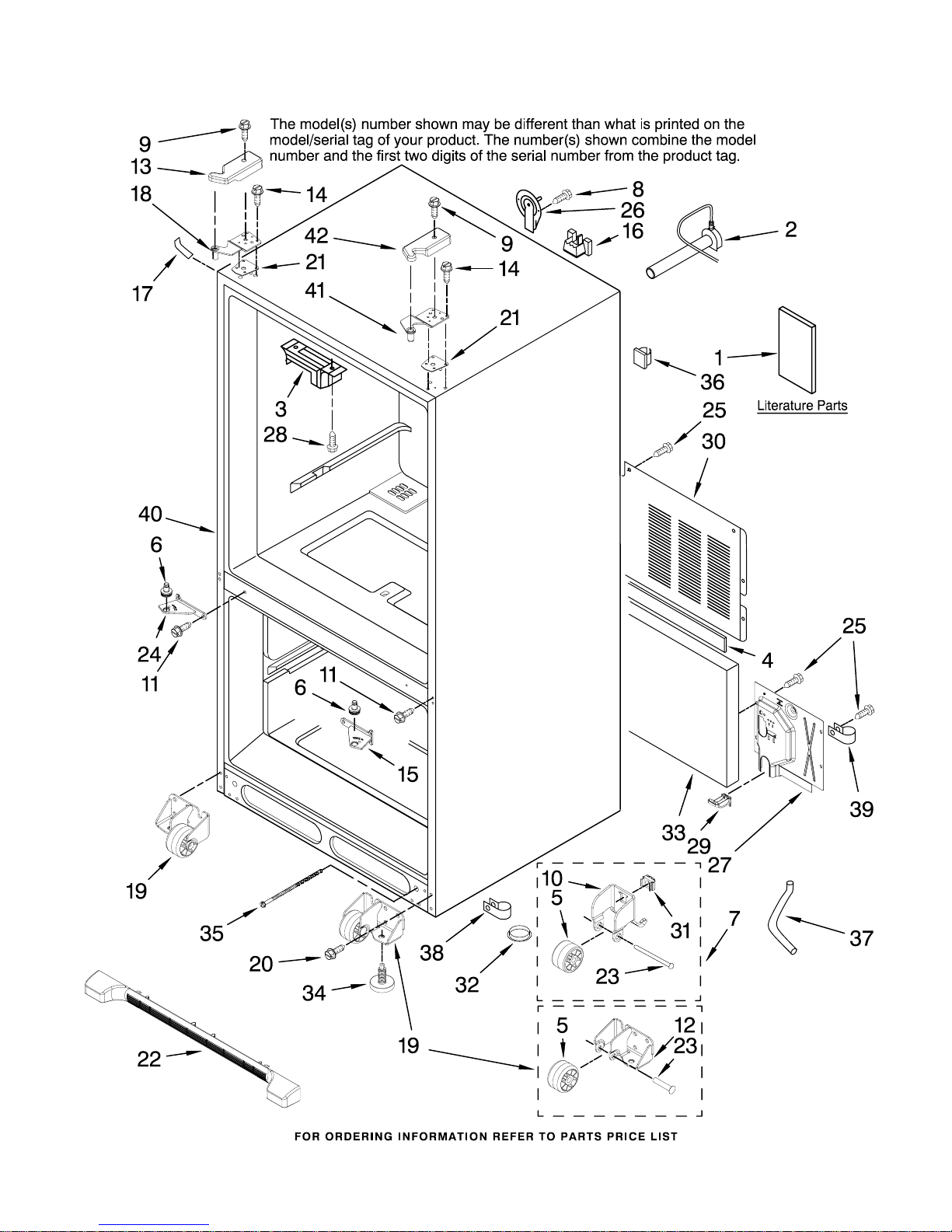

CABINET PARTS

For Models: PF36BNDFAGPA,PF36BNDFBUPA,PF36BNDFGNPA,PF36BNDFSGPA,PF36BNDFTSPA

(Anthracite Gray) (Blue Water) (Slate Green) (Sterling Gray) (Titanium Silver)

12−07 Litho In U.S.A. (PAL) Part No. W10179674 Rev.A

REFRIGERATOR

CABINET PARTS

2W10179674

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

67006616 Tech Sheet

W10171467

Owners Manual

W10180419

Guide, Energy

W10137519

Elbow, Fill Tube

3 67003405 Block, Pivot

4 B5759649 Gasket

5 67005127 Roller

6 67006642 Pin, Center Hinge

7 67006118 Roller Assy.(Rear)

8 67006287 Screw

9 67006521 Screw

10 12456801 Bracket, Roller

(Rear)

11 67006380 Screw (6)

12 Bracket, Roller

(Front)

W10137532

Left

W10137533

Right

13 Cover, Left Hinge

67006726 Black

14 67006303 Screw (6)

15 Hinge, Center (RT)

67002960 Black

16 67004092 Block, Fill Tube

17 Cover, Corner (2)

67003485 Black

12626908ED

Hinge, Top Left

19 Roller Assy.

(Front)

W10130459

Right

W10130460

Left

20 67006564 Screw (8)

21 12579702 Shim, Hinge

22 Grille, Toe

W10131134

Black

23 M1205302 Pin

24 Hinge, Center (LT)

67002960 Black

25 67006425 Screw (10)

26 67003331 Cover, Water Line

27 67004098 Cover, Water Valve

28 67006669 Screw (2)

29 67004101 Sweep, Dual Tube

30 67006101 Cover, Unit

31 M0286708 Nut, Speed

32 A3076901 Plug, Button

33 67003796 Insulation, Sound

W10141622

Brake, Foot

35 67006697 Bolt, Adjusting

(Rear)

36 M0104106 Clip (2)

37 67001066 Tube, Drain

38 67001067 Clip, Drain Tube

39 M0108105 Clamp, Tube

40 Cabinet (Not a

Servicable Part)

12626907ED

Hinge, Top Right

42 Cover, Right Hinge

12629801B

Black

For Models: PF36BNDFAGPA,PF36BNDFBUPA,PF36BNDFGNPA,PF36BNDFSGPA,PF36BNDFTSPA

(Anthracite Gray) (Blue Water) (Slate Green) (Sterling Gray) (Titanium Silver)

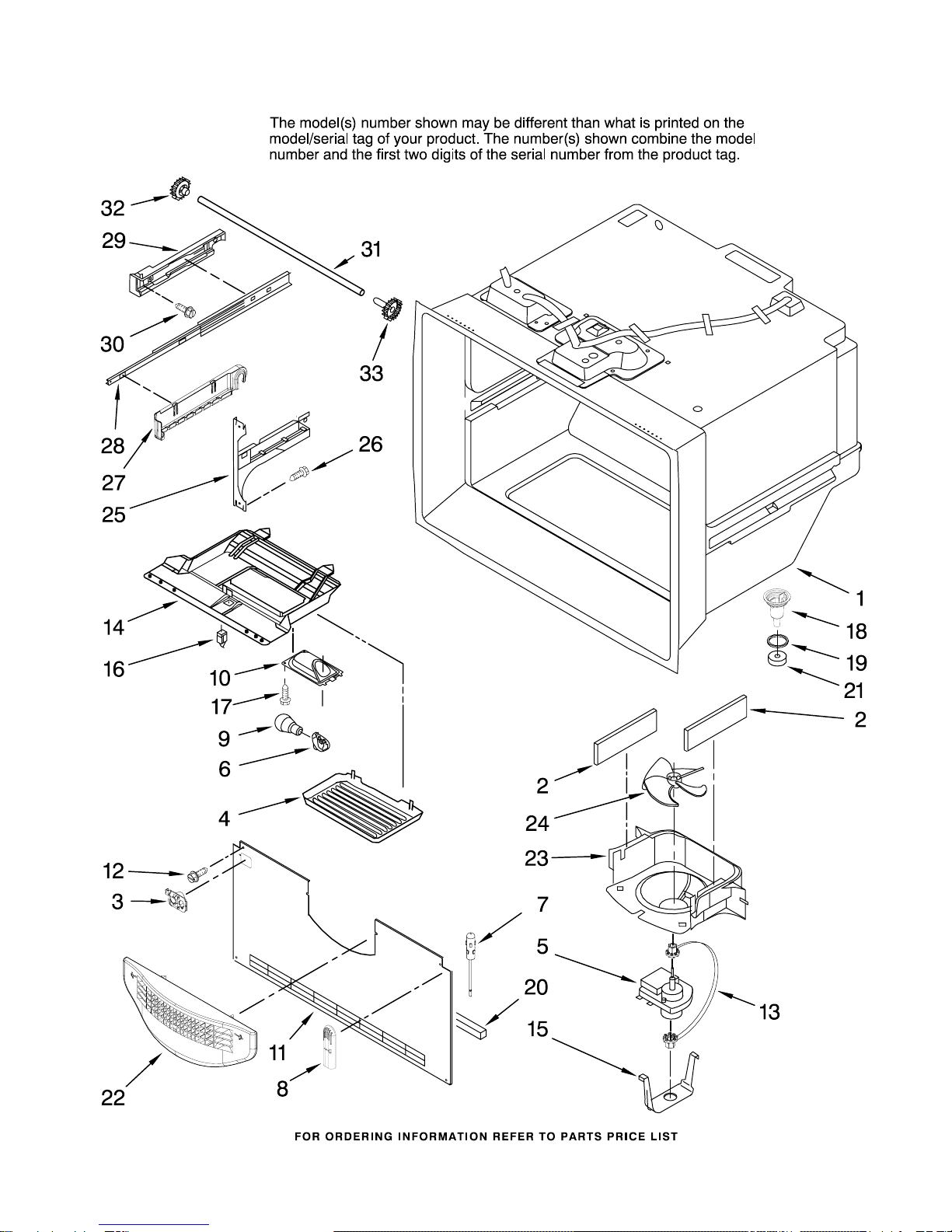

FREEZER LINER PARTS

W10179674

For Models: PF36BNDFAGPA,PF36BNDFBUPA,PF36BNDFGNPA,PF36BNDFSGPA,PF36BNDFTSPA

(Anthracite Gray) (Blue Water) (Slate Green) (Sterling Gray) (Titanium Silver)

FREEZER LINER PARTS

4W10179674

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam

3 67005874 Guide, Fill Tube

4 67003905 Cover, Light

5 67003636 Motor, Evaporator

Y12570701

Socket, Light

7 12002355 Thermistor

8 67003924 Cover, Thermistor

9 A0282812 Bulb, Light

10 67001035 Housing, Light

11 67005873 Cover, Evaporator

12 67006425 Screw (4)

W10121318

Grommet

14 67003906 Housing, Light

W10167028

Clip, Evap Motor

16 67005653 Switch, Light

17 67006530 Screw

18 D7753903 Funnel, Drain

19 M0500703 Seal

20 67002492 Gasket, Bottom

21 B8381501 Gasket

W10175909

Grille, Fz Air

W10167023

Shroud, Evap Fan

24 2169142 Blade, Fan

(Evaporator)

25 Bracket, Door

W10119064

Left

W10119295

Right

26 67006473 Screw (8)

27 Cradle, Basket

67004728 Left

67004729 Right

W10180420

Slide, Drawer (2)

29 Adapter, Slide

67004971 Left

67004972 Right

30 67006406 Screw (6)

31 67004017 Shaft

32 12002497 Gear (Left)

(Includes Item 33)

33 12002497 Gear (Right)

(Includes Item 32)

Following Parts Not Illustrated

67006095 Harness, Fz Module

For Models: PF36BNDFAGPA,PF36BNDFBUPA,PF36BNDFGNPA,PF36BNDFSGPA,PF36BNDFTSPA

(Anthracite Gray) (Blue Water) (Slate Green) (Sterling Gray) (Titanium Silver)

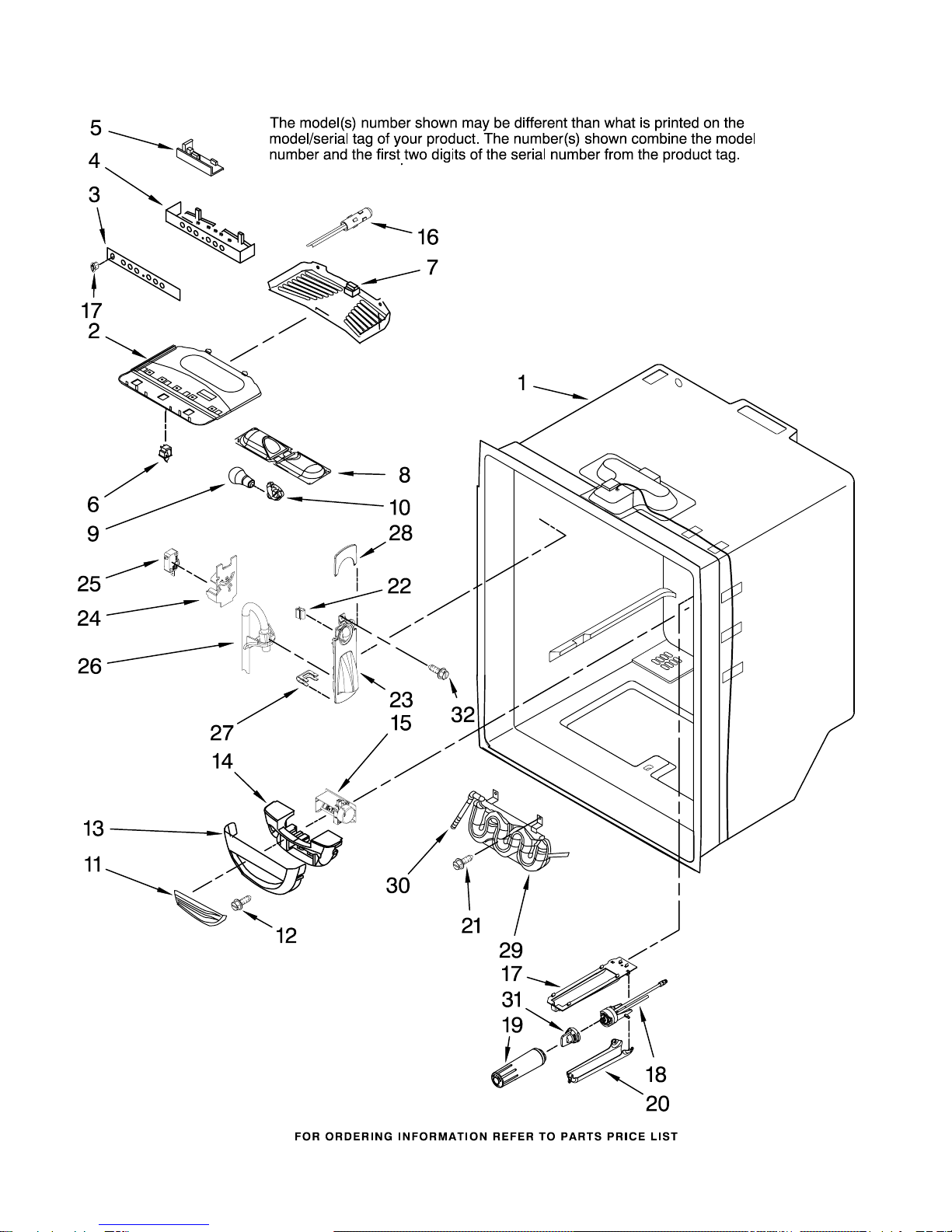

REFRIGERATOR LINER PARTS

W10179674

For Models: PF36BNDFAGPA,PF36BNDFBUPA,PF36BNDFGNPA,PF36BNDFSGPA,PF36BNDFTSPA

(Anthracite Gray) (Blue Water) (Slate Green) (Sterling Gray) (Titanium Silver)

REFRIGERATOR LINER PARTS

6W10179674

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 67004078 Module, Light

3 67006910 Keyboard

4 67005444 Module, Control

5 67005397 Board, Control

6 C3680310 Switch, Light (2)

7 67003897 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light (2)

Y12570701

Socket, Light (2)

11 67003900 Insert,

Damper Cover

12 67006602 Screw

13 67003899 Cover, Damper

14 67006604 Insulation

W10127429

Control, Damper

16 12002355 Thermistor

17 67001668 Plate

18 67006524 Head, Water Filter

19 67006470 Filter, Water

20 12568001 Cover, Filter

21 67006287 Screw (2)

22 B8390302 Clip, Facade (2)

W10158503

Facade, Disp.

24 67002742 Plate, Switch

25 12575501 Switch, Limit

26 67003728 Guide, Waterline

27 67002816 Clip, Waterline

28 67006909 Facade, Disp (Top)

W10153959

Tank, Water

30 61006182 Union

31 61003146 Plug, Bypass

32 67006400 Screw

Following Parts Not Illustrated

67005417 Harness, Control

(Refrigerator)

For Models: PF36BNDFAGPA,PF36BNDFBUPA,PF36BNDFGNPA,PF36BNDFSGPA,PF36BNDFTSPA

(Anthracite Gray) (Blue Water) (Slate Green) (Sterling Gray) (Titanium Silver)

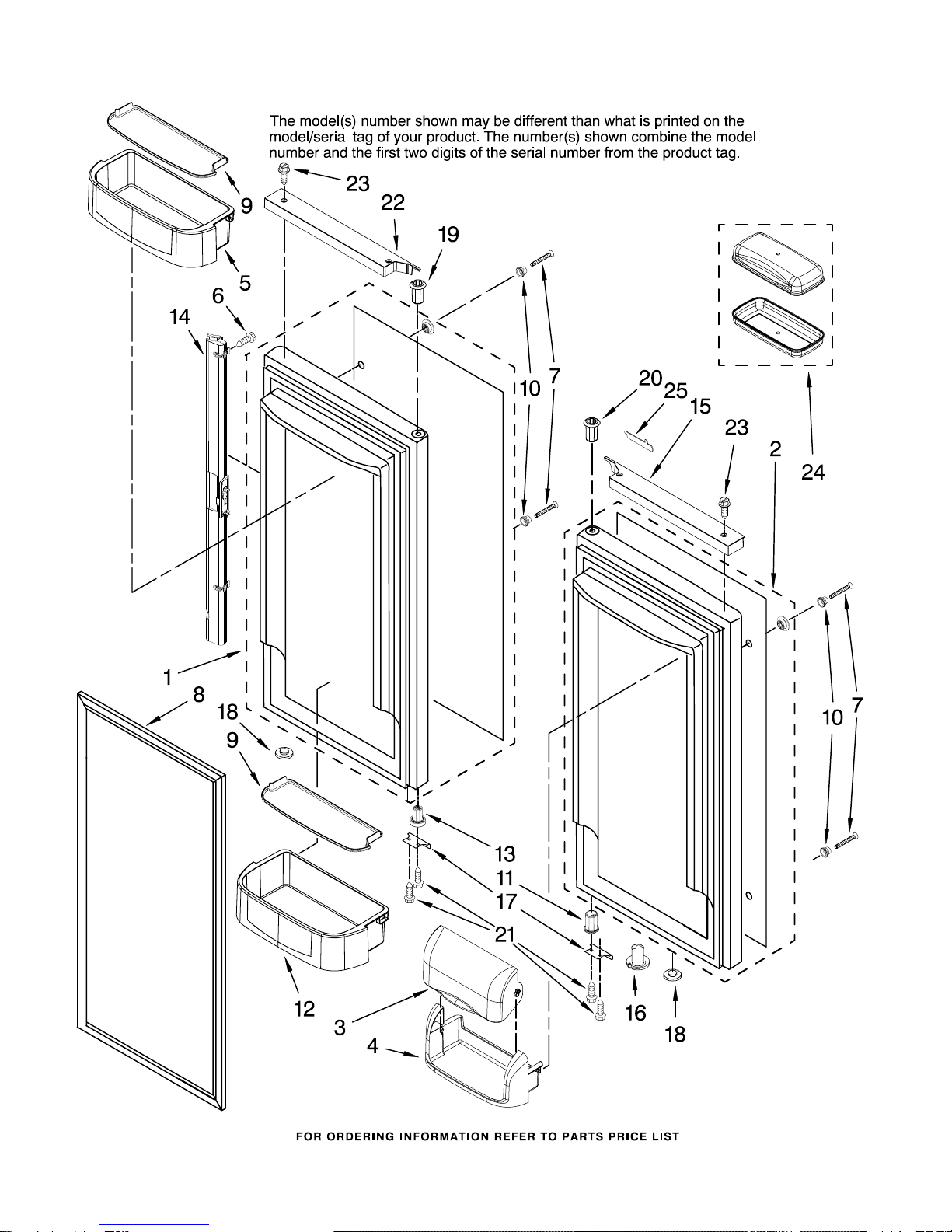

REFRIGERATOR DOOR PARTS

W10179674

For Models: PF36BNDFAGPA,PF36BNDFBUPA,PF36BNDFGNPA,PF36BNDFSGPA,PF36BNDFTSPA

(Anthracite Gray) (Blue Water) (Slate Green) (Sterling Gray) (Titanium Silver)

REFRIGERATOR DOOR PARTS

8W10179674

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Door, Left

W10179342

Anthracite Gray

W10179490

Black

W10179335

Blue Water

W10179337

Slate Green

W10179339

Sterling Gray

W10179341

Titanium Silver

2 Door, Right

W10179343

Anthracite Gray

W10179489

Black

W10179333

Blue Water

W10179336

Slate Green

W10179338

Sterling Gray

W10179340

Titanium Silver

3 67003637 Door, Dairy

4 67001279 Tray, Dairy

5 67003775 Bin, Shelf (3)

(Medium)

6 67006783 Screw

W10133608

Screw

8 Gasket, Door (2)

12723206B

Black

9 Gripper

67009606 Medium Bucket

67006907 Gallon Bucket

10 67006113 Mount, Handle

11 67002731 Bushing, Door

(Bottom Right)

12 67005258 Bin, Shelf (2)

(Gallon)

13 67002721 Bushing, Door

(Bottom Left)

14 Mullion, Door

67003264 Black

15 67005569 Extension, Door

(Right−Black)

16 Closure, Door

67003639 Black

17 Stop, Door

67003780 Black

18 Plug, Button

67004838 Black

19 Bushing, Door

(Upper Left)

12395501B

Black

20 Bushing, Door

(Upper Right)

67004978 Black

21 67006287 Screw

22 67005567 Extension, Door

(Left−Black)

23 67006679 Screw, Extension

24 67006229 Dish Assy., Butter

25 67006172 Nameplate

For Models: PF36BNDFAGPA,PF36BNDFBUPA,PF36BNDFGNPA,PF36BNDFSGPA,PF36BNDFTSPA

(Anthracite Gray) (Blue Water) (Slate Green) (Sterling Gray) (Titanium Silver)

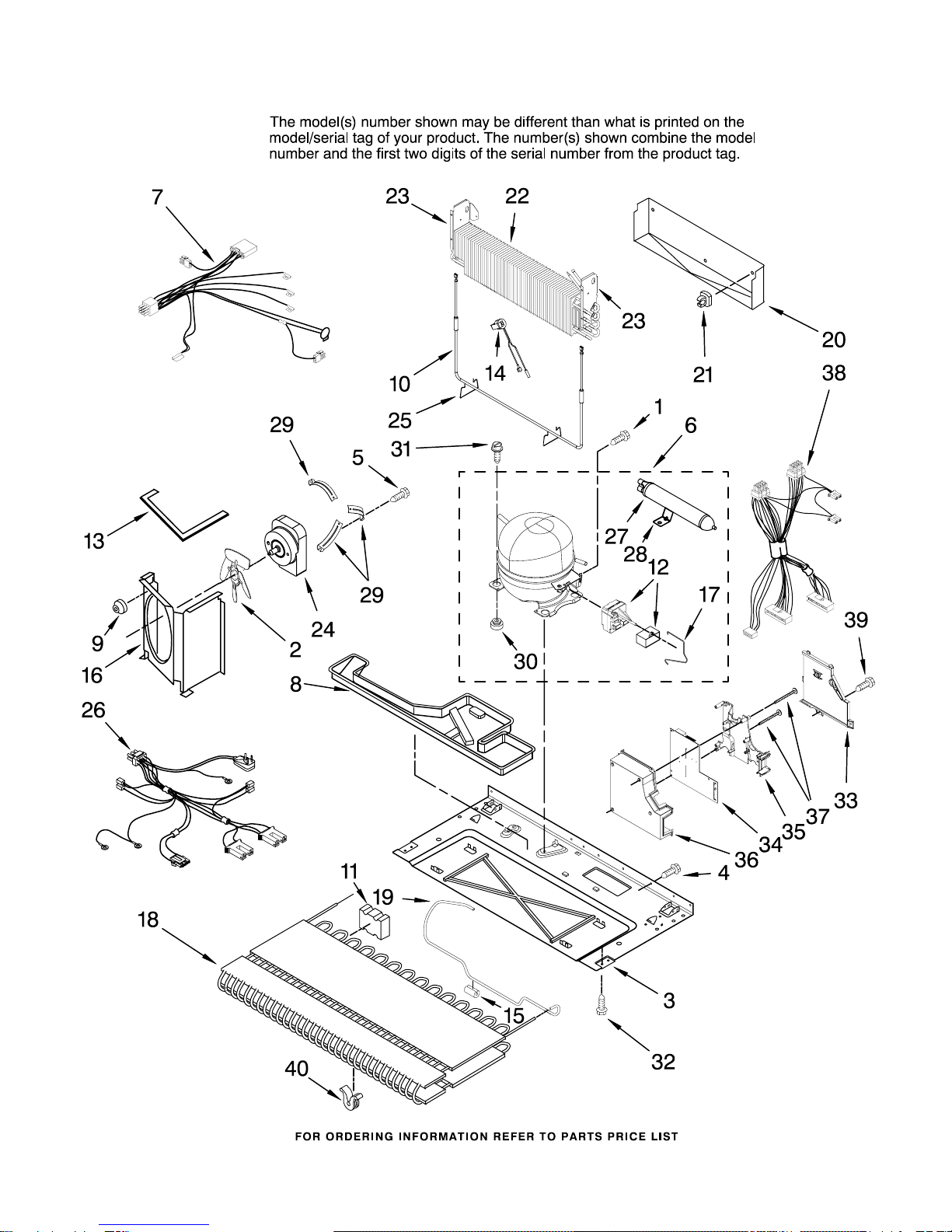

UNIT PARTS

W10179674

For Models: PF36BNDFAGPA,PF36BNDFBUPA,PF36BNDFGNPA,PF36BNDFSGPA,PF36BNDFTSPA

(Anthracite Gray) (Blue Water) (Slate Green) (Sterling Gray) (Titanium Silver)

UNIT PARTS

10 W10179674

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 67006433 Screw

W10162928

Blade, Fan

3 67005889 Basepan

4 67006425 Screw (2)

5 67004954 Screw (3)

6 12002634 Compressor Kit

(Includes items

11,12,17,27, &

30)

W10119857

Harness, Evap

Heater

8 67007175 Pan, Drain

9 61004743 Grommet (3)

10 67002493 Heater, Defrost

11 67005491 Block, Condenser

12 67005560 Relay Assy.

(Incl. Capacitor)

13 61003210 Gasket

W10165425

Thermostat, Def.

15 67005680 Grommet (2)

W10158508

Shroud

17 67007052 Clip, Capacitor

18 67006131 Condenser

19 67004700 Tube, Discharge

20 67002490 Tray, Drip

21 10623002 Clip, Evaporator

22 12002041 Evaporator Kit

(Incl. Evap., Heat

Shield, & Instr.

Sheet)

23 Dam

67001084 Right Side

67001083 Left Side

24 67004432 Motor, Fan

25 10428101 Clip, Heater

26 13060201 Harness, Unit

with Power Cord

27 2317845 Drier

28 10547003 Clip, Drier

29 67004953 Bracket, Fan Motor

30 67003493 Grommet (4)

31 67006432 Screw (3)

32 67006573 Screw (4)

33 67005421 Cover, HV Box

W10173398

Board, HV Control

(Inc. Inst. Sheet)

35 67005418 Spacer, HV Box

36 67004969 Box, HV

37 67006550 Screw (2)

38 67005419 Harness, HV

39 67006615 Screw, Cover

W10137529

Grommet, Cond. (4)

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.0 Ozs.

(R−134A)

For Models: PF36BNDFAGPA,PF36BNDFBUPA,PF36BNDFGNPA,PF36BNDFSGPA,PF36BNDFTSPA

(Anthracite Gray) (Blue Water) (Slate Green) (Sterling Gray) (Titanium Silver)
