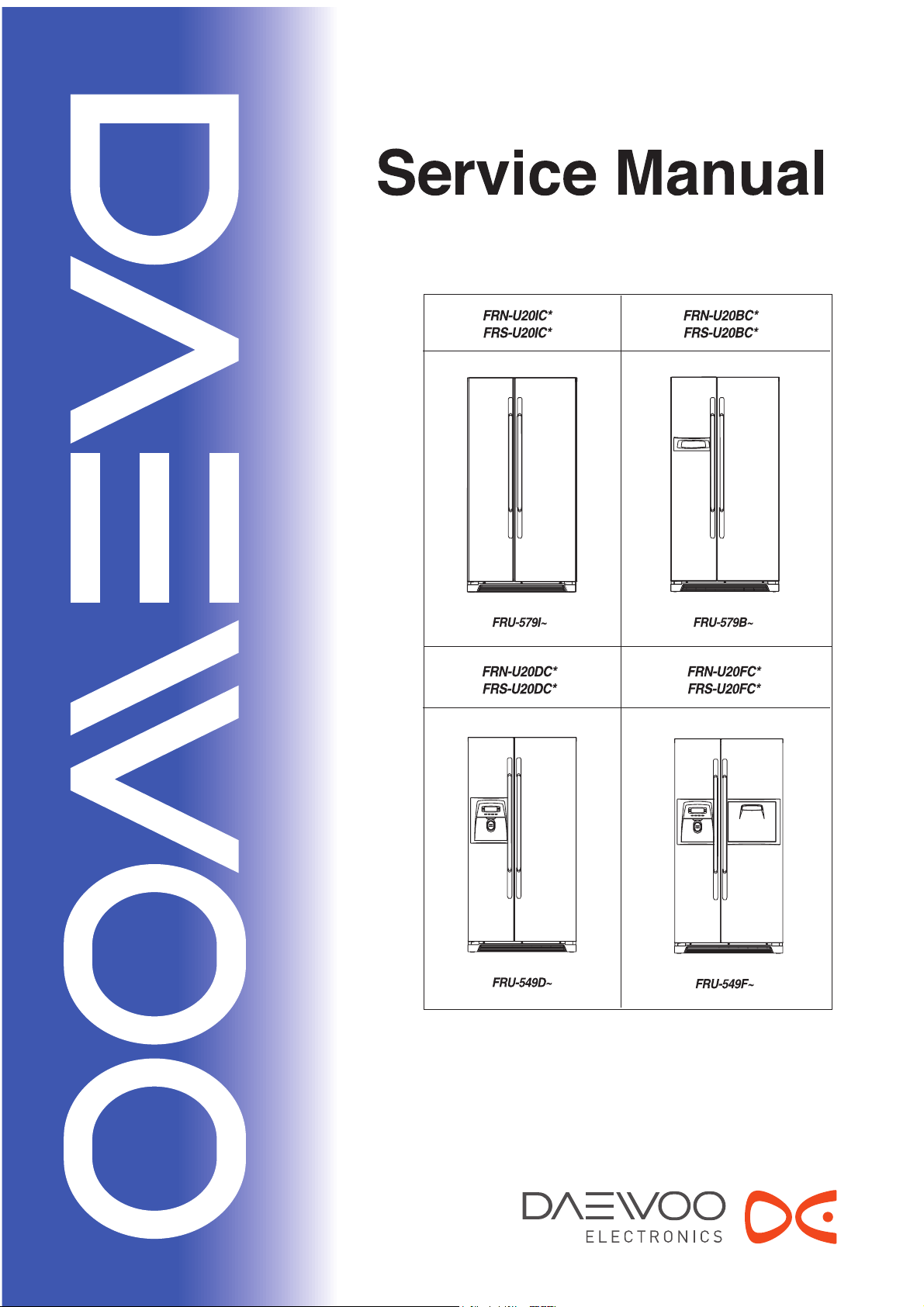

DAEWOO ELECTRONICS FRN-U20IC Manuale utente

Refrigerator

S/M No: RU54957901

- May, 2006

✔

Caution

: In this Manual, some parts can be changed for improving, their

performance without notice in the parts list. So, if you need the

latest parts information,please refer to PPL(Parts Price List) in

Service Information Center

C O N T E N T S

1. WARNINGS AND PRECAUTIONS FOR SAFETY ------------------------------2

2. EXTERNAL VIEW

2-1. External Size ---------------------------------------------------------------------------3

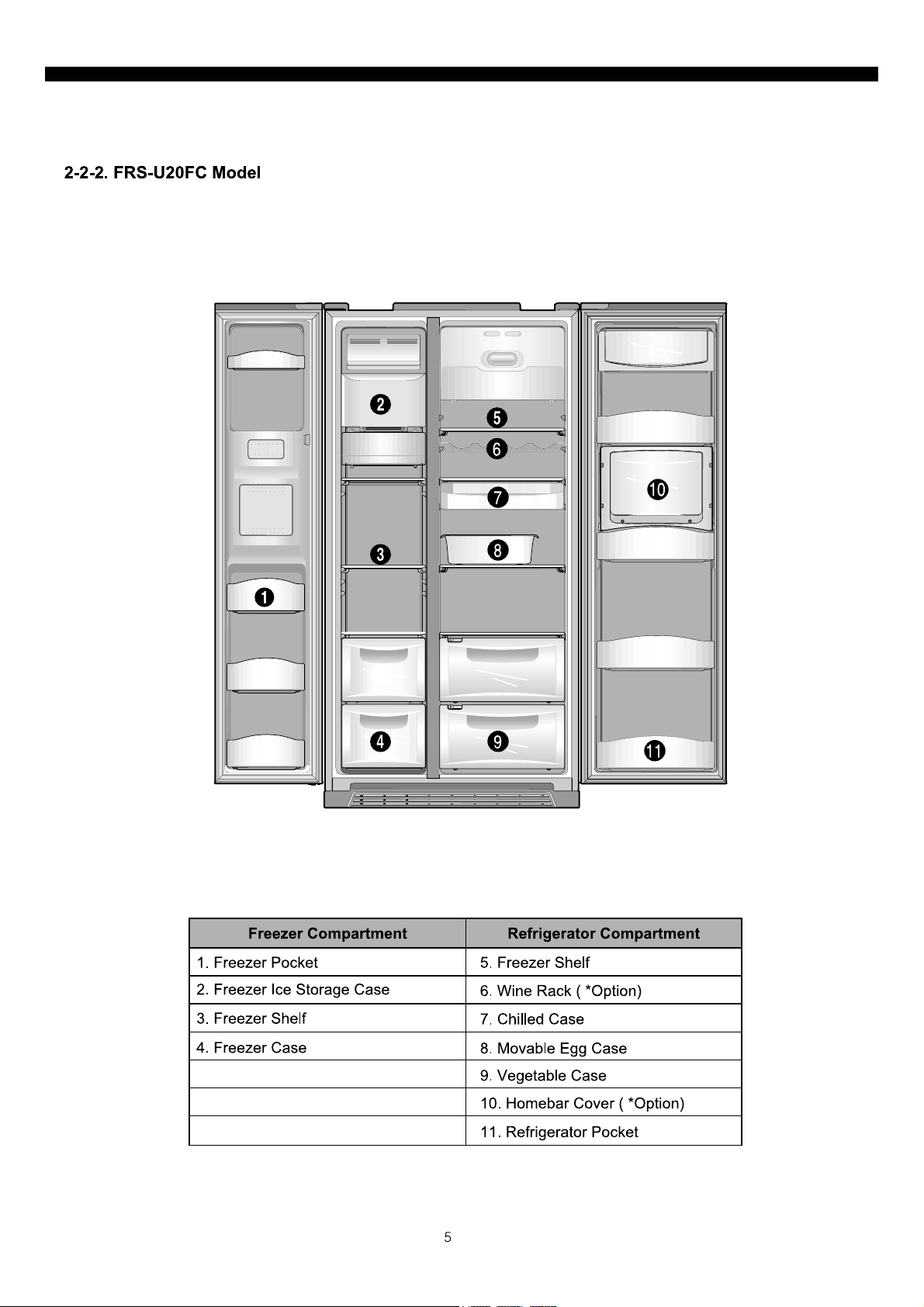

2-2. Name of Each Parts ------------------------------------------------------------------4

2-3. Cold Air Circulation -------------------------------------------------------------------6

3. SPECIFICATION --------------------------------------------------------------------------7

4. OPERATION AND FUNCTIONS -----------------------------------------------------9

5. DIAGRAM

5-1. Wiring Diagram -----------------------------------------------------------------------32

6. TROUBLE DIAGNOSIS

6-1. Faulty start ----------------------------------------------------------------------------37

6-2. Freezer Compartment --------------------------------------------------------------38

6-3. Refrigerator Compartment ---------------------------------------------------------43

6-4. Operation Noise of Refrigerator --------------------------------------------------48

6-5. Door -------------------------------------------------------------------------------------54

7. COOLING CYCLE HEAVY REPAIR

7-1. Summary of Heavy Repair --------------------------------------------------------55

7-2. Precaution during Heavy Repair -------------------------------------------------56

7-3. Practical Work for Heavy Repair -------------------------------------------------57

7-4. Standard Regulations for Heavy Repair ---------------------------------------59

7-5. Brazing Reference Drawing -------------------------------------------------------60

8. INSTALLATION GUIDE

8-1. Installation Preparation ------------------------------------------------------------ 61

8-2. If the Refrigerator can not enter the Door -------------------------------------62

8-3. Refrigerator Leveling & Door Adjustment -------------------------------------64

8-4. Water Line Installation ------------------------------------------------------------- 65

8-5. Dispenser Water Flow ------------------------------------------------------------- 67

9. COMPONENT LOCATE VIEW -----------------------------------------------------68

10. HOW TO CHECK EACH PARTS

10-1. Hose Ice Maker Tube --------------------------------------------------------------70

10-2. Bracket Geared Motor -------------------------------------------------------------71

10-3. Dispenser Micro Switch -----------------------------------------------------------72

10-4. Dispenser Solenoid Valve --------------------------------------------------------73

10-5. Ice Maker -----------------------------------------------------------------------------74

11. EXPLODED VIEW & PARTS LIST ------------------------------------------------76

Please observe the following safety precautions in order to use safely and correctly the refrigerator

and to prevent accident and danger during repair.

1. Be care of an electric shock. Disconnect power cord from wall outlet and wait for more than

three minutes before replacing PCB parts.

Shut off the power whenever replacing and repairing electric components.

2. When connecting power cord, please wait for more than five minutes after power cord was

disconnected from the wall outlet.

3. Please check if the power plug is pressed down by the refrigerator against the wall.

If the power plug was damaged, it may cause fire or electric shock.

4. If the wall outlet is over loaded, it may cause fire.

Please use its own individual electrical outlet for the refrigerator.

5. Please make sure the outlet is properly earthed, particularly in wet or damp area.

6. Use standard electrical components when replacing them.

7. Make sure the hook is correctly engaged.

Remove dust and foreign materials from the housing and connecting parts.

8. Do not fray, damage, machine, heavily bend, pull out or twist the power cord.

9. Please check the evidence of moisture intrusion in the electrical components.

Replace the parts or mask it with insulation tapes if moisture intrusion was confirmed.

10. Do not touch the icemaker with hands or tools to confirm the operation of geared motor.

11. Do not let the customers repair, disassemble and reconstruct the refrigerator for themselves.

It may cause accident, electric shock, or fire.

12. Do not store flammable materials such as ether, benzene, alcohol, chemicals, gas, or

medicine in the refrigerator.

13. Do not put flower vase, cup, cosmetics, chemicals, etc., or container with full of water

on the top of the refrigerator.

14. Do not put glass bottles with full of water into the freezer.

The contents shall freeze and break the glass bottles.

15. When you scrap the refrigerator, please disconnect the door gasket first and scrap it

where children are not accessible.

1. WARNINGS AND PRECAUTIONS FOR SAFETY

3. SPECIFICATION

3-1. Specification

113kg104kg 115kg

334 Li

170 Li

504 Li

357 Li

184 Li

541Li

FRS(N)-U20FC

339 Li

198 Li

537 Li

361 Li

209 Li

570 Li

FRS(N)-U20BC

EIDΦ0.7 ×T0.55 ×L2200Capillary Tube

Molecular Sieve XH-9Dryer

Fan Cooling SystemCondenser

Fin TypeEvaporator

541 Li570 LiTotal

ISO Gross

Volume

(Li) 184 Li209 LiFreezer

357 Li361 LiRefrigerator

895 mm x 731.5mm x 1790 mm

104kg

339 Li

198 Li

537 Li

FRS(N)- U20IC

External Dimension

(Width x Depth x Height)

Weight

334 LiRefrigerator

170 LiFreezer

504 LiTotal

ISO Storage

Volume

(Li)

FRS(N)-U20DCModel Name

SpecificationItem

※( ) is the specification for the model which use R-600a(refrigerant)

R-600a (76g)R-134a (190g)R-134a (190g)Refrigerant ( g )

39561452503956183D50395S130R50Part Code

MK4A5Q-R1U

3011402100

265RHB, S330

MK183Q-L2UHPL30YG-5Description

Compressor

3018129810

308NHB, S330

Part Code

Description

SWITCH

P RELAY AS

DC13V / 1100±100 rpm

Condenser

Fan Motor

DC13V / 1950±100 rpmR-Fan Motor

DC13V / 2050±100 rpmF-Fan Motor

Dispenser Model

Specification ( 220~240V Models only )Item

Basic ModelModel Name

AC250V , 10A , 77℃Fuse Temp (Defrost)

PBN-38F-Sensor

D-Sensor

AC220V / 5W-Water Pipe Heater

AC220V / 5W-Dispenser Heater

AC220V / 8WLouver Heater

SP201R-7DL / SP201R-7DR

(SPF101B-2D / SPF101B-1D)

AC230~240V / 25W (2EA)

R-Lamp

Door Switch , F / R

F-Lamp

AC250V 15AMain Fuse (Power cord)

AC220V / 7WMain Duct Heater

AC220V / 192WDefrost Heater

PBN-43

R-Sensor

4-1. Display

54321Temp indication

Max

Medium

Max

Mid

Medium

Min

MinTemperature Chang

54321Temp indication

Max

Medium

Max

Mid

Medium

Min

MinTemperature Change

1. “FRZ.TEMP” Button

1) Temperature control of Freezer compartment

2) 5 step mode of successive temperature mode.

3) Initial mode by power input : “3”

※Whenever pressing button, setting is repeated in the order of

Medium(3) →Medium Max(4) →Max(5) →Min(1) →Medium Min(2).

2. “REF.TEMP” button.

1) Temperature control of Refrigerator compartment

2) 5 step mode of successive temperature mode.

3) Initial mode by power input : “3”

※Whenever pressing button, setting is repeated in the order of

Medium(3) →Medium Max(4) →Max(5) →Min(1) →Medium Min(2).

INPUT CONTROL OBJECT

CONTENTS REMARKS

FRZ.TEMP, REF.TEMP Inner Control (Lamp-LED)

4-1-1. FRS(N)-U20IC Type

※The actual inner temperature varies depending on the food status, as the indicated setting

temperature is a target temperature, not actual temperature within refrigerator.

※Refrigeration function is weak in the initial time.

Please adjust temperature as above after using refrigerator for minimum2~3 days.

Temperature adjustment button

for refrigerator compartment.

Temperature adjustment button

for freezer compartment.

4. OPERATION AND FUNCTIONS
