Daewoo ERF-364MBB Manuale utente

Service Manual

No-Frost

Combi-Refrigerator

Models:

ERF-364MBB, ERF-364MB

W, ERF-3

64MBI, ERF-364MBT

ERF-384MBB, ERF-384MBW, ERF-384MBI, ERF-384MBT

DAEWOO ELECTRONICS

MANUFACTURING ESPAÑA, S.A.

. CONTENTS

1. SPECIFICATIONS

2. EXTERNAL DRAWINGS

3. MACHINE ROOM VIEW

4. REFRIGERANT CYCLE

5. WIRING DIAGRAM

6. COMPONENTS DISASSEMBLY PICTURES

7. DOOR POSITION CHANGE PROCESS

8. EXPLODE DRAWING

9. PARTS LIST

1. SPECIFICATIONS

REMARKS:* Dept exception handle

1.2. Types of the approved safety standars

366MNL

386MNL

396MNL

416MNL

Freezer 94 109 94 109

Refrigerator 218 218 252 252

Total 312 327 346 361

Height 1765 1854 1896 1985

Width 600 600 600 600

Depth * 642 642 642 642

* ***

NNNN

69 71 71 74

MECHANIC TYPE

R-134A

100 grs

KPC CBE-140L5Z

180

Rated input (W)

Defrost system

Compressor

C-PENTANE

Fan cooling system

Automatic start & Automatic stop system

AC220~240V / 50Hz

External

dimension

(mm)

Lamp rated input (W)

Gross

capacity

(liter)

Energy class

Division

Model name

Cooling system

Blowing agent

Refrigerant type

Rated voltage

Refrigerant Q´ty

Net weight (kg)

Freezing capacity(kg/24h)

Climate class

Star rating

2. EXTERNAL DRAWINGS

600 18

B A

638.5

32.5

595.2

ERF-386M

ERF-396M

ERF-366M

ERF-416M

1854 1811

MODEL

492

554

524

1765

1896

1985

1722

1853

1942

967

1098

967

1098

698

787

862.5

993.5

621.5

710.5

BDF

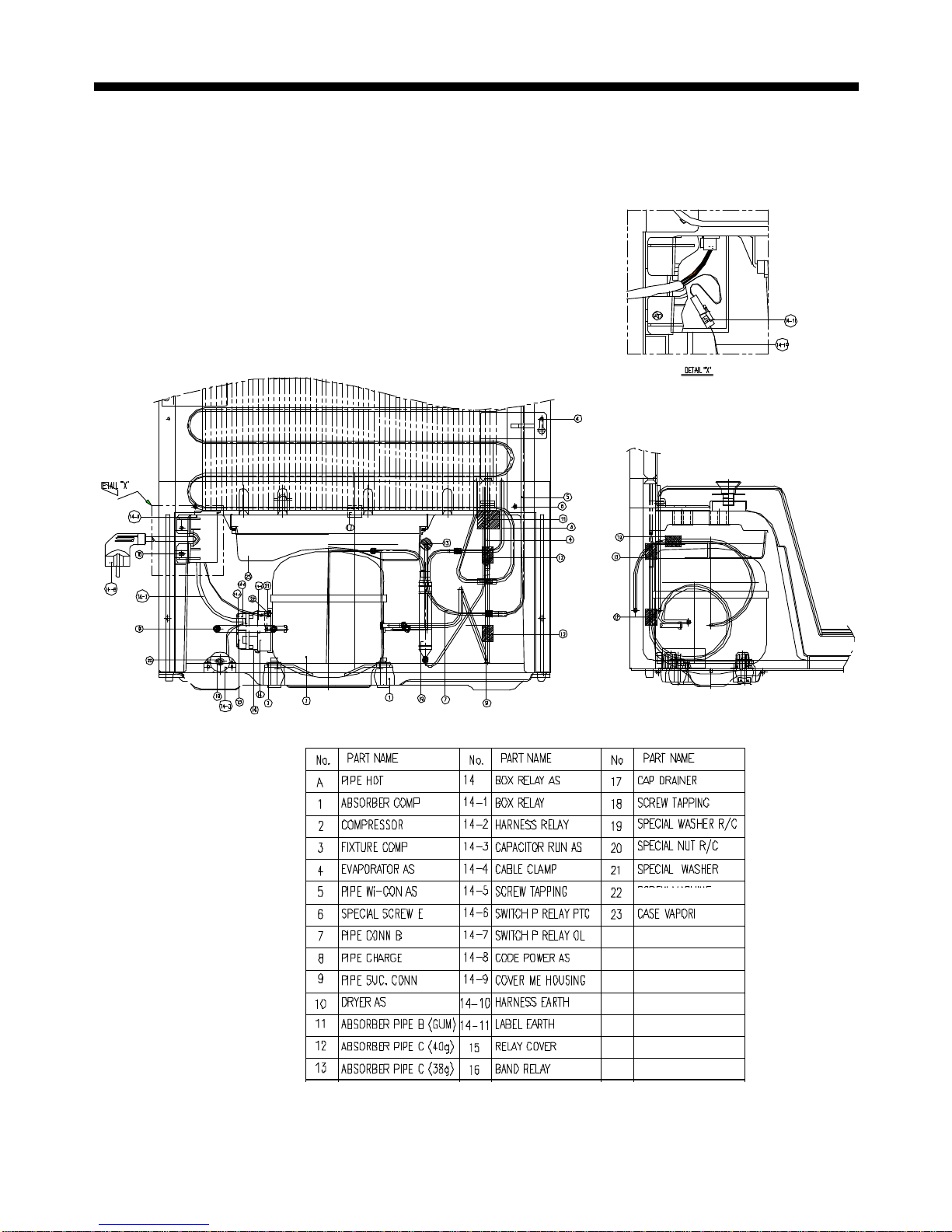

4. MACHINE ROOM VIEW

SCREW MACHINE

5. REFRIGERANT CYCLE

CAPILLARY TUBE

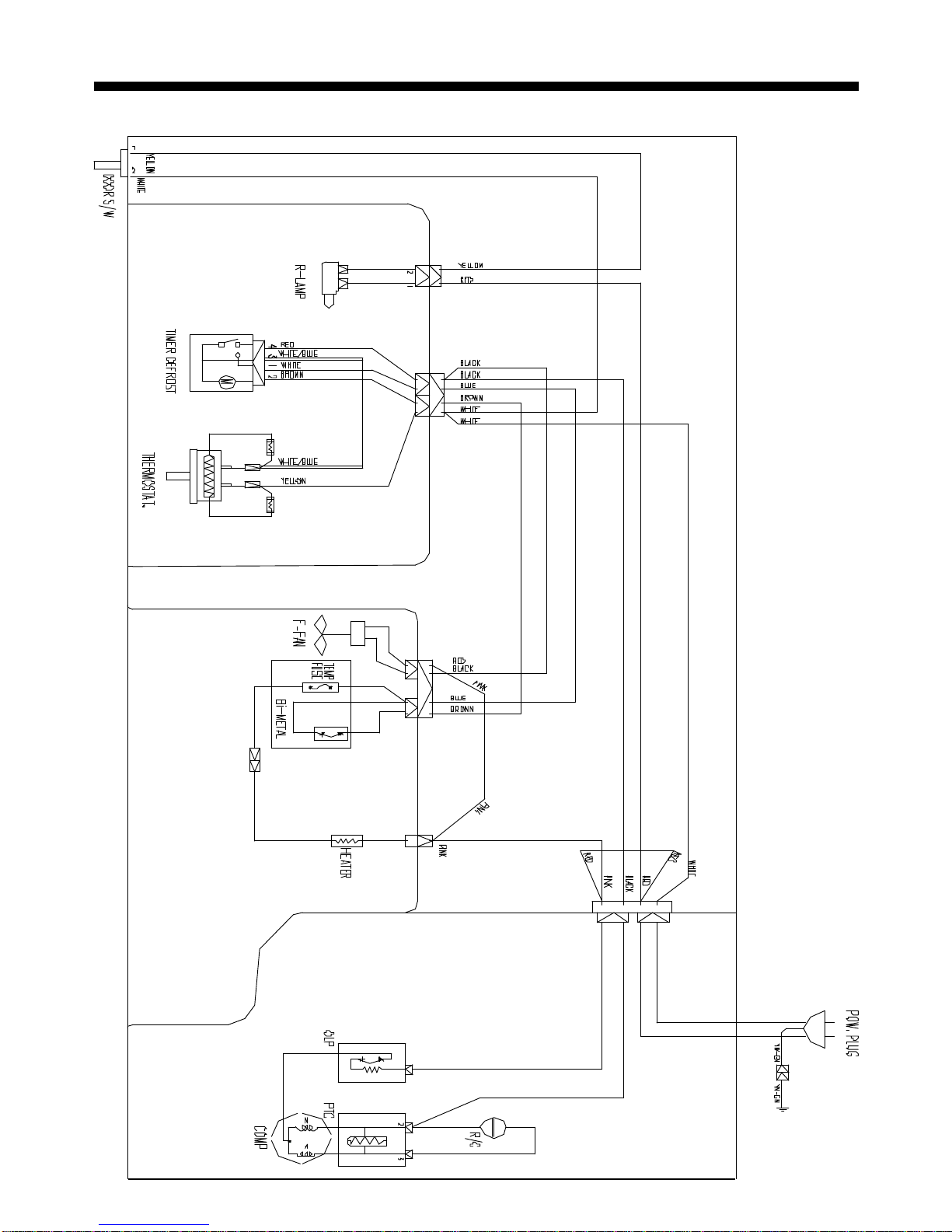

6. WIRING DIAGRAM

7. COMPONENTS DISASSEMBLY PICTURES

- 1 SWITCH DOOR

- Force switch door to the left side

and input a thin driver in the rigth

part as picture shows.

After this operation, lift switch up.

* Remark: Input driver carefully in

order to lift up easily and avoid

paint damages and scratches.

- move switch to left side.

- Take out switch and disconnect

housing.

- 2 MULTI DUCT

- Unscrew all fixed screws.

- Remove insulator multi-duct.

- Unscrew defrost timer and

thermostat.

- Take out temperature control

knob by a minus driver carefully.

3- GASKET.

3.1- Take out the gasket as shown.

3.2- Fix the new one.

4- FREEZER COMPARTMENT.

4.1- Remove 3 fixing screws.

4.2- To prevent damage, remove louver

using method as illustrated.
