CONTENTS

1. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2. External drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

3. Wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

4. Air flow diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

5. Refrigerant cycle diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

6. Machine room view and part list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

7. Components disassembly pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

8. Components specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

9. Explode drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

10. Part lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

11. PCB control functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54, 60

12. Main PCB diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59, 65

Types of the approved safety standards

Specification

Refrigerant type R-134A

Refrigerant Q´ty 0.1Kg

Blowing agent C-PENTANE

Cooling system Fan cool system

Defrost system Automatic start & Automatic stop system

Compressor HPL17YH-5

Rated voltage AC220~240V / 50Hz

Rated input (W) 135

Lamp rated input (W) 15

Freezer 93 114 93 114

Refrigerator 223 223 253 254

Total 316 337 346 368

Height 1780 1869 1911 2000

Width 600 600 600 2

Depth 636,7 636,7 636,7 636,7

kwh/24h 0,98 1,02 1,025 1,06

class A

Freezing capacity (kg/24h) 5

Star rating * *** * *** * *** * ***

Climate class N N N N

Net weight (kg) 69 72 75 79

Division M A M A M A M A M

Refrigerant type R-134A

Refrigerant Q´ty 0.09Kg 0.1Kg 0.1Kg 0.1Kg 0.1Kg 0.1Kg 0.1Kg 0.1Kg 0.1Kg

Blowing agent C-PENTANE

Cooling system Fan cool system

Defrost system Automatic start & Automatic stop system

Compressor HPL17YH-5

Rated voltage AC220~240V / 50Hz

Rated input (W) 135

Lamp rated input (W) 15

Freezer 99 93 93 114 114 93 93 114 114

Refrigerator 201 223 223 223 223 253 253 254 254

Total 300 316 316 337 337 346 346 368 368

Height 1706 1780 1780 1869 1869 1911 1911 2000 2000

Width 596 600 600 600 600 600 600 600 600

Depth 636,7 636,7 636,7 636,7 636,7 636,7 636,7 636,7 636,7

kwh/24h 0,92 0,98 0,975 1,02 1,02 1,025 1,025 1,06 1,06

class A

Freezing capacity(kg/24h) 5

Star rating * *** * *** * *** * *** * *** * *** * *** * *** ****

Climate class N N N N N N N N N

Net weight (kg) 63,5 69 69 72 72 75 75 79 79

1. SPECIFICATIONS

1.1 Product specification

Model name ERF-334 ERF-364 ERF-384 ERF-394 ERF-414

Gross

capacity

(liter)

External

dimension

(mm)

Energy

consumption

Model name ERF-367A ERF-387A ERF-397A ERF-417A

Gross

capacity

(liter)

External

dimension

(mm)

Energy

consumption

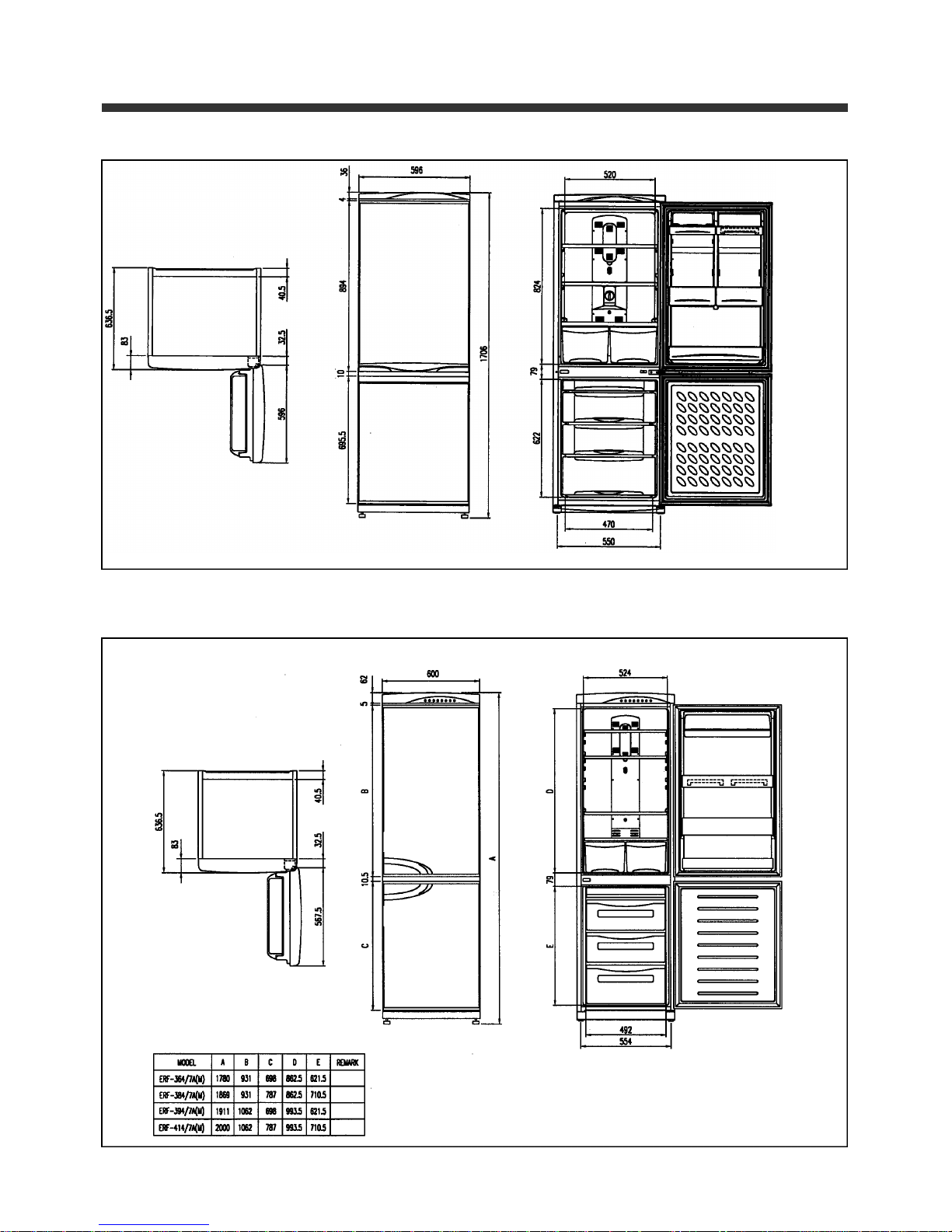

2. EXTERNAL DRAWINGS

1. ERF-334M

2. ERF-364A(M), 384A(M), 394A(M), 414A(M), 367A(M), 387A(M), 397A(M), 417A(M)

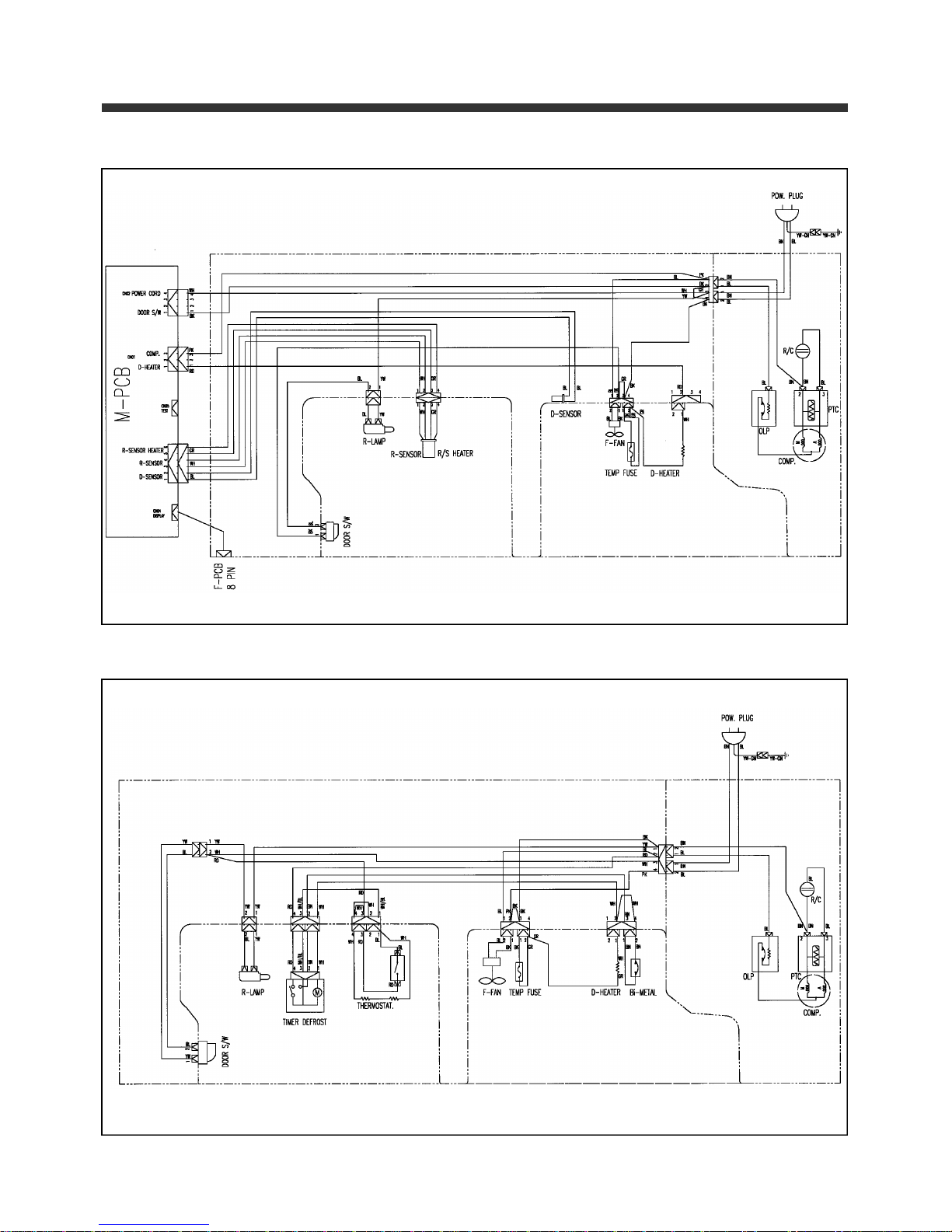

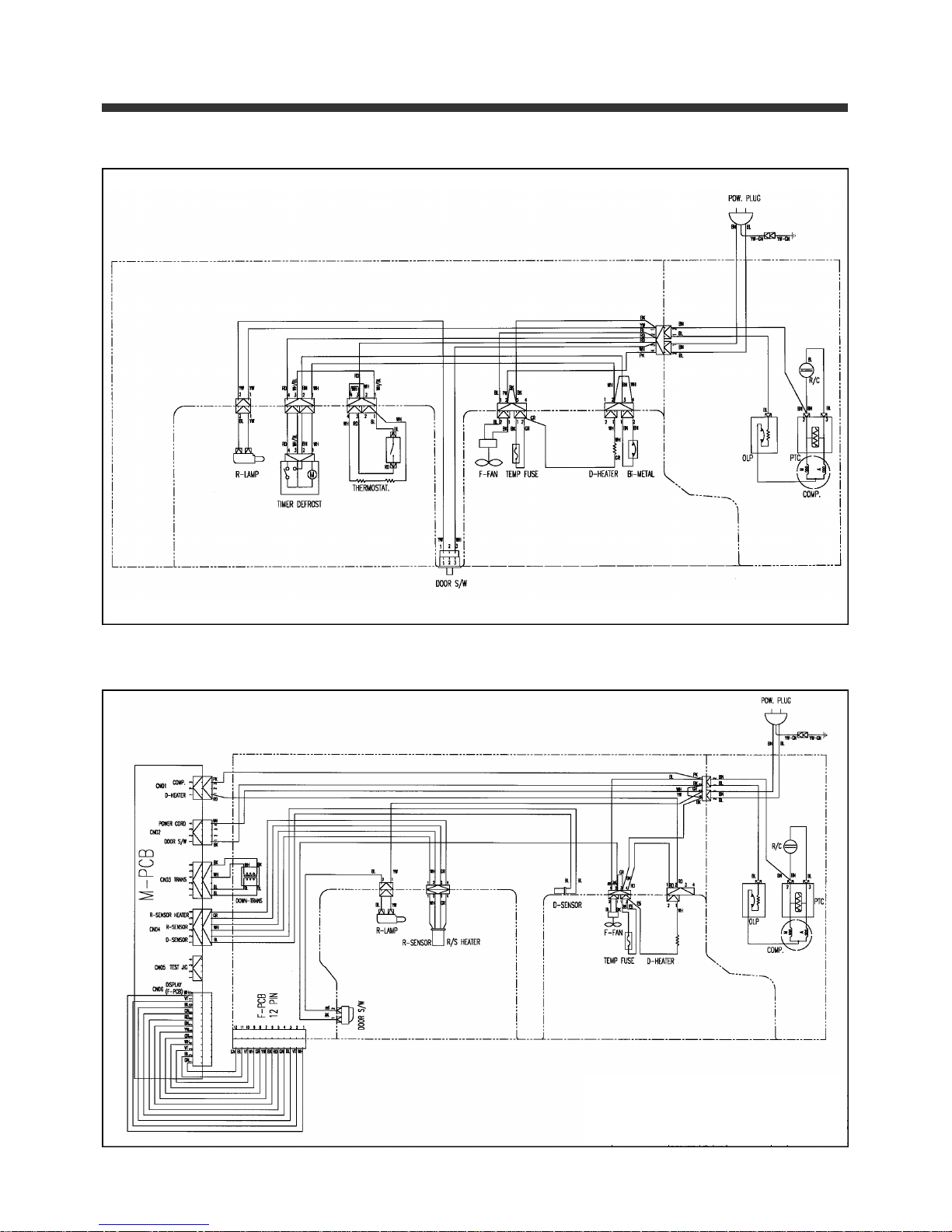

3. WIRING DIAGRAMS

1. ERF-334M

2. ERF-367A, 387A, 397A, 417A

3. ERF-364A, 384A, 394A, 414A

4. ERF-364M, 384M, 394M, 414M

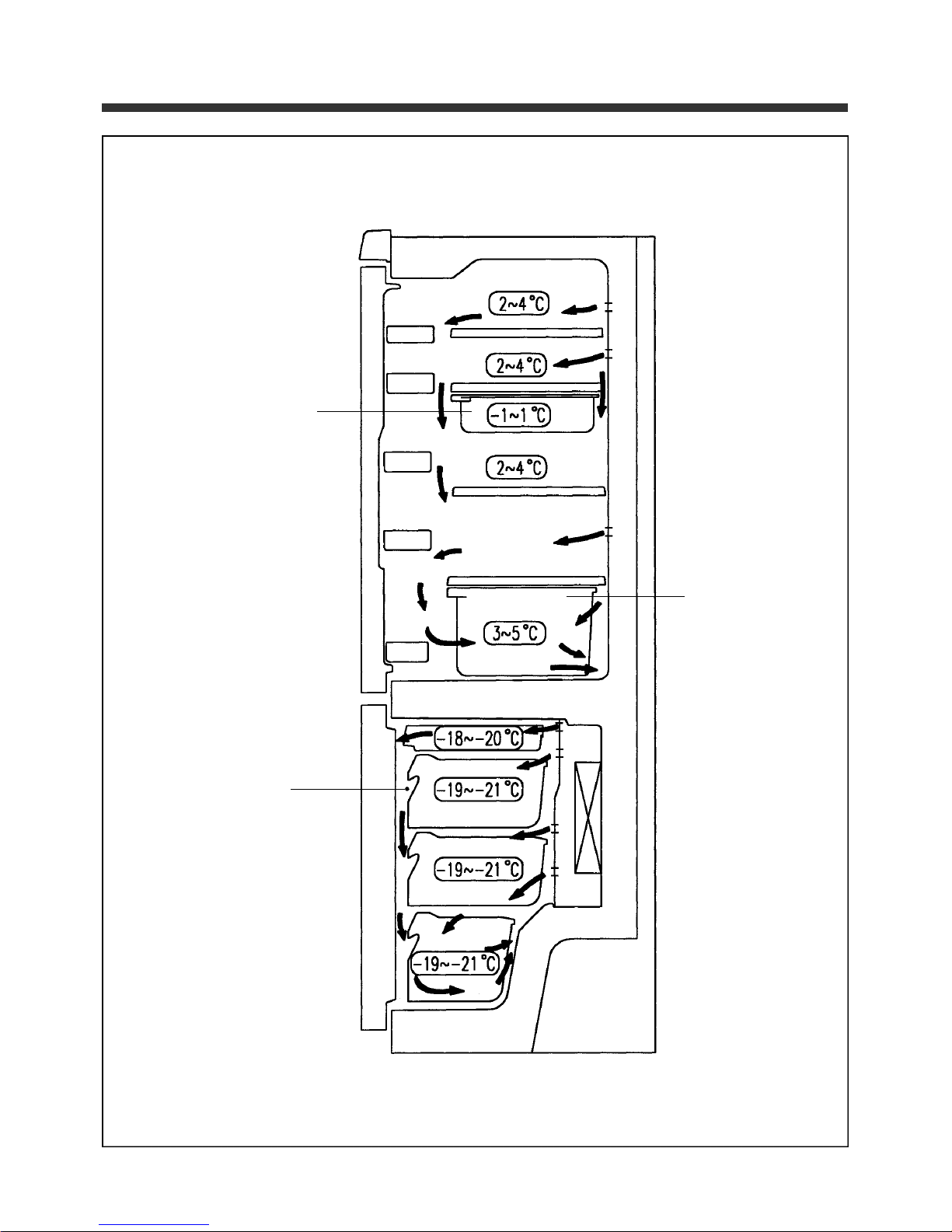

4. AIR FLOW DIAGRAM

Case vegetable

For storing fruits or

vegetables

* Standard Model

Air circulation in the

freezer compartment

Cold air flow comes

out from the front

hole and comes into

the lower hole in

louver

Fresh food preserving case

(Chilled case)

Used for storing fish or

meat

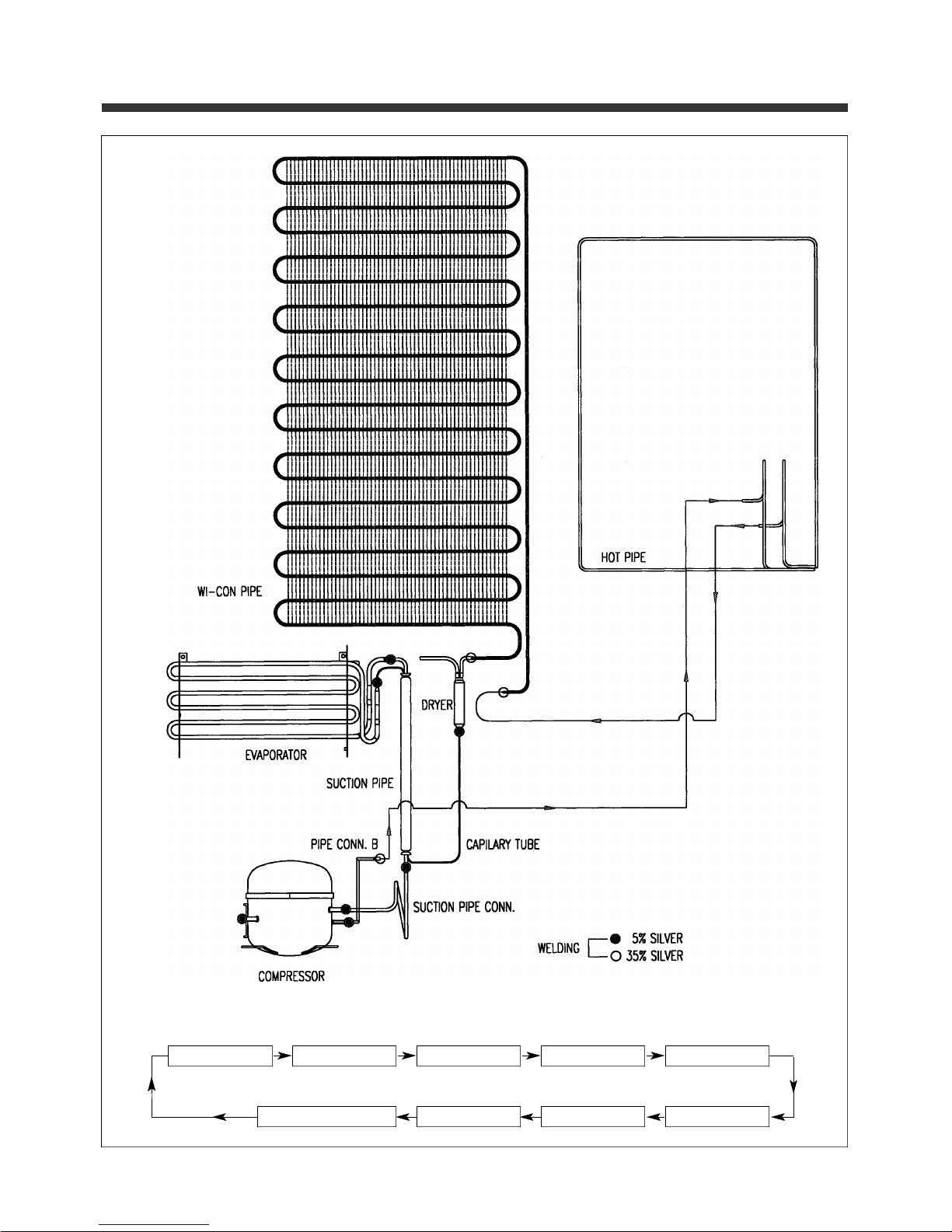

5. REFRIGERANT CYCLE DIAGRAM

PIPE CONN. B HOT PIPE WI-CON PIPE DRYER

CAPILLARY TUBE

COMPRESSOR

SUCTION PIPE CONN. SUCTION PIPE EVAPORATOR

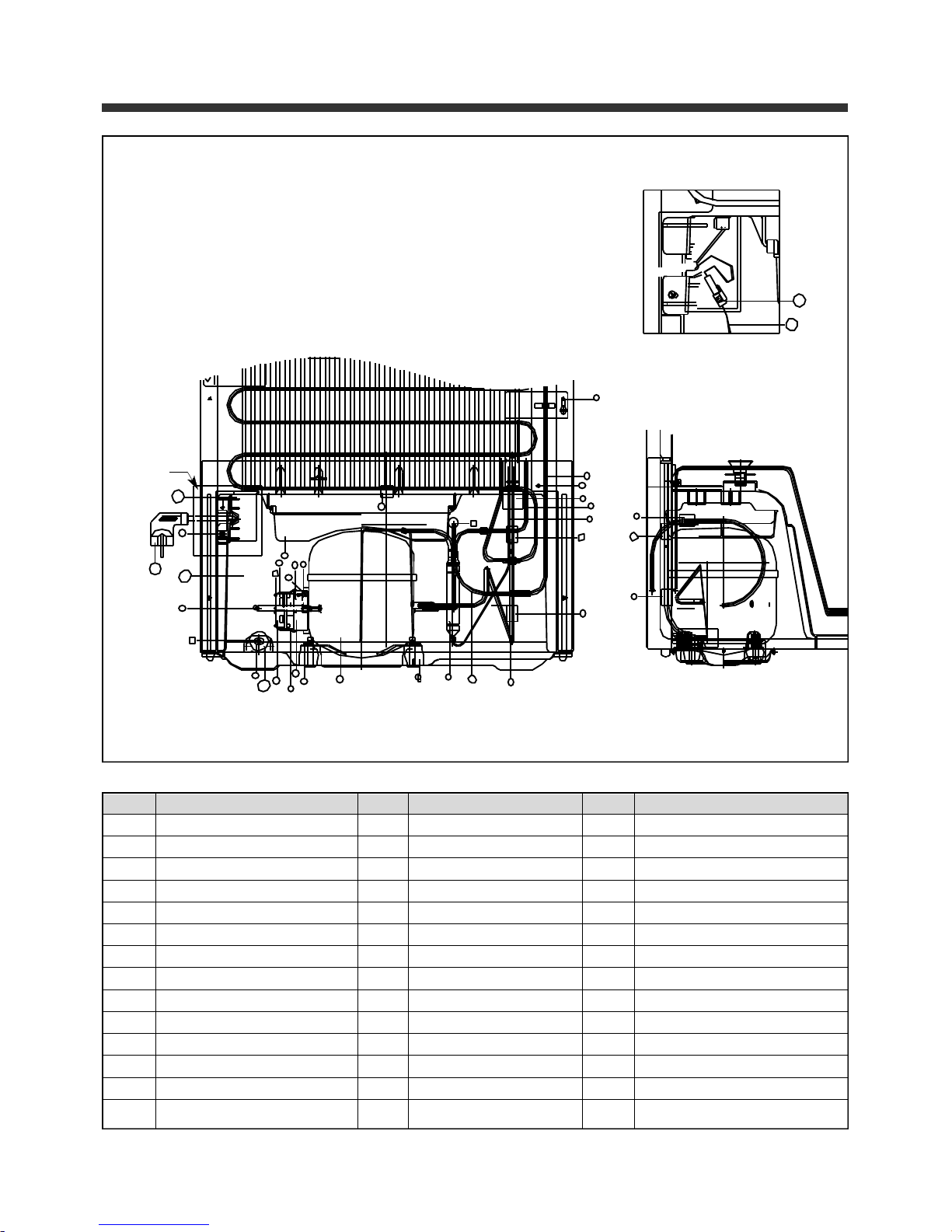

6. MACHINE ROOM VIEW AND PART LIST

DETAIL "X"

14-11

14-10

14-1

14-4

14-5

DETAIL "X"

14-2

14-8

14-9

14-3 16

Nº PART NAME Nº PART NAME Nº PART NAME

A PIPE HOT 14 BOX RELAY AS 17 CAP DRAINER

1 ABSORBER COMP. 14-1 BOX RELAY 18 SCREW TAPPING

2 COMPRESSOR 14-2 HARNESS RELAY 19 SPECIAL WASHER R/C

3 FIXTURE COMP. 14-3 CAPACITOR RUN AS 20 SPECIAL NUT R/C

4 EVAPORATOR AS 14-4 CABLE CLAMP 21 SPECIAL WASHER

5 PIPE Wi-CON AS 14-5 SCREW TAPPING 22 SCREW MACHINE

6 SPECIAL SCREW E 14-6 SWITCH P RELAY PTC 23 CASE VAPORI

7 PIPE CONN B 14-7 SWITCH P RELAY OL

8 PIPE CHARGE 14-8 CORD POWER AS

9 PIPE SUC. CONN 14-9 COVER ME HOUSING

10 DRYER AS 14-10 HARNESS EARTH

11 ABSORBER PIPE B (GUM) 14-11 LABEL EARTH

12 ABSORBER PIPE C (40 gr) 15 RELAY COVER

13 ABSORBER PIPE C (38 gr) 16 BAND RELAY
