Daewoo DWD-CV701PC Manuale utente

• As this product undergoes a functional test, a small amount of water may remain in the product.

• Store the user manual in an easily reachable place for later use.

• Please read 'Safety Instructions' carefully before use.

※mini is the world's first wall-mounted front-load washer developed by Daewoo Electronics.

Wall-Mounted Front Load Washer

DWD-CV701PC

DWD-CV701PC_Cotton_ZORA.indd 1 2014-11-18 오전 11:41:26

mini is the world's first ever wall-mounted front-load

washer, which is installable in bathroom,

pantry, kitchen and various locations.

mini is a unique home appliance

featuring an innovative design and

practical functions.

World's First Ever Design

Wall-Mounted Front-Load Washer

mini features a cute and adorable design in a stable

cubic frame and harmonious colors to help decorate

house interiors.

Ultrasmall Design

Daewoo Electronics' cutting-edge technologies

apply to mini, featuring a variety of essential

functions for better everyday lives.

Mini's Practical Function

Wall-Mounted Front Load Washer

DWD-CV701PC_Cotton_ZORA.indd 2 2014-11-18 오전 11:41:26

| 2 |

Product Features ..................................................................... 3

Safety Instructions .................................................................... 4

Preparation ............................................................................... 9

Parts and Components ............................................................. 10

Washable Items ........................................................................ 11

Non-Washable Items ................................................................ 11

Preparing Clothes for washing ................................................. 12

Directions on Detergent and Softener Containers .................... 13

Washing Course ....................................................................... 15

Preparation

Use

Installation

Buttons and Functions .............................................................. 16

Cotton 40°C .............................................................................. 17

Cotton 60°C .............................................................................. 18

Synthetic 20°C .......................................................................... 19

Baby Care................................................................................. 20

Spin ......................................................................................... 21

Cotton Eco ................................................................................ 22

Rinse+Spin ............................................................................... 24

Q&A on Laundry ....................................................................... 25

Cleaning ................................................................................... 26

When malfunctions are suspected ........................................... 27

Before calling for service .......................................................... 28

Specifications and Wiring Diagram........................................... 29

CONTENTS

DWD-CV701PC_Cotton_ZORA.indd 2 2014-11-18 오전 11:41:26

| 3 |

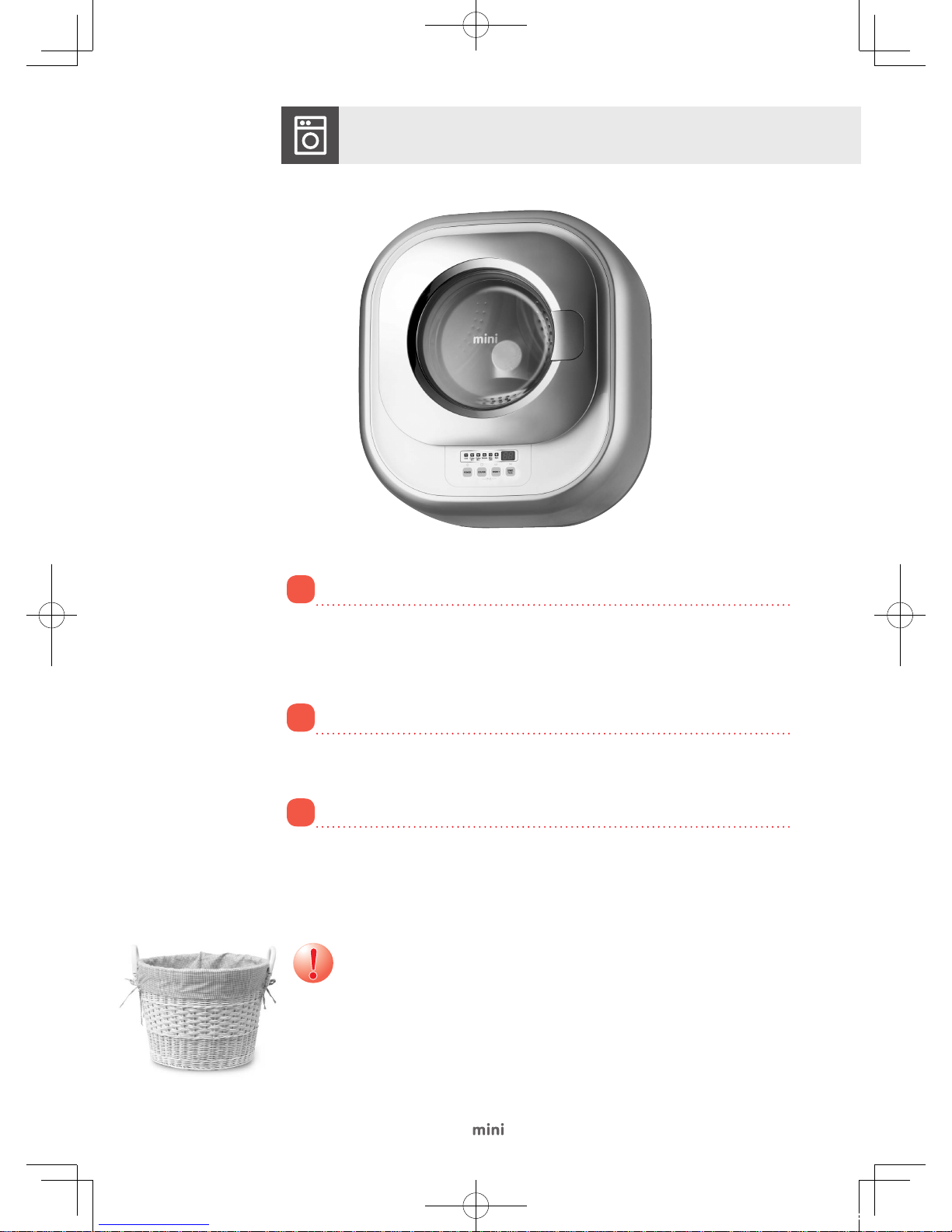

Product Features

mini enables daily washes of towels, shirts,

underwear and socks for a cleaner home

environment.

Powerful Daily Cleaning

mini's unique functions for faster and

powerful cleaning of various fabrics

As synthetic 20℃ cycle takes only 29 minutes,

it speeds the laundry process and reduces

water and power consumption by 14%

compared to regular front-load washers.

29 minute wash

mini's 'Baby Care' cycle leaves no detergent

residue after washing to protect sensitive

baby skin from irritation.

Baby Care

(DWD-M301WP, DWD-M301WA)

mini enables safe washing of blouses,

knitwear, and wool clothing that are

vulnerable to deformation without fabric

damage and discoloration.

Delicate Cleaning for High Quality Clothes

DWD-CV701PC_Cotton_ZORA.indd 3 2014-11-18 오전 11:41:27

Ensure that the power

voltage, frequency, and

current match the product's

specification.

Violations may cause fire and

electric shock.

| 4 |

This appliance is not intended for use by persons (including children) with reduced physical, sensory or metal

capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety.

Cautionary information on cases that

may cause death or severe personal

injuries

Cautionary information on cases that

may cause minor personal injuries or

damage to products

Warning

Do not scratch, damage,

deform, bend, pull, twist, or

tie the power cord. Do not

place or insert a heavy item

on the cord.

Violations may damage the

power cord, raising the risk of fire

and electric shock.

Do not unplug or plug the

cord with wet hands.

Violations may cause electric

shock.

Safety Instructions

Do not use the washer when

the power cord is damaged

or loosely plugged in.

Violations may cause electric

shock, short circuit, or fire.

Contact a sales store to request

the maintenance service.

If the washer doesn't run or

smokes or unusal smells

occur, unplug the washer

and contact the service

center promptly to prevent

accidents.

Violations may cause electric

shock, short circuit, or fire.

Do not disassemble, repair,

or rebuild the washer

without the assistance of

service engineer.

Violations may cause fire, electric

shock, and personal injuries.

Contact a sales store or read the

back page of user manual to

request the maintenance service.

DWD-CV701PC_Cotton_ZORA.indd 4 2014-11-18 오전 11:41:27

| 5 |

Safety Instructions

Warning

If the power cord pin is

contaminated with dust or

water, wipe the pin clean

with a dry cloth before use.

Violations may cause fire.

Do not expose the washer to

rain or wind.

Violations may cause electric

shock, fire, technical problems,

or deformation.

Unplug the cord and open

the window for ventilation

without touching any

buttons if a gas leak occurs.

Violations may cause a spark

and, accordingly, explosion, fire,

or burns.

Electrical grounding is

required for safety.

Technical problems or short

circuits may cause electric

shocks.

Read user manual or contact the

service center with further

inquiries on grounding method.

Do not place gasoline,

petroleum, benzol, thinner, or

alcohol inside or beside the

washer. Do not place laundry

containing such materials

inside or beside the washer.

Violations may cause explosion

or fire.

Unplug the power cord before

cleaning or maintenance work.

Violations may cause electric

shock or injury.

Do not sprinkle water on the

washer. Violations may cause

short circuit or electric shock.

Do not enter the laundry

room and contact the

service center, if the washer

is submerged in water as the

water supply hose was

dislocated.

Violations may cause electric

shock.

Do not install the washer

near a heater and do not

place candles or cigarettes

on the washer.

Violations may cause fire or

deformation.

Insert the plug with 10A or

higher in the outlet directly.

Multiple connections to a single

outlet may cause fire due to heat.

DWD-CV701PC_Cotton_ZORA.indd 5 2014-11-18 오전 11:41:27

| 6 |

Safety Instructions

Warning

Do not place your hands or

metal objects below the

washer while the washer is

running.

Violations may cause personal

injuries.

Prohibit children from

operate the washer. Do not

let children stand on the

washer or insert their head

into the tub at any time.

Violations may cause personal

injury, burn, or electric shock.

Do not insert hands, sticks

or metal objects into the tub

or touch laundry during

operation.

Violations may cause personal

injuries.

With 'Door Locked', do not

open the door by force.

Violations may destroy the door

or lock, causing technical

problems.

Prevent children from having

their hands jammed in the

door and approaching the

washer.

Violations may cause personal

injuries.

Children or people who are

not well-informed of use

method must not use the

washer.

Violations may cause burn,

electric shock, or injury.

Do not press the button with

sharp object.

Violations may cause electric

shock.

Install the washer where the

electric outlet is easily

accessible. Unplug the

power cord if the washer is

not to be used for a long

time.

Violations may cause electric

shock, short circuit, or fire. Hold

the plug firmly when unplugging

the power cord.

DWD-CV701PC_Cotton_ZORA.indd 6 2014-11-18 오전 11:41:28

| 7 |

Caution

Turn on the tap to check for

leaks before use.

Improper connection may cause

leaks.

Do not operate the washer

with the detergent or

softener container detached.

Detachment of the detergent or

softener container causes water

leaks during operation. Please

close the detergent and softener

containers tight.

Leaks may cause personal

injuries.

Install the washer on a solid

wall and even.

Violations may cause abnormal

vibrations or noise.

Do not stand on the washer

or place a heavy item on it.

Violations may destroy the

washer or cause personal

injuries.

Prevent children from hanging on

the washer. Violations may

cause injuries.

Prevent pets and animals

from entering the washer

tub.

Violations may cause injuries.

Do not place magnets beside

the cap or the washer during

operation.

Violations may cause

malfunctioning of 'Door Lock

Sensor' and personal injuries

accordingly.

Do not use laundry net for

wash.

Violations may cause abnormal

vibrations, which can lead to

damage wall or cause personal

injuries.

Contact the service center

and do not operate the

washer when it is slanted or

out of horizontal.

Violations may cause injuries.

Safety Instructions

DWD-CV701PC_Cotton_ZORA.indd 7 2014-11-18 오전 11:41:28

| 8 |

Safety Instructions

Caution

Remove any detergent

residue or contaminants on

the washer with a wet soft

cloth.

Remaining contaminants may

deform plastic parts.

Turn off the tap after use.

It aims to prevent leaks caused

by poor inlet hose connections.

Do not use the washer to

wash non-clothing items.

(Footwear, potato, cabbage,

kelp, etc.)

Violations may cause abnormal

vibrations, damage the washer or

cause personal injuries.

Do not wash waterproof

clothes and items such as

raincoat, car cover, and

sleeping bags.

Violations may cause abnormal

vibrations during spin, which may

lead to personal injuries.

Violations may cause abnormal

vibrations during wash, which may

lead to damage the wall, floor, or

clothing and cause part abrasion.

Close the door carefully to

prevent laundry from getting

jammed in the door.

It may cause damage to clothes

or malfunction.

Press the Start button after turning

off the tap and then slowly turn it

on when the water supply

resumes or the inlet hose is

reconnected (or when resuming

the use of washer after a long-term

suspension)

The high air pressures built in inlet hose

or water pipes may damage the washer,

causing leaks or personal injuries.

Put detergent and softener

in detergent and softener

containers separately.

Confusion or mixture may

prevent laundry from being

washed properly.

Remove all liquid detergent

and fabric softener in the

washer when relocating it.

Violations may cause liquid leaks

and malfunctions.

DWD-CV701PC_Cotton_ZORA.indd 8 2014-11-18 오전 11:41:28

| 9 |

- This washer is available for use with cold water only.

Do not connect the inlet hose to the hot water tap.

Connect the drain hose to the drain.

- Check that the drain hose is tightly connected.

- A minor water leak may occur during installation or the initial cycle. The leak is

caused not by a malfunction or a mechanical problem but by the remnant for

functional test performed at the manufacturing plant.

Connect the inlet hose and turn on the tap.

- Check whether any leaks occur around the hose guide or inlet hose connection.

Plug in the power cord.

- Check the grounding procedure to prevent electric shocks.

Preparation

Caution

DWD-CV701PC_Cotton_ZORA.indd 9 2014-11-18 오전 11:41:29

Indice

Altri manuali Daewoo Rondella

Daewoo

Daewoo DWF-1095 E Series Manuale utente

Daewoo

Daewoo D-NT1011 Manuale utente

Daewoo

Daewoo DWD-M301WP Manuale utente

Daewoo

Daewoo DWF-260NSTC Manuale utente

Daewoo

Daewoo DWD-G1081S Manuale utente

Daewoo

Daewoo DW-3610 Manuale utente

Daewoo

Daewoo DW-6510 Manuale utente

Daewoo

Daewoo DWD-M801X Manuale utente

Daewoo

Daewoo DWD-F1221 Manuale utente

Daewoo

Daewoo DWD-1211RT Manuale utente

Daewoo

Daewoo DWC-UD1222 Manuale utente

Daewoo

Daewoo KUD-WD135 SERIES Manuale utente

Daewoo

Daewoo DW-3600 Manuale utente

Daewoo

Daewoo DWC-LD141X Manuale utente

Daewoo

Daewoo DWD-E6213 Manuale utente

Daewoo

Daewoo DWF-750M Manuale utente

Daewoo

Daewoo DWF-6688 Manuale utente

Daewoo

Daewoo W424 Manuale utente

Daewoo

Daewoo DWF-513W Manuale utente

Daewoo

Daewoo DWF-200SL Manuale utente

Daewoo

Daewoo DWD-MI Series Manuale utente

Daewoo

Daewoo mini Manuale utente

Daewoo

Daewoo DWD-T120R Manuale utente

Daewoo

Daewoo DWD-E1211R'S Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente

Beko

Beko WKB 51231 PTMA Manuale utente
