Dahua NVR608-32-4KS2 Manuale di installazione e d'uso

Equipment Model Firmware Course Version Date

NVR608-32-4KS2 DH_NVR6XX-

4KS2_Eng_V3.210.0003.0.R.160714 V1.0 2017/11/28

How to setup navigation bar?

Page1

Copyright © 2017 Dahua Technologies Co., Ltd. All rights reserved.

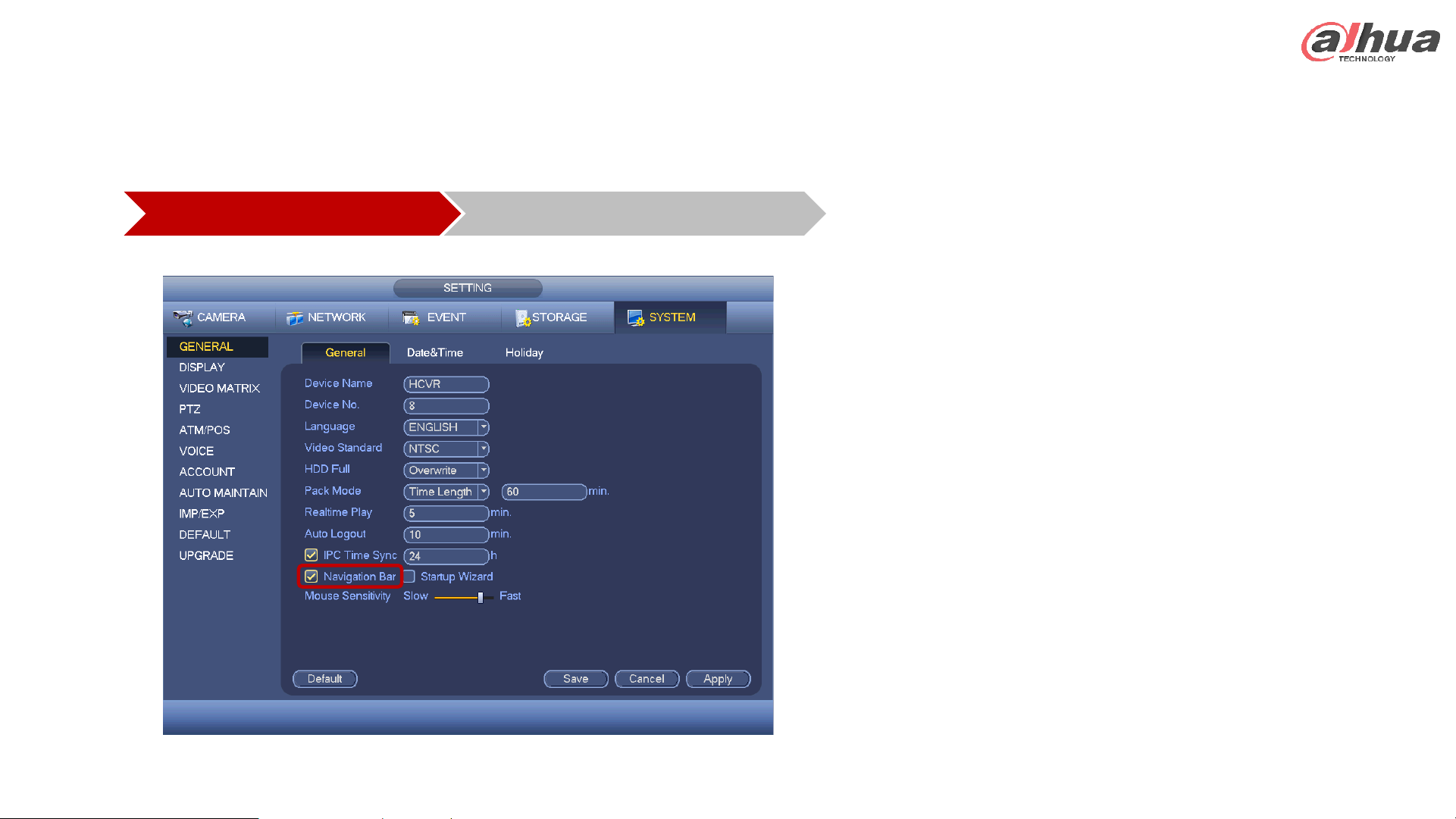

Open main menu, SETTINGS->SYSTEM->general, tick

in the red box to enable navigation bar.

Using navigation bar, users can do some quick

operations.

Preview-- Navigation Bar

How to setup Navigation Bar?

Enable Navigation Bar Navigation Bar Operation

Page2

Copyright © 2017 Dahua Technologies Co., Ltd. All rights reserved.

Preview-- Navigation Bar

How to setup Navigation Bar?

Once navigation bar is enabled, click at the middle bottom of the background to call out the function.

①Main menu, Click to go to the main menu interface.

②Click to select screen 2, you can view an interface shown as figure 2. It is a navigation bar for screen2.

③Click any screen split mode, HDMI2 screen can display corresponding screens.

Note: This function is for 2 HDMI model only. Screen 2 function is null if tour is in process, Please disable tour

function first.

Enable Navigation Bar Navigation Bar Operation

Page3

Copyright © 2017 Dahua Technologies Co., Ltd. All rights reserved.

Preview-- Navigation Bar

How to setup Navigation Bar?

Enable Navigation Bar Navigation Bar Operation

④Click button to enable tour, the icon becomes , you can see the tour is in process.

⑤Click , system goes to the PTZ control interface.

⑥Click , system goes to the color interface.

Page4

Copyright © 2017 Dahua Technologies Co., Ltd. All rights reserved.

Preview-- Navigation Bar

How to setup Navigation Bar?

Enable Navigation Bar Navigation Bar Operation

⑦Click button , system goes to search interface.

⑧Click button , system goes to alarm status interface.

⑨Click button , system goes to the channel information setup

interface

Page5

Copyright © 2017 Dahua Technologies Co., Ltd. All rights reserved.

Preview-- Navigation Bar

How to setup Navigation Bar?

Enable Navigation Bar Navigation Bar Operation

⑩Click , system goes to the remote device interface.

⑪Click , system goes to the network interface. It is to set network IP address, default gateway and etc.

⑫Click , system goes to the HDD manage interface.

⑬Click , system goes to the USB manage interface.
