Daikin BRC51D64 Manuale utente

OPERATING

MANUAL

OM-BRC51D-1117(1)-DAIKIN

Part No.: R08019047479A

Руководство По Зксплуатации

Проводное Дистанционное Управление

Manuale Di Funzionamento

Ricevitore Cablato

Kullanım Kılavuzu

Kablolu Kumanda

Operating Manual

Handset Wired

Mode D’emploi

Combiné Câblé

Bedienungsanleitung

Verdrahtetes Handgerät

Manual De Instrucciones

Auricular Alámbrico

English

Français

Deutsch

Italiano

Español

Pycckий

Türkçe

CVR-OM-BRC51D-1117(1)-DAIKIN-EN.1 1 9/25/20 3:38:04 PM

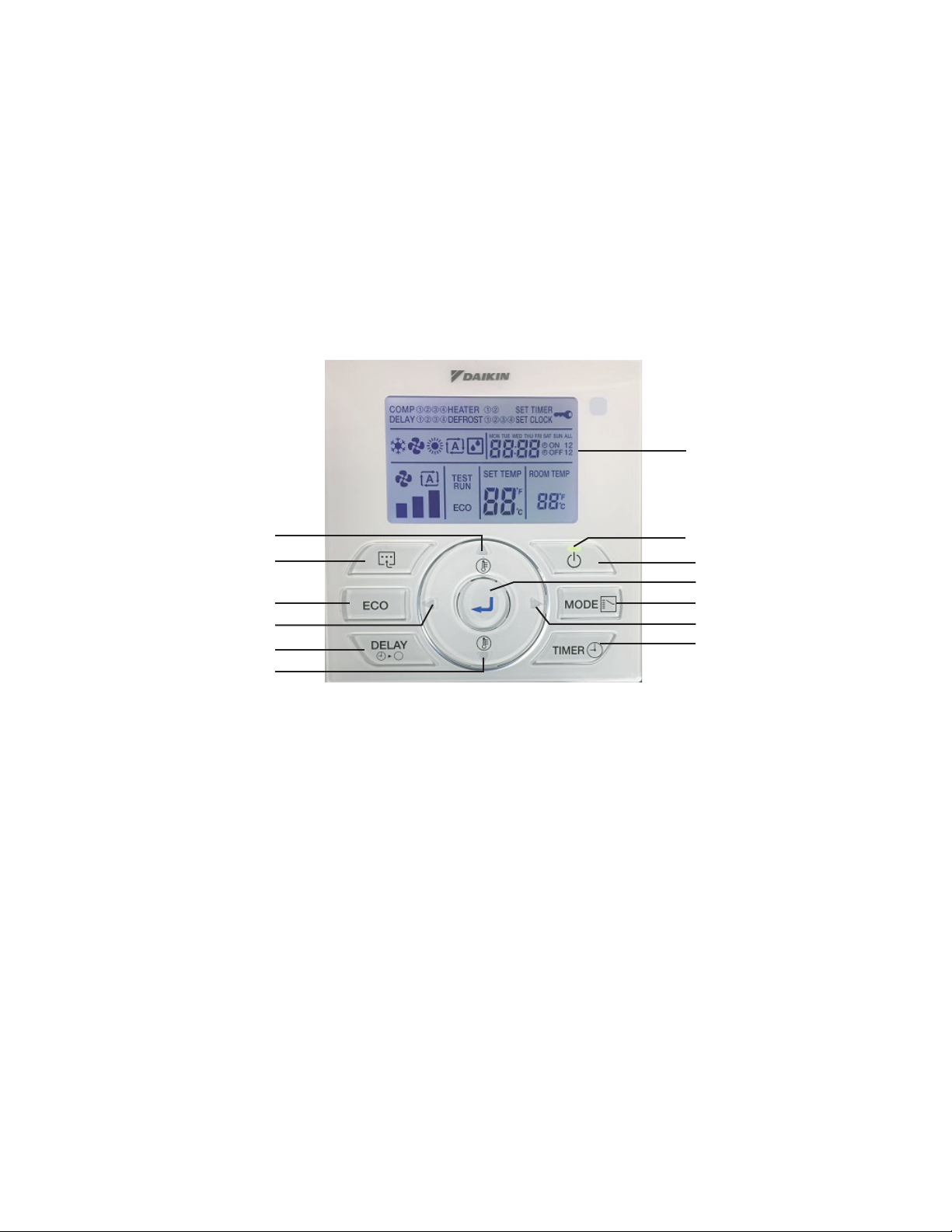

BRC51D64/65 Remote Controller Indication

LCD

LED

1-OM-BRC51D-1117(0)-DAIKIN-EN.ini i 5/31/18 9:14:40 AM

ENGLISH

1. fButton

•Press once to start the air conditioner unit.

•Press again to stop the unit.

!CAUTION

In the case when the ON/OFF key is pressed immediately after the operation is stopped, the

unit will not restart until 3 minutes later to protect the compressor.

2. and Button

•Press the or button to increase or decrease the set temperature.

•Pressing ECO and

DELAY

button simultaneously to toggle the temperature setting between °C

and °F.

3. Button

•Press button to save selection of choices during setting.

4. Button

•Press button to move to the right choices of function.

5. Button

•Press button to move to the left choices of function.

6. Button

•Press the button to select the type of operating mode.

•For cooling model, the available modes are: COOL ( ), FAN ( ).

•For heat pump model, the available modes are: COOL ( ), FAN ( ), HEAT ( ),

AUTO ( ).

7. ECO Mode

•Press the ECO button to select the energy saving function. This option is available for

COOL ( ), HEAT ( ) and AUTO ( ) modes.

•Press the ECO button continuously 3 seconds to activate or inactivate Key Lock function.

Only fbutton can be pressed during Key Lock activation.

OPERATING INSTRUCTION

Original Instruction

1-OM-BRC51D-1117(0)-DAIKIN-EN.in1 1 5/31/18 9:14:41 AM

8. Button

!NOTE

•Idle 10 seconds to exit the clock setting.

•The clock setting is in 24-hour clock.

A) To set the clock –Press and button simultaneously for 3 seconds.

a. Hour will blink.

b. Press or button to change the Hour.

c. Press button to confirm the Hour, then Minute will blink.

d. Press or button to change the Minute.

e. Press button to confirm the Minute, then “MON” will blink.

f. Press

or button to change the Day.

g. Press button to confirm the Day.

B) ON/OFF Timer Setting – Daily Timer Setting

a. Continuously press button for 3 seconds.

b. ON Timer 1 Setting

I. “MON” will blink.

II. Use or button to select the Day and press button to confirm the Day.

III. Hour will blink. Use or button to toggle between Hour and Minute.

Press or button to change the Hour and Minute.

Press button to confirm the setting.

IV.Repeat Step II to III for the timer setting of other days.

c. ON Timer 2 Setting

I. Press button again to enter ON Timer 2 setting, then “MON” will blink.

II. Use or button to select the Day and press button to confirm the Day.

III. Hour will blink.

Press or button to change the Hour.

Press button to confirm the Hour, then Minute will blink.

IV.Repeat Step II to III for the timer setting of other days.

1-OM-BRC51D-1117(0)-DAIKIN-EN.in2 2 5/31/18 9:14:41 AM

ENGLISH

d. OFF Timer 1 Setting

I. Press button again to enter OFF Timer 1 setting, then “MON” will blink.

II. Use or button to select the Day and press button to confirm the Day.

III. Hour will blink.

Press or button to change the Hour.

Press button to confirm the Hour, then Minute will blink.

IV. Repeat Step II to III for the timer setting of other days.

e. OFF Timer 2 Setting

I. Press button again to enter OFF Timer 2 setting, then “MON” will blink.

II. Use or button to select the Day and press button to confirm the Day.

III. Hour will blink.

Press or button to change the Hour.

Press button to confirm the Hour, then Minute will blink.

IV. Repeat Step II to III for the timer setting of other days.

C) Activation of ON/OFF Timer

a. Press button to activate On Timer. will blink.

b. Press

button for navigation of On Timer selection.

c. Press button to confirm the selection, then will blink.

d. Press

button for navigation of Off Timer selection.

e. Press button to confirm the selection and exit.

!NOTE

•It is not advisable to set ON TIMER and OFF TIMER to have same values.

•Shall these occur, the effective timer will be treated with priority as stated in table below:

Priority Timer

1 (Highest) ON TIMER 2

2 OFF TIMER 2

3 ON TIMER 1

4 (Lowest) OFF TIMER 1

1-OM-BRC51D-1117(0)-DAIKIN-EN.in3 3 5/31/18 9:14:42 AM

DELAY

Button

•Press

DELAY

button once will activate the delay timer function for 1 hour. An indicator

will show on the LCD. All the set timers will be override.

•Press the same button again will increase the delay by an interval of 1 hour (maximum 4 hours

delay)

DELAY

•After the delay timer is completed, the delay timer function is deactivated, the indicator is turned

OFF and the unit is turned OFF. All the set timers will be resumed.

10. Button (Heater Function)

•Continuously press for 3 seconds to enter Auxiliary Electric Heater selection.

HEATER

1will

blink.

•Press button for navigation of Auxiliary Electric Heater selection.

HEATER

•Press button to confirm the selection and exit.

!NOTE

If any button is not pressed within 10 seconds, it will exit the Auxiliary Electric Heater selection.

11. Test Run Function

•Continuously press for 3 seconds ECO button and button to test run the unit.

1-OM-BRC51D-1117(0)-DAIKIN-EN.in4 4 5/31/18 9:14:42 AM

ENGLISH

ERROR INDICATOR

!NOTE

The LED will blink if error occurred.

If there is any abnormal condition detected, BRC51D64/65 controller will blink the error code. The

format for the error code will be as following:

E01 Require manual reset E19 Indoor coil sensor 4 short

E02 Compressor 1 high temperature (overload) E20 Indoor coil sensor 1 open

E03 Compressor 2 high temperature (overload) E21 Indoor coil sensor 2 open

E04 Compressor 3 high temperature (overload) E22 Indoor coil sensor 3 open

E05 Compressor 4 high temperature (overload) E23 Indoor coil sensor 4 open

E06 Compressor 1 high pressure trip / contact open E24 Outdoor coil sensor 1 short

E07 Compressor 2 high pressure trip / contact open E25 Outdoor coil sensor 2 short

E08 Compressor 3 high pressure trip / contact open E26 Outdoor coil sensor 3 short

E09 Compressor 4 high pressure trip / contact open E27 Outdoor coil sensor 4 short

E10 Compressor 1 trip / low R-22 / outdoor abnormal E28 Outdoor coil sensor 1 open

E11 Compressor 2 trip / low R-22 / outdoor abnormal E29 Outdoor coil sensor 2 open

E12 Compressor 3 trip / low R-22 / outdoor abnormal E30 Outdoor coil sensor 3 open

E13 Compressor 4 trip / low R-22 / outdoor abnormal E31 Outdoor coil sensor 4 open

E14 Room sensor short E32 Compressor 1 de-ice

E15 Room sensor open E33 Compressor 2 de-ice

E16 Indoor coil sensor 1 short E34 Compressor 3 de-ice

E17 Indoor coil sensor 2 short E35 Compressor 4 de-ice

E18 Indoor coil sensor 3 short

1-OM-BRC51D-1117(0)-DAIKIN-EN.in5 5 5/31/18 9:14:42 AM

1. Accessories

The following accessories are included together with this manual. If any part is missing, contact

your dealer immediately.

1.1 Remote controller

1.2 Screw (2 pieces)

Screw Handset

(2pcs.) (1pcs.)

2. Step-by-step guide

2.1 Remove upper case.

Insert a screwdriver in the recess of lower case to remove the upper case (2 points).

Remote controller printed-circuit

board is installed on the upper

case. Be careful not to damage

the printed-circuit board with the

screwdriver.

Screwdriver

Lower case

Upper case

Be careful not to let dust or moisture

touch the printed-circuit board.

Insert and twist the screwdriver

'LIGHTLY' for removal.

2.2 Location where the wiring will enter the remote controller.

Cut the plastic at the notched area and

remove any remaining burrs.

Top center outlet

INSTALLATION

!NOTE

Installation and maintenance should be performed by qualiÀed persons who are familiar with

local code and regulation, and experienced with this type of appliance.

1-OM-BRC51D-1117(0)-DAIKIN-EN.in6 6 5/31/18 9:14:43 AM

ENGLISH

2.3 Installation procedure for the lower case.

When wiring the remote controller through the top center or rear access points, attachment

of the wire to the lower case is required before it is wall mounted. Closely follow the wiring

procedures.

Wall installation

Screw

•Install the control on a Áat surface only.

•To prevent deformation of the lower case, avoid over-tightening the installation

screws.

!NOTE

2.4 Install the upper case.

•Align the upper case with tabs of the lower case (6 points), insert and install the upper

case.

•Install the wiring with care to prevent pinching.

•Peel off the protective membrance which overlays the upper case.

1-OM-BRC51D-1117(0)-DAIKIN-EN.in7 7 5/31/18 9:14:43 AM

.ȜǋǣƾƉŽȚ Ǡƀ ǀƁǎƸƴƳſǽȚ ǀƈƉƶŽȚ ȴǞƳů Ȇǁſƾż ǀưŽ ǀƁƺŮ ƾƷƉƱſ ǀƵűǍƄŽȚ Ǡź ȯǾƄųȚ ȸȚȶ ƿƸƄƳŽȚ Țǌƀ ǍƸƉƱů Ǡź ȩȤƾƯů ȸȚ ȞǋŲ ȚȣȚ

.ǘƃƉž ȤƾƯŵȘ ȴȶȢ ǜž ǁŻȶ ȸȚ Ǡź ƾƶƀ ȜȢǞűǞž ȝƾƱǧȚǞž ǀƁȚȶ ǛƸƵƫƄŽȚ ǚƁǋƯů ǘƇŮ ǕƶƫƓȚ ǔƱƄƇƁ

•

Head office:

Umeda Center Bldg., 2-4-12, Nakazaki-Nishi,

Kita-ku, Osaka, 530-8323 Japan

Tokyo office:

JR Shinagawa East Bldg., 2-18-1, Konan,

Minato-ku, Tokyo, 108-0075 Japan

http://www.daikin.com/global/

Lot 60334, Persiaran Bukit Rahman Putra 3,

Taman Perindustrian Bukit Rahman Putra,

47000 Sungai Buloh, Selangor Darul Ehsan, Malaysia.

P.O.Box 18674, Jebel Ali Free Zone, Dubai-UAE

Email: [email protected]

Web: www.daikinmea.com

Zandvoordestraat 300, B-8400 Oostende,

Belgium

Importer for Turkey:

Allianz Plaza-Kucukbakkalkoy Mah.Kayısdagi Cad.No:1 34750

Atasehir-ISTANBUL / TURKIYE

CVR-OM-BRC51D-1117(1)-DAIKIN-AR.2 2 9/25/20 3:39:24 PM
