Daintree GE current WWS3 Manuale utente
(WWS3)
Daintree®Wireless
3-Button Wall Switch
BEFORE YOU BEGIN
Read these instructions completely and carefully.
Save these instructions for future use.
1Installation Process
2Packing List
Installation Guide
WWS3 |DT101
The Daintree WWS3 Wireless Wall Switch operates seamlessly
within the Daintree Networked wireless lighting control system.
Using wireless communications, this switch can be used to turn
lights On or Off, as well as half brightness. Installation is quick
and easy without any wires.
Features
• Suitable for many applications, including commercial
ofce,retail,educationandwarehouse
• Simple wall mount
• Completely wireless installation
Each WWD1 dimmer package includes these items:
• Dimmer base
• Dimmer wall plate cover
• Two AAA 1.5V batteries
• Two mounting screws
1. Determine the mounting location
for the dimmer.
2. Locate the IEEE address on the
back of the dimmer base.
Record the dimmer’s IEEE address
and location on the facility
oorplan.
3. Remove the cover from the base
(as shown on reverse of this page).
4.Attachthemountingbasetothewallinthespeciedlocation
using two screws. The Network LED should be at the upper left
side of the unit.
5. Install the batteries in the orientation (+ - ) shown on the
bottom of the battery compartments.
6. Press and hold the Utility button for 5 seconds. The Network
LEDbeginstoashrapidlywhilethedimmerattempts
to join the ZigBee network. See the Green LED: Daintree
Networked Indicator Operation table. When the LED turns
on solid for 10 seconds, the dimmer has successfully joined
the network.
7. Align the round hole in the dimmer cover with the Network
LED on the base. Snap the cover onto the base.
Risk of electrical shock. Disconnect power before servicing or
installing product.
Install in accordance with National Electric Code and local codes.
WARNING
Risk of injury. Wear safety glasses and gloves during installation and
servicing.
CAUTION
IEEE Address
Label
Utility Button
Network
LED
Base
On
Half Brightness
Off
Network LED
Cover
Installation GuideDaintree®Wireless 3-Button Wall Switch (WWS3)
2
3
4
Joining the Lighting Control Network
LED Operation
Rapid ash (12 times
per second) for up to
30 seconds
Solid for 10 seconds
Flashes twice
On for 2 seconds every
30 seconds
Device is trying to join ZigBee
network. If it fails to join, it will retry
after 15 minutes.
Device successfully joined a ZigBee
network.
Device has been activated
while in the network.
A low battery alert will be generated
in CSM
Green LED:
Network Indicator
Description
The WWS3 communicates using a ZigBee® mesh network
coordinated by a Daintree Wireless Area Controller (WAC)
to effect lighting control in the Daintree Networked system.
Formoreinformationaboutconguringthelightingcontrol
network, see the instructions and on-line help provided with
the Daintree Controls Software web application.
Turn on lights
Half brightness
Turn off lights
Press the top button.
Press and hold the middle.
Press the bottom button.
Function
Dimmer Paddle
Note: Dimming from the highest level to the lowest level takes about 4 seconds.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encourage to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna;
• Increase the separation between the equipment
and receiver;
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected;
• Consult the dealer or an experienced radio/TV
technician for help.
5FCC Warning Message
Power Supply Two AAA 1.5V batteries
Battery Life: 5 years
Operating DC 2.3V-3.6V
Voltage
Radio Properties 2.4 GHz, +7dBm transmit power
FCC ID (USA) NRH-ZB-Z100B
IC (Canada) 8984A-Z100B
ICES/NMB-003 CLASS B
Operating Indoor, dry location.
Environment 14° to 122° F (-10° to 50° C)
Storage -40° to 185° F (-40° to 85° C)
Temperature
Mounting Wall; 2 screws
Dimensions 2.76” W x 4.49” H x 0.59” D
(70mm W x 114mm H x 15mm D)
Specications
Product complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause
undesired operation.
6Industry Canada (IC) Warning Message
Installation GuideDaintree®Wireless 3-Button Wall Switch (WWS3)
7
Maintenance
Clean the dimmer cover only using a damp cloth and mild
detergent if necessary. Use of harsh chemicals or solvents
could cause permanent damage.
Changing the batteries
The LED indicator light turns On for 2 seconds every 30 seconds
to indicate a low battery condition. Replace the batteries
immediately upon noticing this condition. Under normal use,
the batteries can last up to 5 years.

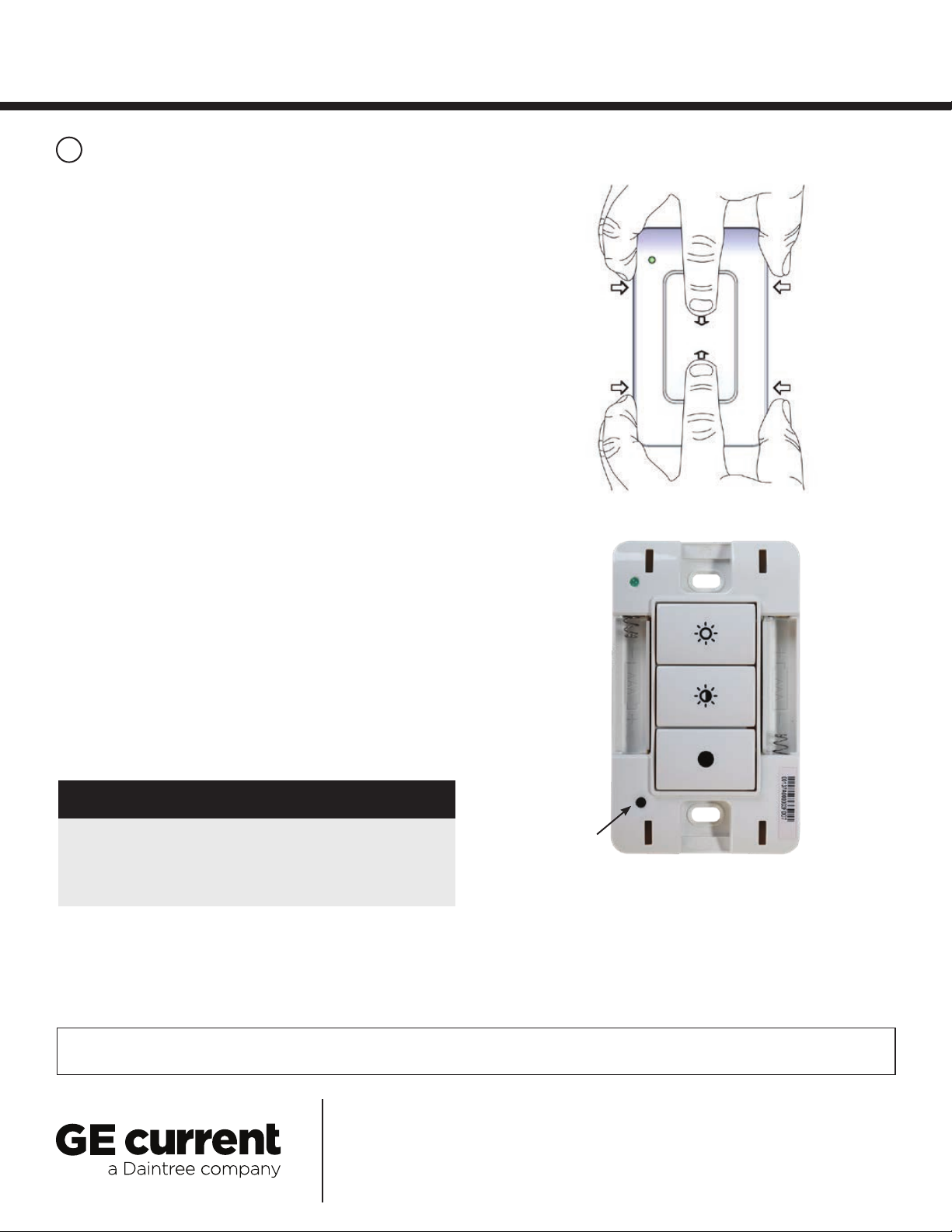

1. To remove cover:
A. Graspthelongedgesofthecoverwithtwongers
from each hand on one side, and the thumbs of
bothhandsontheotherside.Usetheindexnger
ofbothhandstopressdownrmlyonbothendsof
the paddle. Squeeze and lift the long edges of the
cover as you push down on the paddle. The cover
will pop off the base.
-or-
B. Insert a wide blade screwdriver in either the top or
bottom notch in the base of the cover. Press down
rmlyonthepaddlethentwistthescrewdriverto
loosen the cover. Insert the screwdriver in the notch
on the opposite edge of the cover then twist to pop
off the cover.
3. Remove both old batteries and discard properly. Do not
mix old and new batteries, or batteries from different
manufacturers.
4. Install two new AAA 1.5V batteries. Observe the orientation
(+ -) shown on the bottom of the battery compartments.
5. After replacing the batteries, press the Utility button for two
seconds.TheNetworkLEDshouldashtwice.
6. Align the round hole in the dimmer cover with the Network
LED on the base. Snap the cover onto the base.
Questions:
Web: products.gecurrent.com
Phone: 1-866-855-8629
CAUTION
RISK OF EXPOSURE IF BATTERY IS REPLACED BY AN
INCORRECT TYPE. DISPOSAL OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS.
WWS3
These instructions do not purport to cover all details or variations in equipment nor to provide for every possible contingency to be met in connection with installation, operation
ormaintenance.Shouldfurtherinformationbedesiredorshouldparticularproblemsarisewhicharenotcoveredsufcientlyforthepurchaser’spurposes,themattershouldbe
referred to GE Current, a Daintree company.
www.gecurrent.com
© 2021 Current Lighting Solutions, LLC. All rights reserved. GE and the GE monogram are trademarks of the
General Electric Company and are used under license. Information provided is subject to change without notice.
All values are design or typical values when measured under laboratory conditions.
DT101 (Rev. 03/31/2021
