VLT®2800 Series

■Assembly

■Warnings

ESD Warning:

As the electronic components of the VLT

are susceptible to Electronic Discharge

- ESD - do NOT handle the VLT without

wearing a ground-connected wristband!

General Warning:

NB!:

It is important to note that the serial number

of the control card is placed on the back of the

front cover. This means that if several VLTs are or-

dered it is important to keep the right parts together

with reference to future ordering and warrenty .

Do not connect to mains

before the VLT is completely mounted

- this includes mounting of the front cover!

■How to Assemble

The VLT 2800 consists of the following units:

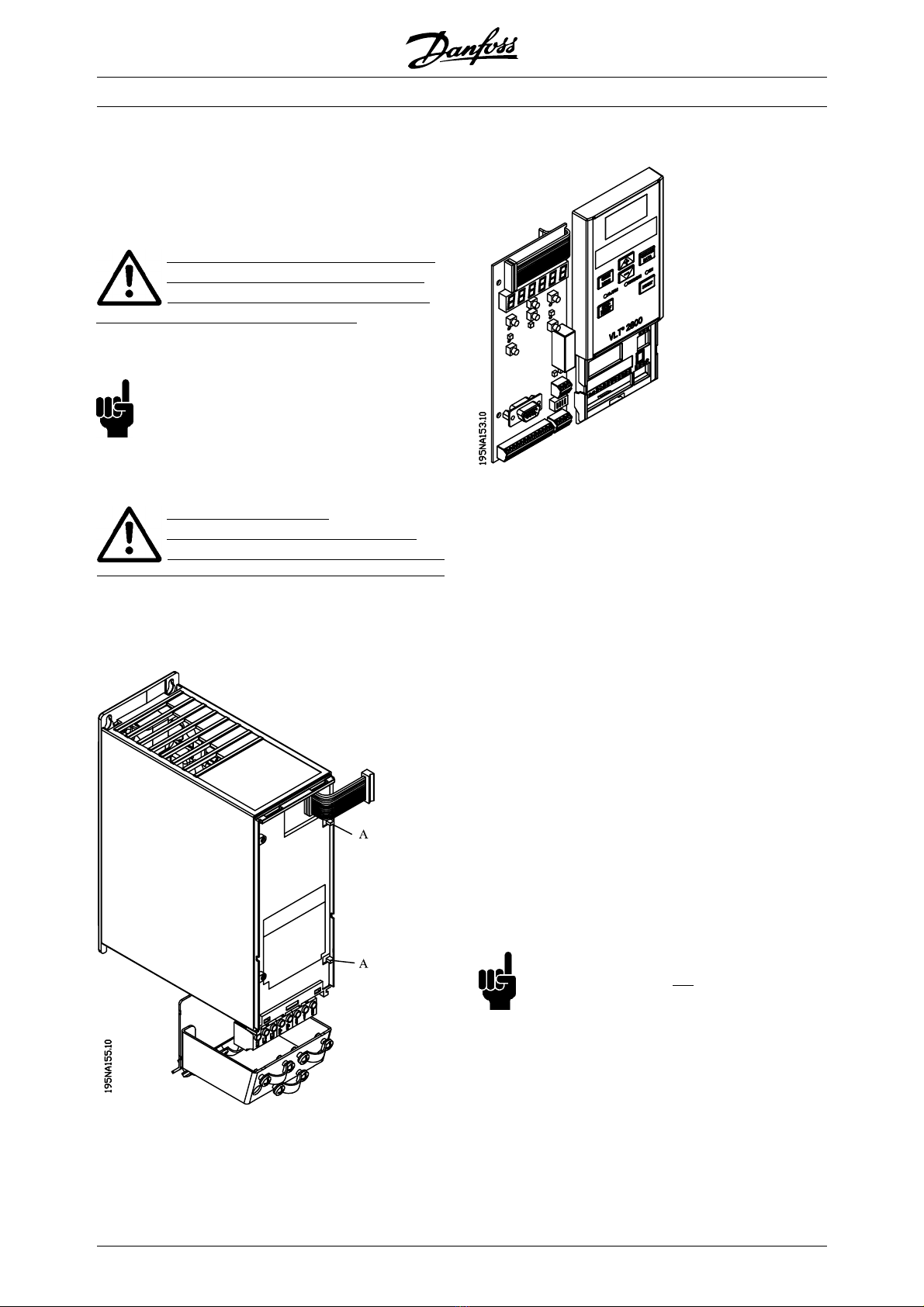

Fig. 1: Power unit for VLT 2800

Fig. 2: Control card and front cover for VLT 2800

Before starting the assembly: Do not throw away

the ESD shielding bag in which the control card is

delivered as the bag will be needed for keeping the

control card if replaced!

1. Place the control card on the power unit. Make

sure that the right side of the control card is

placed under the taps of the power unit

2. Fasten the two screws on the left side of the con-

trol card. Use the enclosed torx screw driver for

this purpose

3. Connect the ﬂat cable from the power unit to the

control card. The plug is placed at the top left

corner

4. Place the front cover on top of the assembled

control card and power unit

5. Now it is important to initialize the VLT in order

for it to function correctly. Please follow the in-

structions below

NB!:

Manual initialisation is not possible on

the LCP 175N0131 control unit. It is, however,

possible to perform an initialisation via parameter

620 Operation Mode

Manual initialisation can be performed in two ways:

either

1. Cut mains

2. Press [QUICK MENU] + [+] + [CHANGE DATA]

and reconnect mains simultaneously

3. Release the keys

MI.28.A1.02 - VLT is a registered Danfoss trade mark

VLT®2800 Series

1. Select parameter 620 Operation Mode

2. Select data value [3] (Initialize)

3. Cut mains

The frequency converter has now been programmed

for factory setting. The following parameters are not

reset during manual initialisation:

- Par. 600 Operating hours

- Par. 601 Hours run

- Par. 602 kWh counter

- Par. 603 Number of power-ups

- Par. 604 Number of overtemperatures

- Par. 605 Number of overvoltages

■Future Ordering

For future ordering it is necessary to state the order

number for the power unit as well as the control unit.

The power unit order number is placed on top of the

power unit, whereas the control unit order number is

placed on the back of the front cover

MI.28.A1.02 - VLT is a registered Danfoss trade mark 3

Assembly

VLT®2800 Series

■Disassembly

195NA139.10

Warning:

It can be extremely dangerous to touch the electrical parts

even when the mains supply has been disconnected.

Also ensure that other voltage inputs are disconnected

from load sharing, for example (sharing of DC intermediate

circuit).

For VLT 2800: wait at least 4 minutes.

MI.28.A1.02 - VLT is a registered Danfoss trade mark

VLT®2800 Series

■How to Disassemble

To disassemble the VLT, use a screw driver 1 x 6mm

(size 4).

1. Remove the front cover by using the screw driver,

see ﬁgure 3

2. Lift the ﬂat cable using the screw driver. Be care-

ful not to touch the components on the control

card. See ﬁgure 4 for instructions

3. Remove the screws on the left side of the control

card

4. Gently remove the control card

5. Keep the control card in the ESD shielding bag in

which it was delivered

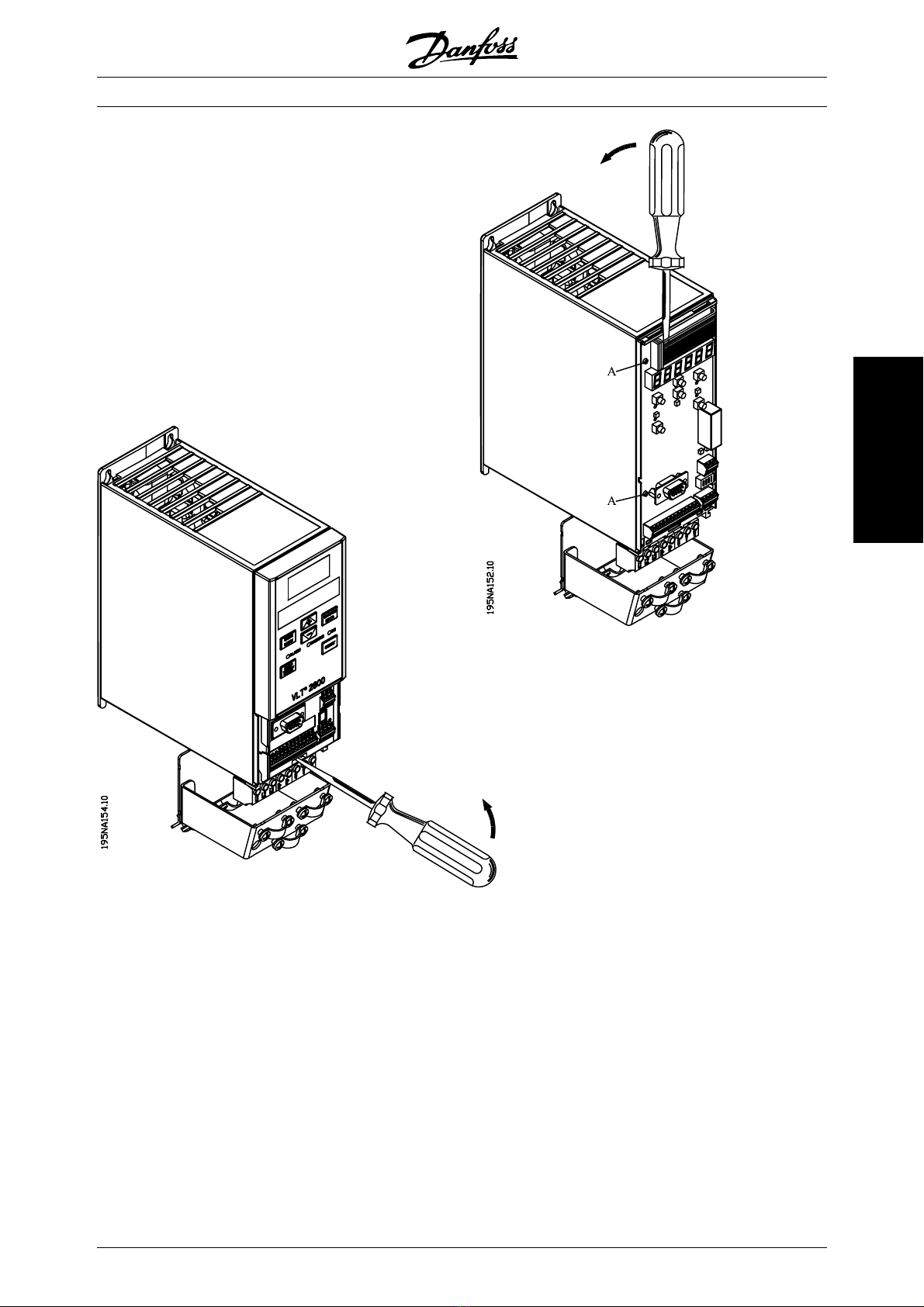

Fig. 3: Moving the front cover with a screw driver

Fig. 4: To remove ﬂat cable, place screw driver

behind cable and pull gently

MI.28.A1.02 - VLT is a registered Danfoss trade mark 5

Disassembly
