Installation and Setting Instructions

Electronic Programmable and Non-Programmable Fan Coil Thermostats

6000 series with independent fan common

Specication

Power supply: 24 volt powered models - 20-30 Vac, 50/60Hz

230 volt powered models - 210-250 Vac, 50/60Hz

Temperature range: Heating stage - O-5-30°C

Cooling stage - 16-37°C-O

Temperature accuracy: ± 0.5°C

Deadzone adjustment: 1, 2, 3 or 4°C

Voltage rating of contacts: 20-250 Vac, 50/60Hz

Current rating of contacts: 10mA - 3A resistive, 1A inductive

Switching action: Voltage free SPDT contacts, Type 1B

Time accuracy: ± 1 minute

Memory retention: 24V & 230V models: 15 days

Battery model: 1 minute for battery change

IP rating: IP30

Dimensions (mm): 130 x 100 x 38 (W x H x D)

Control pollution situation: Degree 2

Rated impulse voltage: 2.5 KV

Ball pressure test: 75°C

Applications

HC & HCT Models

Features 24 volt 230 volt

Type Code Type Code

Heat or cool operation, selectable at time of installation

3-speed fan output HCS6101-3 087N722500

Heat & cool systems (with auto changeover), for use in 4-pipe systems

3-speed fan output HCT6113-3 087N759326

HC & HCT Models with 3 speed fan

(4 pipe auto change-over)

HCS & HCST Models with 3 speed fan

(Heat or Cool)

HCS & HCST Models

Wiring

Ordering Details

Installation

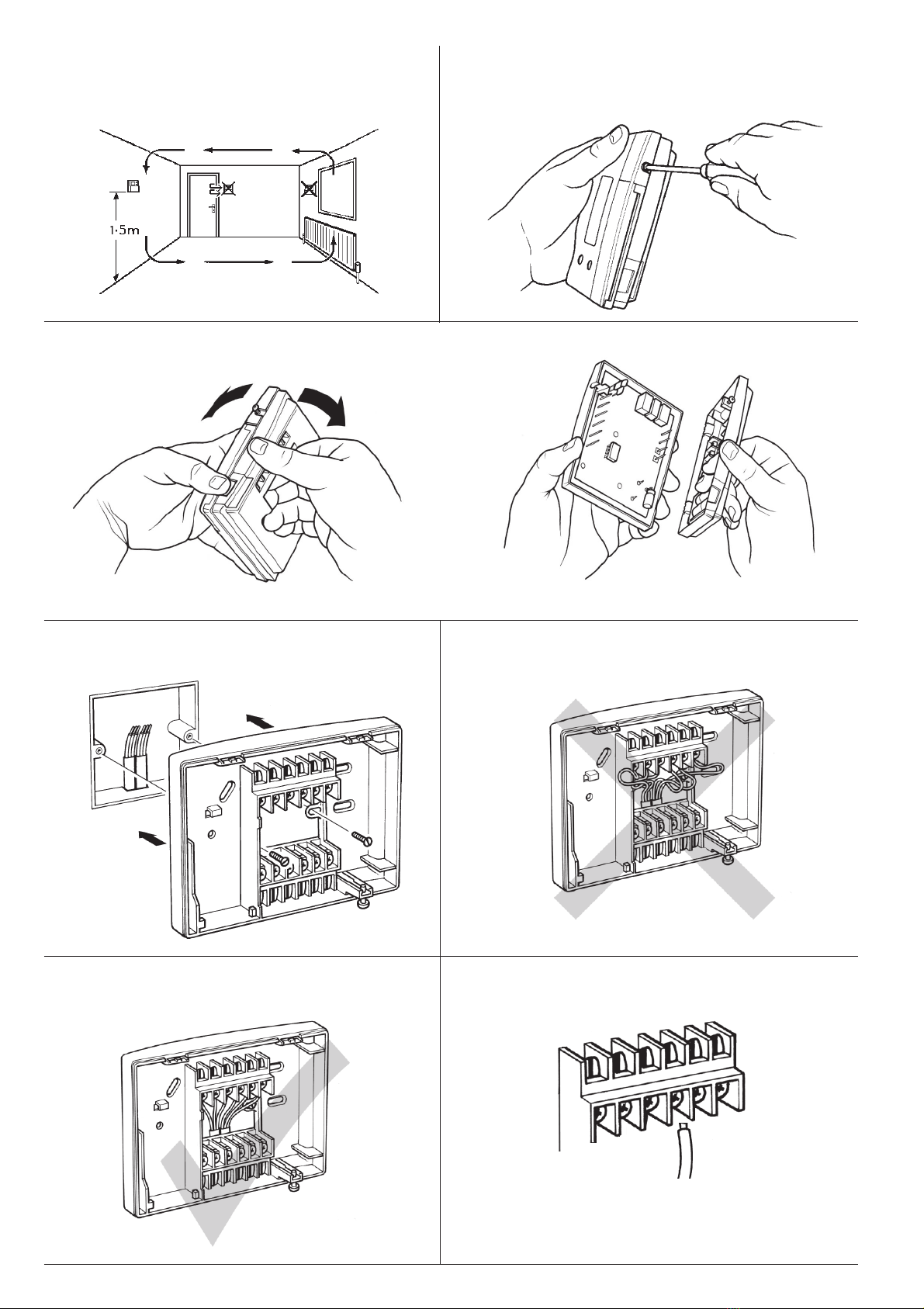

1. Thermostat Location 2. Unpacking the Thermostat

3. Separating the Wallplate

4. Fitting the Thermostat to the Wall 5. Wiring Access - Incorrect

6. Wiring Access - Correct 7. Cable Size

Max cable size

1.5mm2

Fitting the Thermostat to the Wallplate

Ensure unit is rmly in place

DIL Switch Settings (see rear of circuit board)

ON/OFF

COMPRESSOR

DELAY ON

HEATING

THERMOSTAT

4 EVENTS

EACH DAY *

CHRONO-

PROPORTIONAL

COMPRESSOR DELAY

OFF

COOLING

THERMOSTAT

2 EVENTS EACH DAY

ON/OFF

COMPRESSOR

DELAY ON

NOT USED

4 EVENTS

EACH DAY*

CHRONO-

PROPORTIONAL

COMPRESSOR DELAY

OFF

NOT USED

2 EVENTS EACH DAY

HCS Models HC Models

* not used on non-programmable models * not used on non-programmable models
