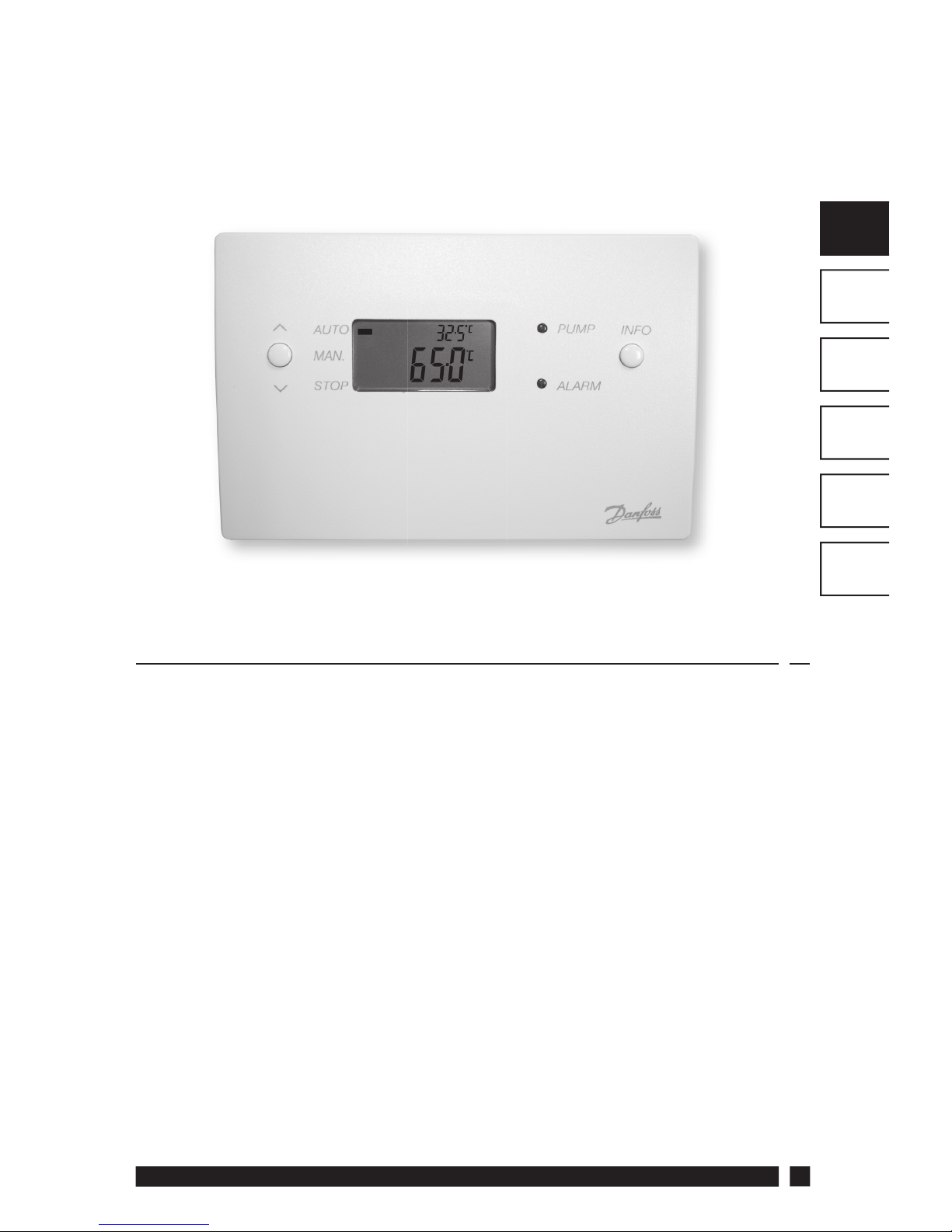

Danfoss SH-E01 Manuale utente
Electronic Solar Heat Regulator
SH-E01
Installation Guide
Danfoss Heating
MAKING MODERN LIVING POSSIBLE
SHE01
2
For a large print version of these instructions
please call Marketing on 0845 121 7400.
Danfoss can accept no responsibility for possible errors in catalogues, brochures, and other
printed material. All trademarks in this material are property of the respective companies.
Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.
Danfoss Heating 3
SH-E01
Electronic Solar Heat Regulator
GB
D
DK
F
ES
PT
Index
1.0 Installation Overview..............................................................................4
2.0 System Overview.......................................................................................4
3.0 Installation
3.1 Wiring.....................................................................................................5
3.2 Reset and setting of regulator.......................................................5
3.3 Mounting Instructions.....................................................................6
4.0 Operation
4.1 Function Test .......................................................................................7
4.2 Temperature Indication...................................................................7
5.0 Trouble Shooting.......................................................................................8
6.0 Technical Data.............................................................................................8
SHE01
4
1.0 Installation Overview
2.0 System Overview
Please Note:
This product should only be installed by a qualified electrician or
competent heating installer and should be in accordance with the
current edition of the IEEE wiring regulations.
T1 : Temperature sensor in solar collector
T2 : Temperature sensor in hot-water tank
: Circulation pump
: Solar heat regulator
The SH-E01 regulator is used for controlling utility water installations
consisting of a solar collector circuit and a hot water tank, where the
utility water is heated by solar energy.
The solar heat circuit circulation pump is controlled by the differential
temperature between the solar collector and the tank bottom.
If the differential temperature is higher than the preset start-up
temperature differential, the circulation pump will run.
To avoid unnecessary pump operation the temperature of the solar
collector has to be higher than 15°C before the pump starts operating.
The pump will run until the temperature differential is below 2°C.
GB
D
DK
F
ES
PT
Danfoss Heating 5
GB
D
DK
F
3.0 Installation
3.1 Wiring
The wiring to the regulator must be connected to the back plate
terminal strip:
Designation Terminal
Ground
Neutral N
Phase L
Sensor in solar collector T1
Sensor, common COM
Sensor in tank T2
Alarm AL1, AL2
Pump, phase P1
Supply voltage L1, max. 2(1)A
3.2 Reset and setting of regulator
Set the regulator via the DIL switch on the back.
Factory settings: Setting range
Start-up temp. differential 5 °C* 5 - 10 - 15 - 20 °C
Pump exercise ON** ON-OFF
Reset OFF
*) Pump stop temperature differential is fixed: 2°C
**) Pump exercise sequence: 1 min/14 days
NL
NL
AL1 AL2
T1 COM T2 AL P1
N
ES
PT
SHE01
6
3.3 Mounting Instructions
Install the regulator on a wall. Start by attaching the back plate to
a vertical flat surface by means of 2 x Ø 4 mm screws. The terminals
must be at the top.
1234
Position ON
Position OFF
Switch No.
System
Reset
Pump
Exercise
Setting
of start
temperature
differential
Switch No. Start temp.
differential
34
OFF OFF 5°C
OFF ON 10°C
ON OFF 15°C
ON ON 20°C
12
GB
D
DK
F
ES
PT
Danfoss Heating 7
GB
D
DK
F
Fit the temperature sensors in the immersion pockets - in the solar
collector and at the bottom of the hot-water tank. The cables are 3 m,
but can be extended as required by 2 x 0.75 mm2double-insulated
cable. EMC approved for 50 m cable length.
4.0 Operation
4.1 Function Test
The regulator is ready for operation when connected the mains. The
display becomes active and current temperatures are shown.
Display updates once per minute. Pressing the INFO button causes
the display to update immediately.
4.2 Temperature Indication
Solar Collector Tank
200
150
120
0
-9
-40
°C Display
F1 ashes
150°C ashes
Temperature ashes
Operating Range
Temperature ashes
-9°C ashes
F1 ashes
Meaning
Sensor fault/alarm
High temperature
Low temperature
Sensor fault/alarm
120
0
-40
°C Display
F2 flashes
Operating Range
0°C flashes
F2 flashes
Meaning
Low temperature
Sensor fault/alarm
99
85
Sensor fault/alarm
99°C flashes
Temperature flashes
HIgh temp./alarm
ES
PT
SHE01
8
5.0 Trouble Shooting
Display Cause Remedy
No display 230V supply off Check supply/connections
Red LED lit
Display flashes F1
Fault at sensor 1
(Collector) Check connections/sensor
Red LED lit
Display flashes F2
Fault at sensor 2
(Tank) Check connections/sensor
Red LED lit
Tank temp. >95°C
Pump does not run
Pump cannot‘keep up’
Check pump mode/ connections
Set speed higher
No alarm
Temperature
flashes
Pump runs, indicates
high temperature
Pump does not run
Set speed higher
Pump or pump output defective
6.0 Technical Data
Supply voltage 230V/ 50 Hz ±10%
Ambient temperature Tmin 0°C, Tmax 45°C
Pump output 230 VAC, 2(1)A
Alarm output Voltage free relay output, 2(1)A
Enclosure rating IP40
Switching action Type 1B
Control pollution situation Pollution degree 2
Rated impulse voltage 2.5 kV
Ball pressure T 75 °C
GB
D
DK
F
ES
PT
Danfoss Heating 9
GB
D
DK
F
ES
PT
Index
1.0 Installationsanweisung....................................................................... 10
2.0 Anwendung............................................................................................... 10
3.0 Installation
3.1 Verkabelung ..................................................................................... 11
3.2 Einstellen des Reglers.................................................................... 11
3.3 Installation......................................................................................... 12
4.0 In Betrieb
4.1 Funktionstest.................................................................................... 13
4.2 Temperaturanzeige........................................................................ 13
5.0 Fehlersuche............................................................................................... 14
6.0 Technische Daten................................................................................... 14
SH-E01
Elektronischer Solarwärmeregler
SHE01
10
GB
D
DK
F
1.0 Installationsanweisung
Bitte beachten Sie:
Dieses Produkt darf nur von einem qualifizierten Elektriker oder
Heizungsinstallateur gemäß der aktuellen Version der IEEE
Verkabelungsvorschriften installiert werden.
T1 : Temperatursensor im Solarkollektor
T2 : Temperatursensor im Warmwasserspeicher
: Umwälzpumpe
: Solarwärmeregler
Der Regler SH-E01 wird zur Regelung in Warmwasseranlagen
mit einem Solarkollektorkreislauf und Warmwasserspeicher
eingesetzt, in denen das Warmwasser durch Solarenergie
aufgeheizt wird. Die Umwälzpumpe des Solarheizkreislaufs wird
durch die Temperaturdifferenz zwischen dem Solarkollektor
und dem Warmwasserspeicher geregelt. Die Pumpen-
Anlauftemperaturdifferenz ist einstellbar. Um überflüssigen
Pumpenbetrieb zu vermeiden, empfehlen wir die Einstellung
einer Anlauftemperaturdifferenz von 15 K, d.h. die Pumpe läuft an,
wenn die Temperatur im Solarkollektor die Speichertemperatur
um mehr als 15 K überschreitet und wird gestoppt, wenn diese
Temperaturdifferenz auf unter 2 K gefallen ist.
2.0 Anwendung
ES
PT
