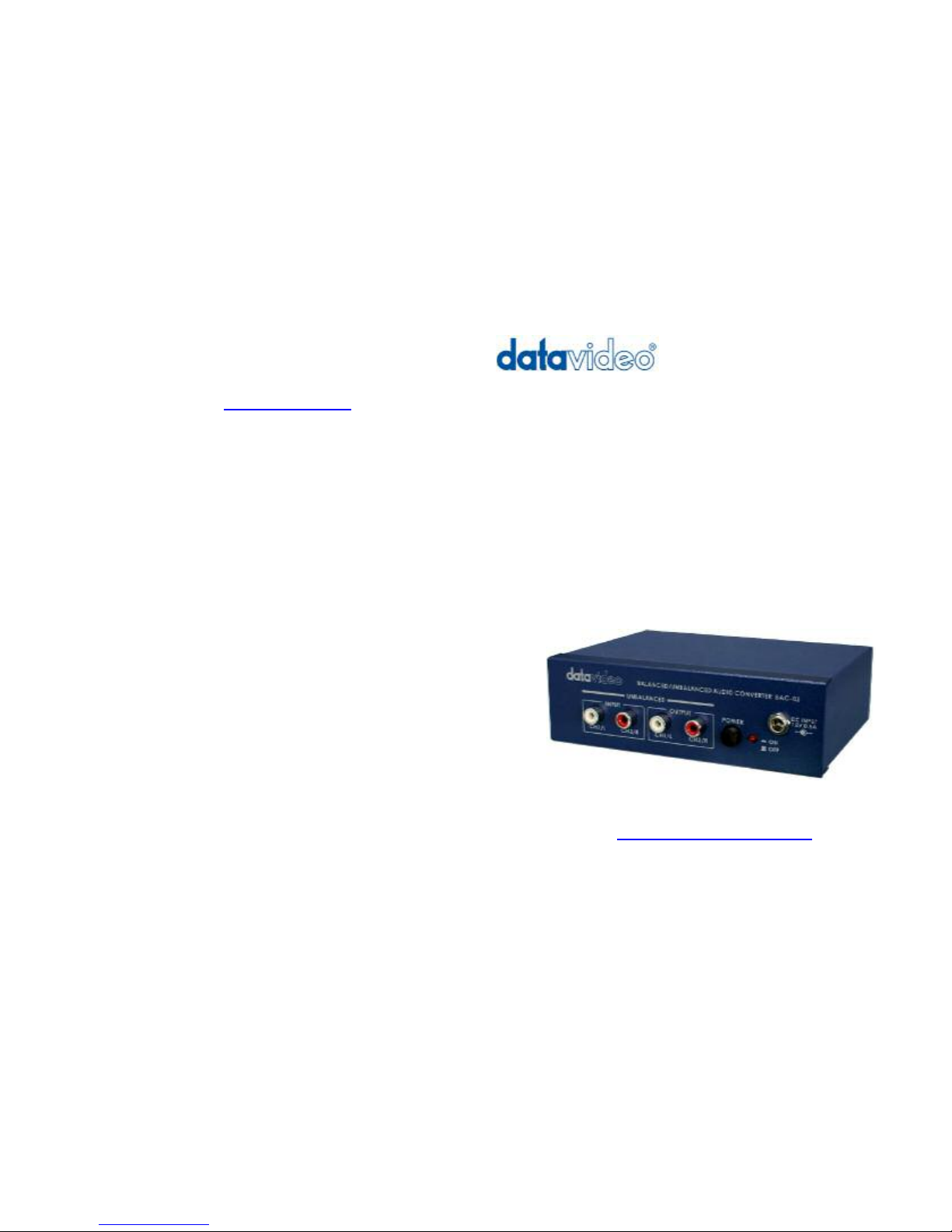

Data Video BAC-03 Guida di riferimento

BAC-03

BALANCED <> UNBALANCED

AUDIO CONVERTER

Quick Reference Card

http:// www.datavideo-tek.com

Service and Support

It is our goal to make your products ownership a satisfying experience. Our

supporting staff is available to assist you in setting up and operating your

system. Please refer to our web site www.datavideo-tek.com for answers to

common questions, support requests or contact your local office below.

Datavideo Corporation (USA)

12300-U East Washington Blvd., Whittier, CA 90606 USA

Tel: +1 562 696 2324 www.datavideo.us

Datavideo Technologies Europe BV

Californiedreef 263565 BL Utrecht, The Netherlands

Tel: +31 30 261 9656 www.datavideo.info

Datavideo UK Limited

Unit 2 Waterside Business Park, Hadfield, Glossop, Derbyshire SK131BE UK

Tel: +44 1457 851000 www.datavideo.info

Datavideo Technologies Co., Ltd.

10F, 176 Jian-Yi Rd, Chung Ho City, Taipei Hsien, Taiwan 235

Tel: +886 2 8227 2888 www.datavideo.com.tw

Datavideo Technologies China Co.

2F-D, 2 Lane 777, West Guangzhong Rd, Zhabei District, Shanghai, China

Tel: +86 21 5603 6599 www.datavideo.cn

Datavideo Technologies (S) PTE Ltd.

100 Lor 23, Geylang Rd, #01-03 D’Centennial, Singapore 388398

Tel: +65 6749 6866 www.datavideo.sg

All the trademarks are the properties of their respective owners.

Datavideo Technologies Co., Ltd. All rights reserved 2003

P/N:082060343E1

Connection

Front Panel:

Rear Panel:

Description

The BAC-03 is a bi-directional unbalanced to balanced and balanced to unbalanced

audio converter, with four independent amplifiers providing stereo audio input and

output.

What’s in the package?

1. BAC-03 Audio Converter unit

2. AC Adaptor DC 12V 500mA

3. Two of 5 ft unbalanced audio cable (Red & White)

4. Quick Reference Guide

SPECIFICATIONS UNBAL to BAL output BAL to UNBAL output

INPUT LEVEL -10dBv nominal 0dBm to +8dBm nominal

INPUT IMPED 50K ohm 50K ohm

GAIN +4 to +20dB -20dB to +18dB

OUTPUT LEVEL 0 to +8dBm nom, +22dBm max -10dBv nom, +20dBv max

OUTPUT LOAD 600 ohms or higher, balanced 600 ohms or higher, unbalanced

FREQ RESPONSE DC to 25kHz, +/-0.5dB DC to 25kHz, +/-0.5dB

NOISE LEVEL 80dB below nom output level 80dB below nom output level

DISTORTION <0.01% at any frequency <0.01% at any frequency

POWER INPUT DC 12V, 200mA

DIMENSION 140(W) x 112(D) x40(H) mm

Notes

1). All XLR connectors should be wired as: Pin 1= GND Pin 2=HI Pin 3=LO

2). If the BAC-03 is used to feed an unbalanced load, connect to pins 1(GND) and 2(HI) only!

DO NOT short pin 3 to ground.
