Introduction

The Datavideo DAC-50 is standalone SDI or HD-SDI to YUV or HD-

YUV video converter. The format of the component output is chosen

based on the supplied SDI input and a combination of Mini switch

choices. This unit allows conversion from HD to SD, SD to HD,

Aspect Ratio change from 4:3 to 16:9 and even standard conversion

from PAL to NTSC or vice versa.

Features

6 Mode Resolutions

DC 12V input

1x HD/SD-SDI Video Input (BNC x1)

1x HD/SD YUV component output (BNC x3)

Accepted HD/SD-SDI Input Resolutions:

720x480 Interlace

720x576 Interlace

1280x720 / 59.94Hz Progressive

1280x720 / 50Hz Progressive

1920x1080 / 59.94Hz Interlace

1920x1080 / 50Hz Interlace

HD/SD YUV Output Resolutions:

720x480 Interlace

720x576 Interlace

1280x720 / 59.94Hz Progressive

1280x720 / 50Hz Progressive

1920x1080 / 59.94Hz Interlace

1920x1080 / 50Hz Interlace

Connections & Controls

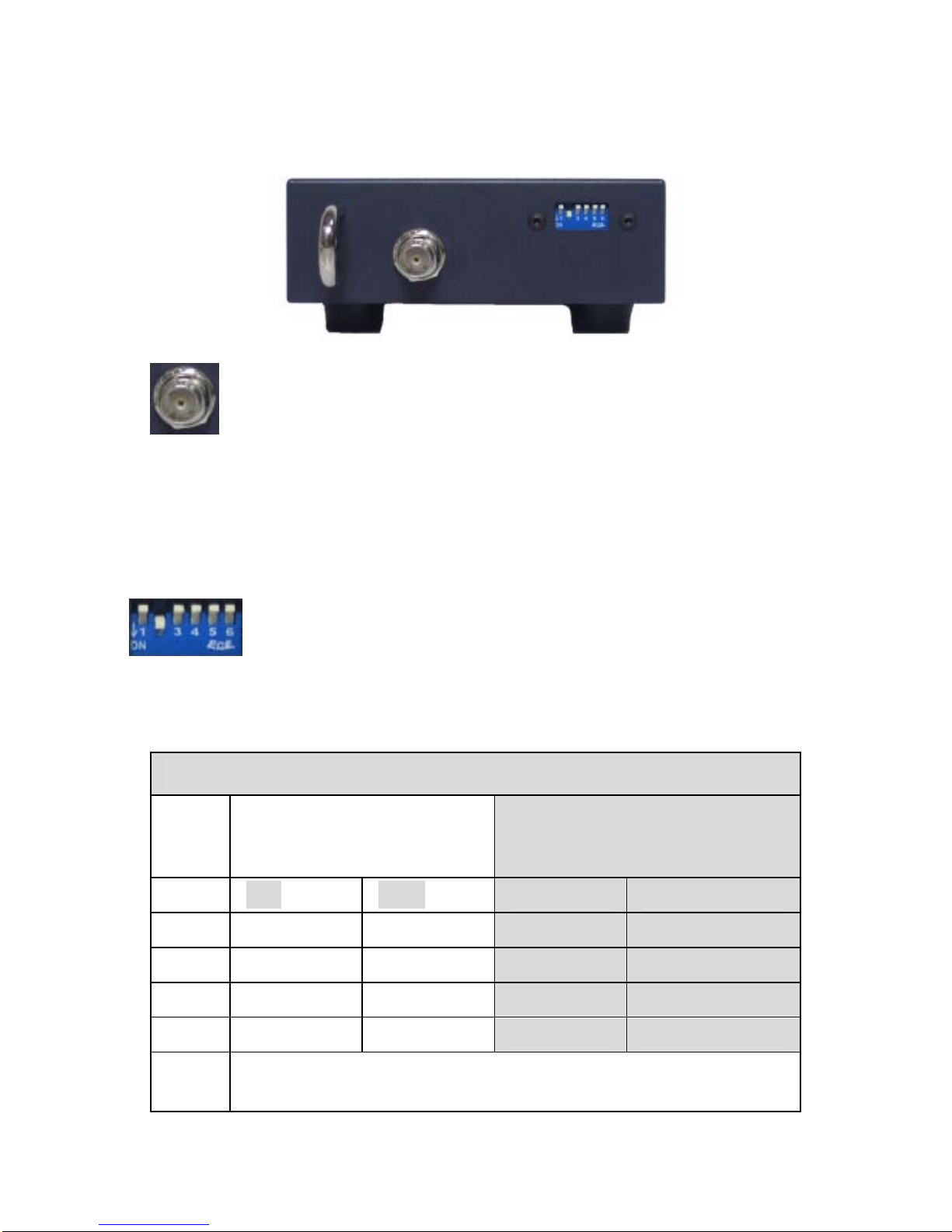

Front Panel

HD/SD - SDI Input

4:2:2 SDI Video data supports SMPTE 292M

standard at 1.5G Mbps.

SDI delivers professional level video signals over

long distances when using the correct cabling and

repeaters.

Mini Switch

Uses the mini switch to select the required output

format.

Mini Switch Function

Mini Switches setting for video output

ON-SD output Mode

OFF - HD output Mode

ON OFF ON OFF

D2 50Hz 59.94Hz 50Hz 59.94Hz

D3 0 IRE 7.5 IRE 1080i 720p

D4 16:9 4:3 16:9 4:3

D5 CVBS YUV YUV YUV

D6 On: Aspect ratio conversion is disabled

Off: Aspect ratio conversion is enabled

Rear Panel

DC In Socket

Connects the supplied 12V 0.5A PSU to this socket.

The connection can be secured by screwing the

outer fastening ring of the DC In plug to this socket.

Power Switch

Switches the power On / Off.

HD/SD YUV

HD/SD YUV component analogue output connectors

Alternatively the Y BNC connector can be used as a

Composite (CV) output connector when Mini

switches 1 and 5 are moved to the ON position.

Up Conversion

No SDI Input YUV Output MINI Switch Setup (D6 OFF)

D1 D2 D3 D4 D5

1 480i

4:3 720/59.94p

16:9 OFF OFF OFF ON OFF

D1 D2 D3 D4 D5

2 480i

4:3 720/59.94p

4:3 OFF OFF OFF OFF OFF

D1 D2 D3 D4 D5

3 480i

4:3 720/50p

16:9 OFF ON OFF ON OFF

D1 D2 D3 D4 D5

4 480i

4:3 720/50p

4:3 OFF ON OFF OFF OFF

D1 D2 D3 D4 D5

5 480i

4:3 1080/59.94i

16:9 OFF OFF ON ON OFF

D1 D2 D3 D4 D5

6 480i

4:3 1080/59.94i

4:3 OFF OFF ON OFF OFF

D1 D2 D3 D4 D5

7 480i

4:3 1080/50i

16:9 OFF ON ON ON OFF

D1 D2 D3 D4 D5

8 480i

4:3 1080/50i

4:3 OFF ON ON OFF OFF

No SDI Input YUV Output MINI Switch Setup (D6 OFF)

D1 D2 D3 D4 D5

9 576i

4:3 720/59.94p

16:9 OFF OFF OFF ON OFF

D1 D2 D3 D4 D5

10 576i

4:3 720/59.94p

4:3 OFF OFF OFF OFF OFF

D1 D2 D3 D4 D5

11 576i

4:3 720/50p

16:9 OFF ON OFF ON OFF

D1 D2 D3 D4 D5

12 576i

4:3 720/50p

4:3 OFF ON OFF OFF OFF

D1 D2 D3 D4 D5

13 576i

4:3 1080/59.94i

16:9 OFF OFF ON ON OFF

D1 D2 D3 D4 D5

14 576i

4:3 1080/59.94i

4:3 OFF OFF ON OFF OFF

D1 D2 D3 D4 D5

15 576i

4:3 1080/50i

16:9 OFF ON ON ON OFF

D1 D2 D3 D4 D5

16 576i

4:3 1080/50i

4:3 OFF ON ON OFF OFF

Up Conversion continued

No SDI Input YUV Output MINI Switch Setup (D6 OFF)

D1 D2 D3 D4 D5

17 720/59.94p

16:9 1080/59.94i

16:9 OFF OFF ON ON OFF

D1 D2 D3 D4 D5

18 720/59.94p

16:9 1080/59.94i

4:3 OFF OFF ON OFF OFF

D1 D2 D3 D4 D5

19 720/59.94p

16:9 1080/50i

16:9 OFF ON ON ON OFF

D1 D2 D3 D4 D5

20 720/59.94p

16:9 1080/50i

4:3 OFF ON ON OFF OFF

No SDI Input YUV Output MINI Switch Setup (D6 OFF)

D1 D2 D3 D4 D5

21 720/50p

16:9 1080/59.94i

16:9 OFF OFF ON ON OFF

D1 D2 D3 D4 D5

22 720/50p

16:9 1080/59.94i

4:3 OFF OFF ON OFF OFF

D1 D2 D3 D4 D5

23 720/50p

16:9 1080/50i

16:9 OFF ON ON ON OFF

D1 D2 D3 D4 D5

24 720/50p

16:9 1080/50i

4:3 OFF ON ON OFF OFF

Down Conversion

No SDI Input YUV Output MINI Switch Setup (D6 OFF)

D1 D2 D3 D4 D5

25 720/59.94p

16:9 480i

16:9 , 0 IRE ON OFF ON ON OFF

D1 D2 D3 D4 D5

26 720/59.94p

16:9 480

4:3 , 0 IRE ON OFF ON OFF OFF

D1 D2 D3 D4 D5

27 720/59.94p

16:9 576i

16:9 ON ON OFF ON OFF

D1 D2 D3 D4 D5

28 720/59.94p

16:9 576i

4:3 ON ON OFF OFF OFF

No SDI Input CVBS Output MINI Switch Setup (D6 OFF)

D1 D2 D3 D4 D5

29 720/59.94p

16:9 480i

16:9 , 0 IRE ON OFF ON ON ON

D1 D2 D3 D4 D5

30 720/59.94p

16:9 480

4:3 , 0 IRE ON OFF ON OFF ON

D1 D2 D3 D4 D5

31 720/59.94p

16:9 576i

16:9 ON ON OFF ON ON

D1 D2 D3 D4 D5

32 720/59.94p

16:9 576i

4:3 ON ON OFF OFF ON

Altri manuali per DAC-50

Indice

Altri manuali Data Video Convertitore multimediale

Data Video

Data Video NVS-40 Manuale utente

Data Video

Data Video NVS-40 Manuale utente

Data Video

Data Video DAC-45 Manuale utente

Data Video

Data Video DAC-7 Manuale utente

Data Video

Data Video DAC-70 Manuale utente

Data Video

Data Video DAC-60 Manuale utente

Data Video

Data Video DAC-100 Manuale

Data Video

Data Video NVD-35 MARK II Manuale utente

Data Video

Data Video DAC-8 Manuale utente

Data Video

Data Video DAC-60 Manuale utente

Data Video

Data Video Tally Box TB-20 Manuale utente

Data Video

Data Video NVD-30 MARK II Manuale utente

Data Video

Data Video DAC-70 Manuale utente

Data Video

Data Video DAC-8P Manuale utente

Data Video

Data Video DAC-100 Manuale utente

Data Video

Data Video PD-10 Manuale utente

Data Video

Data Video BAC-03 Guida di riferimento

Data Video

Data Video DAC-200 Manuale utente

Data Video

Data Video DAC-91 Manuale utente

Data Video

Data Video NVD-40 Manuale utente

Data Video

Data Video DAC-75T Manuale utente

Data Video

Data Video DAC-30 Manuale utente

Data Video

Data Video NVD-35 Manuale utente

Data Video

Data Video DAC-50 Manuale utente

Manuali Convertitore multimediale popolari di altre marche

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuale utente

SPROLINK

SPROLINK VA1 Manuale utente

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuale utente

Nikon

Nikon AF-S TC-20E III Manuale utente

Axis

Axis AXIS Q7406 Manuale utente

Omega

Omega TAC80B-J Manuale utente

Zoom

Zoom Thunderbolt TAC-2R Manuale utente

OST

OST iConverter 10/100M Manuale utente

Vertiv

Vertiv Netsure Manuale utente

birddog

birddog MINI Manuale utente

Roland

Roland GI-10 Manuale utente

Wallenstein

Wallenstein WX310 Manuale utente

Pace

Pace MSS 200-1 Manuale utente

Solar Converters

Solar Converters EQ 12/24-50 Manuale utente

CYP

CYP EL-7400V Manuale utente

TIE

TIE MIDI 1i1o Manuale utente

DCS

DCS Vivaldi Upsampler Manuale utente

Westermo

Westermo MCW-211 SERIES Manuale utente
