Data Video DAC-60 Manuale utente

VGA/DVI//HDMI Convert SDI OUT Converter

DAC-60

Quick Start Guide

www.datavideo-tek.com

Table of Contents

Warnings and Precautions .......................................... 2

What’s in the box?....................................................... 4

Introduction.................................................................. 4

Features ...................................................................... 4

Functions ..................................................................... 5

Front Panel .............................................................. 5

Rear Panel............................................................... 6

DAC-60 installation...................................................... 7

LED Indicate ................................................................ 8

Firmware Upgrade....................................................... 9

Adjust Proc Amp........................................................ 11

Dimension.................................................................. 12

Specification .............................................................. 13

Service & Support...................................................... 14

Warnings and Precautions

1. Read all of these warnings and save them for later reference.

2. Follow all warnings and instructions marked on this unit.

3. Unplug this unit from the wall outlet before cleaning. Do not use

liquid or aerosol cleaners. Use a damp cloth for cleaning.

4. Do not use this unit in or near water.

5. Do not place this unit on an unstable cart, stand, or table. The unit

may fall, causing serious damage.

6. Slots and openings on the cabinet top, back, and bottom are

provided for ventilation. To ensure safe and reliable operation of this

unit, and to protect it from overheating, do not block or cover these

openings. Do not place this unit on a bed, sofa, rug, or similar

surface, as the ventilation openings on the bottom of the cabinet will

be blocked. This unit should never be placed near or over a heat

installation unless proper ventilation is provided.

7. This product should only be operated from the type of power source

indicated on the marking label of the AC adapter. If you are not sure

of the type of power available, consult your Datavideo dealer or your

local power company.

8. Do not allow anything to rest on the power cord. Do not locate this

unit where the power cord will be walked on, rolled over, or

otherwise stressed.

9. If an extension cord must be used with this unit, make sure that the

total of the ampere ratings on the products plugged into the

extension cord do not exceed the extension cord’s rating.

10. Make sure that the total amperes of all the units that are plugged

into a single wall outlet do not exceed 15 amperes.

11. Never push objects of any kind into this unit through the cabinet

ventilation slots, as they may touch dangerous voltage points or

short out parts that could result in risk of fire or electric shock. Never

spill liquid of any kind onto or into this unit.

12. Except as specifically explained elsewhere in this manual, do not

attempt to service this product yourself. Opening or removing covers

that are marked “Do Not Remove” may expose you to dangerous

voltage points or other risks, and will void your warranty. Refer all

service issues to qualified service personnel.

13. Unplug this product from the wall outlet and refer to qualified service

personnel under the following conditions:

a. When the power cord is damaged or frayed;

b. When liquid has spilled into the unit;

c. When the product has been exposed to rain or water;

d. When the product does not operate normally under normal operating

conditions. Adjust only those controls that are covered by the

operating instructions in this manual; improper adjustment of other

controls may result in damage to the unit and may often require

extensive work by a qualified technician to restore the unit to normal

operation;

e. When the product has been dropped or the cabinet has been

damaged;

f. When the product exhibits a distinct change in performance,

indicating a need for service.

14. Due to the general consumer usage behavior, efficient power

distribution on the field, corporate environment responsibility by

eliminating harmful substances such as carbon dioxide, sulphur

dioxide, etc, and other unexpected risks, this product does not

provide standby power option.

What’s in the box?

1 x Switching Adaptor 12V/500mA

1 x DAC-60 Quick Start Guide

1 x User Adjust Tool CD

Introduction

Datavideo is proud to introduce the cost-effective HD/SD-SDI to VGA

converter, the revolutionary DAC-60. The introduction of the DAC-60 has

demonstrated a convenient way to convert the mainstream High

Definition and Standard Definition SDI in broadcast industry to VGA

based equipment such as projectors, plasma TV, and LCD screens,

providing high quality live and recorded videos through both HD and SD

signals for your demanding production needs.

Features

Supports HD format :

- 720p 50 & 60

- 1080i 50 & 60

- 1080p 24, 25, 30, 50 & 60

Support 525i & 625i SD D1 format

Auto 3G/HD/SD-SDI detection

Firmware is upgradable in the field using the integrated USB port

The converter is Plug-and-Play

Dual output are available (SDI & VGA)

Support Brightness, Contrast, Hue and Saturation of Adjustment.

Functions

Front Panel

HD/SD - SDI IN / OUT

HD - SDI input and pass-through output connectors.

Power Switch

Switches the power On / Off.

DC In Socket

Connect the supplied 12V PSU to this socket. The

connection can be secured by screwing the outer

fastening ring of the DC In plug to the socket.

USB

Upgrade Firmware/ Control Box by PC

Rear Panel

VGA Output

From your VGA Display Device plug into these ports

LED

The LEDs is indicate VGA output format

Mode Select

Switch VGA Output Format

DAC-60 installation

1. Disconnect +12DC adaptor to converter.

2. Connect Video Source (SDI) to the BNC Connector.

3. Connect VGA equipment to the VGA connector

4. Connect SDI equipment to the BNC Connector.

5. Connect the +12DC adaptor to the converter.

LED Indicate

DAC-60 can choose one of six standard output resolutions by

pull

MODE

Button.

LED Indicate

Resolution

●○○

○○○

800x600 60Hz

○●○

○○○

1024x768 60Hz

○○●

○○○

1280x1024

60Hz

○○○

●○○

1366x768

60Hz

○○○

○●○

1400x1050

60Hz

○○○

○○●

1600x1200

60Hz

●- LED ON

○- LED OFF

Firmware Upgrade

Firmware is upgradable in the field using the integrated USB

port

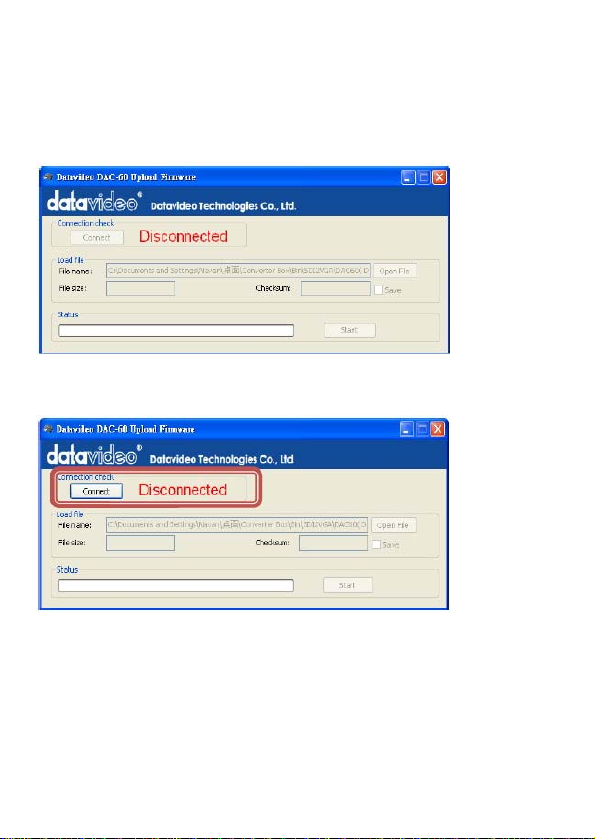

Step 1- open upload firmware program tools.exe, connect box to PC

by USB cable and turn off power

Step 2 - turn on power
