Data Video DAC-100 Manuale utente
DAC-100
3
RCA VIDEO & AUDIO CABLE
S-VIDEO CABLE
1AC ADAPTER
AC ADAPTER
S-VIDEO CABLE
(REQUIRES RED & WHITE RCA
AUDIO CABLE)
RCA VIDEO & AUDIO CABLE
FIREWIRE
(6 PIN MALE TO 6 PIN MALE)
DAC-100

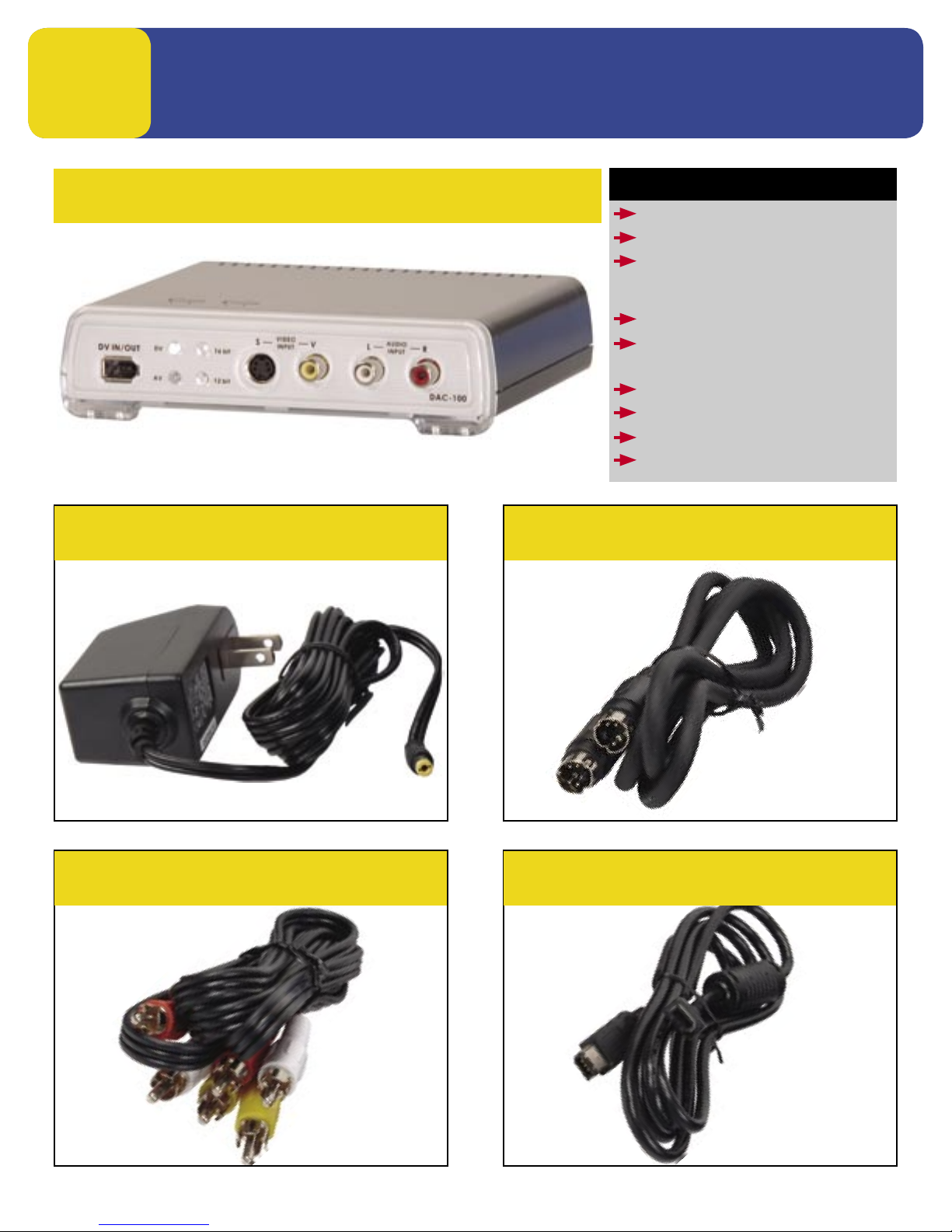

What’s in the Box?
GETTING STARTED
INSTALLATION GUIDE
MANUAL
REGISTRATION CARD
SUPPORT INFO
2
4
FIREWIRE CABLE
6 PIN MALE TO 6 PIN MALE
1
Audio Bit Rate Selector
Input Selector
Source Indicator
Audio
Bit Rate Indicator
S-Video
Input
Composite Video Input
Left Audio Input
Right Audio Input
S-Video Output
Composite Video Output
Left Audio Output
Right Audio Output
INPUT SIDE
OUTPUT SIDE
Dip Switches
(Behind the Plastic Cover)
AC Adapter Connector
Power Switch

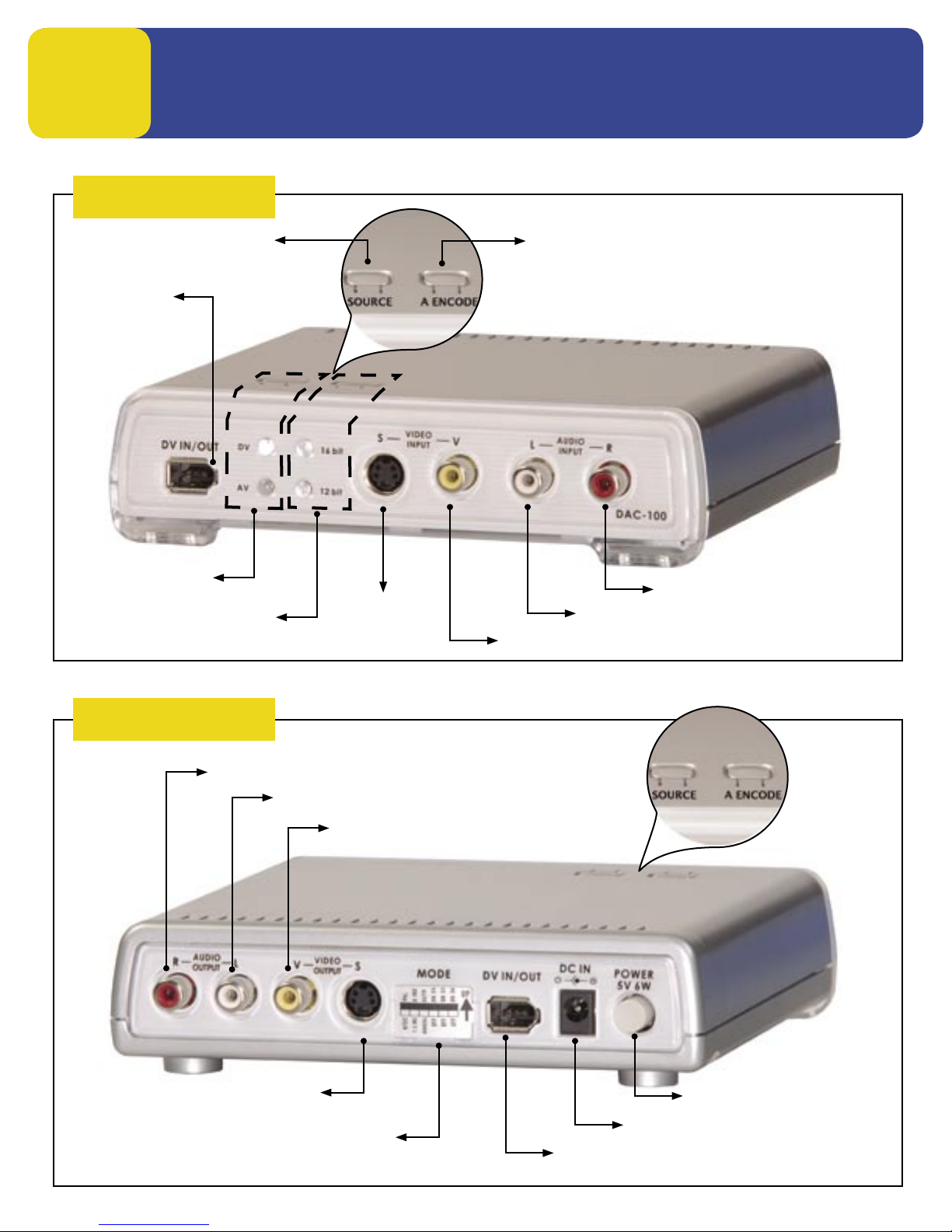

MEET THE DAC-100
FireWire
Input/Output
FireWire
Input/Output
2
FRONT (Input)
CAPTURING
3

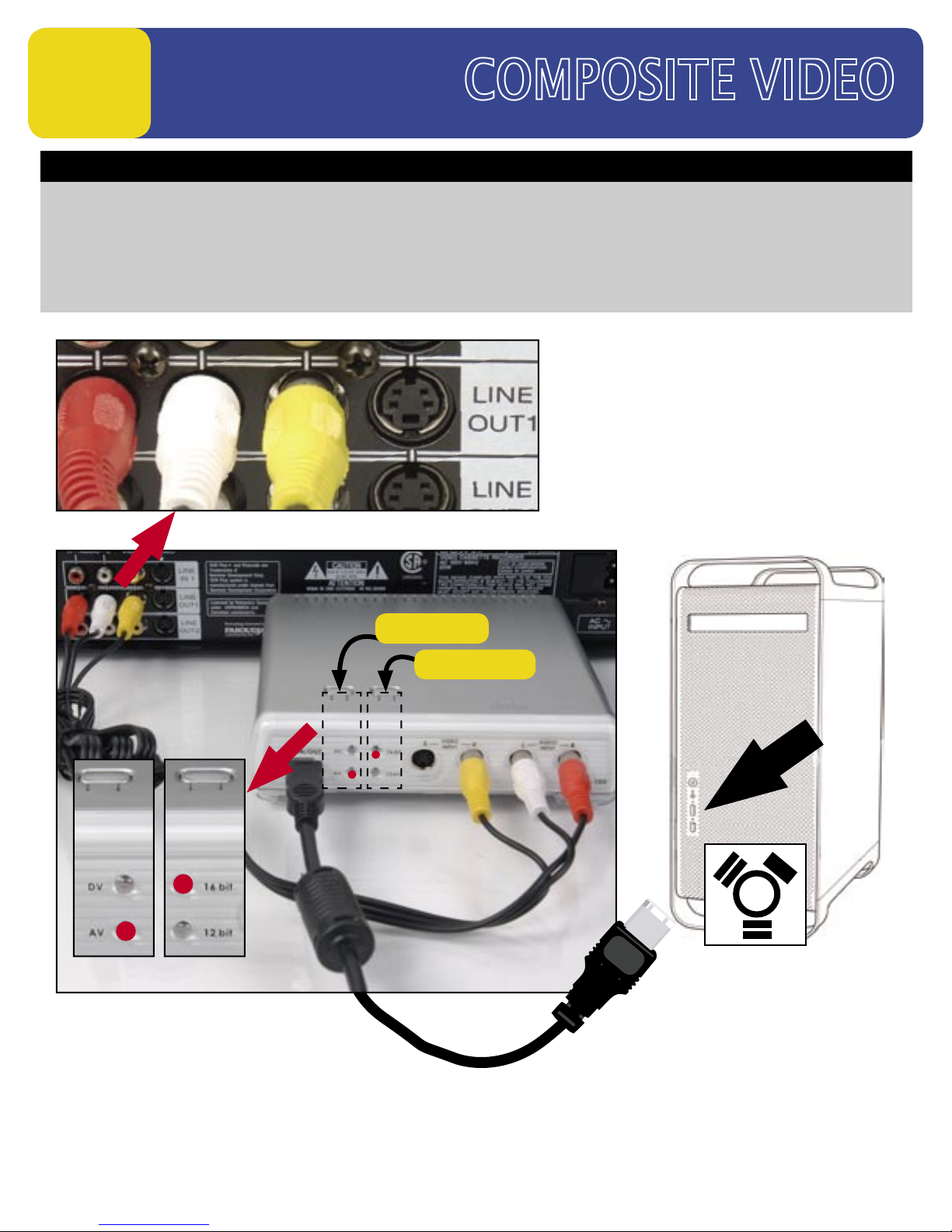

How to connect DAC-100 to capture Video from a VCR or Camcorder
1. Connect the RCA Video/audio cables from the VCR’s Line output to the input on the DAC-100.
2. Connect the FireWire cable to the DAC-100, connect opposite end to the PC or Mac’s FireWire Port.
3. Power on the DAC-100 and the VCR.
4. Start the Editing Software. (Not Supplied)
5. Press the DAC-100’s Source Button to switch it to “AV” and the A Encode Button to “16 bit”.
6. Go to the “Capture or Import” mode on the Editing software to begin capturing video to a PC or a MAC
FireWire to
PC/MAC
FireWire
PRESS
Set to “16 bit”
Set to “AV”
PRESS
SOURCE
A ENCODE
DAC-100 Input Side
CAPTURING
4

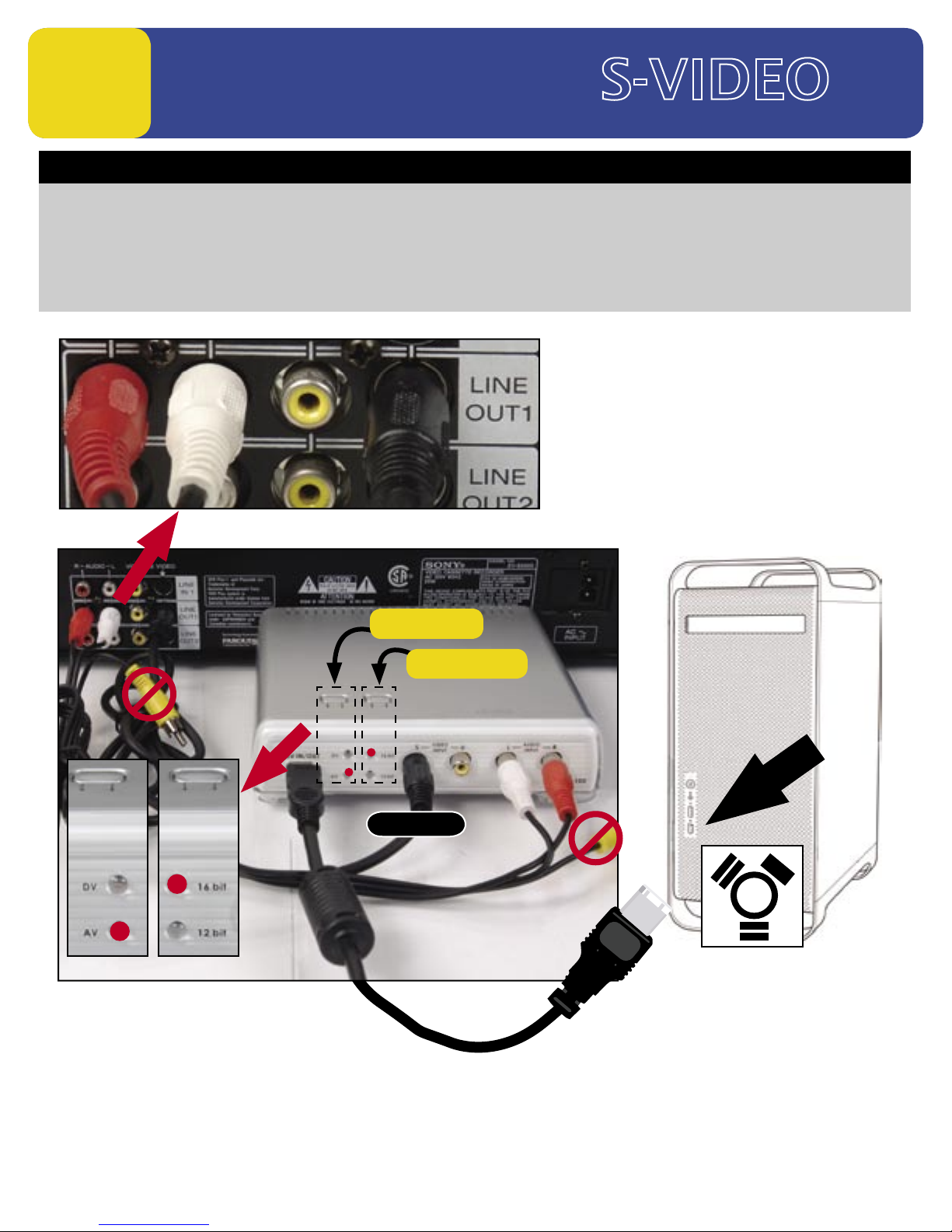

1. Connect the S-Video cable and RCA audio cables from the VCR’s Line output to the input on the DAC-100.
2. Connect the FireWire cable to the DAC-100, connect the opposite end to the PC or Mac’s FireWire Port.
3. Power on the DAC-100 and the VCR.
4. Start the Editing Software. (Not Supplied)
5. Press the DAC-100’s Source Button to switch it to “AV” and the A Encode Button to “16 bit”.
6. Go to the “Capture or Import” mode on the Editing software to begin capturing video to a PC or a MAC.
FireWire
S-Video
PRESS
Set to “16 bit”
Set to “AV”
PRESS
FireWire to
PC/MAC
SOURCE
A ENCODE
How to capture Video from a VCR or Camcorder
DAC-100 Input Side
EXPORTING TO
Set to “AV”
PUSH
PUSH
Set to “16 bit”
5
1. Connect the RCA Video/audio cables from the VCR’s Line input to the output on the DAC-100.
2. Connect the FireWire cable to the DAC-100, connect the opposite end to the PC or Mac’s FireWire Port.
3. Power on the DAC-100 and the VCR.
4. Start the Editing Software. (Not Supplied)
5. Press the DAC-100’s Source Button to switch it to “DV” and the A Encode Button to “16 bit”.
6. Go to the “Export” mode on the Editing software to begin exporting video to the VCR.
FireWire
FireWire to
PC/MAC
SOURCE
A ENCODE

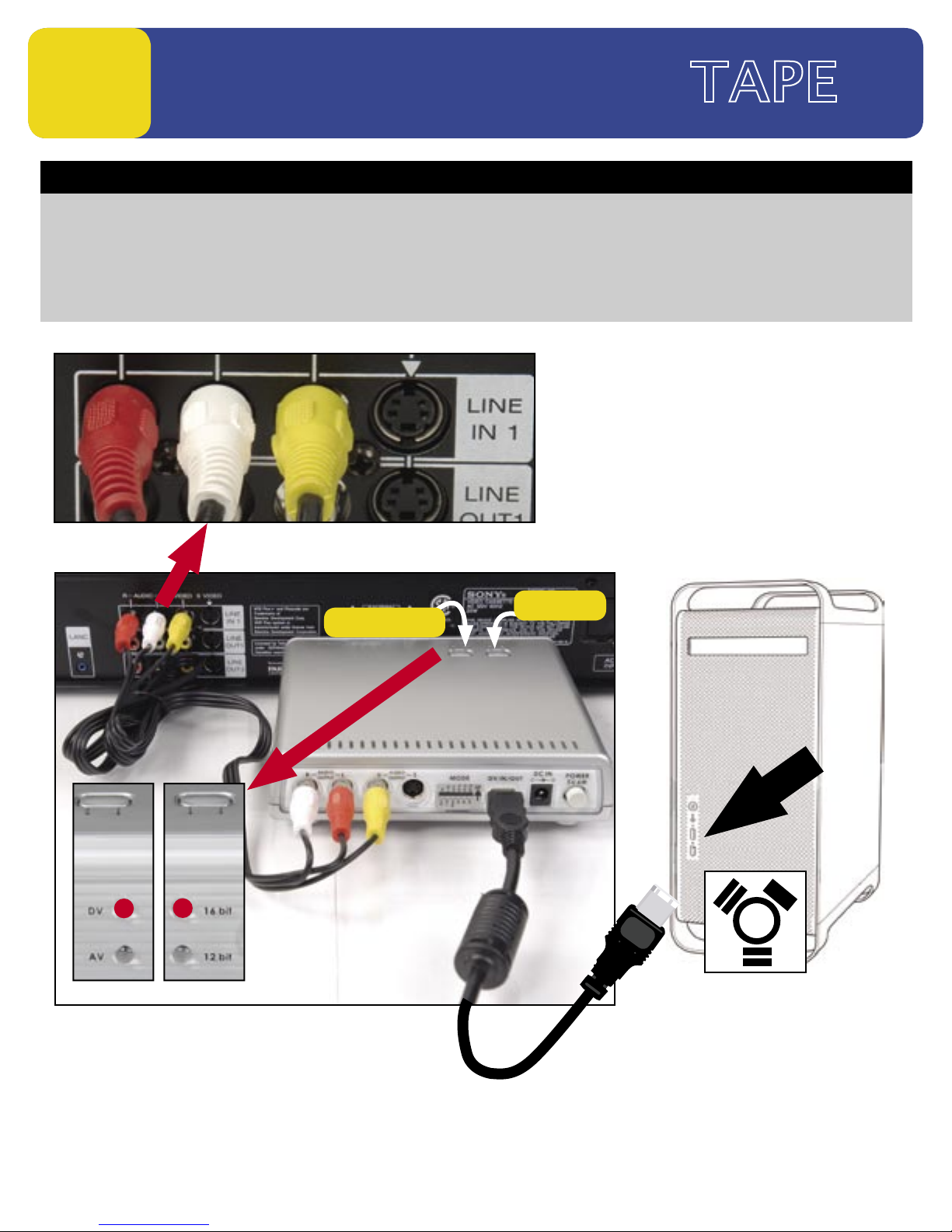

How to Export Video from the computer to Tape
DAC-100 Output Side
EXPORTING TO ( )
6

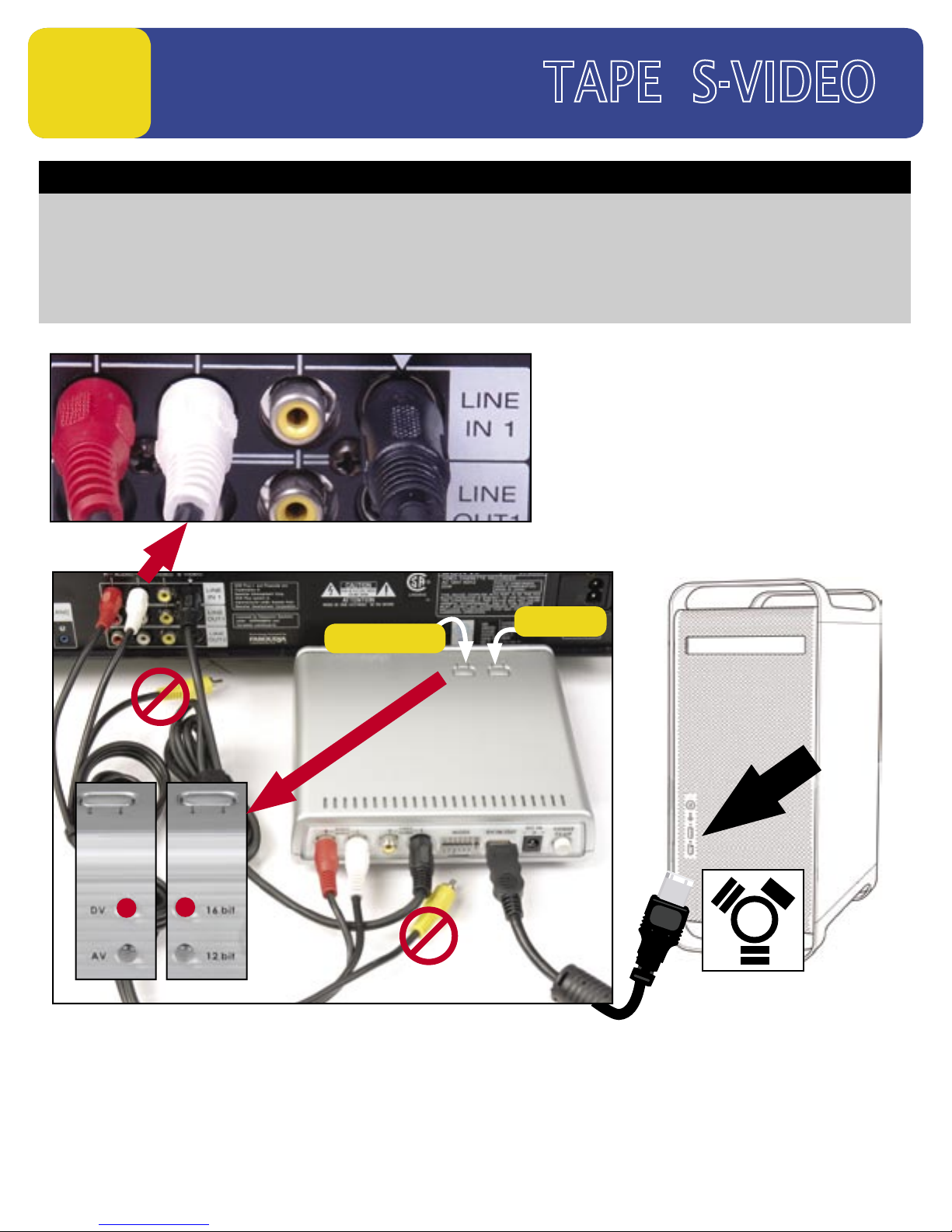

1. Connect the S-Video and RCA audio cables from the VCR’s Line input to the output on the DAC-100.
2. Connect the FireWire cable to the DAC-100, connect the opposite end to the PC or Mac’s FireWire Port.
3. Power on the DAC-100 and the VCR.
4. Start the Editing Software. (Not Supplied)
5. Press the DAC-100’s Source Button to switch it to “DV” and the A Encode Button to “16 bit”.
6. Go to the “Export” mode on the Editing software to begin exporting video to the VCR.
FireWire
REAR VIEW
Set to “16 bit”
Set to “AV”
PUSH
PUSH
Set to “16 bit”
FireWire to
PC/MAC
SOURCE
A ENCODE
How to Export Video from the computer back to Tape
DAC-100 Output Side
Configuring a DAC-100 with Adobe Premiere 6.5
for Macintosh users
Open Adobe Premiere 6.5
go to file and click on New Project, which brings you to the following window

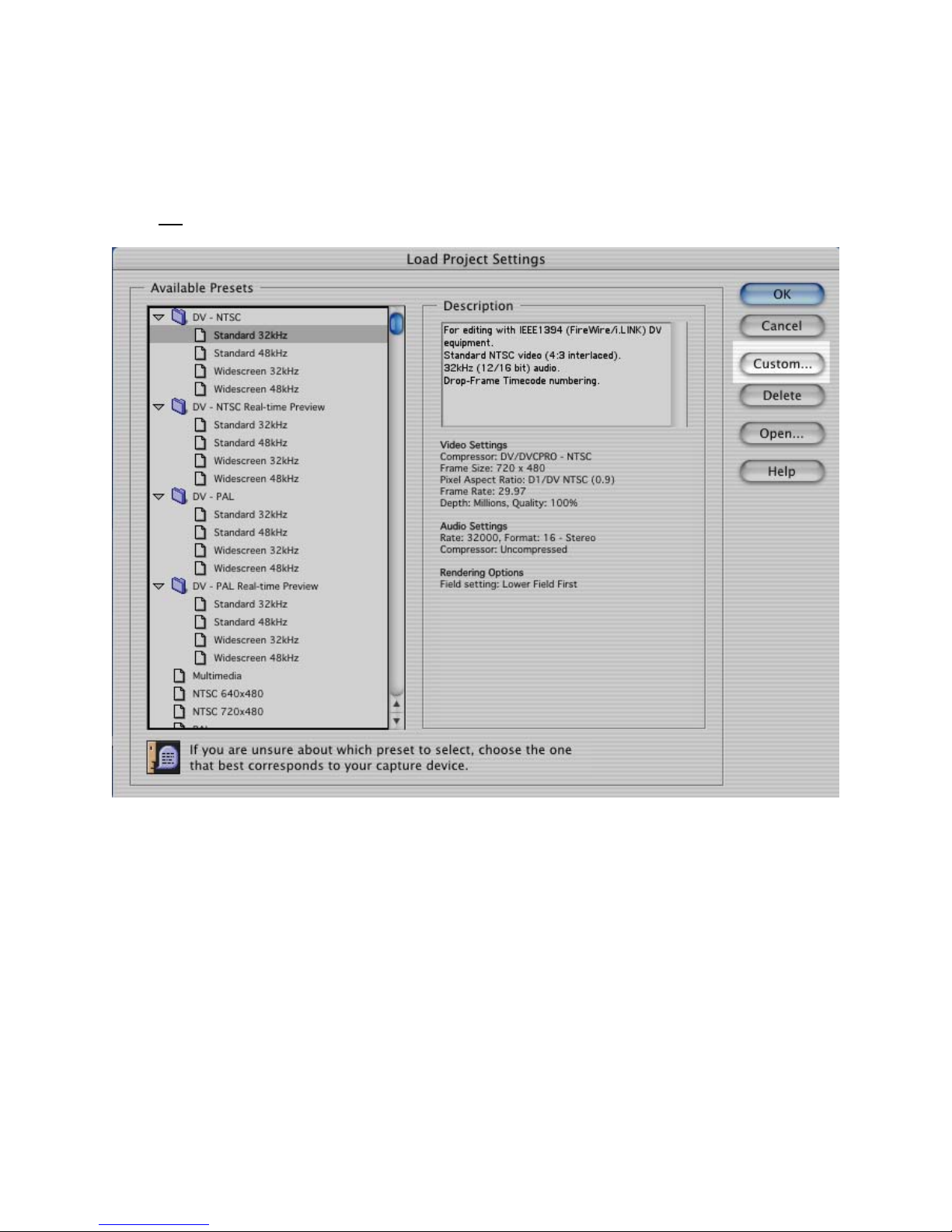

screen1
On the right hand side of the menu click “Custom”
screen 2

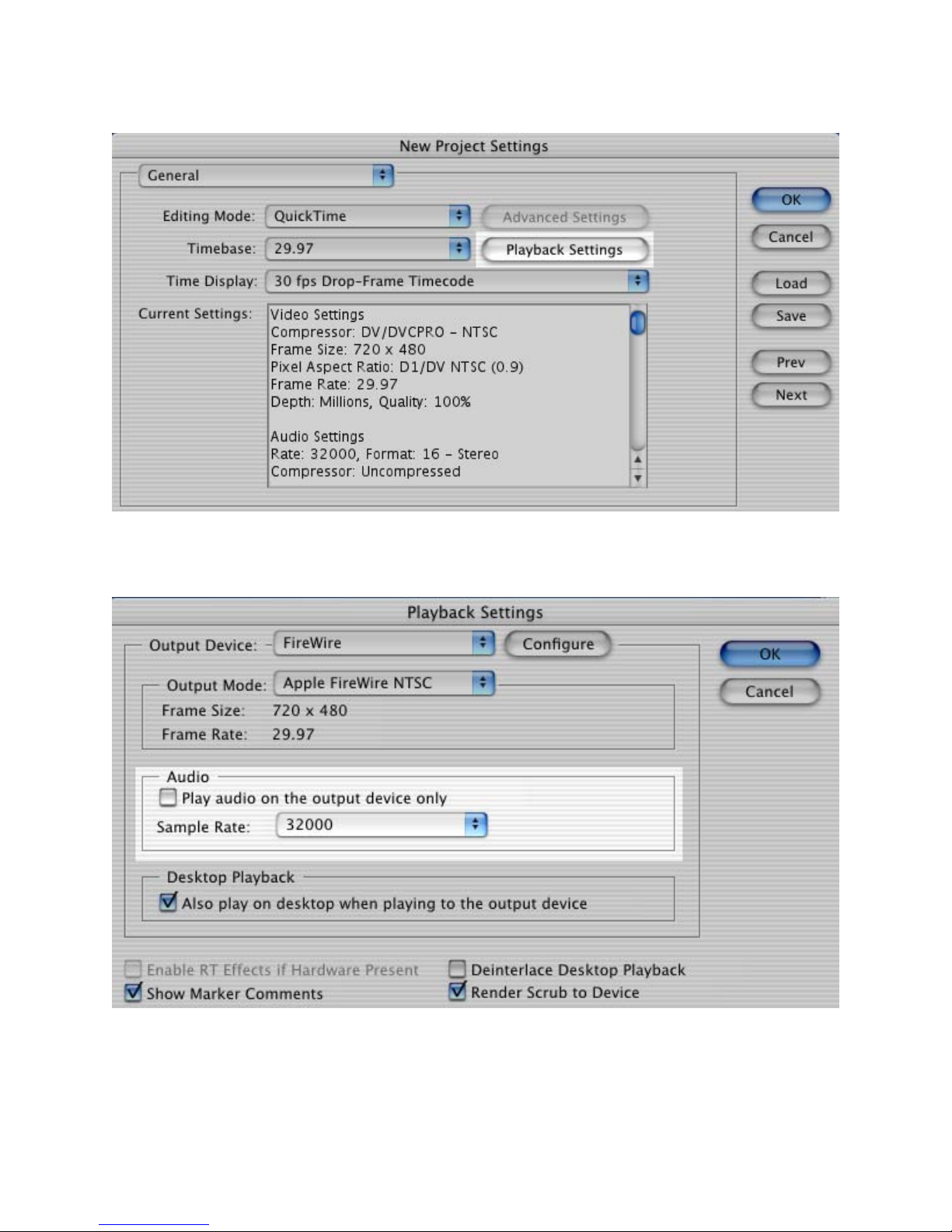

The Custom button will take you to New Project Settings.
Here, click Playback settings, which will take you to the next window
Screen3
In the Playback Settings, is an Audio section. Make sure the box that says
“Play Audio on the output device only” is un-checked. This allows you to hear the audio
through the computer speakers when editing on your timeline. The sample rate should
match the quality of your video source.
-If the source plugged into the DAC is analog, using a yellow, red, and white RCA
composite, choose 32000
-If the source plugged into the DAC is digital, using a fire wire, choose 48000
hit OK to return to the General Settings screen

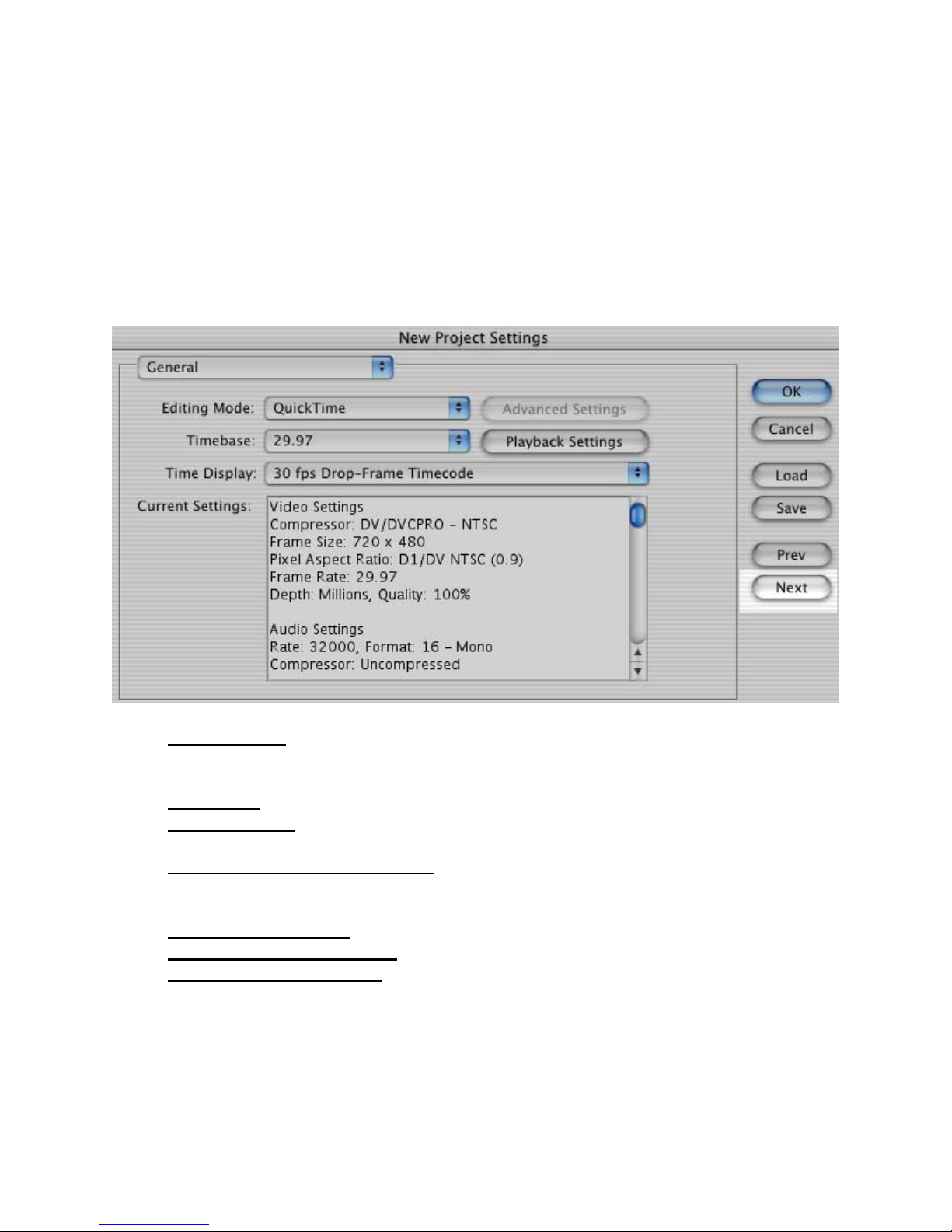

screen 4
Under the general settings, the settings should be as follows:
Editing mode: QuickTime
Quicktime is Adobe Premiere’s default editing mode
All of the options listed under Time base and Time Display are compatible with the DAC
Timebase: 29.97
Time Display: this is how time will be displayed throughout your project. The
following will help you choose the appropriate setting:
For Broadcast or NTSC video: 30 fps drop-frame timecode
*This feature should be used if you will be using the timecode from your
original footage
For web or CD ROM: 30 fps Non drop-frame timecode
For PAL or SECAM video: 25 fps timecode
For motion picture Film: Feet + Frames at 16mm or 35mm
continue to Click next until you reach the audio settings

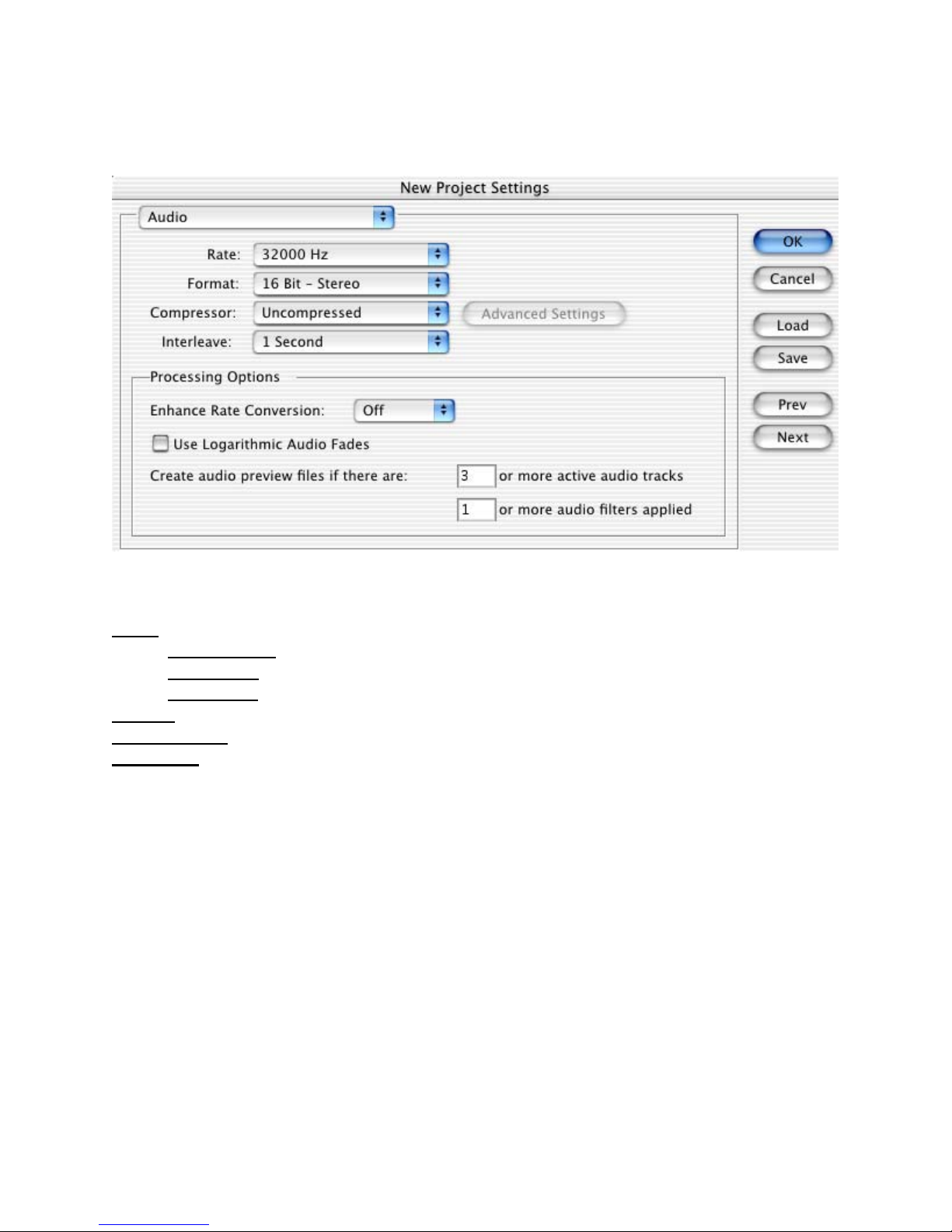

screen5
The DAC is compatible with all Rate and Format settings.
Rate: As previously stated, the rate should match the quality of your video source.
Analog/VCR: 32000 Hz
CD quality: 44100 Hz
DV quality: 48000 Hz
Format: 16 bit stereo is the best quality, but will use more disk space
Compressor: leave Uncompressed
Interleave: should be set for 1 second, lowering this amount requires more RAM and
will slow down your computer.
Under Processing Options, make sure your Enhance Rate conversion is off. Create
audio preview files if there are 3 or more active audio tracks, and 1 or more filters. This
will allow you to have full audio capabilities when editing
