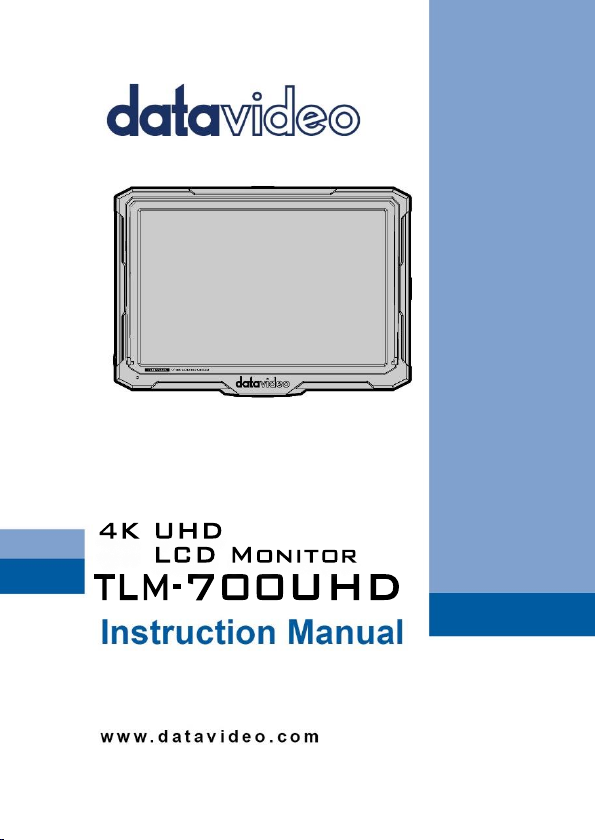

Data Video TLM-700UHD Manuale utente

7”

Table of Contents

FCC COMPLIANCE STATEMENT......................................3

WARNINGS AND PRECAUTIONS ....................................3

WARRANTY...................................................................4

STANDARD WARRANTY ......................................................4

THREE YEAR WARRANTY ....................................................5

DISPOSAL ......................................................................6

1. INTRODUCTION .....................................................7

TLM-700UHD MODEL TYPE ..............................................8

COMPATIBLE RESOLUTIONS AND FORMATS..............................9

2. CONNECTIONS AND CONTROLS ...........................12

3. OSD MENU ..........................................................17

4. DIMENSIONS .......................................................24

5. FIRMWARE UPGRADE PROCEDURE......................26

6. SPECIFICATIONS...................................................29

7. ACCESSORIES .......................................................31

8. SERVICE AND SUPPORT .......................................35

Disclaimer of Product & Services

The information offered in this instruction manual is intended as a guide only. At all times,

Datavideo Technologies will try to give correct, complete and suitable information. However,

Datavideo Technologies cannot exclude that some information in this manual, from time to

time, may not be correct or may be incomplete. This manual may contain typing errors,

omissions or incorrect information. Datavideo Technologies always recommend that you

double check the information in this document for accuracy before making any purchase

decision or using the product. Datavideo Technologies is not responsible for any omissions or

errors, or for any subsequent loss or damage caused by using the information contained within

this manual. Further advice on the content of this manual or on the product can be obtained by

contacting your local Datavideo Office or dealer.

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject to the

following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference

that may cause undesired operation.

Warnings and Precautions

1. Read all of these warnings and save them for later reference.

2. Follow all warnings and instructions marked on this unit.

3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or

aerosol cleaners. Use a damp cloth for cleaning.

4. Do not use this unit in or near water.

5. Do not place this unit on an unstable cart, stand, or table. The unit may fall,

causing serious damage.

6. Slots and openings on the cabinet top, back, and bottom are provided for

ventilation. To ensure safe and reliable operation of this unit, and to protect

it from overheating, do not block or cover these openings. Do not place this

unit on a bed, sofa, rug, or similar surface, as the ventilation openings on

the bottom of the cabinet will be blocked. This unit should never be placed

near or over a heat register or radiator. This unit should not be placed in a

built-in installation unless proper ventilation is provided.

7. This product should only be operated from the type of power source

indicated on the marking label of the AC adapter. If you are not sure of the

type of power available, consult your Datavideo dealer or your local power

company.

8. Do not allow anything to rest on the power cord. Do not locate this unit

where the power cord will be walked on, rolled over, or otherwise stressed.

9. If an extension cord must be used with this unit, make sure that the total of

the ampere ratings on the products plugged into the extension cord do not

exceed the extension cord rating.

10. Make sure that the total amperes of all the units that are plugged into a

single wall outlet do not exceed 15 amperes.

11. Never push objects of any kind into this unit through the cabinet ventilation

slots, as they may touch dangerous voltage points or short out parts that

could result in risk of fire or electric shock. Never spill liquid of any kind

onto or into this unit.

12. Except as specifically explained elsewhere in this manual, do not attempt to

service this product yourself. Opening or removing covers that are marked

“Do Not Remove” may expose you to dangerous voltage points or other

risks, and will void your warranty. Refer all service issues to qualified service

personnel.

13. Unplug this product from the wall outlet and refer to qualified service

personnel under the following conditions:

a. When the power cord is damaged or frayed;

b. When liquid has spilled into the unit;

c. When the product has been exposed to rain or water;

d. When the product does not operate normally under normal

operating conditions. Adjust only those controls that are covered by

the operating instructions in this manual; improper adjustment of

other controls may result in damage to the unit and may often

require extensive work by a qualified technician to restore the unit to

normal operation;

e. When the product has been dropped or the cabinet has been

damaged;

f. When the product exhibits a distinct change in performance,

indicating a need for service.

Warranty

Standard Warranty

Datavideo equipment is guaranteed against any manufacturing defects for

one year from the date of purchase.

The original purchase invoice or other documentary evidence should be

supplied at the time of any request for repair under warranty.

The product warranty period beings on the purchase date. If the purchase

date is unknown, the product warranty period begins on the thirtieth day

after shipment from a Datavideo office.

All non-Datavideo manufactured products (product without Datavideo logo)

have only one year warranty from the date of purchase.

Damage caused by accident, misuse, unauthorized repairs, sand, grit or

water is not covered under warranty.

Viruses and malware infections on the computer systems are not covered

under warranty.

Any errors that are caused by unauthorized third-party software

installations, which are not required by our computer systems, are not

covered under warranty.

All mail or transportation costs including insurance are at the expense of

the owner.

All other claims of any nature are not covered.

All accessories including headphones, cables, batteries, metal parts,

housing, cable reel and consumable parts are not covered under warranty.

Warranty only valid in the country or region of purchase.

Your statutory rights are not affected.



Three Year Warranty

All Datavideo products purchased after July 1st,

2017 qualify for a free two years extension to the

standard warranty, providing the product is

registered with Datavideo within 30 days of

purchase.

Certain parts with limited lifetime expectancy such as LCD panels, DVD

drives, Hard Drive, Solid State Drive, SD Card, USB Thumb Drive, Lighting,

Non-PCIe Card and third party provided PC components are covered for 1

year.

The three-year warranty must be registered on Datavideo's official website

or with your local Datavideo office or one of its authorized distributors

within 30 days of purchase.

Disposal

For EU Customers only - WEEE

Marking.

This symbol on the product indicates that it

should not be treated as household waste. It

must be handed over to an applicable take-

back scheme for the recycling of Waste

Electrical and Electronic Equipment. For more

detailed information about the recycling of

this product, please contact your local

Datavideo office or your local recycling centre.

1. Introduction

The Datavideo TLM-700UHD 7” 4K LCD Monitor features 4K inputs at

the 7” screen size. It’s UHD 4K resolution is compatible with 16:9

Aspect Ratio LCD field monitor which presents its images on a Full HD

1920x1200 LCD panel.

Optimized for use with the professional DSLRs & Camcorders. It offers a

wide range of professional features including focus assist (peaking),

false color filters, a variety of screen markers, underscan mode, check

field and Pixel-to-Pixel mode.

The Datavideo TLM-700UHD is an excellent display with advanced

auxiliary functions to provide wonderful viewing & user friendly

experience.

Features

4K HDMI input with loop-through output

F1 user-definable buttons to custom auxiliary functions as

shortcut

DSLR Scaling for Full Screen Viewing

170°Horizontal & Vertical wide viewing angle

7 inch,1920×1200 full HD resolution

Portable, slim design

Individual adjustments of Brightness, Contrast, Saturation,

Sharpness

Color Match Conversion with Color Temperature Adjustment

Adjustable Screen Markers

Support Focus assist (peaking), False Color, Histogram, Exposure,

Zoom, Pixel to Pixel, Underscan, Check Field (blue-only mode,

monochrome mode), etc.

Multi-format compatibility accommodates virtually all video

formats including NTSC/PAL, 480i/p, 720p, 1080i/p,2160p

75mm VESA and hot shoe mounts for fixing on the top of camera

or camcorder

TLM-700UHD Model Type

Model

TLM-700UHD


System

Optimized for use with the professional DSLRs & Camcorders

Compatible Resolutions and Formats

Format

TLM-700UHD Interface

HDMI

4096×2160p @23.98

Support

4096×2160p @24

Support

4096×2160p @25

Support

4096×2160p @29.97

Support

4096×2160p @30

Support

4096×2160p @50

Support

4096×2160p @59.94

Support

4096×2160p @60

Support

3840×2160p @23.98

Support

3840×2160p @24

Support

3840×2160p @25

Support

3840×2160p @29.97

Support

3840×2160p @30

Support

3840×2160p @50

Support

3840×2160p @59.94

Support
