Gryphon™ GFE4400

Fixed Area Imaging

Bar Code Scan Engine

Integration Guide

Datalogic Scanning, Inc.

959 Terry Street

Eugene, OR 97402

USA

Telephone: (541) 683-5700

Fax: (541) 345-7140

umentation or the procedures described therein may be reproduced or trans-

mitted in any form or by any means without prior written permission of

Datalogic ADC, Inc. or its subsidiaries or affiliates ("Datalogic" or “Datalogic

ADC”). Owners of Datalogic products are hereby granted a non-exclusive,

revocable license to reproduce and transmit this documentation for the pur-

chaser's own internal business purposes. Purchaser shall not remove or alter

any proprietary notices, including copyright notices, contained in this docu-

mentation and shall ensure that all notices appear on any reproductions of

the documentation.

Should future revisions of this manual be published, you can acquire printed

versions by contacting your Datalogic representative. Electronic versions may

either be downloadable from the Datalogic website (www.datalogic.com) or

provided on appropriate media. If you visit our website and would like to make

comments or suggestions about this or other Datalogic publications, please

let us know via the "Contact Datalogic" page.

Disclaimer

Datalogic has taken reasonable measures to provide information in this man-

ual that is complete and accurate, however, Datalogic reserves the right to

change any specification at any time without prior notice.

Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A.

in many countries, including the U.S.A. and the E.U. All other brand and prod-

uct names may be trademarks of their respective owners.

Patents

This product is covered by one or more of the following patents.

US Pat.: 5,311,000; 5,481,098; 5,929,421; 5,992,740; 6,098,883; 6,260,764;

6,443,360 B1; 6,808,114 B1; 6,997,385 B2; 7,075,663 B2; 7,387,246 B2.

European Pat.: 789,315 B1; 926,620 B1;1 997,760 B1; 1,128,315 B1; 1,217,571

B1; 1,396,811B1; 1,413,971 B1.

Additional patents pending.

Table of Contents

Gryphon™ GFE4400 Integration Guide ..................................................................... 1

Overview ............................................................................................................................... 1

Demo Kit ......................................................................................................... 2

Unpacking the Scan Engine ................................................................................ 2

Scan Engine Care .................................................................................................... 3

Technical Support ............................................................................................................. 3

Datalogic Website Support ................................................................................. 3

Telephone Technical Support ............................................................................ 3

Mounting the Scanner ..................................................................................................... 4

General Considerations ........................................................................................ 4

Mounting ................................................................................................................... 4

Mounting the Scanner Standalone ....................................................... 4

Scan Engine Electrical Connections ...................................................... 5

Host Interface ........................................................................................................... 5

USB .................................................................................................................... 7

RS-232 .............................................................................................................. 8

External Trigger and Digital Output ..................................................... 8

User Interface ..............................................................................................10

Good Read Beep Interface ................................................................................13

Scanner Ventilation .............................................................................................14

Integrating the Scanner to Read at the Proper Distance .......................15

Design of the Scanner Opening ......................................................................16

Integrating the Scanner Behind a Window .................................................17

ESD Protection .......................................................................................................18

Technical Specifications ................................................................................................19

RS-232 Electrical Connections ..............................................................23

Indicators .................................................................................................................24

Error Codes .............................................................................................................25

Mechanical Specifications ............................................................................................26

Physical Properties ...............................................................................................26

Scanner Dimensions .................................................................................26

Clearance Required for Integration ...............................................................28

NOTES

Integration Guide 1

Gryphon™ GFE4400

Integration Guide

This document gives instruction, mechanical details, and design consid-

erations to integrate the Gryphon™ GFE4400 model (designated as

“scan engine” or “OEM scan engine” in this manual) specifically into

equipment-integrated scanning applications.

Overview

The GFE4400 OEM scan engine is a compact decoding omni-direction-

al imaging scan engine for fixed position OEM integration, such as price

verifiers, kiosks, vending machines, point-of-sale (POS) terminals, and

other equipment-integrated scanning applications. The new proprietary

imaging technology excels at capturing hard-to-read bar codes in om-

ni-direction orientation.

A typical system using the scan engine consists of a host system such as a

price verifier or kiosk. The host system interfaces with the scan engine

and receives decoded bar code data produced by the scan engine. The il-

lumination LEDs in the scan engine emit visible light when a bar code

passes through the scan volume area and light is reflected off the bar code.

The scan engine captures an image, processes it into a digital signal and

decodes it into data that can be used by the host system. The scan engine

has different operational modes which can be selected via special pro-

gramming bar codes.

The OEM scan engine is the same reader as that found in the Gryphon

Overview

2 Gryphon™ GFE4400

GFS4400 scan module. This document is meant to give instruction, me-

chanical details, and design considerations to integrate the OEM scan en-

gine model only.

Details on the Configuration Settings and Programming are found in the

GFS4400 Product Reference Guide (PRG). The Datalogic Aladdin Con-

figuration Utility (available free from the Datalogic website) can also be

used to modify settings.

Demo Kit

To facilitate the scan engine OEM integration process, Datalogic offers a

demo kit that contains:

• GFE4490 Scan Engine

• RS-232 cable

• USB cable

• Keypad containing trigger button & LED indicators

•IntegrationGuide

The kit can be ordered as GFE4490-DEMO. Contact your Datalogic

representative or salesperson for more information.

Unpacking the Scan Engine

The scan engine is shipped in custom packaging. Carefully open the pack-

age, and inspect for the following:

• scan engine

• power supply (if ordered)

• interface cable (if ordered)

If any parts are damaged or you need additional hardware, please contact

Technical Support.

Technical Support

Integration Guide 3

Scan Engine Care

The scan engine contains sensitive components which require special

handling. Datalogic may not warrant damage due to improper handling.

• Do not disassemble the scan engine. Doing so will void the war-

ranty.

• Use standard ESD precautions & policies when handling the

GFE 4400 scan engine.

• Avoid touching the camera lens. Fingerprints will degrade the

scan engine's performance.

Technical Support

Datalogic Website Support

The Datalogic website (

www.datalogic.com

) is the complete source for

technical support and information for Datalogic products. The site offers

product support, product registration, warranty information, product

manuals, product tech notes, software updates, demos, and instructions

for returning products for repair.

Telephone Technical Support

If you do not have internet or email access, you may contact Datalogic

technical support at (541) 349-8283 or check the back cover of your

manual for more contact information.

Mounting the Scanner

4 Gryphon™ GFE4400

Mounting the Scanner

This section describes how to design the mounting for optimum scanner

performance.

General Considerations

A typical system uses the scanner mounted inside a host enclosure, with

an opening for the scanning pattern to exit and read bar codes. The open-

ing should be the size of the scanner field of view at a minimum, but only

exposing as much of the scanner as necessary.

Although the scanner has been designed to be rugged, it is important to

consider the effect of the environment on the scanner. In particular,

mounting should minimize the possibility of foreign objects coming into

contact with the electronics. Such contact could damage the device or re-

duce the scanner's performance.

Mounting

The primary method of mounting to the host enclosure is to attach the

scanner using the three mounting holes provided in the main PCBA.

"Me-

chanical Specifications"

on page 26 has mechanical drawings of the scan-

ner, including the position of the mounting features.

The scanner can be mounted upside down with no loss in scanning per-

formance.

Mounting the Scanner Standalone

The OEM scanner is not intended for use in a standalone application.

This model is intended to be integrated inside a host enclosure. GFS4400

models should be used when a standalone application is required.

Mounting the Scanner

Integration Guide 5

Scan Engine Electrical Connections

The GFE4400 scan engine has three application ports for device integra-

tion, as indicated below, a Host (J1), User (J2), and Good Read Beep In-

terface.

Figure 1. Scan Engine Application Ports

Host Interface

The Host Interface connection (J1) provides all the connection points for

either RS-232 or USB host communications. Additionally, this connec-

tor is input for power and provides access to the external triggering input

and digital signal output functions. The assignment of the connector

pins are indicated in

Table 1

on page 6.

J2 User Interface

J1 Host Interface

J3 Beep Interface

Mounting the Scanner

6 Gryphon™ GFE4400

Table 1. J1 Connector Pins Assignment

The J1 connection on the GFE4400 scan engine is a Hirose,

DF13C-12P-1.25V,12 circuit connector. For application integration the

recommended mating plug is DF13-12S-1.25C housing with

DF13-12S-1.25C wire crimp terminals.

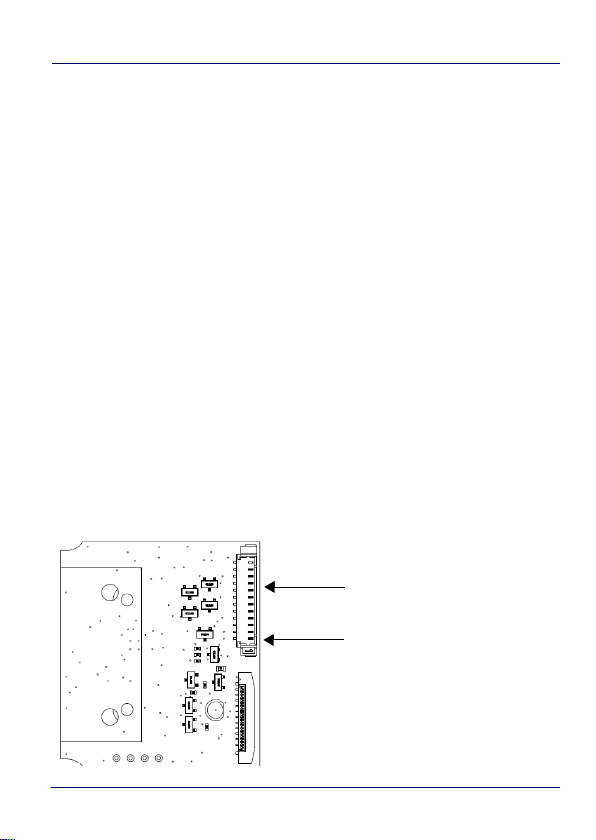

Figure 2. Interface Board (bottom view)

Pin Number Pin Functionality

1USBD+

2USBD-

3 USB Shield

4 USB Shield

5EXT_TRIGGER_IN; (input to the base of a transistor, pull

high to activate)

6 RS232 TXD (output from scanner)

7 RS232 RTS (output from scanner)

8 RS232 RXD (input to the scanner)

9 RS232 CTS (input to scanner)

10 DIGITAL_OUT (open collector)

11 +5V (USB Vbus or external power adapter)

12 GND

Pin1

Altri manuali per Gryphon GFE4400

Indice

Altri manuali Datalogic Lettore di codici a barre

Datalogic

Datalogic Touch 65 Pro Manuale utente

Datalogic

Datalogic QuickScan Lite QW2400 Manuale utente

Datalogic

Datalogic QuickScan QM24 series Manuale di installazione e funzionamento

Datalogic

Datalogic DS8110 Manuale utente

Datalogic

Datalogic Matrix 300N Manuale utente

Datalogic

Datalogic MAGELLAN 1400I Manuale di installazione e funzionamento

Datalogic

Datalogic POWERSCAN 7000 2D Imager Manuale utente

Datalogic

Datalogic AccuLazr AL5010 Manuale utente

Datalogic

Datalogic GRYPHON BT SH3500 Manuale utente

Datalogic

Datalogic Heron HD3130 Manuale utente

Datalogic

Datalogic MAGELLAN 1000I Manuale di installazione e funzionamento

Datalogic

Datalogic QuickScan QD2590 Manuale di installazione e funzionamento

Datalogic

Datalogic QuickScan i QD2100 Manuale utente

Datalogic

Datalogic DX6400 Manuale utente

Datalogic

Datalogic Cobalto CO5300 Manuale utente

Datalogic

Datalogic MAGELLAN 3200VSI Manuale utente

Datalogic

Datalogic Gryphon I GM4102 Manuale utente

Datalogic

Datalogic QuickScan L Manuale utente

Datalogic

Datalogic Gryphon Series Manuale utente

Datalogic

Datalogic Gryphon 4200 Series Manuale utente

Datalogic

Datalogic PowerScan Series Manuale di installazione e funzionamento

Datalogic

Datalogic Gryphon DX30 Manuale utente

Datalogic

Datalogic DS6500 Series Manuale utente

Datalogic

Datalogic Magellan 3300HSi Manuale utente

Manuali Lettore di codici a barre popolari di altre marche

POSMicro

POSMicro Datalogic PowerScan D7100 Manuale utente

Marson

Marson MT780 Guida rapida alla configurazione

NCR

NCR RealPOS Manuale utente

Motorola

Motorola SE3300 Guida rapida alla configurazione

Element

Element P130BT Manuale utente

Motorola

Motorola Symbol LS3008 Manuale di installazione e funzionamento

Meec tools

Meec tools OBD-II / VAG Manuale utente

SICK

SICK CLP 100 Manuale utente

Royal Tag SA

Royal Tag SA I-Read Manuale utente

Welch Allyn

Welch Allyn IMAGETEAM 3800 Manuale utente

Meteor

Meteor 8310 Manuale utente

Denso

Denso BHT-500B Manuale utente

Motorola

Motorola MP6000 Istruzioni di montaggio

Newland

Newland NLS-HR15-BT Manuale utente

ARTDEV

ARTDEV AS-1310 Manuale utente

Aopos

Aopos AS290 Manuale utente

ENS

ENS 367-5455 Manuale utente

Atid

Atid AT188N Plus Manuale utente
