GRYPHON™ MX30

USING GRYPHON™ M SERIES READERS

The Gryphon™ M series reader, paired with an OM-Gryphon™ cradle, builds a

Cordless Reading System for the collection, decoding and transmission of

barcoded data.

Gryphon™ M readers automatically scan barcodes at a distance. Simply aim

and pull the trigger. Code scanning is performed along the center of the light bar

emitted from the reading window. This bar must cover the entire code.

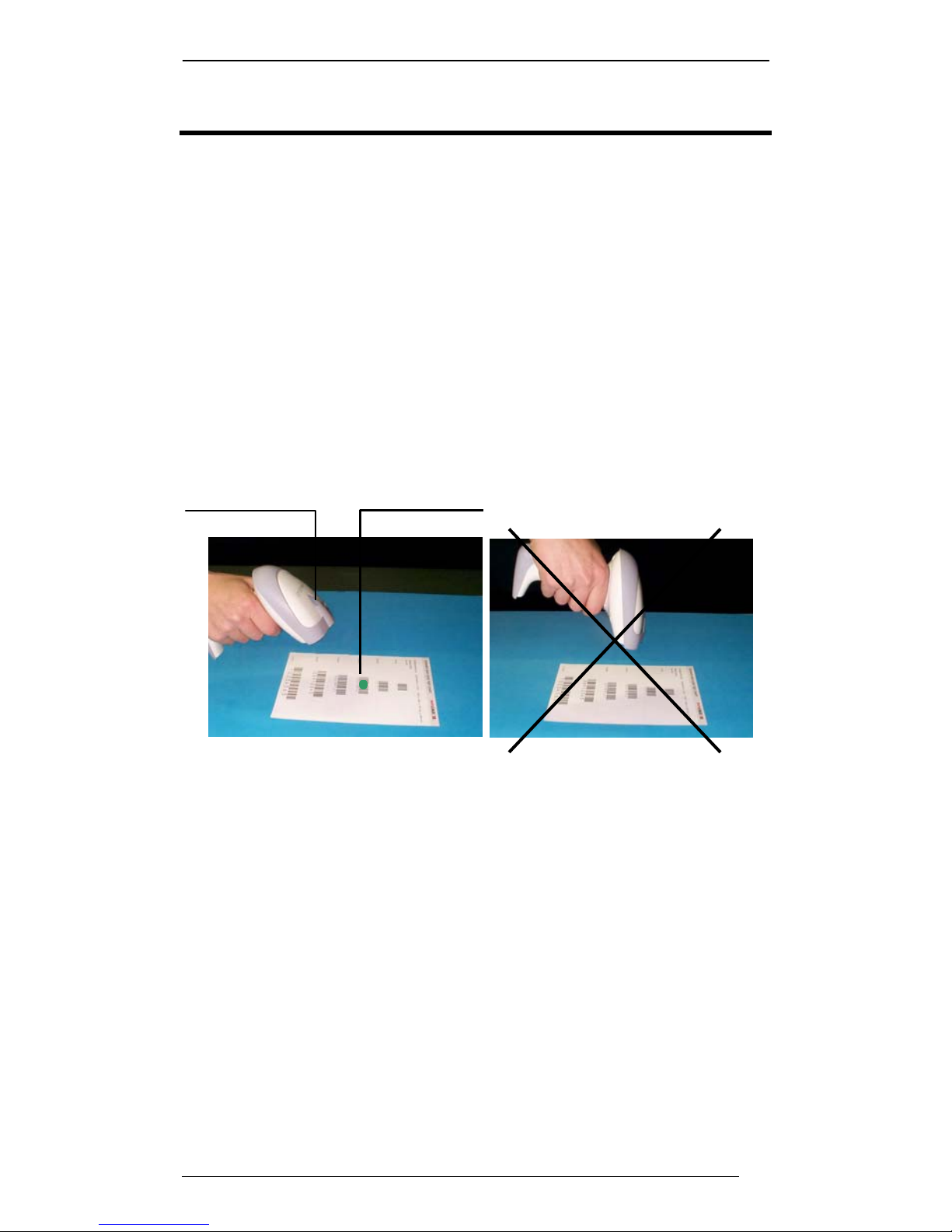

READING ANGLE

Successful scanning is obtained by tilting the reader with respect to the barcode

to avoid direct reflections, which impair the reading performance, see the figure

below.

Successful reading is obtained by an audible tone plus a good-read green spot.

OK Not Advised

To start using your Gryphon™ M reading system you must:

1. Connect an OM-Gryphon™ cradle to the Host. For installation and

connection information see the OM-Gryphon™ Quick Reference Manual.

2. Charge the Gryphon™ M battery using an OM-Gryphon™ / C-Gryphon™

charger as described in this Quick Reference manual. A full charge takes

3.5 hours with NiMh battery models.

3. Configure the reader as described in this Quick Reference manual.

4. Configure the OM-Gryphon™ cradle. See OM-Gryphon™ Configuration in

the “OM-Gryphon™ Quick Reference”.

Good read spot

Good read LED

DATALOGIC

CHARGING THE BATTERIES

By placing the reader onto the OM-Gryphon™ cradle or C-Gryphon™ battery

charger it is possible to charge the Gryphon™ M batteries. Make sure the

charging LED goes on.

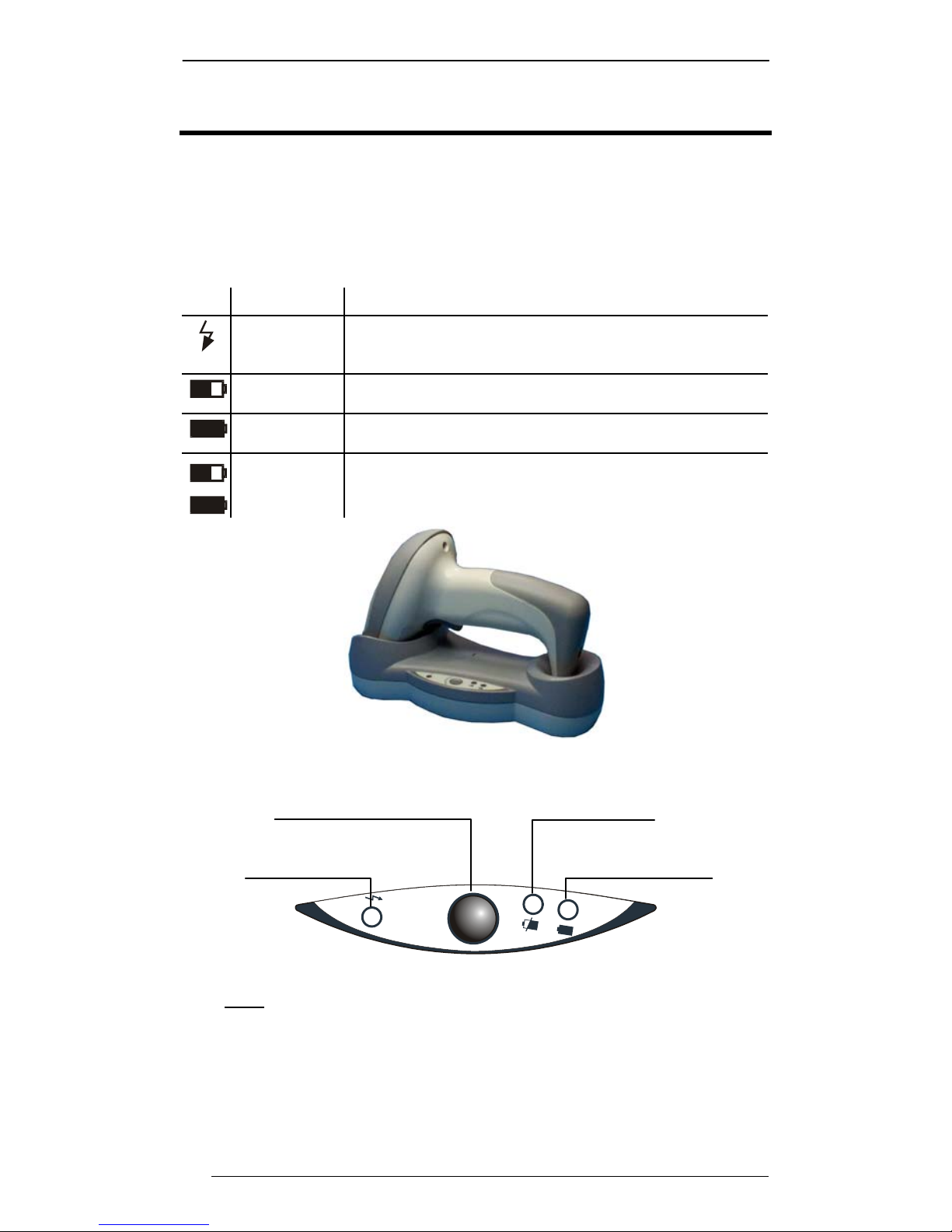

The LEDs positioned on the cradle signal the charge status, as described in the

following table:

LED STATUS

Power on /

Data

Yellow On = OM-Gryphon™ is powered.

Yellow Blinking = OM-Gryphon™ receives data and

commands from the Host or the reader.

Charging Red On = the battery charge is in progress.

Red Blinking = the battery reconditioning is in progress.

Charge

completed Green On = the battery is completely charged.

Charging +

Charge

completed

Red and Green Blinking together = the reader is not

correctly placed onto the reader.

After many recharging cycles NiMh and NiCd batteries may tend to lose their

operating autonomy. This condition can be overcome by positioning the

Gryphon™ M onto the OM-Gryphon™ / C- Gryphon™ charger and pressing the

“battery reconditioning” button.

Power on / Data

(yellow LED)

Reconditioning battery

button Charging

(red LED)

Charge completed

(green LED)

GRYPHON™ MX30

When the above procedure is no longer effective, the batteries must be

changed. To change the batteries of your reader, unscrew the battery cover

screw, replace the old batteries with new ones, then insert the cover in the

handle and screw it back into place. (See the following figures).

WARNING

Do not incinerate, disassemble, short terminals or

expose to high temperature. Risk of fire, explosion. Use

specified charger only. Risk of explosion if the battery

is replaced by an incorrect type. Dispose of the

batteries as required by the relevant laws in force.

GRYPHON™ M CONFIGURATION

When the OM-Gryphon™ cradle is connected and powered, configure the

Gryphon™ M by reading the following codes in the given sequence and follow the

instructions.

Note: for the numeric code selection of step 3, use the table at the end of this

Quick Reference.

Restore Gryphon™ M default

1. Ì$+$*oÎ

Enter configuration

2. Ì$+;Î

Set Radio Address

ÌRF8Î

four digits for the Gryphon™ M Address

(from 0000 to 1999).

All readers used in the same area must have different addresses.

DATALOGIC

Exit and Save configuration

4. Ì$-?Î

5. Read the Bind code to pair the Gryphon™ M to the OM-Gryphon™

cradle.

The reader is dedicated to the cradle. Any previously bound reader will

be excluded.

To connect several readers to the same cradle see the following section

"Using Multiple Readers with Same Cradle".

Bind

Ì$+RN0$-IÎ

The green LED on the Gryphon™ M will blink: the reader is ready to be

positioned onto the cradle.

6. Firmly position the reader onto the cradle within 10 seconds, a beep will

be emitted, signaling that the OM-Gryphon™ cradle has been paired to

the Gryphon™ M, and the green LED on the reader will go off.

YOUR READER IS NOW READY TO READ CODES.

7. Configure the OM-Gryphon™ cradle, refer to the “OM-Gryphon™ Quick

Reference”.

Green LED

GRYPHON™ MX30

USING MULTIPLE READERS WITH SAME

CRADLE

If you want to use several readers associated with the same cradle, you must

first Bind the cradle with one of the readers (see previously described

configuration procedure).

Successive readers can be associated with the same cradle by following the

configuration procedure substituting the Bind command with Join.

5. Join

Ì$+RN1$-NÎ

The green LED on the Gryphon™ M will blink: the reader is ready to be

positioned onto the cradle. Complete step 6.

CAUTION

If the cradle is not Bound to a reader, its address assumes

a random value, which can cause conflicts and malfunctions

to other cradles within its range.

GRYPHON™ M DEFAULT CONFIGURATION

DATA FORMAT

code identifier disabled (enabled for POS terminals), field adjustment

disabled, code length tx not transmitted, character replacement disabled,

address stamping disabled; address delimiter disabled,

POWER SAVE

scan rate 270 scans/s; sleep state/USB suspend disabled, enter sleep

timeout = 0.6 sec

READING PARAMETERS

hand-held operation = hardware trigger, stand operation = automatic, trigger

active level, no timeout, Flash On = 1 sec, Flash Off = 0.6 sec, one read per

cycle, safety time 0.5 sec, beeper intensity high, tone 2, beeper type

monotone, beeper length short, low PDF decoding recognition intensity,

good read spot duration medium, automatic operation aiming light enabled.

DECODING PARAMETERS

ink spread enabled, overflow control enabled, interdigit control enabled,

Puzzle Solver™ disabled, decoding safety = one read

DATALOGIC

CODE SELECTION

Enabled codes

• Code PDF417 (only Gryphon™ M230)

• EAN 8/EAN 13 / UPC A/UPC E without ADD ON

check digit transmitted, no conversions

• Interleaved 2/5

check digit control and transmission, variable length code; 4-99

characters

• Standard Code 39

no check digit control, variable length code; 1-99 characters

• Code 128

variable length code; 1-99 characters

Disabled codes for M130 only

EAN 128, ISBT128, Code 93, Codabar, pharmaceutical codes, MSI,

Plessey, Telepen, Delta IBM, Code 11, Code 16K, Code 49,

RSS Codes

Disabled codes for M230 only

EAN 128, ISBT128, Code 93, Codabar, pharmaceutical codes,

RSS Codes

ADVANCED FORMATTING PARAMETERS

concatenation disabled, no advanced formats defined

RADIO PARAMETERS

radio protocol timeout = 2 seconds, power-off timeout = 4 hours, single store

disabled, beeper control for radio response = normal

Indice

Altri manuali Datalogic Lettore di codici a barre

Datalogic

Datalogic Gryphon GM44XX Manuale utente

Datalogic

Datalogic Gryphon GD4500 Manuale utente

Datalogic

Datalogic DS8100A-3002 Manuale utente

Datalogic

Datalogic Dragon D131 Manuale utente

Datalogic

Datalogic PowerScan PM9500 Manuale utente

Datalogic

Datalogic Heron HD3130 Manuale di installazione e funzionamento

Datalogic

Datalogic DS2400N Manuale utente

Datalogic

Datalogic MAGELLAN 8300 Manuale di installazione e funzionamento

Datalogic

Datalogic MAGELLAN 8500? Manuale di installazione e funzionamento

Datalogic

Datalogic Touch 65 pro Manuale utente

Datalogic

Datalogic DL9600 Viper Manuale utente

Datalogic

Datalogic PowerScan Area Imager Manuale utente

Datalogic

Datalogic MAGELLAN 8500? Manuale di installazione e funzionamento

Datalogic

Datalogic DH60 Manuale utente

Datalogic

Datalogic QuickScan I QM21X1 Manuale di installazione e funzionamento

Datalogic

Datalogic PowerScan D8530 Manuale utente

Datalogic

Datalogic BC-80X0 Cradle Manuale utente

Datalogic

Datalogic DSE0420 Guida rapida alla configurazione

Datalogic

Datalogic POWERSCAN 7000 2D Imager Manuale di installazione e funzionamento

Datalogic

Datalogic DS2x00N-DS4800 Series Guida

Datalogic

Datalogic Gryphon D130 Manuale utente

Datalogic

Datalogic Magellan 2200VS Manuale di installazione e funzionamento

Datalogic

Datalogic Magellan 9800i Manuale utente

Datalogic

Datalogic Gryphon L GD4300 Manuale utente

Manuali Lettore di codici a barre popolari di altre marche

POSMicro

POSMicro Datalogic PowerScan D7100 Manuale utente

Marson

Marson MT780 Guida rapida alla configurazione

NCR

NCR RealPOS Manuale utente

Motorola

Motorola SE3300 Guida rapida alla configurazione

Element

Element P130BT Manuale utente

Motorola

Motorola Symbol LS3008 Manuale di installazione e funzionamento

Meec tools

Meec tools OBD-II / VAG Manuale utente

SICK

SICK CLP 100 Manuale utente

Royal Tag SA

Royal Tag SA I-Read Manuale utente

Welch Allyn

Welch Allyn IMAGETEAM 3800 Manuale utente

Meteor

Meteor 8310 Manuale utente

Denso

Denso BHT-500B Manuale utente

Motorola

Motorola MP6000 Istruzioni di montaggio

Newland

Newland NLS-HR15-BT Manuale utente

ARTDEV

ARTDEV AS-1310 Manuale utente

Aopos

Aopos AS290 Manuale utente

ENS

ENS 367-5455 Manuale utente

Atid

Atid AT188N Plus Manuale utente
