Datecs EP-2000 Manuale utente

DATECS

USER'S

MANUAL

ESC/POS

Thermal Printer

EP-2000

We wish you a pleasant work

with EP-2000!

The information contained in this document is subject to change without prior notice

or adaptation of the information in this document

without prior written permission from DATECS Ltd is prohibited

1784 Sofia, Bulgaria, 115A Tzarigradsko shosse blvd

Tel : +359 2/8165 500, 8165 501, 8165 506, 8165 511; Fax: +359 2/8165 510

Е-mail: sales@datecs bg

Version:

may 2010 г.

C O N T E N T S

DATECS

2000

Introduction

Main features

1. Technical Specifications

2. Safety Instructions

3. Confirmation of Carton Contents

4. Part Names and Functions

External views and dimentions

Front view/rear view

Printer inside

Operation panel

ON/OFF switch and FEED button

LEDS

5. Setup

Installing the printer

Printer Configuration

Memory Switches Setup

Adjusting the paper near-end sensor

Loading Drivers for P-2000

Loading Paper

SELF TEST Printing

6. Troubleshooting

7. List of Commands for ESC/POS mode

I N T R O D U C T I O N

DATECS

2000



Main Features



DATECS EP-2000

is a ESC/POS thermal printer with 3-inch wide printing mechanism It

is designed for use with a broad array of terminal equipment, including data, POS and

kitchen terminals With extensive features, it can be used in a wide range of applications

Printer can quickly and easily print text and/or graphics, depending on customer’s needs

– barcodes, logo, etc

Features:

– Compact, easy-to-use universal design;

– High speed (220 mm/s) printing;

– Low noise;

– Easy paper-loading;

– Can be used with 2 types of thermal paper – 78 mm or 58 mm wide;

– Serial RS232 and USB interfaces;

– Built -in cash drawer and external display interfaces;

– Auto cutter mechanism;

– Paper near-end sensors;

– Supports protocol for POS and BARCODE;

– Capable of printing alpha-numeric and graphical data;

– ERROR indication is available with LED or buzzer;

Technical Specifications

DATECS

2000

Parameter

Description

Printing

Printing Method Line thermal dot printing method

Resolution 203 dpi (8 x 8 точки/mm)

Dot pitch

Horizontal – 0 125 mm (8 dot/mm)

Vertical – 0 125 mm (8 dot/mm)

Max Print Width 72 mm / 576 dots per line

Number of characters

per line

48 – for fonts А and С

64 – for fonts B and D

Paper Feed System Step

Printing Speed (Max) 220 mm/s (1760 dots/s)

Шрифтове

Resident Fonts Font А: 12 х 24 dots (48 char / line);

Font B: 9 х 16 dots (64 char /line);

Loadable Font C: 12 х 24 dots (48 char /line);

Font D: 9 х 16 dots (64 char /line);

Paper widith, mm 80 or 58

Diameter, mm up to 102

Media:

Roll Thermal Paper

Paper thickness,

m 65–85

Resident

Barcodes

EAN 13

EAN 8

UPC A

UPC E

Codabar

Code 39

Code 128

2D PDF417, QR code

Logo Registration

1 Black & White Size: 576 x 248 dots

Interfaces

Serial

USB

LAN

RS232 C – max 115200 bps

USB v 1 1, compatible with 2 0

100 Mbps (100 BASE-TX)

Technical Specifications

DATECS

2000

Parameter

Description

Emulation

ESC/POS Continuous paper Mode

Input Buffer

131 072 bytes

Power consumption

∼

48 W (in normal printing)

Built-in AC adapter

Model:

Input:

Output:

Citizen 35АD1

AC 100 – 240 V, 1,3 A, 50/60 Hz

DC 24 V, 1,9 A

Operation

switches

FEED

button

Switch

ON/OFF

Paper feed, Self test, Dump Mode

Switch On/Switch OFF

Power Switch ON/OFF

Weight

Without paper:

∼

2 kg

Dimensions (mm

)

147 (W) X 207 (D) Х 147 (H)

Environment

Operating temperature

conditions:

Storage temperature

conditions:

Temperature from 0

С to 40

Humidity from 35% RH to 85% RH

Temperature from -20

С to 60

Humidity from 10% RH tо 90% RH

Reliability

Printing Head:

Auto cutter life:

150 km paper long

2 million cuts

(at normal temperature/humidity/with recommended paper used)

Cables

Power cable

RS-232 interface cable

Safety Instructions

DATECS

2000

SAFETY INSTRUCTIONS

which must be strictly observed!

● Do not use or store the printer in places where it will be exposed to: direct

sunlight; chemical reactions in laboratory; airborne oil, steel particies or

dust

● Do not place any objects on the printer

car

eful

when

moving

carrying

the

opping

the

cause

injury

oper

damage

The printer must be operated horizontally

only

● Do

put

for

eign

such

lips

and

pins

int

the

This

cause

oblems

● Do not spill drinks such as tea, coffee and juice on the printer or spray

insecticide on the printer If drink or water is spilled, first be sure to turn the

power off and then consult our service personnel

●

When

cleaning

the

urface

f the p

rint

se,

use

clo

soak

hinner

trichloro

ylene,

benzine,

one

similar

chemicals

●

Oper

the

control

panel

operl

car

ele

ss,

ough

handling

cause

oblems

malfunction

use

such

sharp-edged

ool

ballpoint

pen

for

oper

tion

●

When

ouble

occur

try

dissemble

Inst

ead,

consult

our

service

per

sonnel

● Do not disassemble or modify the printer

● Clean regularly print head paper dust and other impurities using a soft cloth

soaked in ethyl alcohol

Warning

Indicates a situation, which if was not observed

and handled properly, could result in serious

injury.

Warning

Safety Instructions

DATECS

2000

DATECS

NOTICE

● Before use, be sure to read this manual And keep it handy for reference when

needed

●

DATECS

reserves the right to change the content of this manual without prior notice

●

epr

oduction,

ansfer

ansmission

the

cont

ent

this

manual

without

prior

consent

strictl

y pr

ohibit

●

DATECS

is not liable

for

oblems

sulting

the

use

optional

oducts

and

consumable

supplie

other

than

the

signa

product

cont

ained

her

ein

● Do

handle,

disa

ssemble

epair

the

par

other

than

those

specified

this

manual

●

DATECS

liable

for

damage

caused

user's

err

oneous

use

the

and

inadequa

vironment

●

siding

the

emporary

Therefor

all

will

lost

DATECS

is n

liable

for

damage

loss

ofit

caused

loss

due

failur

epair

inspections,

●

Please

cont

act

ther

mist

ake

ambiguitie

within this

manual

We would be grateful!

Confirmation of Carton Contents

DATECS

2000

When unpacking the printer, check carefully that the following accessories are included in the

carton:

Item Part Name

EP-2000 Thermal printer

AC power cord

3 RS232 Interface cable

1 Test Roll of thermal paper

User's Manual

6 EP-2000 Drivers

7 Partition for 58/60 mm paper rolls

Because of the continually evolving Drivers & SDK to support new mobile devices,

Drivers & SDK are distributed online andis available for download at our website

indicated below:

http://datecs.bg/support.php?cat=4&soft=1#1

Part Names and Functions

DATECS

2000

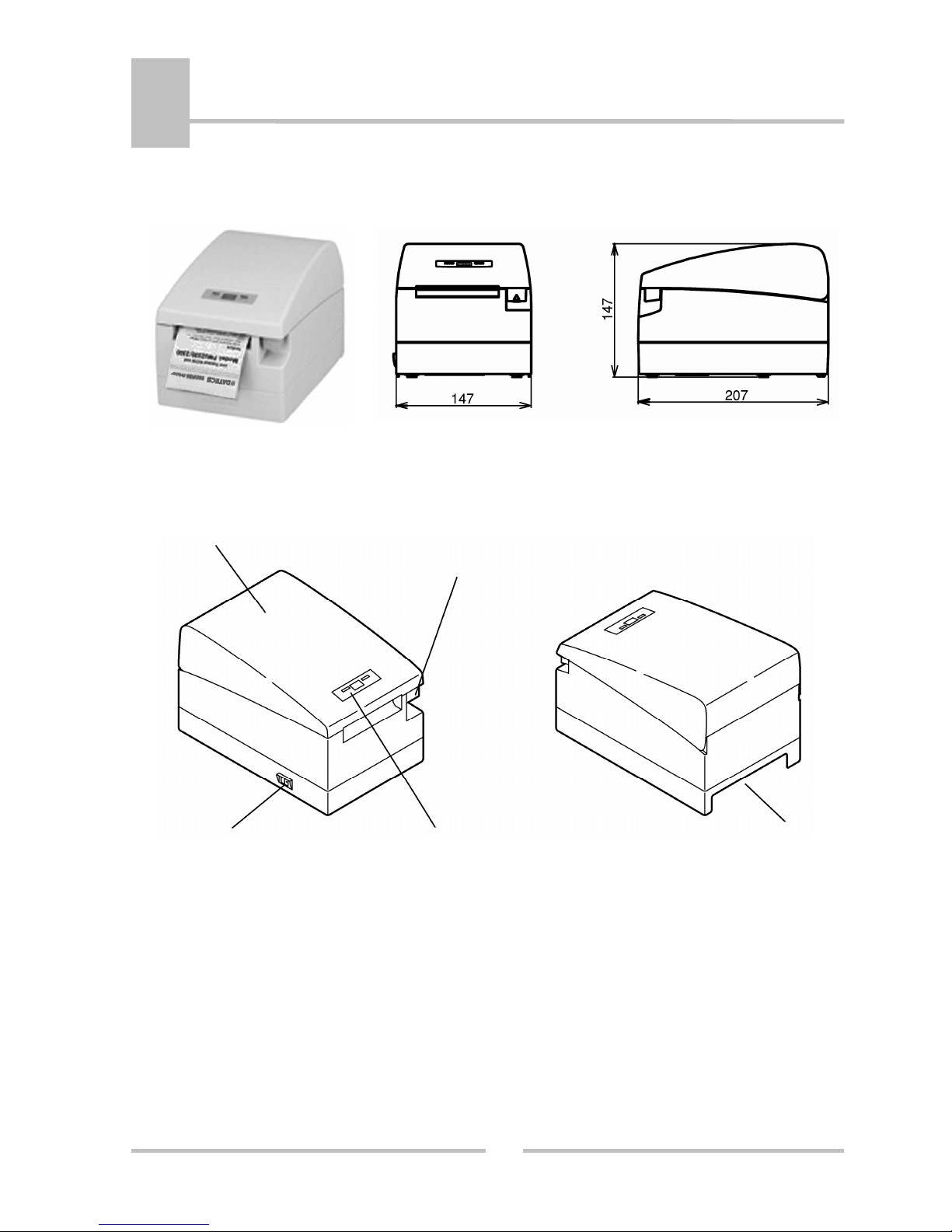

External view and dimentions

Front view / rear view







ON/OFF

power switch







Operation panel







Printer cover







Cover open button







Connectors

Front view

Rear view
