The

Integrated Sensor Suite (ISS)

collects several types of weather readings

for display at your Vantage Pro

console. The data is sent to the console either

through a cable or by wireless transmission, depending on the version.

With Wireless Vantage Pro

, the Integrated Sensor Suite (ISS) can be used as

one of eight sensor stations transmitting to your console/receiver(s). See

“Additional Mounting Options” and “Appendix A: Wireless Transmitter IDs”.

The Integrated Sensor Suite for Vantage Pro

measures weather conditions:

✦

Wind Speed

✦

Wind Direction

✦

Rainfall

✦

Outside Temperature

✦

Outside Humidity

The Integrated Sensor Suite for Vantage Pro

Plus

also measures:

✦

Ultraviolet Radiation (UV)

✦

Solar Radiation

Note:

To upgrade a Vantage Pro system to Vantage Pro Plus, see “Appendix B: Optional Accessories”.

For mounting purposes,

the Integrated Sensor Suite (ISS) consists of two sides:

the anemometer and the rain collector side.

The rain collector side is a white plastic shelf with the black rain collector cone

on top and the white radiation shield below.

The two sides can be mounted either

together

on a single pole (see illustration at

the top of this page), or

separately

. The anemometer has 40' (12 m) of cable.

Note:

When both sides of the ISS are mounted together with the anemometer arm pointing north, the

solar panel on the rain collector side is facing south. In the Northern Hemisphere, this positions

the solar panel for optimal exposure to the sun. (In the Southern Hemisphere, you will need

to position the solar panel facing north for optimal sun exposure. When mounting both sides

together, this means pointing the anemometer arm south and re-orienting the wind vane.)

Page2 IntegratedSensorSuite

OMPONENTS

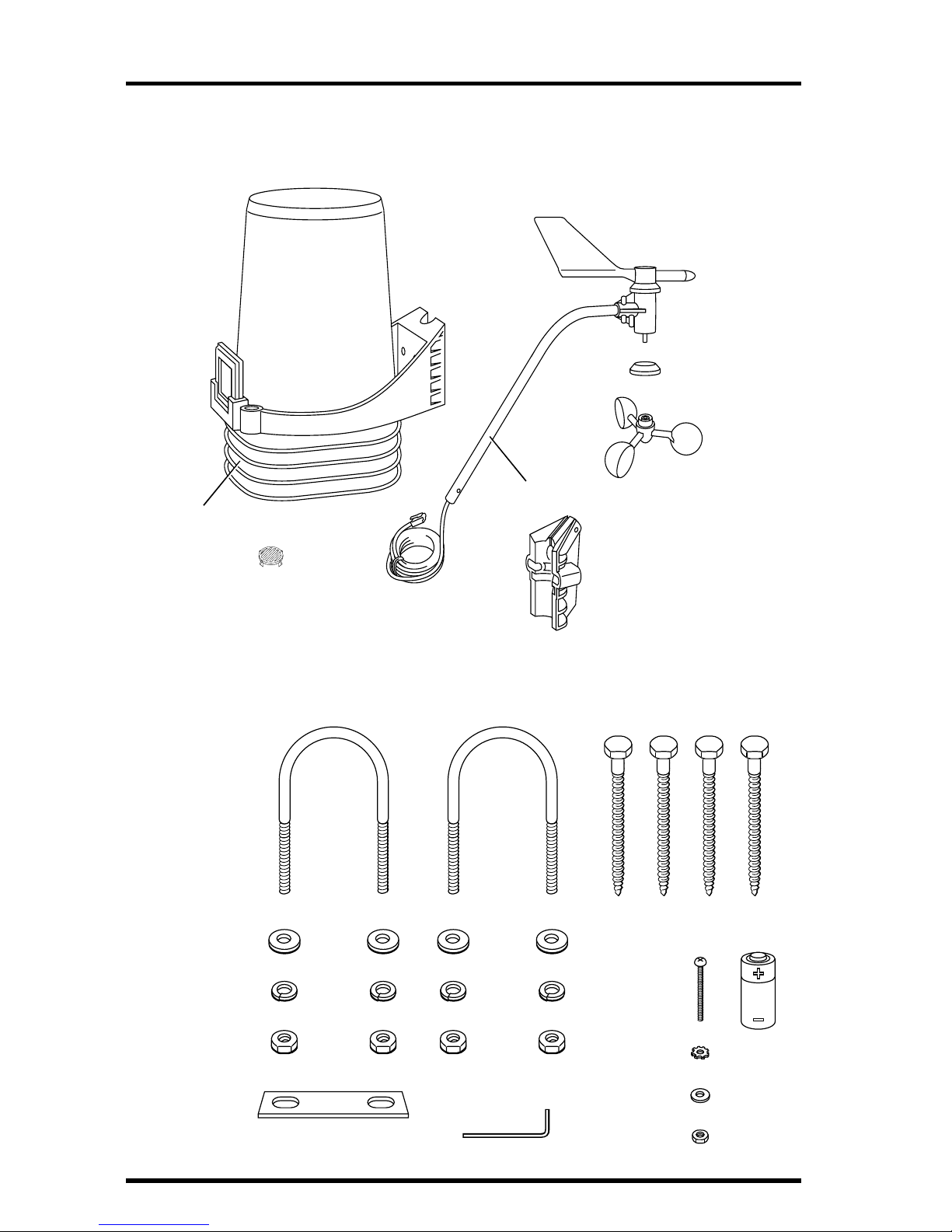

The ISS includes these components:

The hardware shown here is provided for assembly and mounting.

Rain Collector

Radiation Shield

Anemometer Base

40' (12.2 m)

Anemometer

Cable

Solar

Panel

(wireless

models

only)

Anemometer Vane

Control Head

Anemometer Arm

Drip Ring

Wind Cups

Debris Screen

(place inside

Rain Collector Cone

after installation)

1/4" Flat Washers

1/4" Lock Washers

1/4" Hex Nuts 3-Volt

Lithium

Battery

(wireless

models

only)

U-Bolts

Backing Plate .05"

Allen Wrench

1/4" x 3" Lag Screws

#4 x 1-1/8"

Machine Screw

#4 Tooth

Lock Washer

#4 Flat Washer

#4-40 Hex Nut

Components Page3

Additional Components on Vantage Pro

Plus

Vantage Pro

Plus

also includes an

ultraviolet (UV) sensor and a solar

radiation sensor. These two sensors are

on the rain collector side of your ISS.

Note:

Please make every effort when handling your

ISS not to touch the small white diffusers on

topof the UV and solar radiation sensors.Oil

from the skin will reduce their sensitivity.

Clean the diffusers using ethyl alcohol on a

soft cloth (NOT rubbing alcohol).

Once you have mounted the ISS in its

ﬁnal location, use the bubble level on

each sensor as a guide to verify that the

sensor is level. (To adjust, tighten or

loosen the screws holding the sensor on

the shelf.)

Each sensor has 3' (0.9

m) of cable. If you need to position the sun sensors away

from the rain collector side, use

extension cables #7876

Note:

Not all cables are compatible with your Vantage Pro system. To be sure they will work, order

Davis extension cables from your dealer or directly from Davis Instruments.

To upgrade your Vantage Pro to Vantage Pro

Plus,

see “Optional Sensors for

ISS” on page 28.

UV and Solar Radiation Sensors

Page4 IntegratedSensorSuite

ABLE

ONTENTS

Components................................................................................................ 2

Tools for Setup............................................................................................ 5

Preparing the Anemometer....................................................................... 5

Disassembling the Radiation Shield........................................................... 9

Cabled Version: Powering the ISS and Testing Communication..............10

Wireless Version: Powering the ISS and Testing Communication............12

Reassembling the Radiation Shield............................................................15

Preparing the Rain Collector..................................................................... 15

Choosing a Location to Mount the Integrated Sensor Suite.................... 16

Mounting the Integrated Sensor Suite..................................................... 18

A Note on Securing Cables....................................................................... 22

Additional Mounting Options.................................................................... 22

Maintenance............................................................................................... 23

Contacting Davis Instruments................................................................... 25

Weather Variable Update Intervals.......................................................... 25

Specifications for Cabled Version.............................................................. 25

Specifications for Wireless Version........................................................... 26

Appendix A: Wireless Transmitter IDs..................................................... 26

Appendix B: Optional Accessories............................................................ 28

Appendix C: Re-orienting the Wind Vane................................................. 29

ToolsforSetup Page5

OOLS

FOR

ETUP

✦

Small Phillips-head screwdriver

✦

Scissors or wire-cutters

✦

Adjustable wrench or 7/16" wrench

✦

Compass or local area map

✦

Ballpoint pen or paper clip (small pointed object of some kind)

✦

Drill and 3/16" (5 mm) drill bit (if mounting on a vertical surface)

Before Going Outside...

Before mounting the Integrated Sensor Suite,

you will need to prepare sen-

sors, apply power, and test the connection between your ISS and the Vantage

Pro console. You may want to stay inside at a well-lit working table until ready

for “Choosing a Location to Mount the Integrated Sensor Suite” on page 16.

For ease of installation, please follow the steps in the order they are pre-

sented in the manual.

(Each step builds on tasks completed in previous steps.)

REPARING

THE

NEMOMETER

The anemometer measures wind direction and speed.

The wind vane is

already attached to the anemometer arm, but you will need to install the wind

cups and attach the arm to the base.

Please locate the following parts to prepare the anemometer:

✦

Anemometer arm (wind vane and cable already attached)

✦

Anemometer base

✦

Wind cups

✦

Drip ring

✦

Allen wrench (0.05")

✦

#4 machine screw, #4 tooth-lock washer, #4 ﬂat washer, #4 hex nut

Attaching Anemometer Arm to Base

1. Insert the anemometer arm into the base, sliding the cable through the notch in the

base as shown in illustration on the next page.

Be sure to line up the small hole in the arm with the holes in the base.

2. Insert the machine screw through the holes in the base and arm.

Page6 IntegratedSensorSuite

3. Slide the ﬂat washer, tooth-lock washer and hex nut onto the machine screw. Tighten

the hex nut while holding the screw with a Phillips screwdriver to prevent it from

turning.

4. Press the sensor cable ﬁrmly into the zig-zagging channel in the base, taking up any

slack between arm and base.

Make sure that you

press the anemometer cable down into the channel as

much as possible

so that the U-bolt used for mounting will not pinch or

cause wear on the cable.

TTACHING

NEMOMETER

ASE

Slide cable

through notch

Route cable firmly

into channel

#4 x 1-1/8"

Machine Screw

#4 Tooth

Lock Washer

#4 Flat

Washer

#4-40

Hex Nut

PreparingtheAnemometer Page7

Attaching Wind Cups to Anemometer Arm

The wind vane is situated at the end of the arm, on top of the anemometer

head. Underneath the anemometer head you will attach a black plastic drip

ring and the wind cups.

1. Slide the black plastic drip ring

onto the anemometer head. Gen-

tly push the drip ring up until it

clicks into place.

2. Makesure the loweredge of

the drip ring is aligned with

the lower edge of the ane-

mometer head.

Anemometer Head

Drip Ring

Lower edge of drip ring aligned

with lower edge of anemometer head

Page8 IntegratedSensorSuite

3. Push the wind cups up onto the stainless steel shaft that is protruding downward.

4. Slide the wind cups up the shaft as far as possible.

5. Use the Allen wrench provided to tighten the set screw on the side of the wind cups.

When you let go of the wind cups, they should drop slightly.

6. Spin the wind cups.

TTACHING

IND

UPS

NEMOMETER

Wind Vane Must Be Correctly Oriented

The wind vane rotates 360

°t

o display current and dominant wind directions on

the compass rose of your console screen. To display this information, the vane

must be

correctly oriented

when you mount the anemometer outside.

Ensure correct orientation of the wind vane in one of two ways:

1. Mount the anemometer so that the arm points north.

The wind vane will be ready for use immediately if you do this.

2. (If you want to mount your anemometer so that it aims toward a direction other than

north, you will need to remove the wind vane and re-attach it aiming toward the pre-

ferred direction. But don’t do this just yet —after you complete the remaining prep-

arations and mount the anemometer, follow the instructions in “Appendix C: Re-

orienting the Wind Vane”on page 29.)

The anemometer is now ready to be mounted,

you can set it aside while pre-

paring the rain collector side of the ISS.

Push cups onto

stainless steel

shaft

Tighten set screw

with Allen wrench

DisassemblingtheRadiationShield Page9

ISASSEMBLING

THE

ADIATION

HIELD

The sensors are connected by cables to the

Sensor Interface Module

, or “SIM”,

located inside the radiation shield. The SIM contains electronics which mea-

sure and store weather values for transmission to the console via cable or radio

waves. The radiation shield’s white plastic plates protect the SIM from sun and

other sources of radiated and reﬂected heat, and from precipitation.

Before the ISS can be mounted,

you need to disassemble the radiation shield

to do the following tasks:

✦

Verify that the rain sensor cable is plugged in

✦

Connect the anemometer sensor cable to the Sensor Interface Module, or “SIM”

✦

Apply power to the ISS (different methods for cabled/wireless versions)

✦

Change the transmitter ID for wireless communication, if necessary

✦

Verify that your console is

receiving and displaying

data

Removing Radiation Shield

Plates

Disassemble the radiation

shield by removing the plates

as shown in the illustration.

1. Turn the rain collector side of

the ISS upside down. Locate

three wing nuts on the under-

side of the radiation shield.

2. Remove the wing nuts, lock

washers and ﬂat washers.

3. Remove the ﬁrst three plates of

the radiation shield.

You should now be able to

see the SIM.

Open Plate

Closed Plate

#8 Wing Nut

#8 Lock Washer

#8 Flat Washer

Antenna

deployment

hole

Sensor

Interface

Module

(SIM)

Page10 IntegratedSensorSuite

4. Verify that the rain sensor cable is plugged into the receptacle labeled “RAIN”on the

SIM.

5. If you have a Vantage Pro Plus, verify that the UV and solar radiation sensors are

plugged into the SIM.

ENSOR

NTERFACE

ODULE

(SIM)

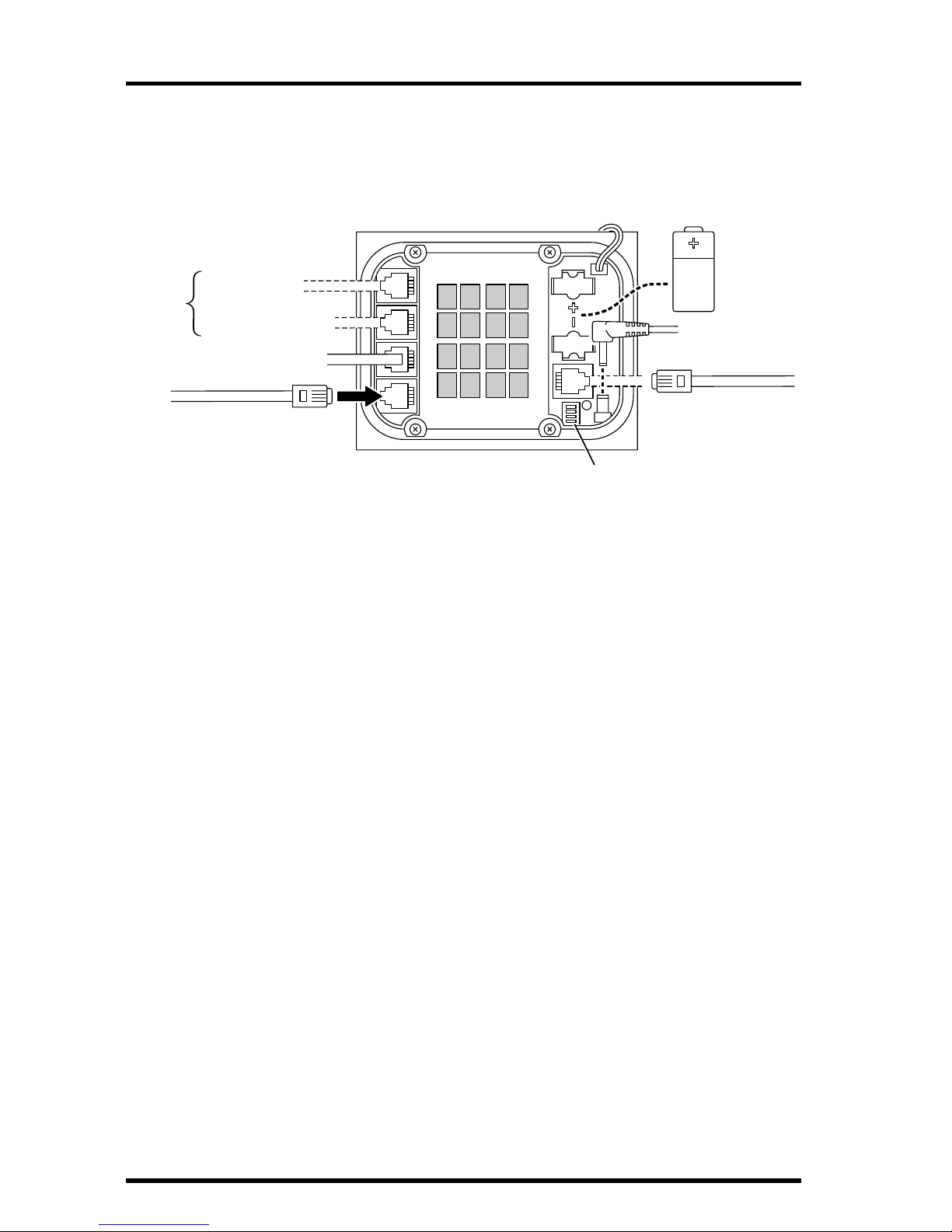

Connecting Anemometer to SIM

✦

Gently insert the end of the anemometer cable into the receptacle labeled

“WIND”on the SIM.

Unwind the coil of cable enough to work with the anemometer.

(Wireless Vantage Pro instructions continue on page 12.)

ABLED

ERSION

: P

OWERING

THE

ISS

AND

ESTING

OMMUNICA-

TION

WITH THE CONSOLE

Applying Power to ISS

The ISS receives power from the console via the 40' (12 m) cable that runs

between them. This cable can be extended by up to 1000' (305 m). Please plug

in the console’s AC adapter at this time, if you haven’t done so already. See the

Console Manual: “Cabled Vantage Pro Console Installation.”

✦On the SIM, gently insert one end of the 4-conductor cable into the receptacle

labeled “CONSOLE”.

✦On the back of your console/receiver, insert the other end of the cable into the

receptacle labeled “ISS”.

3-Volt

Lithium

Battery

(wireless

versions only)

AC Power

(optional)

Console Cable

(cabled versions

only)

DIP Switches

Anemometer Cable

UV Sensor Cable

Solar Radiation Cable

Rain Collector Cable

(factory installed)

(factory

installed

on Plus

models)

UV SUN RAIN WIND

CONSOLE

Indice

Altri manuali DAVIS Stazione meteorologica

DAVIS

DAVIS Rain Collector II Manuale utente

DAVIS

DAVIS Wireless Temperature Station Manuale utente

DAVIS

DAVIS WeatherLink Manuale utente

DAVIS

DAVIS WeatherLink Manuale utente

DAVIS

DAVIS Wireless Temperature/Humidity Station Manuale utente

DAVIS

DAVIS Vantage Vue 6250 Manuale utente

DAVIS

DAVIS Vantage Vue Manuale utente

DAVIS

DAVIS 6330 Manuale utente

DAVIS

DAVIS Vantage Pro2 Updater Manuale utente

DAVIS

DAVIS 6380 Wireless Temperature/Humidity Station Manuale utente

DAVIS

DAVIS Vantage Pro2 Updater Manuale utente

DAVIS

DAVIS and Vantage Pro Manuale utente

DAVIS

DAVIS WeatherLink Manuale utente

DAVIS

DAVIS 6372 Manuale utente

DAVIS

DAVIS Vantage Pro2 Updater Manuale utente

DAVIS

DAVIS Vantage Pro2 Updater Manuale utente

DAVIS

DAVIS 6152C Manuale utente

DAVIS

DAVIS Wireless Temperature/Humidity Station Manuale utente

DAVIS

DAVIS and Vantage Pro Manuale utente

DAVIS

DAVIS Vantage Pro2 Weather Envoy Manuale utente

DAVIS

DAVIS Weather Monitor II Manuale utente

DAVIS

DAVIS WeatherLink for Windows 7862 Manuale utente

DAVIS

DAVIS Vantage Pro2 Updater Manuale utente

DAVIS

DAVIS 6320 Manuale utente

Manuali Stazione meteorologica popolari di altre marche

Auriol

Auriol AHFL 433 A1 Manuale utente

NexSens

NexSens G2-HYDROMET Manuale utente

Hyundai

Hyundai WS 2202 Manuale utente

IROX

IROX HBVR761 UV-X Manuale utente

La Crosse Technology

La Crosse Technology C86371 Manuale utente

ADE

ADE WS 1711 Manuale utente

Auriol

Auriol z29592 Manuale utente

Auriol

Auriol 296289 Manuale utente

Hyundai

Hyundai WS 2266 Manuale utente

La Crosse Technology

La Crosse Technology WS-2210 Manuale utente

La Crosse Technology

La Crosse Technology WS-811561 Manuale utente

Ventus

Ventus W177 Manuale utente

National Geographic

National Geographic VA Colour RC Manuale utente

Renkforce

Renkforce 1208067 Manuale utente

Levenhuk

Levenhuk Discovery Report WA40 Manuale utente

Instant Transmission

Instant Transmission MA 10410 Manuale utente

Lutron Electronics

Lutron Electronics PHB-318 Manuale utente

WAREMA

WAREMA EWFS Weather station eco Manuale utente
