Welcome to

Vantage Connect (6620)

Vantage Connect allows you to automatically upload data from a Davis

Vantage Pro2™, Vantage Vue®, or other Vantage Pro2-compatible sensor suite to

WeatherLink.com through the cellular network. With your own online account and a

data plan, you can receive alarm e-mails when preset weather conditions occur, view

data online or through a smartphone, or even download data into your PC with

WeatherLink®software.

Vantage Connect is available in different packages depending on country of use.

Contents of Package

The package contains the following:

• Vantage Connect in weather-proof shelter with 5-watt solar panel

• WeatherLink software CD

Cell modem antenna

Weather station status LED

Cell network status LED

Main power

cable (back)

Cover for cell

modem and

weather

receiver

Weather receiver

antenna

6-volt,

12-amp-hr

battery

Battery power

cable (middle)

Solar power

cable (front)

To solar panel

Battery

cable tie

Battery

platform

Status LED on/o

button

Main power jack

WeatherLink

software CD

Charging Circuit Board

Main power cable

Receptacle for

cabled ISS

Oval split grommet

(in cabled

versions only)

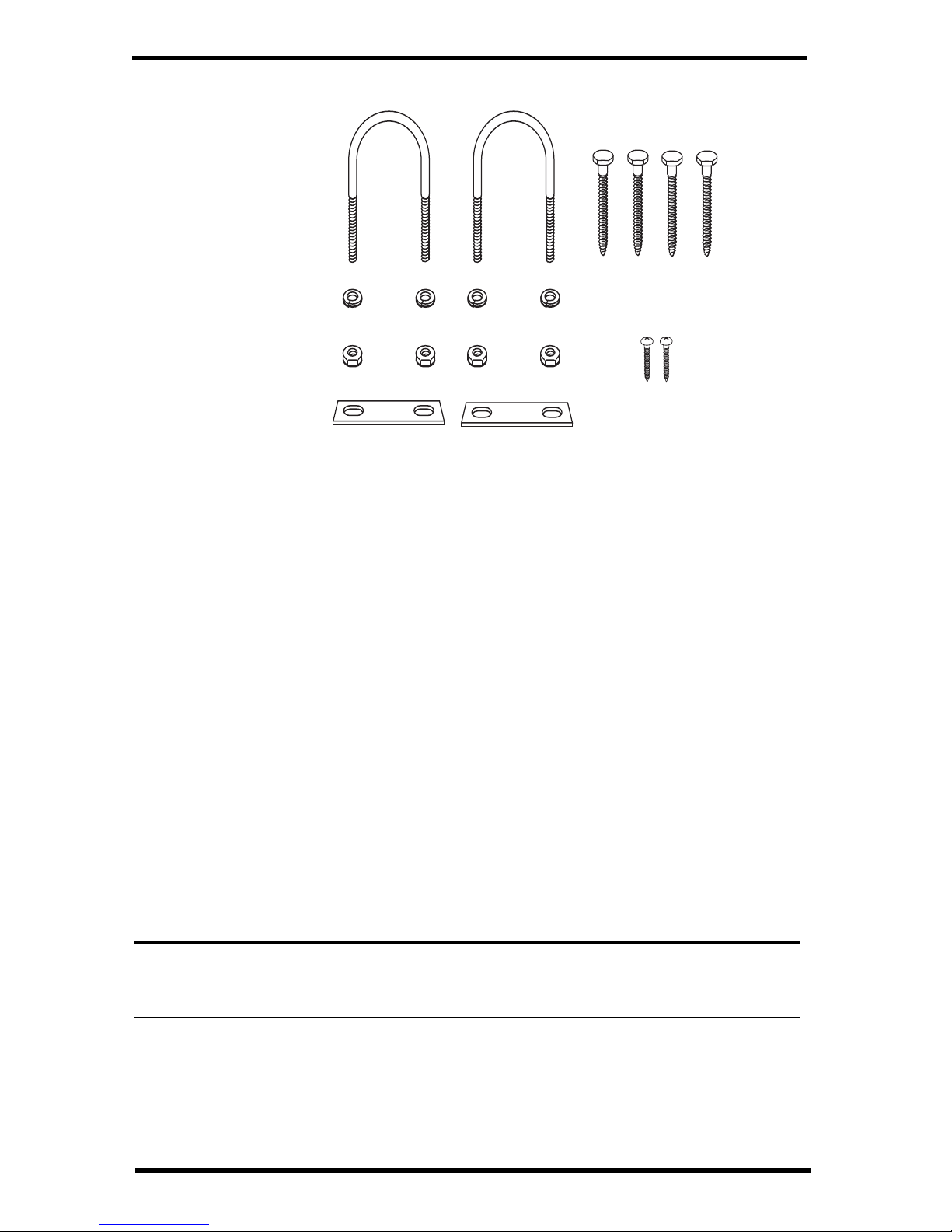

• Hardware kit (as shown below)

Requirements

• A Davis Vantage Pro2 or Vantage Vue integrated sensor suite (ISS) or other

Vantage-Pro2 transmitting station (all sold separately)

• GSM/GPRS cellular network coverage in the area

• Vantage Connect service plan (sold separately)

Purchase a Vantage Connect Service Plan.

Vantage Connect requires an annual service plan. Choose #6632, 6634, or 6636 in

the version appropriate for your region (US, A, B, or C). Each plan offers a

different update interval (5, 15, or 60 minutes). For more information see your

Davis reseller or purchase a plan during your registration process on

WeatherLink.com.

After purchase, you will receive an e-mail with an Activation Code that you will

use to register online.

Note: Register your Vantage Connect online and wait 5 to 10 minutes BEFORE you power

it up to avoid a delay in uploading data. If you already powered up before

registering, remove power from the Vantage Connect, register, then repower.

1. When you receive the e-mail with the Activation Code, follow the instructions

in the e-mail. (Or, go to www.weatherlink.com; click on Register. Select the

Vantage Connect option.)

2. Read and agree to the Terms of Use.

1/4" LockWashers

1/4" Hex Nuts

U-Bolts

Backing Plates

1/4" x 1 1/4" Lag Screws

#6 x 3/8 Screws

(not needed)

3. Enter the DID and KEY located on the

sticker on the cover of this manual and

on the sticker inside the Vantage

Connect shelter.

4. Create and enter a user name and

password, and enter your e-mail

address to create a new user account.

Note: Your user name will become part of your web page’s URL. For example if your user

name is JohnSmith, your URL will be www.weatherlink.com/user/JohnSmith

5. Enter your time zone and indicate your Daylight Saving Time preference.

6. Enter the Activation Code received in the e-mail.

7. Click Continue with Registration.

8. Agree to the Service Agreement.

9. Click Create Account.

Configure and Set Up Your Vantage Connect

You will need to know the transmitter IDs of each transmitting station before you

configure your Vantage Connect.

Follow the prompts to enter setting and configuration:

1. Reporting Stations & Units of Measure

• Enter the transmitter ID number of each of the transmitters that will be reporting

to your Vantage Connect (up to 8). Choose a station type for each. (For example,

Vantage Pro2 ID: 1, Leaf and Soil Moisture Station: ID 2.) If using repeaters,

check the “Enable Repeaters” box and choose the final repeater’s ID letter for

each transmitter using repeaters.

• Choose your preferred units.

• Click Save.

2. Device Settings

• For accurate barometric pressure data, enter the elevation at which your Vantage

Connect will be mounted. Fine tune this sensor by entering the local barometric

pressure reading. (Sources of this information include your local airport or radio

station)

• Select your anemometer and rain collector types.

• For accurate year-to-date rain data, enter the year-to-date rainfall as of today,

and when your rain season starts.

• Station Alarms (Optional): Set alarms for high and low weather conditions.

Vantage Connect will send up to 20 (counting both activate and deactivate)

alarm notifications per day when these conditions exist.

DID: 0012746AAS00

KEY: 123456

• If necessary, you may calibrate temperature, humidity, and wind readings. (Be

careful when deciding to calibrate; Davis weather stations are factory-

calibrated for accuracy and may not match less accurate or less local data such

as reported on television or a web page.) Enter the amount of offset you want

the temperature or humidity reading to be reported. For example, if you believe

your outside temperature data is consistently 2 degrees too low, enter +2. If you

believe the outside humidity data is consistently 5% too high, enter -5. You

must calibrate the wind direction if your anemometer cannot be mounted so

that the arm points true north. Enter the direction the arm points, if not zero, in

degrees from 1° to 359°.

• Click Save.

3. Clear Highs and Lows. Clear any erroneous highs and lows that were created

during installation of your station. (For example, while setting up, the wind

cups and vane were spun. This false “high wind” data should be cleared.)

Click Clear Selected Data or, if no erroneous data has accumulated, click

Cancel.

4. My Account. Enter your account information.

• Enter your City, State, Country, and latitude & longitude

• Enter a name for your station (this will become your web page title)

• Choose a station type from the pull-down menu

• Choose whether to show display 24-hour time

• Check the “Keep ‘My Weather’ private” box if you do not want your current

weather to be seen without a password. (No private information appears on this

screen.)

5. Click Save.

6. You can edit these settings at any time by logging in to your account and

clicking My Account then [edit] (to edit account information or change your

password); or, in the My Device box: Edit Configuration, Edit Settings, or

Manage Stored Data.

Note: These settings and configurations will be pushed to the Vantage Connect at the first

update after it is set up and powered. The changes will then be sent to your

WeatherLink.com page at the next update. So the changes will not appear on your

page after at least 2 update intervals. (Update intervals are 5, 15 or 60 minutes

depending on your service plan). With high network traffic, this may take longer.

Prepare for installation

Remove all cardboard and packing materials from inside the shelter. (Be sure to

remove the cardboard from behind the battery.)

Before proceeding with installation, make sure the main power cable is

disconnected from the main power jack.

Connect the battery

The Vantage Connect is shipped with one battery cable (the red, or positive cable)

disconnected to prevent battery drain. Connect the red cable to the red terminal.

Main power jack

Main power cable

Install the Vantage Connect

If you have not already set up your ISS or additional station, do so first. (See the

instruction manual that came with your ISS or additional station.)

Mount the Vantage Connect shelter

Choose a location for your Vantage Connect. It can be mounted on a pole or a flat

surface such as a wall or a wooden post. The shelter should be mounted within

transmission range of your ISS. (Maximum of 1000 feet (300 m), line-of-sight,

open air.)

It is important that the shelter be mounted so that the solar panel gets the greatest

amount of sunshine -- the solar shelter should be facing south (in the northern

hemisphere) or north (in the southern hemisphere).

Tip: Mounting the shelter may be easier if done by two people.

Mounting on a Flat Surface

Attach the shelter to the mounting surface in the desired location using the lag

screws and backing plates as shown below. Use a pencil or a center-punch to mark

the location of the pilot hole.

Mounting On a Pipe

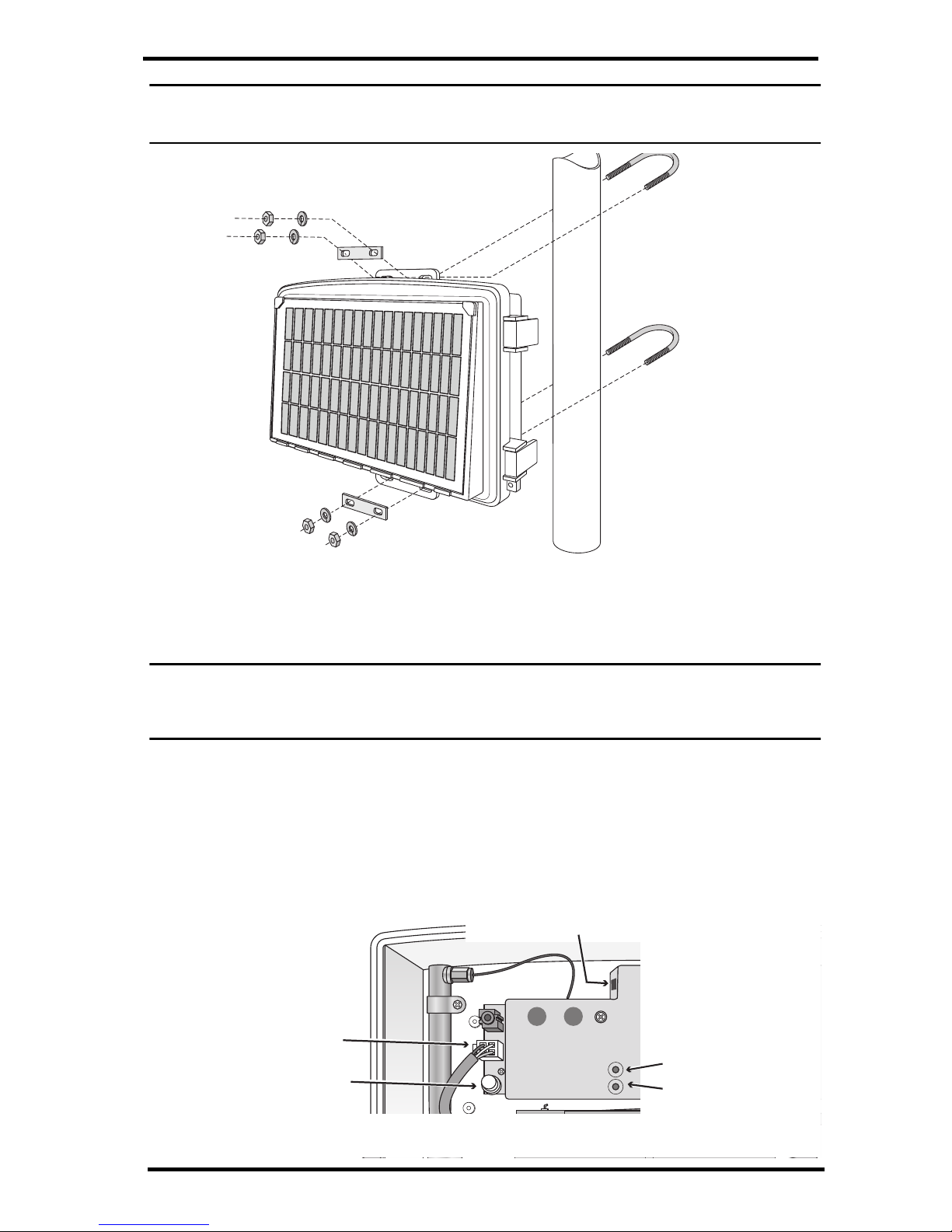

Mount the Vantage Connect onto a pipe with an outside diameter of 0.84'' to 1.84''

(21 mm to 27 mm) using the U-bolts, backing plates, washers, and hex nuts

provided.

Note: For mounting on larger diameter pipes, the housing can accommodate U-bolts with

5/6'' (8 mm) threads for pipes up to 2.40'' (61 mm) outside diameter (not provided).

Power Up

Note: Register your Vantage Connect online and wait 5 to 10 minutes BEFORE you power

it up to avoid a delay in uploading data. If you already powered up before registering,

remove power from the Vantage Connect, register, then repower.

1. If using Vantage Connect with a cabled ISS, remove the plug from one of the

holes in the bottom of the shelter. Run the ISS cable up through the hole.

Outside the shelter, wrap a split grommet around the cable and push the

grommet securely into the hole. Plug the cable into the ISS cable jack.

2. Plug the main power cable back into the jack. You should hear two beeps.

Main power jack

Weather Station

Cell Network

Status LEDs:

Status LED on/o

button

Jack for cabled ISS cable

The Vantage Connect will now begin to acquire both the radio signal from the

weather station as well as the cell signal. You will be able to observe this by

watching the LED lights.

• While the Vantage Connect is searching for signals, the LED lights will flash.

The weather station status LED (top) will flash green. The cell status LED

(bottom) will flash blue.

• When the signals are acquired, the LEDs will stop flashing and stay on. When the

lights are solid green (weather station) and blue (cell network), the station has

acquired both signals and is connected and operating normally.

• After several minutes, the solid LED lights will time out and go off.

If there is a connection error, the lights will flash quickly. Their behavior will

indicate the type of error. See Troubleshooting on page 9.

Note: The LED lights can be reactivated by pressing and releasing the blue status LED on/

off button. After pressing the button, wait for up to 30 seconds for lights to come on.

Access Data

Once your Vantage Connect is registered on the network, powered up, and

connected to both signals, it will begin uploading the latest data to the server.

Data is uploaded to your page on WeatherLink.com along with daily highs and

lows. The “My Weather” page shows the weather conditions uploaded at the last

upload interval. (5, 15 or 60 minutes, depending on your service plan.)

Note: It takes up to 2 minutes for the data received from Vantage Connect to be processed

to the web site. For example, if you have a 5-minute update plan, the data received

at 12:05 may not appear on the web site until 12:07.

Download Data From WeatherLink Network to PC

You can download your data stored online to your PC through the WeatherLink

software and use WeatherLink to create graphs and reports. Downloading can be

done manually, or you can set up automatic downloads in WeatherLink software.

If you choose manual downloads, remember that the amount of data stored on the

server depends on the update interval of your service plan. Be sure to download

within the time period below for your service plan, otherwise older data will be

lost.

Data Plan Max Data Stored

5-minute plan 1 month

15-minute plan 3 months

60-minute plan 1 year

Altri manuali per Vantage Connect

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali DAVIS Stazione meteorologica

DAVIS

DAVIS Wireless Temperature/Humidity Station Manuale utente

DAVIS

DAVIS Weather Wizard III Istruzioni operative e di manutenzione

DAVIS

DAVIS Weather Monitor II EZ-Mount Manuale utente

DAVIS

DAVIS 6330 Manuale utente

DAVIS

DAVIS Soil Moisture/Temperature Station Manuale utente

DAVIS

DAVIS Wireless Temperature/Humidity Station Manuale utente

DAVIS

DAVIS and Vantage Pro Manuale utente

DAVIS

DAVIS and Vantage Pro Manuale utente

DAVIS

DAVIS Vantage Vue 6250 Manuale utente

DAVIS

DAVIS Vantage Pro2 Updater Manuale utente

DAVIS

DAVIS Vantage Pro2 Weather Envoy Manuale utente

DAVIS

DAVIS Vantage Pro2 Updater Manuale utente

DAVIS

DAVIS 6320 Manuale utente

DAVIS

DAVIS WeatherLink Manuale utente

DAVIS

DAVIS WeatherLink Manuale utente

DAVIS

DAVIS Vantage Pro2 Updater Manuale utente

DAVIS

DAVIS Integrated Sensor Manuale utente

DAVIS

DAVIS Wireless Temperature Station Manuale utente

DAVIS

DAVIS Rain Collector II Manuale utente

DAVIS

DAVIS and Vantage Pro Manuale utente

DAVIS

DAVIS Weather Envoy 6314 Manuale utente

DAVIS

DAVIS WeatherLink 6540 Manuale utente

DAVIS

DAVIS Vantage Pro2 Updater Manuale utente

DAVIS

DAVIS Vantage Pro2 Updater Manuale utente

Manuali Stazione meteorologica popolari di altre marche

Auriol

Auriol AHFL 433 A1 Manuale utente

NexSens

NexSens G2-HYDROMET Manuale utente

Hyundai

Hyundai WS 2202 Manuale utente

IROX

IROX HBVR761 UV-X Manuale utente

La Crosse Technology

La Crosse Technology C86371 Manuale utente

ADE

ADE WS 1711 Manuale utente

Auriol

Auriol z29592 Manuale utente

Auriol

Auriol 296289 Manuale utente

Hyundai

Hyundai WS 2266 Manuale utente

La Crosse Technology

La Crosse Technology WS-2210 Manuale utente

La Crosse Technology

La Crosse Technology WS-811561 Manuale utente

Ventus

Ventus W177 Manuale utente

National Geographic

National Geographic VA Colour RC Manuale utente

Renkforce

Renkforce 1208067 Manuale utente

Levenhuk

Levenhuk Discovery Report WA40 Manuale utente

Instant Transmission

Instant Transmission MA 10410 Manuale utente

Lutron Electronics

Lutron Electronics PHB-318 Manuale utente

WAREMA

WAREMA EWFS Weather station eco Manuale utente
