PROJECT

ITEM #

QUANTITY DATE

APPROVAL

The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com

CTP-NB

Counter top condiment rail

Short form specications

Exterior Top and Sides are 18-gauge stainless steel. Back of unit is 20-gauge galvanized

steel. Unit has a mechanically cooled refrigerated raised rail with die-stamped opening(s)

to accomodate 2000 series pans. Pans provided by others, adapter bars supplied with

unit. Pans are recessed 3" (7.6 cm), 2" (5.1 cm) or ush with top and rest on adjustable

stainless steel clips. Raised rail openings have 20-gauge stainless steel hinged

removable covers.

Unit Interior has a 22-gauge stainless steel liner with foamed-in-place polyurethane

insulation.

Base of unit has removable louvers at front and rear for proper air ow and access to the

condensing unit. Protective rubber bumpers are afxed to the back of the unit.

Refrigeration System uses HFC-134a refrigerant. Refrigerated rail is designed to main-

tain 41ºF (5ºC) at 85ºF ambient, 50% relative humidity for up to (4) hours when pans are

recessed 3" (7.6 cm) below top. Food and product should be placed in unit at 37ºF (3ºC).

On/off switch is located at front of unit.

Electrical Connection is 115 volt, 60 Hertz, single phase. Unit is wired with a 3-wire,

grounded and has a 8' (2.4 m) long electrical cord and NEMA 5-15P plug.

Optional accessories & modications

q Plastic laminate on front

q *220 volt, 50 Hertz electrical system

*Inclusion of these options will alter the

electrical specications of the unit

Model CTP8146-NB

The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com

DSCTBNB 10/01

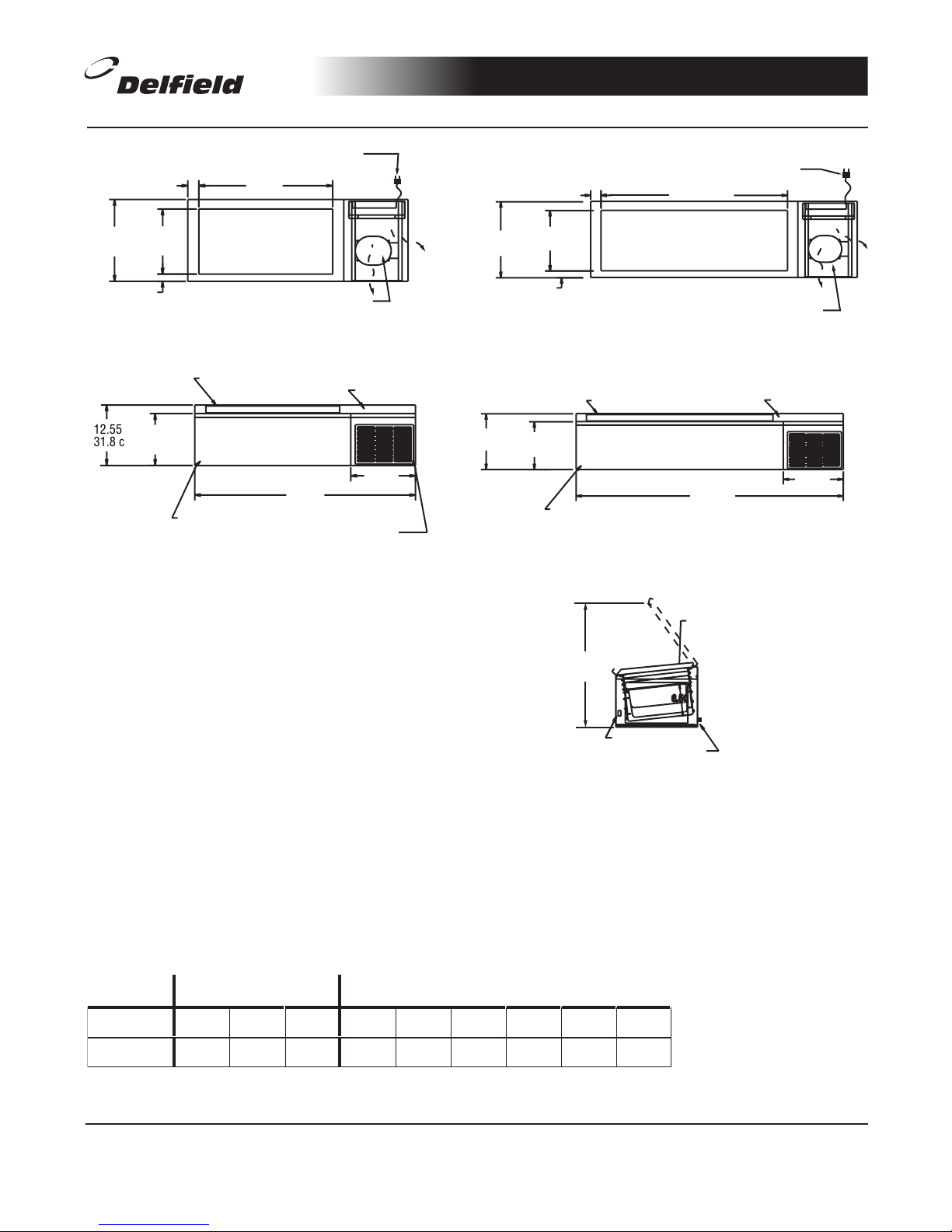

PLAN VIEW CTP8146-NB PLAN VIEW CTP8160-NB

ELEVATION VIEW CTP8160-NB

PLAN VIEW CTP8175-NB

ELEVATION VIEW CTP8175-NB

TYPICAL END VIEW

MODEL

NUMBER

1/6 SIZE

PAN

CAPACITY

ADAPTER

BARS

SUPPLIED

SHIP

WEIGHT

BTU

LOAD

BTU

SYSTEM

CAPACITY

HORSE-

POWER

VOLTS/

HERTZ/

PHASE AMPS

NEMA

PLUG

CTP8146-NB 8 5

121 lbs

54.9 kg 305 523 1/5 115/60/1 4 5-15P

CTP8160-NB 12 7

158 lbs

71.7 kg 462 653 1/5 115/60/1 4 5-15P

CTP8175-NB 16 9

197 lbs

89.4 kg 609 742 1/5 115/60/1 4 5-15P

MECHANICAL DATA - Standard unit

ELEVATION VIEW CTP8146-NB

CTP-NB

Counter top condiment rail

LOUVERED FRONT AND REAR PANELS

10.74

27.3 cm

12.55

31.8 cm

13.50

34.3 cm

46.00

116.8 cm

HINGED REMOVABLE COVER 18 GA. S/S TOP

18 GA. S/S BODY

17.03

43.3 cm

1.49

3.8 cm

13.55

34.4 cm

2.31

5.9 cm

27.87

70.8 cm

1/5 HP R-134a

13.62" X 27.87"

TOP OPENING

CORD & PLUG

AIR FLOW

13.50

34.3 cm

60.00

152.4 cm

HINGED REMOVABLE COVER

18 GA. S/S TOP

18 GA. S/S BODY

10.74

27.3 cm

12.55

31.9 cm

1.50

3.8 cm

27.87

70.8 cm

2.75

7 cm 27.87

70.8 cm

13.62 X 27.87

TOP OPENING TOP OPENING

13.62 X 27.87

17.03

43.3 cm

1.49

3.8 cm

13.55

34.4 cm

1/5 HP R-134a

CORD & PLUG

AIR FLOW

2.31

5.9 cm

41.87

106.3 cm

13.62 X 41.87

TOP OPENING

17.03

43.3 cm

1.49

3.8 cm

13.55

34.4 cm

1/5 HP R-134a

CORD & PLUG

AIR FLOW

PAN CLIPS ARE ADJUSTABLE

FOR FLUSH, 2" OR 3"

RECESSED

ON/OFF SWITCH

0.75 BUMPERS

25.30"

64.3 cm REAR OF UNIT TO

HAVE ADEQUATE

AIR FLOW

10.74

27.3 cm

12.55

31.9 cm

13.50

34.3 cm

75.00

190.5 cm

HINGED REMOVABLE COVER

18 GA. S/S TOP

18 GA. S/S BODY LOUVERED FRONT AND REAR PANELS

CMY

DSCTPNB.pdf 12/29/06 8:37:13 AMDSCTPNB.pdf 12/29/06 8:37:13 AM
