SE-ICE/SES-ICE

Mobile Ice Cream Counters

Short Form Specications

Exterior Body: Open frame construction with 16-gauge stainless steel corners:

18-gauge stainless steel full bottom shelf and stainless steel C channel front and sides

for optional accent panels.

Exterior Top: Constructed of 16-gauge stainless steel, welded, ground and polished

into one integral unit. Top is fabricated with square exterior corners. Top has die-

stamped openings, with hinged removable lids. Lids are constructed of stainless steel

and have a rubber gasket seal.

Freezer Compartment: A water-tight inner liner constructed of 22-gauge stainless

steel, with radius corners and 1.5” (3.8cm) of polyurethane insulation.

Refrigeration: Copper refrigeration coils are attached to outside of inner liner. Unit

is refrigerated by self-contained, 115 volt, 60 hertz, single phase hermetically sealed

condensing unit with thermostatic control. Unit is wired with a 3-wire, grounded,

maximum 10’ (3m) 120 volt cord and plug.

Casters: Units are mounted on 5” (12.7cm) diameter swivel casters with non-marking

polyolen tires and plate brakes. Overall height of caster assembly is 6” (15.2cm).

Optional Accessories and Modications

SE-A 10" stainless steel fold-down tray slide

SE-D 8” polyethylene fold-down cutting board

SE-E 8” stainless steel fold down work shelf

SE-F Interlock device

SE-Q 115/15A outlet

SE-U 14"x29" stainless steel end drop shelf

SE-V Adjustable stainless steel leg

SE-ICE2

ShelleybasicTM

by Delfield

The Deleld Company,980 S. Isabella Road, Mt. Pleasant, MI 48858, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.deleld.com

Deleld reserves the right to make changes in design or specications without prior notice. ©2004 The Deleld Company. All rights reserved. Printed in the U.S.A.

DSSEICE 02/04

SE-ICE/SES-ICE

Mobile Ice Cream Counters

MODEL NEMA SHIP FRT.

NUMBER CABINET CAP. L D H PLUG VOLTS AMPS HP WT CLASS

ICE CREAM COUNTERS - 0 DEGREES ONLY

SE-ICE1 84 CUPS 39" 29" 36" 5-15P 115/60/1 5.3 1/4 460 100

SE-ICE2 224 CUPS 50" 29" 36" 5-15P 115/60/1 5.3 1/4 505 100

Add S for 30" high models. (example SES-ICE1)

Capacity on 30" high models: SES-ICE1 = 42 and SES-ICE2 = 112

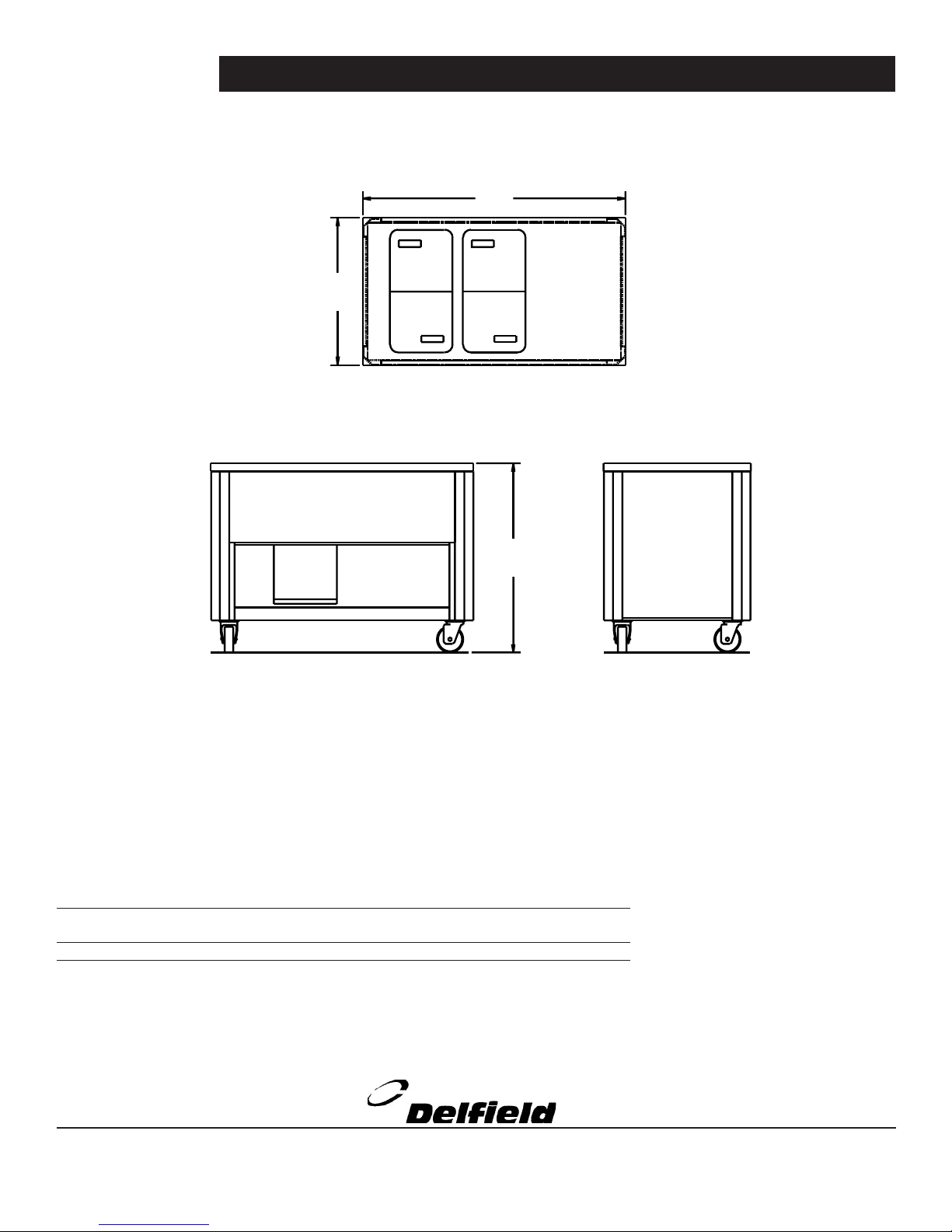

Mechanical Data - Standard Unit

PLAN VIEW

ELEVATION VIEW END VIEW

50.00”

(127cm)

29.00”

(73.66cm)

36.00”

(91.44cm)
