Dell 540s - Studio Slim Desktop Pc Manuale utente

SETUP GUIDE

Model DCSLA

Studio Slim

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of your

computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you

how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

If you purchased a Dell™ n Series computer, any references in this document to Microsoft®Windows®operating systems

are not applicable.

__________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text:

Dell

, the

DELL

logo,

YOURS IS HERE

, and

DellConnect

are trademarks of Dell Inc.;

Intel

Pentium

, and

Celeron

are registered trademarks and

Core

is a trademark of Intel Corporation in the U.S. and other

countries;

Microsoft

Windows

Windows Vista,

and

Windows Vista start button

are either trademarks or registered

trademarks of Microsoft Corporation in the United States and/or other countries;

Realtek

is a trademark of Realtek

Semiconductor Corporation;

Blu-ray Disc

is a trademark of the Blu-ray Disc Association;

Bluetooth

is a registered

trademark owned by Bluetooth SIG, Inc. and is used by Dell under license.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and

names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

July 2008 P/N GN033 Rev. A00

Setting Up Your Studio Slim 540s . . . . . . . . .5

Before Setting Up Your Computer . . . . . . . . . 5

Connect a Video Cable to the Computer . . . . 6

Connect the Video Cable to the Display . . . . 7

Connect the Keyboard and Mouse. . . . . . . . . 8

Connect the Network Cable (Optional) . . . . . 9

Connect the Power Cables for Your

Display and Computer . . . . . . . . . . . . . . . . . . 10

Press the Power Buttons on Your

Computer and Display . . . . . . . . . . . . . . . . . . 10

Windows Vista®Setup . . . . . . . . . . . . . . . . . 11

Connect to the Internet (Optional) . . . . . . . . 11

Using Your Studio Slim 540s . . . . . . . . . . . .14

Front View Features. . . . . . . . . . . . . . . . . . . . 14

Using the Optical Drive . . . . . . . . . . . . . . . . . 16

Back View Features. . . . . . . . . . . . . . . . . . . . 17

Back Panel Connectors. . . . . . . . . . . . . . . . . 18

Software Features . . . . . . . . . . . . . . . . . . . . . 20

Solving Problems . . . . . . . . . . . . . . . . . . . . .22

Network Problems . . . . . . . . . . . . . . . . . . . . . 22

Power Problems. . . . . . . . . . . . . . . . . . . . . . . 23

Memory Problems . . . . . . . . . . . . . . . . . . . . . 24

Lockups and Software Problems . . . . . . . . . 25

Using Support Tools. . . . . . . . . . . . . . . . . . .28

Dell Support Center . . . . . . . . . . . . . . . . . . . . 28

System Messages . . . . . . . . . . . . . . . . . . . . . 29

Hardware Troubleshooter. . . . . . . . . . . . . . . 30

Dell Diagnostics . . . . . . . . . . . . . . . . . . . . . . 31

Contents

System Recovery Options . . . . . . . . . . . . . .33

System Restore . . . . . . . . . . . . . . . . . . . . . . . 33

Dell Factory Image Restore . . . . . . . . . . . . . 34

Operating System Reinstallation . . . . . . . . . 36

Getting Help . . . . . . . . . . . . . . . . . . . . . . . . .38

Technical Support and Customer

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

DellConnect™. . . . . . . . . . . . . . . . . . . . . . . . . 39

Online Services . . . . . . . . . . . . . . . . . . . . . . . 39

AutoTech Service. . . . . . . . . . . . . . . . . . . . . . 40

Product Information. . . . . . . . . . . . . . . . . . . . 41

Returning Items for Repair Under

Warranty or for Credit . . . . . . . . . . . . . . . . . . 41

Before You Call. . . . . . . . . . . . . . . . . . . . . . . . 42

Contacting Dell. . . . . . . . . . . . . . . . . . . . . . . . 43

Finding More Information and

Resources . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Specifications . . . . . . . . . . . . . . . . . . . . . . .46

Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Macrovision Product Notice. . . . . . . . . . . . . 52

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Setting Up Your Studio Slim 540s

This section provides information about setting

up your Studio Slim 540s and connecting

peripherals.

Before Setting Up Your Computer

When positioning your computer, ensure that

you allow easy access to a power source,

adequate ventilation, and a level surface to

place your computer.

Restricting airflow around your Studio Slim

540s may cause it to overheat. To prevent

overheating ensure that you leave at least

10.2 cm (4 inches) at the back of the computer

and a minimum of 5.1 cm (2 inches) on all other

sides. You should never put your computer in an

enclosed space, such as a cabinet or drawer

when it is powered on.

Setting Up Your Studio Slim 540s

Connect a Video Cable to the

Computer

Your computer uses one of two different

connectors for the display. The HDMI

connector is a high-performance digital

connector that carries both video and

audio signals for displays such as TVs

and monitors with integrated speakers.

The VGA connector carries only video

signals for displays such as monitors

and projectors.

NOTE: A DVI connector may be available on

your computer if you purchased an optional

discrete graphics card.

-OR-

Setting Up Your Studio Slim 540s

Connect the Video Cable to the

Display

Check your TV or monitor to see which type

of connectors are available. Refer to the

following table when identifying the connectors

on your display to select the connection type

you will use.

HDMI

VGA

DVI

You can connect to the display using the

following connectors available on your

computer: the VGA connector, the HDMI

connector, or the DVI connector (optional).

Connect Using the VGA Connector

If your display has a VGA connector, use a VGA

cable (with blue connectors at both ends).

If your display has a DVI connector, use the VGA

cable (with blue connectors at both ends) with a

VGA-to-DVI adapter (white plug).

NOTE: You can purchase a VGA-to-DVI

adapter from the Dell website at dell.com.

Setting Up Your Studio Slim 540s

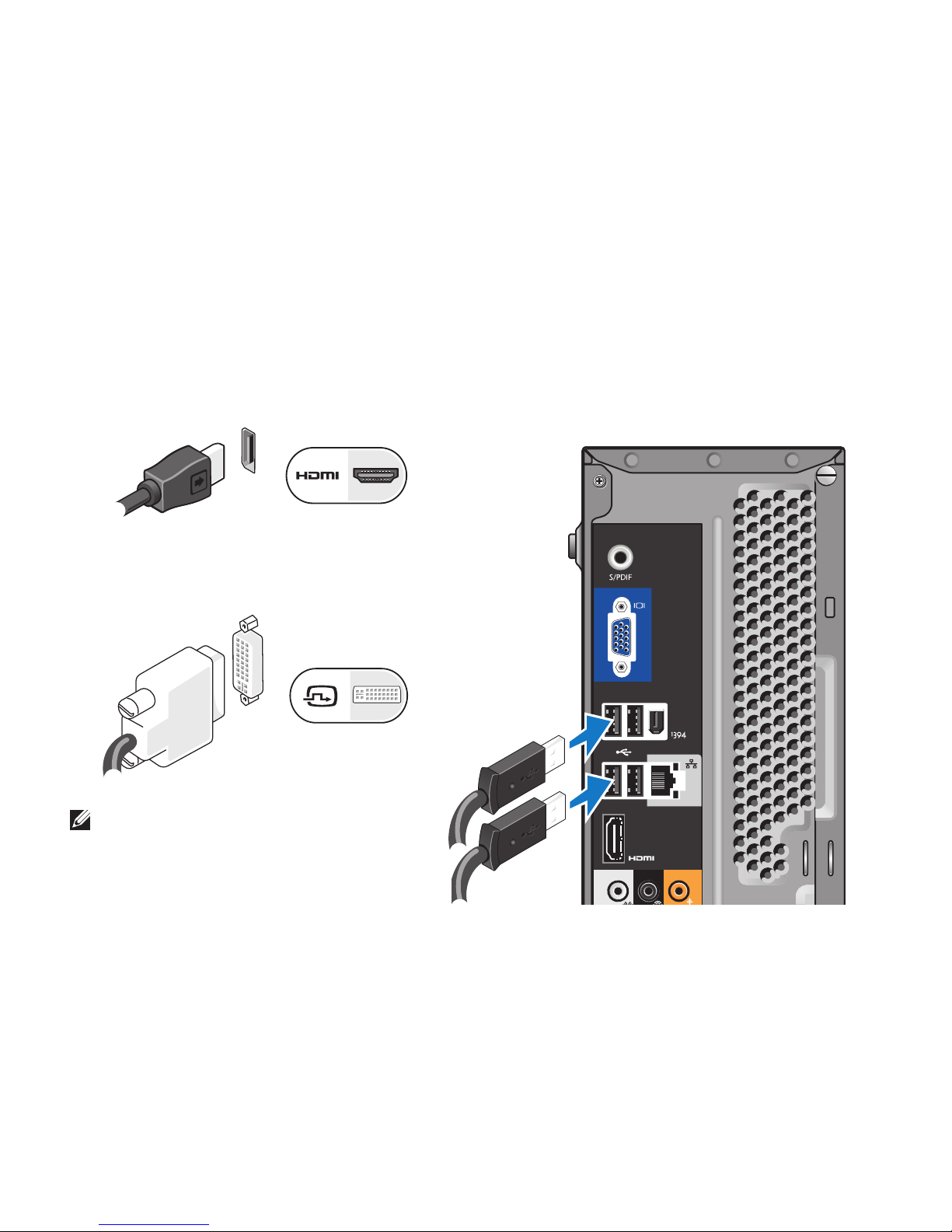

Connect Using the HDMI Connector

Connect the display using an HDMI cable.

Connect Using a DVI Connector (Optional)

Connect the display using a DVI cable.

NOTE: You can purchase additional HDMI

and DVI cables from the Dell website at

dell.com.

Connect the Keyboard and Mouse

Connect your keyboard and mouse to the USB

connectors on the back panel of the computer.
