Dell OptiPlex 580 Manuale utente

DELL™

OPTIPLEX580

TECHNICAL GUIDEBOOK

INSIDE THE OPTIPLEX 580

OptiPlex580TechnicalGuidebook Page2

OVERVIEW

Mini Tower Computer (MT) View 4-5

Desktop Computer (DT) View 6-7

Small Form Factor Computer (SFF) View 8-9

MARKETING SYSTEM CONFIGURATIONS

Operating System, Chipset 10

Processor 11-12

Advanced System Manageability Modes 12

Memory 13

Drives and Removable Storage 14

System Board Connectors 15

Graphics/Video Controller, External Ports/Connectors 16

Communications—Network Adapter (NIC), Modem 17

Audio and Speakers, Keyboard and Mouse 17

Security, Service and Support, Software 18

DETAILED ENGINEERING SPECIFICATIONS

System Dimensions (Physical) 19

System Board Connector Maximum Allowable Dimensions 19-20

System Level Environmental and Operating Conditions 21

Power 21-22

Audio 22

Communications 23-25

OptiPlex580TechnicalGuidebook Page3

Graphics/Video Controller 25-30

Hard Drives 30-37

Optical Drive 37-40

BIOS Defaults 40-41

Chassis Enclosure and Ventilation Requirements 42-43

Acoustic Noise Emission Information 44-47

OptiPlex580TechnicalGuidebook Page4

Mini Tower (MT) Computer View

Front and Back View

1 CD/DVD drive

2 CD/DVD drive eject button

3 CD/DVD drive panel

4 USB 2.0 connectors (2)

5 drive activity light

6 power button, power light

7 diagnostic lights (4)

8 headphone connector

9 microphone connector

10 network connectivity light

11 padlock ring

12 cover-release latch, security cable slot

13 voltage selector switch

14 power cable connector

15 back panel connectors

16 expansion card slots (4)

17 power supply diagnostic button

18 power supply diagnostic light

OptiPlex580TechnicalGuidebook Page5

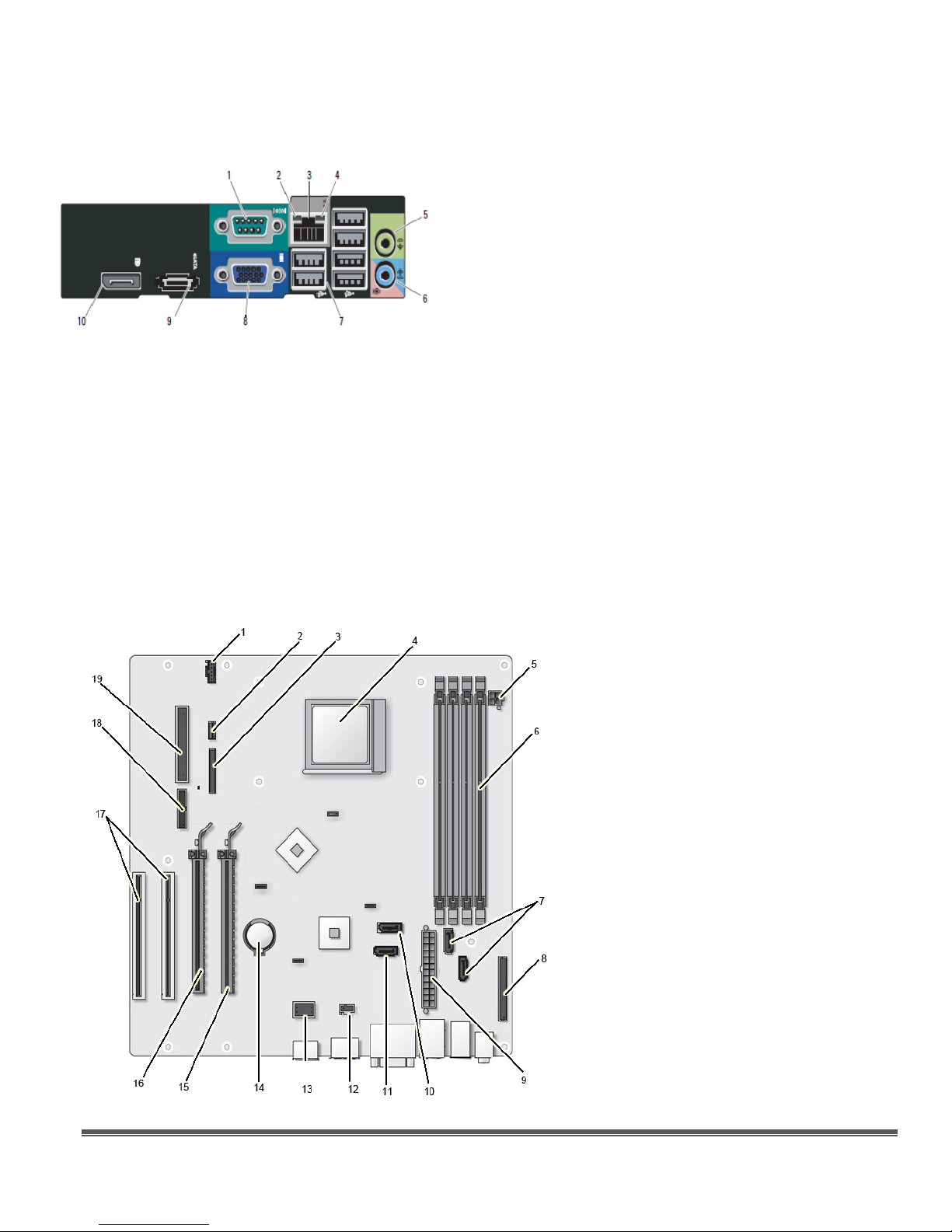

MT Back Panel Connectors

1 serial connector

2 link integrity light

3 network adapter connector

4 network activity light

5 line-out connector

6 line-in/microphone connector

7 USB 2.0 connectors (6)

8 VGA connector

9 eSata connector

10 DisplayPort connector

MT System Board

1 Fan connector (FAN_CPU)

2 Speaker connector (INT_SPKR)

3 N/A

4 Processor connector (CPU)

5 Processor power connector (12VPOWER)

6 Memory module connectors (4)

7 SATA connectors (SATA0, SATA1)

8 Front-panel connector (FRONTPANEL)

9 Power connector (POWER)

10 SATA connectors (SATA2)

11 SATA connectors (SATA3)

12 Intrusion switch connector (INTRUDER)

13 N/A

14 Battery socket (BATTERY)

15 PCI Express x16 connector (SLOT1)

16 PCI Express x4 connector (SLOT2)

17 PCI connector (SLOT3, SLOT4)

18 PS/2 or serial connector (SERIAL2)

19 Floppy drive connector (not offered)

OptiPlex580TechnicalGuidebook Page6

Desktop (DT) Computer View

Front and Back View

1 CD/DVD drive

2 CD/DVD drive eject button

3 USB 2.0 connectors (2)

4 drive activity light

5 diagnostic lights (4)

6 power button, power light

7 network connectivity light

8 microphone connector

9 headphone connector

10 power supply diagnostic button

11 power supply diagnostic light

12 voltage selector switch

13 cover-release latch, security cable slot

14 padlock ring

15 power cable connector

16 back panel connectors

17 expansion card slots (3)

OptiPlex580TechnicalGuidebook Page7

DT Back Panel Connectors

1 serial connector

2 link integrity light

3 network adapter connector

4 network activity light

5 line-out connector

6 line-in/microphone connector

7 USB 2.0 connectors (6)

8 VGA connector

9 eSata connector

10 DisplayPort connector

DT System Board

1 Fan connector (FAN_CPU)

2 Speaker connector (INT_SPKR)

3 Processor connector (CPU)

4 Processor power connector (12VPOWER)

5 Memory module connectors (4)

6 SATA connectors (SATA0, SATA1)

7 Front-panel connector (FRONTPANEL)

8 Power connector (POWER)

9 SATA connectors (SATA2)

10 N/A

11 Intrusion switch connector (INTRUDER)

12 Battery socket (BATTERY)

13 PCI Express x16 connector (SLOT1)

14 PCI Express x4 connector (SLOT2)

15 PCI connector (SLOT3)

16 PS/2 or serial connector (SERIAL2)

OptiPlex580TechnicalGuidebook Page8

Small Form Factor (SFF) Computer View

Front and Back View

1 CD/DVD drive

2 CD/DVD drive eject button

3 USB 2.0 connectors (2)

4 drive activity light

5 diagnostic lights (4)

6 power button, power light

7 network connectivity light

8 microphone connector

9 headphone connector

10 power supply diagnostic button

11 power supply diagnostic light

12 voltage selector switch

13 cover-release latch, security cable slot

14 padlock ring

15 power cable connector

16 back panel connectors

17 expansion card slots (3)

OptiPlex580TechnicalGuidebook Page9

SFF Back Panel Connectors

1 serial connector

2 link integrity light

3 network adapter connector

4 network activity light

5 line-out connector

6 line-in/microphone connector

7 USB 2.0 connectors (6)

8 VGA connector

9 eSata connector

10 DisplayPort connector

SFF System Board

1 Fan connector (FAN_CPU)

2 Processor connector (CPU)

3 Processor power connector (12VPOWER)

4 Memory module connectors (4)

5 SATA drive connectors (SATA0, SATA1)

6 Front-panel connector (FRONTPANEL)

7 Power connector (POWER)

8 SATA connectors (SATA2)

9 Fan connector (FAN_HDD)

10 Intrusion switch connector (INTRUDER)

11 N/A

12 Battery socket (BATTERY)

13 PCI Express x16 connector (SLOT1)

14 PCI Express x4 connector (SLOT2)

15 PS/2 or serial connector (SERIAL2)

16 N/A

17 Speaker connector (INT_SPKR)

OptiPlex580TechnicalGuidebook Page10

Marketing System Configurations

NOTE: Offerings may vary by region. For more information regarding the configuration of your computer, click StartHelp and

Support and select the option to view information about your computer.

Operating System

NOTE: One of the following Operating Systems will be preinstalled.

MT DT SFF

Windows 7® operating system Windows 7® Home Basic (32 bit),

Windows 7® Home Premium (32 bit),

Windows 7® Professional (32 and 64 bit),

Windows 7® Ultimate (32 bit)

Windows Vista® operating system Windows Vista® SP2 Home Basic (32 bit)

Windows Vista® SP2 Business (32 and 64 bit),

Windows Vista® SP2 Ultimate (32 bit),

Windows Vista® SP2 Business downgrade via

Windows 7® Professional

Windows Vista® SP2 Ultimate downgrade via Windows

7® Ultimate

Windows XP® operating system Windows XP®Professional SP3 (32 bit) downgrade via

Windows 7® Professional or Ultimate

Windows XP®Professional SP3 (32 bit) downgrade via

Windows Vista®Business or Ultimate

Other Ubuntu® Linux® (select countries)

FreeDOS for (n-series),

OS Media Support X X X

Chipset

MT DT SFF

Chipset AMD 785G

Non-volatile memory on chipset

BIOS Configuration SPI (Serial Peripheral Interface)

8Mbit (1MB) located at SPI_1 on chipset

TPM 1.2 Security Device (Trusted Platform Module)116KB located at TPM on chipset

Non-TPM

Available in select countries

NIC EEPROM LOM configuration contained within SPI_1

1TPM not available in some regions
