Take out the whole monitor from the EPS-bottom.

Remove the PE bag from top to bottom, and put the

monitor on ESD protection foam.

Cut off 4pcs straps first ,then remove 12pcs carton

locks, then use a proper tool to open the carton, and

then remove the angle papers, top cartons and 2pcs

paper box. Tearing off the caution techsheet. Remove

EPS-Tops with PC box, QSG and accessories PE

bag(CD, battery, 3pcs wire saddle, 2pcs stylus, Stylus

holder, remote control, remote control holder, VGA

cable, HDMI cable, DP cable and USB cables

EU+USA cable and power cable).

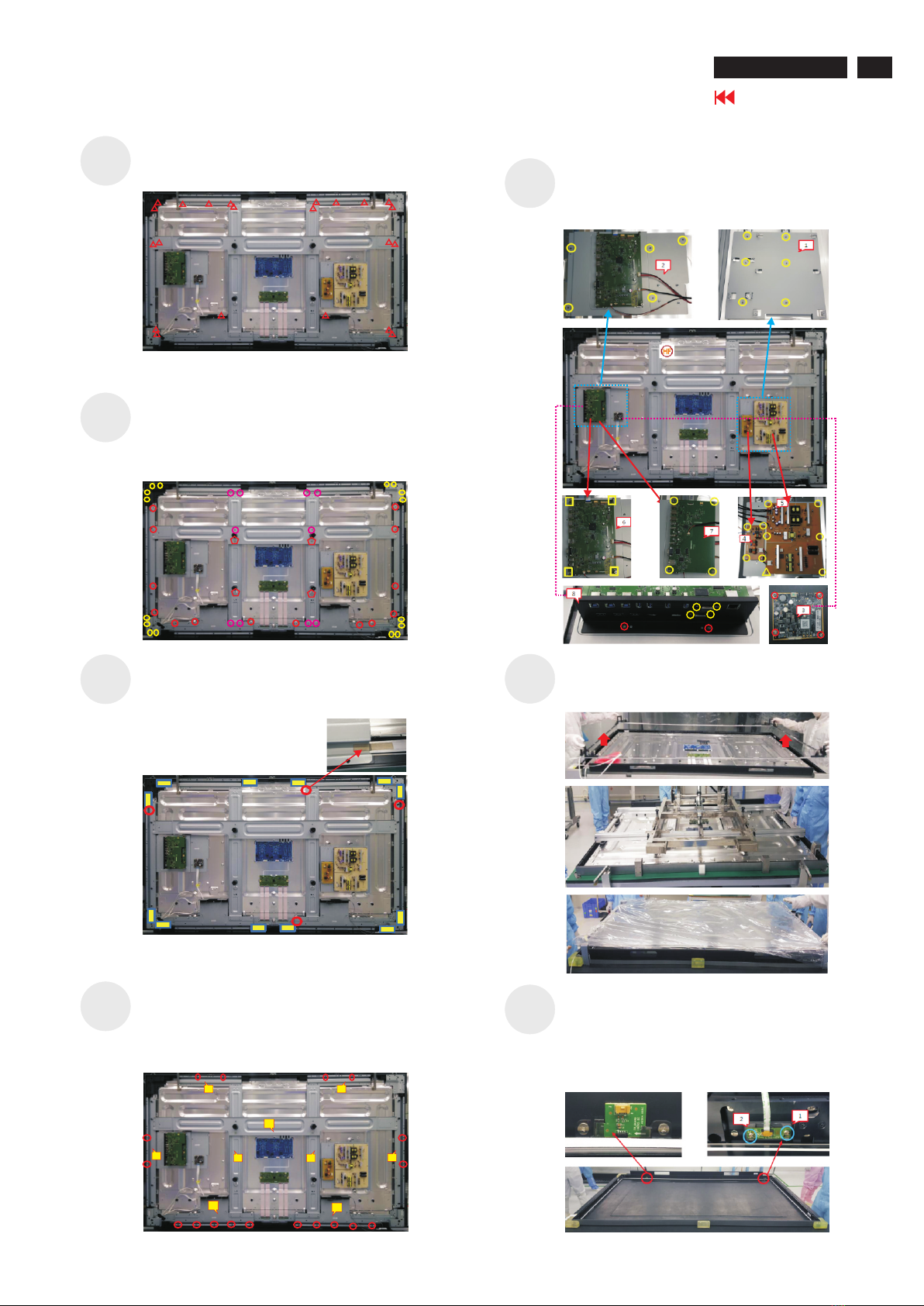

1. Disassembly Procedures: Remove the 4pcs rubbers. Use a screwdriver to

handles.

Remove 54pcs screws for unlocking

2pcs rear covers .

remove 8pcs screws for releasing the

(Torque:16±1kgf)

(Torque: 3.8±0.3kgf)

S4 Remove 27pcs black tapes for releasing the cables

as the picture below shown.

Disconnect IR cable from the connectors of IR board

with main board. Disconnect the speakers’ cable from

the connector of the main board. Disconnect function

key cable from the connector of the main board.

Disconnect LVDS cable from connectors of T-COB

board and main board. Disconnect touch&USB cable

from the connectors of touch board with USB board.

Disconnect all the connector cables from the connector

of the power board and AC board and main board.

Use a screwdriver to remove 8pcs screws for

unlocking the two speakers, remove 1pcs grounding

screw for removing the AC outlet.(Torque: 3.8±0.3kgf)

caution techsheet

carton lock

5. Assembly and Disassembly Procedures (continued) 2

Go to contents page

DELL C8618QT

Lift up the assembled ED unit. Lift up the panel module

with a euipment and put it on a protective cushion. Lift

up the glass with a tool and put it on a protector.

Use a screwdriver to remove 39pcs(28+11) screws for

unlocking main board, USB board, power board, AC

boar, touch board, IO stand, connectors, power board

stand and main board stand. . (Torque: 3.8kgf±0.3)

S11

Use a screwdriver to remove 2pcs screws for

unlocking the function key board with lens, to remove

2pcs screws for unlocking IR board from the IR

lens , remove 24pcs(8+16) screws for

unlocking the angle irons with front frames.

(Torque: 2±0.2kgf)

S12

Use a screwdriver to remove 12pcs screws for

unlocking the corner irons, to remove 24pcs screws

for unlocking the irons.

to remove 4pcs screws for

unlocking the vertical irons.

(Torque: 7±0.3kgf)

(Torque: 24±1kgf)

Use a screwdriver

Remove 12pcs rubbers (yellow color) and 4pcs

conductive tapes (red color) as the picture below

shown.

Use a screwdriver to remove 18pcs screws for

unlocking the top iron, left iron, right iron and speaker

irons with the whole unit.

Remove the top iron, left iron, right iron and speaker

irons, vertical irons, horizontal iron and corner irons.

(Torque:7kgf±0.3)

Use a screwdriver to remove 20pcs screws for

unlocking the irons. (Torque: 3.8±0.3kgf)

S10

ED unit

IR board function key board

Remove electrolyte capacitors (red mark) from printed circuit boards

S13-1 Cut the glue between bulk cap. and PCB with a knife

S13-2 Ensure cutting path within the glue, don’t touch bulk cap. or PCB

S13-3 Cut into the bottom of bulk cap. and pull

it up carefully

S13

Go to contents page

DELL C8618QT

S13-4 Take out bulk cap. pin solder with soldering iron and absorber

S13-5 Lift the bulk cap. up and away from the PCB

DELL C8618QT 4

Go to contents page

The following substances, preparations, or components should be disposed of or

recovered separately from other WEEE in compliance with Article 4 of EU Council

Directive 75/442/EEC.

Capacitors / condensers (containing

PCB/PCT)

No used

Mercury containing components

No used

Batteries

No used

Printed circuit boards (with a surface

greater than 10 square cm)

Product has printed circuit boards (with a

surface greater than 10 square cm)

Component contain toner, ink and

liquids

No used

Plastic containing BFR

No used

Component and waste contain

asbestos

No used

CRT

No used

Component contain CFC, HCFC, HFC

and HC

No used

Gas discharge lamps

No used

LCD display > 100 cm2

Product has an LCD greater than 100 cm2

External electric cable

Product has external cables

Component contain refractory

ceramic fibers

No used

Component contain radio-active

substances

No used

Electrolyte capacitors (height

> 25mm, diameter > 25mm)

Product has electrolyte capacitors (height >

25mm, diameter > 25mm)

3. Tools Required

List the type and size of the tools that would typically can be used to disassemble the

product to a point where components and materials requiring selective treatment

can be removed.

Tool Description:

- Screwdriver (Phillip head) #1

- Screwdriver (Phillip head) #2

- Penknife

- Soldering iron and absorber
