Dell UltraSharp U2419HS Manuale utente

Model: U2419HS/U2719DS

Regulatory model: U2419HSt/U2719DSt

Dell UltraSharp

U2419HS/U2719DS

User’s Guide

NOTE: A NOTE indicates important information that helps you make

better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of

data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective

owners.

2018 – 12

Rev. A00

Contents

About Your Monitor .................................5

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Identifying Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Monitor Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Plug-and-Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

LCD Monitor Quality and Pixel Policy. . . . . . . . . . . . . . . . . . . . . . 22

Setting Up the Monitor .............................23

Attaching the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Using the Tilt, Swivel, and Vertical Extension . . . . . . . . . . . . . . . . . 25

Adjusting the Rotation Display Settings of Your System . . . . . . . . . . 26

Connecting Your Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Organizing Your Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Removing the Monitor Stand. . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Wall Mounting (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Operating the Monitor ..............................31

Turning on the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Using the Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . .31

Using the On-Screen Display (OSD) Menu . . . . . . . . . . . . . . . . . . . 34

Contents | 3

4| Contents

Troubleshooting ...................................45

Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Built-in Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Common Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Product Specific Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Appendix.........................................50

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

FCC Notices (U.S. only) and Other Regulatory Information . . . . . . . . 50

Contacting Dell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Setting Up Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Maintenance Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

About Your Monitor | 5

About Your Monitor

Package Contents

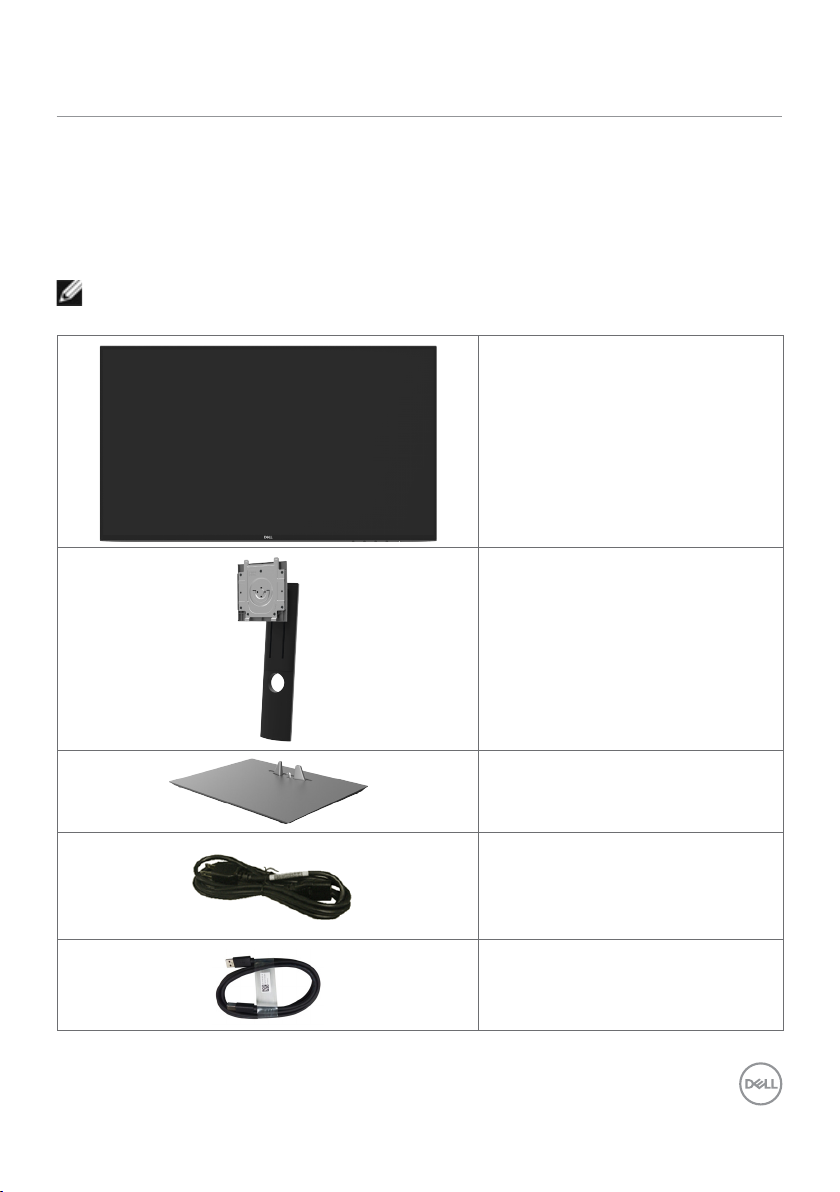

Your monitor ships with the components shown below. Make sure that you have received all

the components and Contact Dell if something is missing.

NOTE: Some items may be optional and may not ship with your monitor.

Somefeatures or media may not be available in certain countries.

Monitor

Stand riser

Stand base

Power cable (varies by country)

USB 3.0 upstream cable (enables the

USB ports on the monitor)

6| About Your Monitor

DP cable (DP to DP)

•Quick Setup Guide

•Safety,Environmental,and

Regulatory Information

•Factory Calibration Report

Product Features

The Dell UltraSharp U2419HS/U2719DS monitor has an active matrix, thinfilm transistor

(TFT), liquid crystal display (LCD), and LED backlight. The monitor features include:

• U2419HS: 60.47 cm (23.8-inch) active area display (Measured diagonally) 1920 x 1080

(16:9) resolution, plus full-screen support for lower resolutions.

• U2719DS: 68.47 cm (27-inch) active area display (Measured diagonally) 2560 x 1440

(16:9) resolution, plus full-screen support for lower resolutions.

• Wide viewing angles with 99% sRGB color with an average Delta E<2.

• Tilt, swivel, pivot and vertical extension adjustment capabilities.

• Removable pedestal and Video Electronics Standards Association (VESA™) 100 mm

mounting holes for flexible mounting solutions.

• Ultra-thin bezel minimizes the bezel gap in multi-monitor usage, enabling easier set up

with an elegant viewing experience.

• Extensive digital connectivity with DP, HDMI and USB 3.0 helps future-proof your

monitor.

• Plug and play capability if supported by your system.

• On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

• Security lock slot.

• 0.3 W standby power when in the sleep mode (without USB upstream cable).

• Optimize eye comfort with a flicker-free screen.

NOTE: The possible long-term effects of blue light emission from the monitor may

cause damage to the eyes, including eye fatigue or digital eye strain. ComfortView

feature is designed to reduce the amount of blue light emitted from the monitor to

optimize eye comfort.

About Your Monitor | 7

Identifying Parts and Controls

Front view

1 2

Label Description

1Function buttons (For more information, see Operating the Monitor)

2Power on/off button (with LED indicator)

8| About Your Monitor

Back View

Label Description Use

1VESA mounting holes (100 mm x 100

mm-behind attached VESA cover)

Wall mount monitor using VESA-

compatible wall mount kit (100 mm x 100

mm).

2Regulatory label Lists the regulatory approvals.

3Stand release button Release stand from monitor.

4Security lock slot Secures monitor with security cable lock

(sold separately).

5Barcode, serial number, and Service

Tag label

Refer to this label if you need to contact Dell

for technical support.

6Cable management slot Use to organize cables by placing them

through the slot.

Side View

USB downstream port

Port with battery icon supports BC 1.2.

About Your Monitor | 9

Bottom View

1 2 3 4 56 7

Label Description Use

1AC power connector To connect the monitor power cable.

2HDMI connector Connect your computer with HDMI cable (optional).

3DP connector (in) Connect your computer with DP cable.

4DP connector (out) DP output for MST (multi-stream transport)

capable monitor. To enable MST, refer to instruction

on section “Connecting the Monitor for DP MST

Function”.

NOTE: Remove the rubber plug when using DP out

connector.

5Audio line-out port Connect speakers to playback audio coming through

HDMI or DP audio channels.

Only supports 2-channel audio.

NOTE: The audio line-out port does not support

headphones.

6USB upstream port Connect the USB cable that comes with your monitor

to the computer. Once this cable is connected, you

can use the USB downstream connectors on the

monitor.

7USB downstream ports

(2)*

Connect your USB device. You can only use this

connector after you have connected the USB cable

to the computer and USB upstream connector on the

monitor.

NOTE: Port with battery icon supports BC 1.2.

8Stand lock Lock the stand to the monitor using a M3 x 6 mm

(U2719DS)/ M3 x 8 mm (U2419HS) screw (screw

not included).

*To avoid signal interference, when a wireless USB device has been connected to a USB

downstreamport, it is NOT recommended to connect any other USB devices to the adjacent

port(s).

10 | About Your Monitor

Monitor Specifications

Model U2419HS U2719DS

Screen type Active matrix - TFT LCD Active matrix - TFT LCD

Panel Type In-plane switching Technology In-plane switching Technology

Aspect ratio 16:9 16:9

Viewable image dimensions

Diagonal 60.47 cm (23.8 inches) 68.47 cm (27 inches)

Active Area

Horizontal 527.04 mm (20.75 inches) 596.74 mm (23.49 inches)

Vertical 296.46 mm (11.67 inches) 335.66 mm (13.21 inches)

Area 156246.3 mm2(242.15 inches2) 200301.7 mm2(310.30 inches2)

Pixel pitch 0.2745 mm x 0.2745 mm 0.233 mm x 0.233 mm

Pixel per inch (PPI) 92.5 109

Viewing angle

Horizontal 178° (typical) 178° (typical)

Vertical 178° (typical) 178° (typical)

Brightness 250 cd/m² (typical) 350 cd/m² (typical)

Contrast ratio 1000 to 1 (typical) 1000 to 1 (typical)

Display screen coating Anti-glare treatment of the front

polarizer (3H) hard coating

Anti-glare treatment of the front

polarizer (3H) hard coating

Backlight LED LED

Response Time (Gray

to Gray)

5 ms (FAST mode)

8 ms (NORMAL mode)

5 ms (FAST mode)

8 ms (NORMAL mode)

Color depth 16.7 million colors 16.7 million colors

Color gamut* 99% sRGB

99% REC709

85% DCI-P3

99% sRGB

99% REC709

85% DCI-P3

Calibration accuracy Delta E < 2 (average) Delta E < 2 (average)
