Dell E1909Wb Manuale utente

Dell™E1909W Flat Panel Monitor User's Guide

Notes, Notices, and Cautions



Information in this document is subject to change without notice.

©2008DellInc.Allrightsreserved.

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo aretrademarksofDellInc;Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in

theUnitedStatesand/orothercountries;Adobe is a trademark of Adobe Systems Incorporated, which may be registered in certain jurisdictions.ENERGYSTAR is a registered

trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy

efficiency.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

Model E1909Wc

July2008Rev.A00



About Your Monitor

Setting Up the Monitor

Operating the Monitor

Troubleshooting

Appendix



NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Back to Contents Page



About Your Monitor

Dell™E1909W Flat Panel Monitor User's Guide

Package Contents

Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.



Package Contents

Product Features

Identifying Parts and Controls

Monitor Specifications

Plug and Play Capability

Maintenance Guidelines

NOTE: Some items may be optional and may not ship with your Monitor. Some features or media may not

be available in certain countries.

lMonitor

lStand

lPower Cable

lVGA Cable (attached to the monitor)



Product Features

The E1909W flat panel display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features include:

■19-inch (481.4 mm) viewable area display.

■1440x900 resolution, plus full-screen support for lower resolutions.

■Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side-to-side.

■Tilt capability.

■Removable pedestal and Video Electronics Standards Association (VESA) 100 mm mounting holes for flexible mounting solutions.

■Plug and play capability if supported by your system.

■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

■Software and documentation media which includes an information file (INF), Image color Matching File (ICM), and product documentation.

■Energy Saver feature for Energy Star compliance.

■Security lock slot.

■EPEAT™GOLDcompliant.

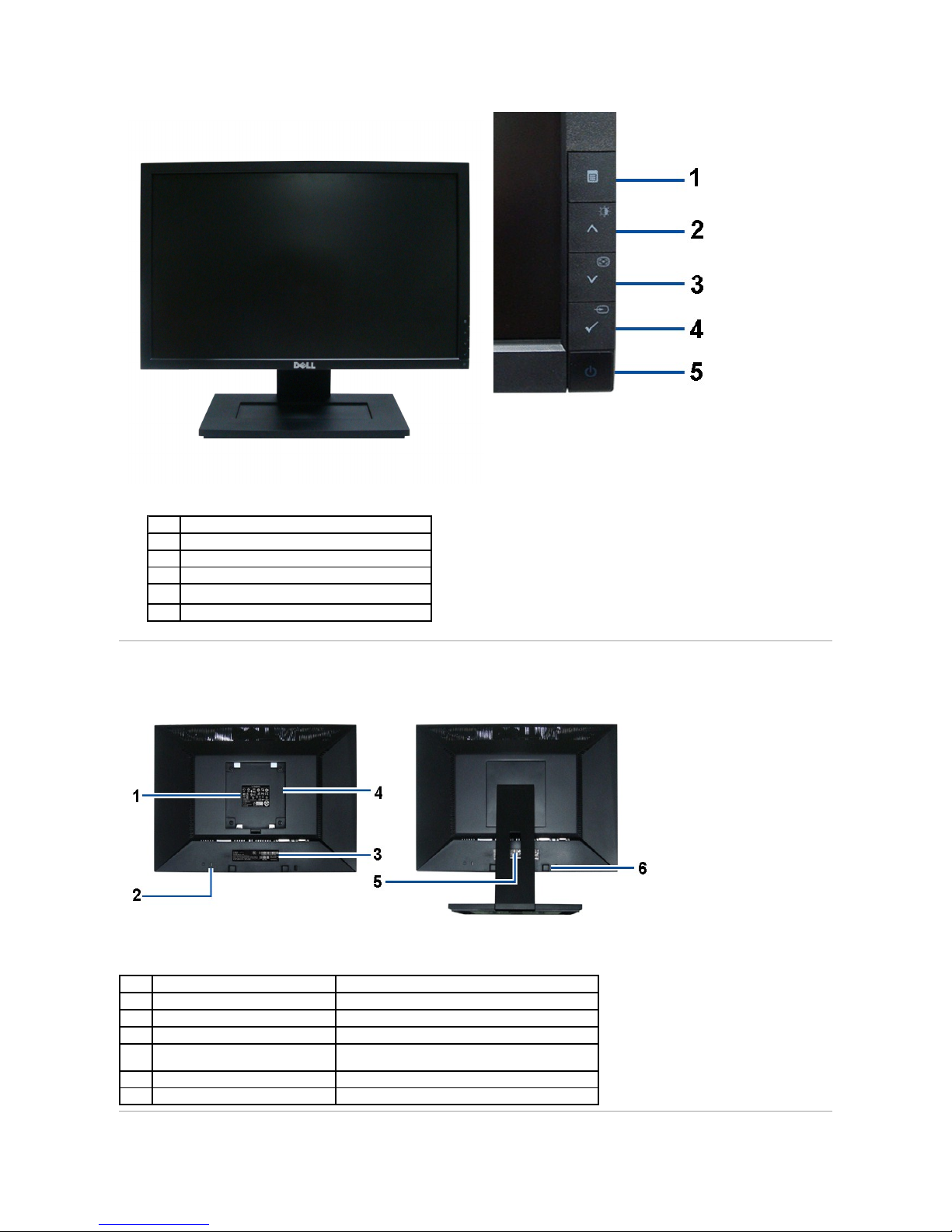

Identifying Parts and Controls

Front View

lDVI Cable

lDrivers and Documentation media

lQuick Setup Guide

lSafety Information

Back View



Front panel controls

Front View



Label

Description

Adjust up/Brightness & Contrast

Adjust down/Automatic adjust

Select/Input source Select

Power (with power light indicator)

Back view

Back View with monitor stand

Label

Description

Use

Regulatory rating label

Lists the regulatory approvals.

Security lock slot

To help secure your monitor.

Barcode serial number label

To contact Dell for technical support.

VESA mounting holes (100mm)

(Behind attached base plate)

To mount the monitor.

Cable management slot

To organize cables by placing them through the slot.

Dell Soundbar mounting brackets

To attach the optional Dell Soundbar.

Side View



Bottom View



Leftview

Right view

Bottom view

Label

Description

AC power cord connector

DVI connector

VGA connector

Monitor Specifications

Flat Panel Specifications

Screen type

Active matrix - TFT LCD

Screen dimensions

19 inches (19-inch viewable image

size)

Preset display area:

408.24(H)X255.15(V)

Horizontal

408.24 mm (16.08 inches)

*[E1909W] color gamut (typical) is based on CIE1976 (82%) and CIE1931 (72%) test standards.

Vertical

255.15 mm (10.05 inches)

Pixel pitch

0.2835 mm

Viewing angle

160°(vertical)typical,160°

(horizontal) typical

Luminance output

300 CD/m²(typical)

Contrast ratio

1000 to 1 (typical)

Faceplate coating

Antiglare with hard-coating 3H

Backlight

CCFL (4) edgelight system

Response Time

5 ms typical

Color Gamut

82%*

Back to Contents Page



Appendix

Dell™E1909W Flat Panel Monitor User's Guide

Safety Instructions

FCC Notice (U.S. Only) and Other Regulatory Information

Contacting Dell





CAUTION: Safety Instructions

For information on safety instructions, see the Product Information Guide.

FCC Notices (U.S. Only) and Other Regulatory Information

For FCC notices and other regulatory information, see the regulatory compliance website located at www.dell.com\regulatory_compliance.

Contacting Dell

For customers in the United States, call 800-WWW-DELL (800-999-3355).

Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be

available in your area. To contact Dell for sales, technical support, or customer service issues:



Back to Contents Page

CAUTION: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock,

electrical hazards, and/or mechanical hazards.

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill,

or Dell product catalog.

Visit support.dell.com.

Verify your country or region in the Choose A Country/Region drop-downmenuatthebottomofthepage.

Click Contact Us on the left side of the page.

Select the appropriate service or support link based on your need.

Choose the method of contacting Dell that is convenient for you.
