Dell E2722H Manuale utente

Model :E2722H/E2722HS

Regulatory model : E2722Hc/E2722HSc

Dell E2722H/E2722HS Monitor

Dell Display Manager

User’s Guide

NOTE: A NOTE indicates important information that helps you make

better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of

data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective

owners.

2021 – 08

Rev. A00

Contents | 3

Contents

Overview ....................................................... 4

Using The Quick Settings Dialog...................... 6

Setting Basic Display Functions....................... 9

Assigning Preset Modes To Applications ......... 11

Organizing Windows With Easy Arrange .......... 13

Managing Multiple Video Inputs...................... 18

Restoring Application Positions..................... 20

Attaching DDM to Active Window (Windows 10

only) ........................................................... 23

Applying Energy Conservation Features ......... 24

Other Shortcut Keys .................................... 25

Troubleshooting............................................27

4| Overview

Overview

Dell Display Manager is a Windows application used to manage a monitor or a group

of monitors. It enables manual adjustment of the displayed image, assignment of

automatic settings, energy management, image rotation and other features on

selected Dell models. After installation, Dell Display Manager will run each time

the system starts and will place its icon in the notification tray. Information about

monitors connected to the system is always available when hovering over the

notification tray icon.

E2722H

Dell E2722H - Standard

2021/06/01

3:56 PM

E2722HS

Dell E2722HS - Standard

2021/06/01

3:56 PM

NOTE: Dell Display Manager uses DDC/CI channel to communicate with

your monitor. Ensure that DDC/CI is enabled in the menu as follows.

Overview | 5

E2722H

Input Source

Others

Personalize

Color

Display

Auto Adjust

rightness / Contrast

Dell 27 Monitor

Display Info

Reset Others

Factory Reset

LCD Conditioning

DDC/CI

Service Tag

E2722HS

Input Source

Others

Personalize

Color

Display

Auto Adjust

rightness / Contrast

Dell 27 Monitor

Reset Others

Factory Reset

LCD Conditioning

Display Info

DDC/CI

Service Tag

Audio

O

6| Using The Quick Settings Dialog

Using The Quick Settings Dialog

Clicking Dell Display Manager’s notification tray icon opens the Quick Settings

dialog box. When more than one supported Dell model is connected to the system,

a specific target monitor can be selected using the menu provided. The Quick

Settings dialog box enables convenient adjustment of the monitor’s brightness

and contrast levels. You can select Manual Mode or Auto Mode, and the screen

resolution can be changed.

E2722H

Using The Quick Settings Dialog | 7

E2722HS

The Quick Settings dialog box also provides access to Dell Display Manager’s

advanced user interface which is used to adjust Basic functions, configure Auto

Mode and access other features.

8| Using The Quick Settings Dialog

NOTE:

Feature Function Description

Quick DDM Access Quick key to call up

DDM UI.

Ctrl+Shift+D

Press Page Up/Page Down key or click

on “>” to flip through all Easy Arrange

layouts.

Control individual

monitor in multi-

monitor setup

Select the monitor from the dropdown

box. If more than one monitor is

connected to your computer, an icon

appears on the selected monitor for a

second so you know which monitor you

have selected.

Move DDM UI to the monitor to be

controlled.

Press Ctrl+Shift+D to bring up the mini

UI under the mouse pointer.

Setting Basic Display Functions | 9

Setting Basic Display Functions

You can select Manual Mode to manually select a preset mode or select Auto

Mode that applies a preset mode based on the active application. An on-screen

message displays the current preset mode whenever it changes. The selected

monitor’s Brightness and Contrast can also be directly adjusted from the Basic

tab.

E2722H

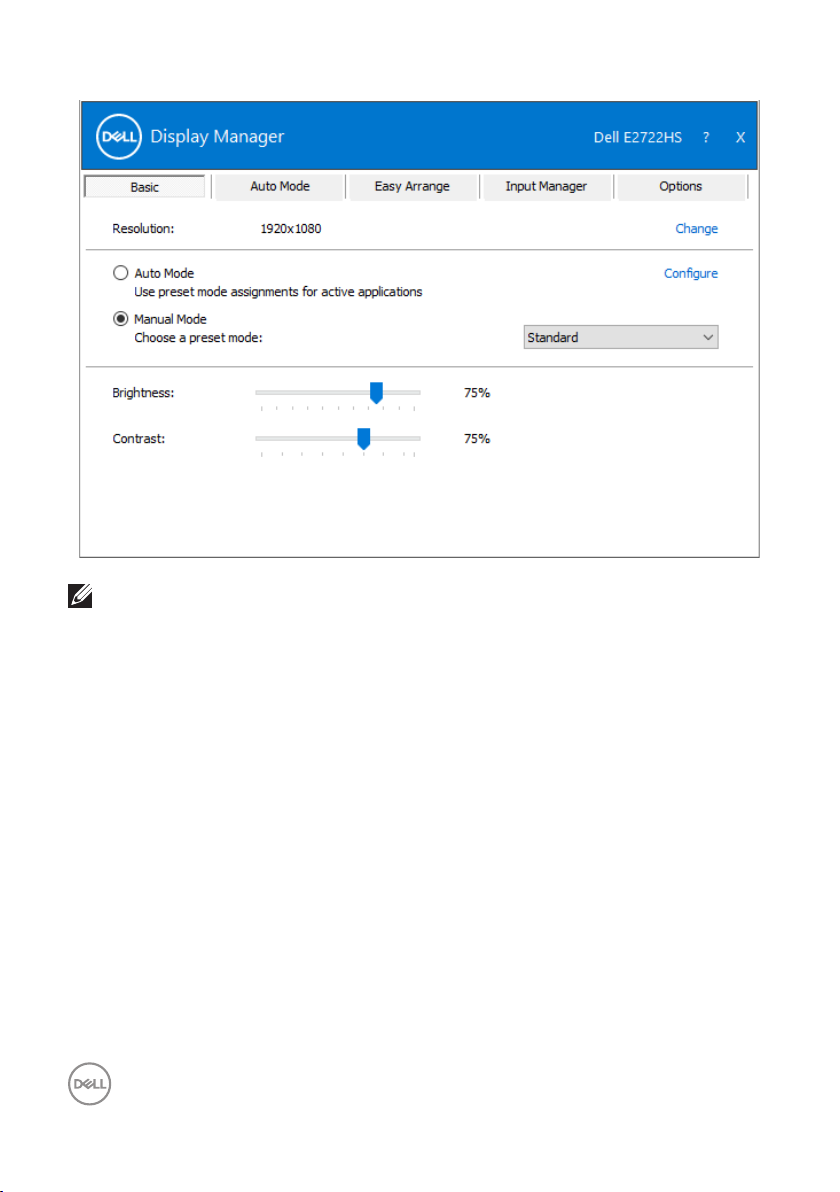

10 | Setting Basic Display Functions

E2722HS

NOTE: When multiple Dell monitors are connected, select “Enable

display matrix control” to apply brightness, contrast and color presets

controls to all monitors.
