About Your Monitor

Dell™ 1907FPV Flat Panel Monitor User's Guide

Front View

Back View

Bottom View

Side View

Monitor Specifications

Cleaning Your Monitor

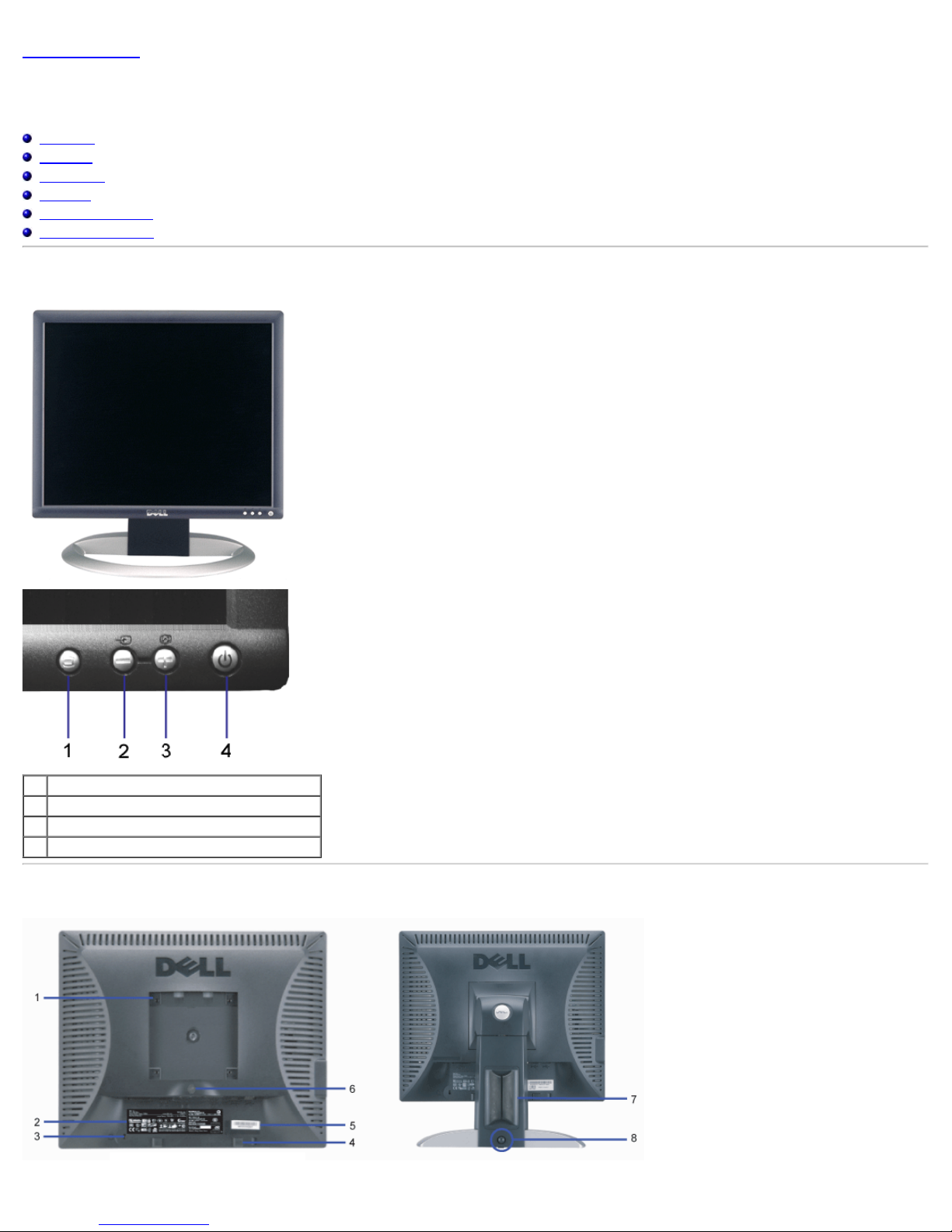

Front View

1. OSD menu / select button

2. Video input select / Down button

3. Auto-adjust / Up button

4. Power button (with power light indicator)

Back View

About Your Monitor: Dell™ 1907FPV Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1907FPV/en/about.htm[8/7/2012 10:06:38 AM]

1VESA mounting holes (100mm) (Behind

attached base plate) Use to mount the monitor.

2Regulatory rating label List the regulatory approvals.

3Security lock slot Use a security lock with the slot to help secure your monitor.

4Dell Soundbar mounting brackets Attach the optional Dell Soundbar.

5Barcode serial number label Refer to this label if you need to contact Dell for technical support.

6Stand removal button Press to release the stand.

7Cable holder Help organize cables by placing them in the holder.

8Lock down/release button Push the monitor down, press the button to unlock the monitor, and then

lift the monitor to the desired height.

Bottom View

1 Power

connector Insert the power cable.

2Dell Soundbar

power

connector

Connect the power cord for the Soundbar (optional).

3DVI connector Connect your computer DVI cable.

4 VGA

connector Connect your computer VGA cable.

5USB upstream

connector Connect the USB cable that came with your monitor to the monitor and the computer.

Once this cable is connected you can use the USB connectors on the side and bottom of the

monitor.

6 USB

connector Connect your USB devices.

NOTE: You can use this connector only after you connect the USB cable to the computer and the USB upstream connector on the monitor.

Side View

About Your Monitor: Dell™ 1907FPV Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1907FPV/en/about.htm[8/7/2012 10:06:38 AM]

USB connectors (downstream)

Left side Right side

Monitor Specifications

Power Management Modes

If you have VESA's DPM™ compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. This is

referred to as 'Power Save Mode'*. If input from keyboard, mouse, or other input devices is detected by the computer, the monitor automatically 'wakes up'. The following

table shows the power consumption and signaling of this automatic power saving feature:

VESA Modes Horizontal Sync Vertical Sync Video Power Indicator Power Consumption

Normal operation (with Dell Soundbar and USB active) Active Active Active Green 65 W (maximum)

Normal operation Active Active Active Green 32 W (typical)

Active-off mode Inactive Inactive Blanked Amber Less than 2 W

Switch off - - - Off Less than 1 W

NOTE: The OSD will only function in the 'normal operation' mode. One of the following messages will appear when the “menu” or “plus” buttons are pressed when in

Active-off mode.

1. Analog Input

In Power Save Mode

Press Computer Power Button

or Any Key on Keyboard or Move Mouse

2. Digital Input

In Power Save Mode

Press Computer Power Button

or Any Key on Keyboard or Move Mouse

Activate the computer and 'wake up' the monitor to gain access to the OSD.

This monitor is ENERGY STAR®-compliant as well as TCO '99 / TCO '03 power management compatible.

* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.

Pin Assignments

15-pin D-Sub connector

About Your Monitor: Dell™ 1907FPV Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1907FPV/en/about.htm[8/7/2012 10:06:38 AM]

Pin Number Monitor Side of the 15-pin Side Signal Cable

1 Video-Red

2 Video-Green

3 Video-Blue

4 GND

5 DDC-GND

6 GND-R

7 GND-G

8 GND-B

9DDC +5V

10 Self Test

11 GND

12 DDC data

13 H-sync

14 V-sync

15 DDC clock

24-pin Digital-only DVI Connector

NOTE: Pin 1 is at the top right.

Pin Signal Assignment Pin Signal Assignment Pin Signal Assignment

1T.M.D.S. Data 2- 9T.M.D.S. Data 1- 17 T.M.D.S. Data 0-

2T.M.D.S. Data 2+ 10 T.M.D.S. Data 1+ 18 T.M.D.S. Data 0+

3T.M.D.S. Data 2/4 Shield 11 T.M.D.S. Data 1/3 Shield 19 T.M.D.S. Data 0/5 Shield

4No Connect 12 No Connect 20 No Connect

5No Connect 13 No Connect 21 No Connect

6DDC Clock 14 +5V Power 22 T.M.D.S. Clock Shield

7DDC Data 15 Self Test 23 T.M.D.S. Clock +

8No Connect 16 Hot Plug Detect 24 T.M.D.S. Clock -

Universal Serial Bus (USB) Interface

This monitor supports High-Speed Certified USB 2.0 interface.

Data Rate Power Consumption

High speed 480 Mbps 2.5W (Max., each port)

Full speed 12 Mbps 2.5W (Max., each port)

Low speed 1.5 Mbps 2.5W (Max., each port)

About Your Monitor: Dell™ 1907FPV Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1907FPV/en/about.htm[8/7/2012 10:06:38 AM]

USB ports:

1 upstream - rear

4 downstream - 2 on rear; 2 on left side

NOTE: USB 2.0 capability requires 2.0-capable computer.

NOTE: The USB interface of the monitor works ONLY when monitor is powered ON (or in Power Save Mode). Switching your monitor OFF and then ON would re-

enumerate its USB interface; attached peripherals may take a few seconds to resume normal functionality.

Plug and Play Capability

You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display Identification Data

(EDID) using Display Data Channel (DDC) protocols so the system can configure itself and optimize the monitor settings. Most monitor installations are automatic; you can

select different settings, if desired.

General

Model number 1907FPV

Flat Panel

Screen type Active matrix - TFT LCD

Screen dimensions 19 inches (19-inch viewable image size)

Preset display area:

Horizontal 376 mm (14.8 inches)

Vertical 301 mm (11.85 inches)

Pixel pitch 0.294 mm

Viewing angle 170° (vertical) typ, 170° (horizontal) typ

Luminance output 250 CD/m ²(typ)

Contrast ratio 1000 to 1 (typ)

Faceplate coating Antiglare with hard-coating 3H

Backlight CCFL (4) edgelight system

Response Time 20 ms typical

Resolution

Horizontal scan range 30 kHz to 81 kHz (automatic)

Vertical scan range 56 Hz to 76 Hz (automatic)

Optimal preset resolution 1280 x 1024 at 60 Hz

Highest preset resolution 1280 x 1024 at 75 Hz

Preset Display Modes

Display Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock

(MHz) Sync Polarity

(Horizontal/Vertical)

VESA, 720 x 400 31.5 70.0 28.3 -/+

VESA, 640 x 480 31.5 60.0 25.2 -/-

VESA, 640 x 480 37.5 75.0 31.5 -/-

VESA, 800 x 600 37.9 60.3 49.5 +/+

About Your Monitor: Dell™ 1907FPV Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1907FPV/en/about.htm[8/7/2012 10:06:38 AM]

VESA, 800 x 600 46.9 75.0 49.5 +/+

VESA, 1024 x 768 48.4 60.0 65.0 -/-

VESA, 1024 x 768 60.0 75.0 78.8 +/+

VESA, 1152 x 864 67.5 75.0 108 +/+

VESA, 1280 x 1024 64.0 60.0 135.0 +/+

VESA, 1280 x 1024 80.0 75.0 135.0 +/+

Electrical

Video input signals Analog RGB, 0.7 Volts +/-5%, positive polarity at 75 ohm input impedance

Digital DVI-D TMDS, 600mV for each differential line, positive polarity at 50 ohm input impedance

Synchronization input signals Separate horizontal and vertical synchronizations, polarity-free TTL level, SOG (Composite SYNC on green)

AC input voltage / frequency / current 100 to 240 VAC / 50 or 60 Hz +3 Hz / 1.5A

Inrush current 120V:42A (Max.)

240V:80A (Max.)

Physical Characteristics

Connector type 15-pin D-subminiature, blue connector; DVI-D, white connector

Signal cable type Digital: Detachable, DVI-D, Solid pins, shipped detached from the monitor

Analog: Detachable, D-Sub, 15pins, shipped attached to the monitor

Dimensions (with stand):

Height (Compressed) 16.4 inches (416.75 mm)

Height (Extended) 21.5 inches (546.75 mm)

Width 16.35 inches (415.3 mm)

Depth 8.62 inches (218.9 mm)

Dimensions: (without stand)

Height 13.45 inches (341.6 mm)

Width 16.35 inches (415.3 mm)

Depth 2.81 inches (71.43 mm)

Stand dimensions:

Height (Compressed) 13.56 inches (344.56 mm)

Height (Extended) 18.54 inches (471.06 mm)

Width 11.84 inches (300.8 mm)

Depth 8.39 inches (213.1 mm)

Weight with packaging 21.1 lbs (9.55 kg)

Weight with stand assembly and cables 17.3 lbs (7.85 kg)

Weight without stand assembly

(For wall mount or VESA mount considerations - no cables)

11 lbs (5 kg)

Weight of stand assembly 5.2 lbs (2.35 kg)

About Your Monitor: Dell™ 1907FPV Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1907FPV/en/about.htm[8/7/2012 10:06:38 AM]

Environmental

Temperature:

Operating 5° to 35°C (41° to 95°F)

Nonoperating Storage: -20° to 60°C (-4° to 140°F)

Shipping: -20° to 60°C(-4° to 140°F)

Humidity:

Operating 10% to 80% (noncondensing)

Nonoperating Storage: 5% to 90% (noncondensing)

Shipping: 5% to 90%(noncondensing)

Altitude:

Operating 3,657.6m (12,000 ft) max

Nonoperating 12,192 m (40,000 ft) max

Thermal dissipation 211.937 BTU/hour (maximum)

109.261 BTU/hour (typical)

Cleaning Your Monitor

CAUTION: Read and follow the safety instructions before cleaning the monitor.

CAUTION: Before cleaning the monitor, unplug the monitor power cable from the electrical outlet.

To clean your antistatic screen, slightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for the antistatic

coating. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air.

Use a slightly-dampened, warm cloth to clean the plastics. Avoid using detergent of any kind as some detergents leave a milky film on the plastics.

If you notice a white powder when you unpack your monitor, wipe it off with a cloth. This white powder occurs during the shipping of the monitor.

Handle your monitor with care as darker-colored plastics may scratch and show white scuff marks more than lighter-colored monitor.

To help maintain the best image quality on your monitor, use a dynamically changing screen saver and power off your monitor when not in use.

Back to Contents Page

Using Your Adjustable Monitor Stand: Dell™ 1907FPV Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1907FPV/en/stand.htm[8/7/2012 10:06:42 AM]

Back to Contents Page

Using Your Adjustable Monitor Stand

Dell™ 1907FPV Flat Panel Monitor User's Guide

Attaching the Stand

Organizing Your Cables

Using the Tilt, Swivel, and Vertical Extension

Removing the Stand

Attaching the Stand

NOTE: The stand is detached and extended when the monitor is shipped from the factory.

1. Fit the groove on the monitor to the three tabs on the stand.

2. Lower the monitor until it locks in to place on the stand.

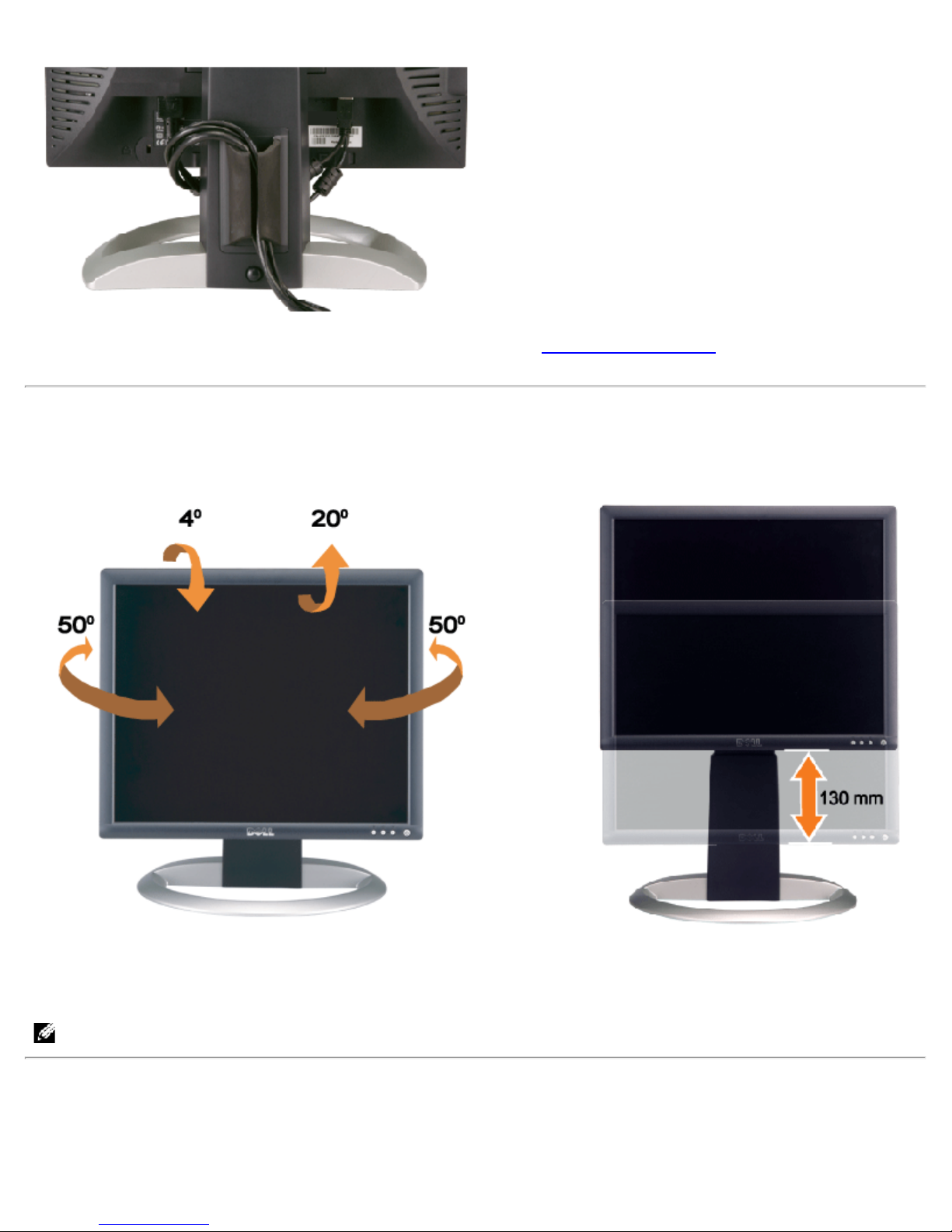

Organizing Your Cables

Using Your Adjustable Monitor Stand: Dell™ 1907FPV Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1907FPV/en/stand.htm[8/7/2012 10:06:42 AM]

After attaching all necessary cables to your monitor and computer, (See Connecting Your Monitor for cable attachment,) use

the cable holder to neatly organize all cables as shown above.

Using the Tilt, Swivel, and Vertical Extension

Adjusting Your Monitor Using Tilt, Swivel, and Vertical Extension. You can adjust your monitor to best fit your viewing needs.

You can adjust the stand vertically, up to 5.12 inches (130mm) using the stand lock/release button. You can adjust the

monitor to the desired position by sliding the monitor up and down the stand.

NOTE: Before you move the monitor to a new location, lock the stand by lowering monitor until in clicks in to place.

Removing the Stand

Altri manuali per UltraSharp 1907FPV

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Dell Monitor

Dell

Dell 2007FP - UltraSharp - 20.1" LCD Monitor Manuale utente

Dell

Dell P2017H Manuale utente

Dell

Dell UltraSharp 2009W Istruzioni utente

Dell

Dell E551 Manuale utente

Dell

Dell 1908WFP - UltraSharp - 19" LCD Monitor Manuale utente

Dell

Dell IN1910N - 18.5" LCD Monitor Manuale utente

Dell

Dell 1909W - UltraSharp - 19" LCD Monitor Manuale utente

Dell

Dell P2416D Manuale utente

Dell

Dell P5524Q Manuale utente

Dell

Dell P2419HCB Istruzioni per l’uso

Dell

Dell S2740L Manuale utente

Dell

Dell UltraSharp 1800FP Manuale utente

Dell

Dell UltraSharp 1908FP-BLK Manuale utente

Dell

Dell E170S - 17" LCD Monitor Manuale utente

Dell

Dell ST2320L Manuale utente

Dell

Dell U2410 - UltraSharp - 24" LCD Monitor Manuale utente

Dell

Dell IN1940MW Manuale utente

Dell

Dell E773c Series Manuale utente

Dell

Dell UP3214Q Manuale utente

Dell

Dell U3014 Manuale utente

Dell

Dell UltraSharp 1908FP-BLK Manuale utente

Dell

Dell P793 Manuale utente

Dell

Dell E2222H Manuale utente

Dell

Dell P2419HB Manuale

Manuali Monitor popolari di altre marche

Linear Acoustic

Linear Acoustic LQ-1000 Manuale utente

AOC

AOC I2579V Manuale utente

Gateway

Gateway FPD1520 Manuale utente

Furuno

Furuno Mu 120c Manuale utente

Asus

Asus VB171D - 17" LCD Monitor Manuale utente

Philips

Philips 107C64 Manuale utente

EverFocus

EverFocus EN-7517E Manuale utente

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuale utente

LG 50PM1M - - 50" Plasma Panel Manuale utente

Bosch

Bosch DDU 9 Manuale utente

Acer

Acer A231HL Manuale utente

Philips

Philips 86BDL4152T Manuale utente

NEC

NEC AccuSync LCD5V Manuale utente

Emay

Emay SleepO2 Manuale utente

IBM

IBM 6360 Istruzioni per l'installazione

LG M1950D-PZ Manuale utente

Sceptre

Sceptre D40 Manuale utente

Hunt Electronic

Hunt Electronic HCD-15AH Manuale utente
