Dell UltraSharp U2711 Manuale utente

Dell™U2711FlatPanelMonitorUser'sGuide

Notes, Cautions, and Warnings

Information in this document is subject to change without notice.

©2009–2010DellInc.Allrightsreserved.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc; Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in

the United States and/or other countries;

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

Model U2711b

April2010Rev.A01



About Your Monitor

Setting Up the Monitor

Operating the Monitor

Solving Problems

Appendix

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.

WARNING: A Warning indicates a potential for property damage, personal injury or death.

Back to Contents Page

AboutYourMonitor

Dell™U2711FlatPanelMonitorUser'sGuide

Package Contents

Product Features

Identifying Parts and Controls

Monitor Specifications

Universal Serial Bus (USB) Interface

Card Reader Specifications

Plug and Play Capability

Maintenance Guidelines



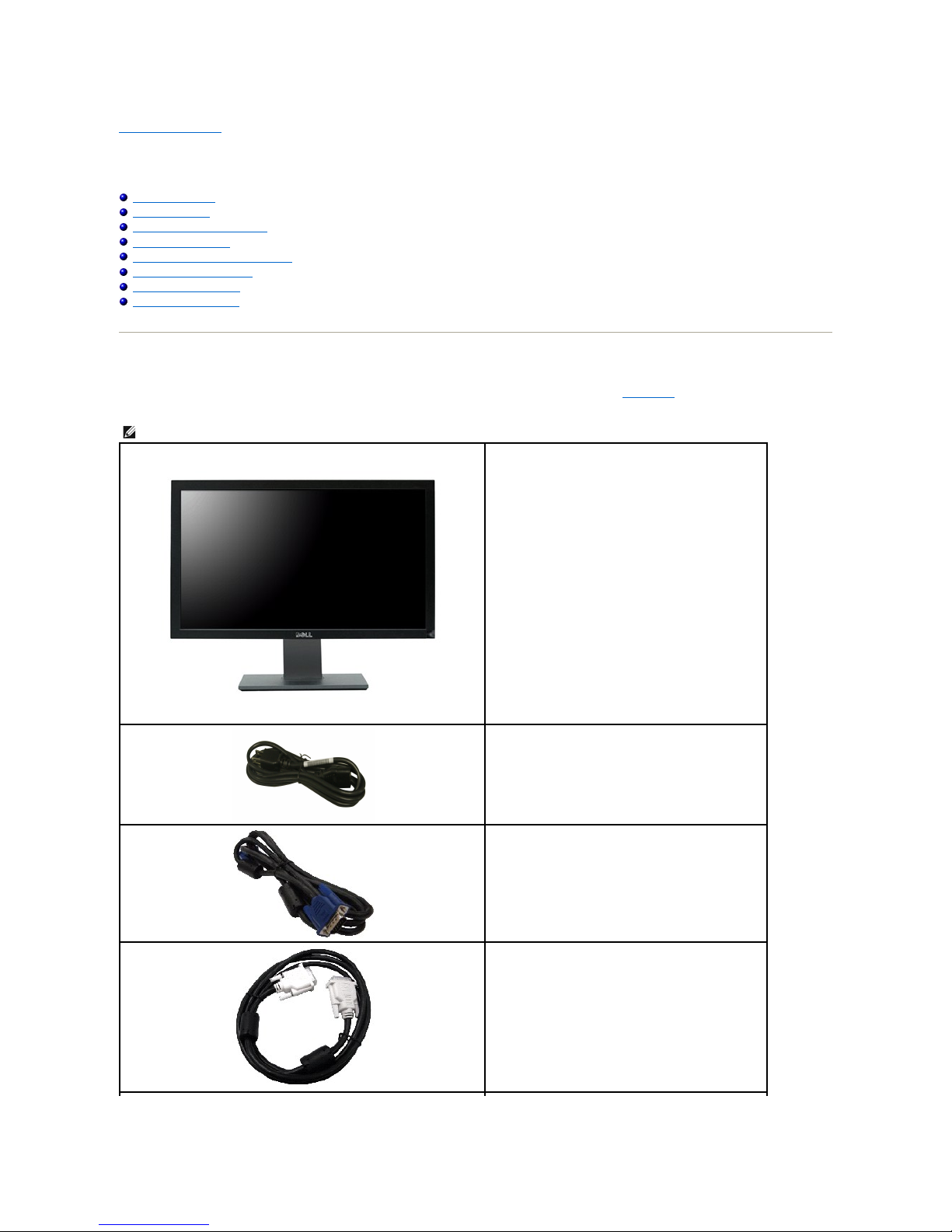

Package Contents

Your monitor comes with all the items shown below. Ensure that you have all the items. If something is missing, contact Dell.



NOTE: Some items may be optional and may not ship with your monitor. Some features or media may not be available in certain countries.



lMonitor with stand

lPower cable

lVGA cable

lDual-link DVI cable



Product Features

The U2711flatpaneldisplayhasanactivematrix,thin-film transistor (TFT), liquid crystal display (LCD). The monitor features include:

■27-inch (596.74 x 335.66 mm) viewable area display (measured diagonally).

■2560 x 1440 resolution, plus full-screen support for lower resolutions.

■Wideviewingangle(178°/178°)andsuperbgreyscaletrackingminimizescolordeviationsatbiasedanglesofviewing(sitting,standingormovingside-to-

side) which ensures ultra-smooth color gradation.

■Tilt, swivel and vertical extension capabilities.

■Removable pedestal and Video Electronics Standards Association (VESA) 100 mm mounting holes for flexible mounting solutions.

■Plug and play capability if supported by your system.

■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

■Software and documentation CD includes an information file (INF), Image color Matching File (ICM), and product documentation.

■Security lock slot.

■Compatible with xvYCC, Adobe RGB and sRGB color standards.

■Factory calibrated to an average delta E of < 5 under sRGB and Adobe RGB input source for brand new Dell monitor U2711. Dedicated Custom Color Mode (6-

axis Color-control) for Saturation , Hue, Gain (RGB) and offset(RGB).

■12 bit internal processing which tested HDMI1.3 with deep color (12bit).



Identifying Parts and Features

Front View

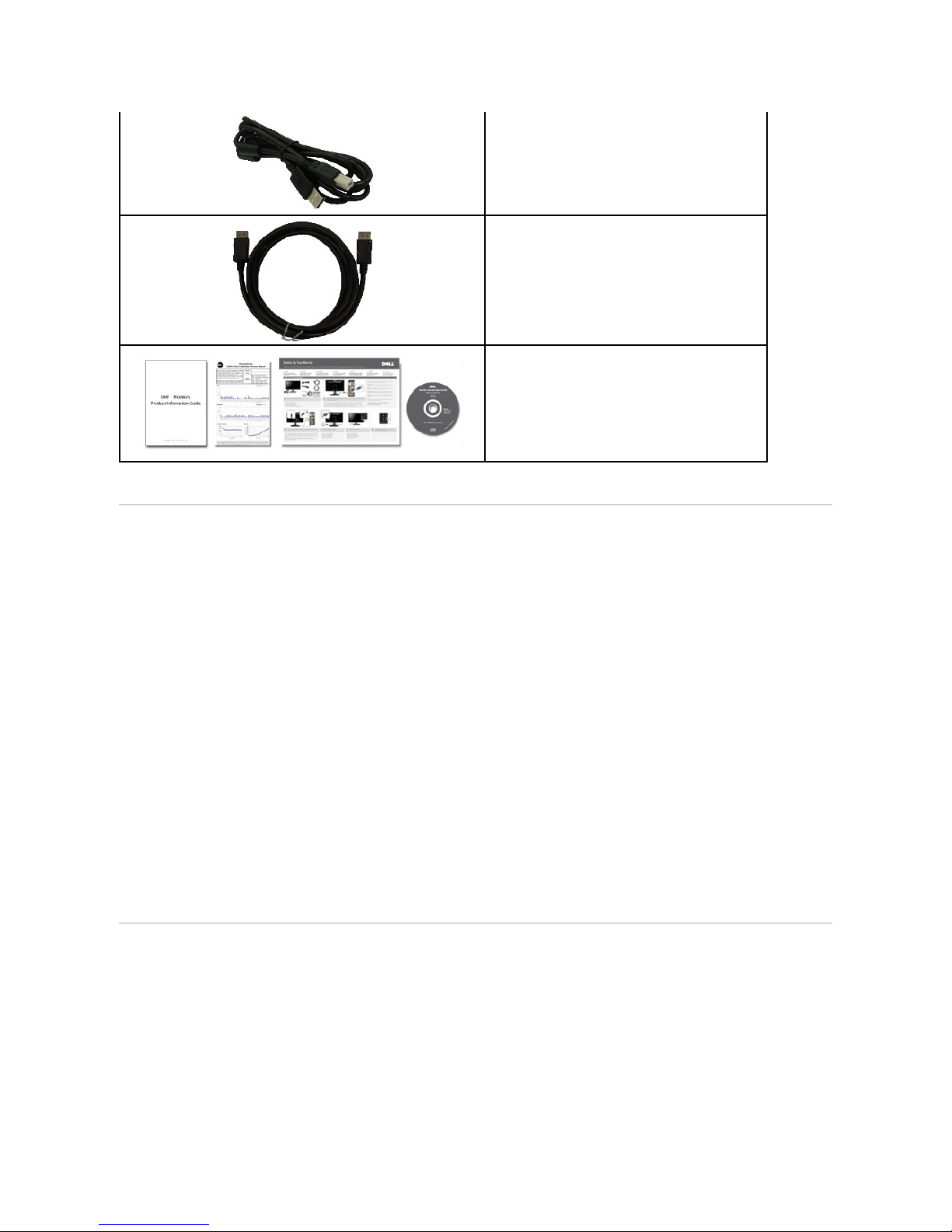

lUSB up stream cable (enables the USB ports and card

reader on the monitor)

lUSB down stream cable (optional)

lDisplayPort cable

lDocumentation (Safety Information, Color calibration

datasheet, Quick Start Guide, and CD)

Back View



BackviewBackViewwithmonitorstand



Front View

Front panel controls

Label

Description

1-3

Shortcut keys

*The default settings are Preset Modes Select, Brightness/Contrast

Select and Input Source Select.

Preset Modes Select

Brightness/Contrast Select

Input Source Select

OSD menu select

EXIT

Power button (with power light indicator)

NOTE: 1~5 are capacitive touch sensor keys, which are activated by placing your finger on the blue LED.

Label

Description/Use

VESA mounting holes (100mm)

(Behind attached VESA Plate)

To mount the monitor.

Connectors label

To indicate the positions and types of connectors.

Service Tag label 

To contact Dell for express service.

Security lock slot

To help secure your monitor.

Dell Soundbar mounting brackets

To attach the optional Dell Soundbar.

Barcode serial number label

To contact Dell for technical support.

Regulatory rating label

Lists the regulatory approvals.

Cable management slot

To organize cables by placing them through the slot.

Side View



Bottom View



Bottom view



Rightside

Left side

Label

Description

Card reader. See Card Reader Specifications formoreinformation.

USB downstream ports

Label

Description

Monitor Specifications

The following sections give you information about the various power management modes and pin assignments for various connectors for your monitor.

Power Management Modes

If you have VESA's DPMS compliance display card or software installed in your computer, the monitor automatically reduces its power consumption when not in

use. This is referred to as Power Save Mode. If input from keyboard, mouse or other input devices is detected by the computer, the monitor will automatically

"wake up". The following table shows the power consumption and signaling of this automatic power-savingfeature:

Activate the computer and wake up the monitor to gain access to the OSD.

Pin Assignments

VGA Connector

AC power cord connector

DCpowerconnectorforDell™Soundbar

Audio out (rear)

Audio out (SUB/CTR)

Audio out (front)

DisplayPort connector

DVI connector-1

DVI connector-2

VGA connector

HDMI connector

Composite video connector

Componentvideoconnectors

USB upstream port

USB downstream ports

VESA Modes

Horizontal

Sync

Vertical Sync

Video

Power

Indicator

Power Consumption

Normal operation

Active

Blue

138 W (maximum)*

113 W (normal)**

Active-off mode

Inactive

Blanked

Amber

Less than 2 W

Switch off

Off

Less than 1 W

* With Audio and USB

** Without Audio and USB

NOTE: This monitor is TCO '03 power management compatible.

NOTE: Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the

monitor.

Number

15-pin Side of the

Connected Signal Cable

Video-Red

Video-Green

Video-Blue

GND

Self-test

GND-R

DVIConnector

NOTE: Pin 1 is at the top left.



Composite Video Connector

Luma composite chroma



Component Video Connector



GND-G

GND-B

Computer 5V/3.3V

GND-sync

GND

DDC data

H-sync

V-sync

DDC clock

Signal Assignment

T.M.D.S. Data 2-

T.M.D.S. Data 1-

T.M.D.S. Data 0-

T.M.D.S. Data 2+

T.M.D.S. Data 1+

T.M.D.S. Data 0+

T.M.D.S. Data 2/4 Shield

T.M.D.S. Data 1/3 Shield

T.M.D.S. Data 0/5 Shield

T.M.D.S. Data 4-

T.M.D.S. Data 3-

T.M.D.S. Data 5-

NT.M.D.S. Data 4+

T.M.D.S. Data 3+

T.M.D.S. Data 5+

DDC Clock

+5V Power

T.M.D.S. Clock Shield

DDC Data

Ground (for +5V)

T.M.D.S. Clock +

No Connect

Hot Plug Detect

T.M.D.S. Clock -

Pin Number

3-pin Side of the Connected Signal Cable (Cable not

included)

Y (Luminance signal)

Pb (Color differential signal)

DisplayPort Connector



HDMI Connector

Pr (Color differential signal)

Number

20-pin Side of the Connected Signal

Cable

ML0(p)

GND

ML0(n)

ML1(p)

GND

ML1(n)

ML2(p)

GND

ML2(n)

ML3(p)

GND

ML3(n)

GND

AUX(p)

GND

AUX(n)

HPD

Re-PWR

PWR

Number

19-pin Side of the Connected Signal

Cable

TMDS DATA 2+

TMDS DATA 2 SHIELD

TMDS DATA 2-

TMDS DATA 1+

TMDS DATA 1 SHIELD

TMDS DATA 1-

TMDS DATA 0+



TMDS DATA 0 SHIELD

TMDS DATA 0-

TMDS CLOCK

TMDS CLOCK SHIELD

TMDS CLOCK-

Floating

DDC CLOCK (SDA)

DDC DATA (SDA)

GROUND

+5V POWER

HOT PLUG DETECT

Flat Panel Specifications



Screen type

Active matrix -TFT LCD

Panel type

IPS

Screen dimensions

27 inches (27-inch diagonal viewable image size)

Preset display area:



Horizontal

596.74 mm (23.49 inches)

Vertical

335.66 mm (13.22 inches)

Pixel pitch

0.2331 mm

PixelperInch

109

Viewing angle

178°(Vertical)typical,178°(Horizontal)typical

Luminance output

350 cd/m²(typ)

Contrast ratio

1000:1 (typ), 80,000:1 (max, Dynamic Contrast on)

Faceplate coating

Antiglare with hard-coating 3H

Backlight

8 CCFL U-type system

Response Time

6ms panel typical (Grey to Grey))/12ms typical (Black to White)

Color depth

1.07 billion colors

Color Gamut

110%* NTSC typical , 100% sRGB, 96% Adobe RGB

* U2711 Color Gamut (Typical) is based on CIE1976 (110%) and CIE1931 (102%) .

Resolution



Horizontal scan range

30 kHz to 89 kHz (automatic)

Vertical scan range

56 Hz to 76 Hz

Maximum preset resolution

2560 x 1440 at 60 Hz

Video Supported Modes

Video display capabilities (DVI playback)

480i/480p/576i/576p/720i/720p/1080i/1080p (Supports HDCP)

Video display capabilities (Composite playback)

NTSC/PAL

Video display capabilities (HDMI playback)

480i/480p/576i/576p/720p/1080i/1080p

Video display capabilities (Component playback)

480i/480p/576i/576p/720p/1080i/1080p

Preset Display Modes

The following table lists the preset modes for which Dell guarantees image size and centering:

Display Mode

Horizontal Frequency

(kHz)

Vertical Frequency

(Hz)

Pixel Clock (MHz)

Sync Polarity (Horizontal/Vertical)

VGA, 720 x 400

31.5

70.1

28.3

-/+

VGA, 640 x 480

31.5

59.9

25.2

-/-

VESA, 640 x 480

37.5

75.0

31.5

-/-

VESA, 800 x 600

37.9

60.3

40.0

+/+

VESA, 800 x 600

46.9

75.0

49.5

+/+

VESA, 1024 x 768

48.4

60.0

65.0

-/-

VESA, 1024 x 768

60.0

75.0

78.8

+/+

VESA, 1152 x 864

67.5

75.0

108.0

+/+

VESA,1280x800

49.70

59.81

83.50

-/+

VESA, 1280 x 1024

64.0

60.0

108.0

+/+

VESA, 1280 x 1024

80.0

75.0

135.0

+/+

VESA,1600x1200

75.0

60.0

162.0

+/+

VESA,1680x1050

65.29

59.95

146.25

-/+

VESA, 2560 x 1440

88.79

59.96

241.5

+/-

Electrical

The following table lists the electrical specification:

Video input signals

Analog RGB, 0.7 Volts +/-5%,75ohminputimpedance

Digital DVI-D TMDS, 600mV for each differential line, 50 ohm input impedance

HDMI, 600mV for each differential line, 100 ohm input impedance per differential pair

DisplayPort, 600mV for each differential line, 100 ohm input impedance per differential pair

Composite, 1 volt(p-p), 75 ohm input impedance

Component: Y, Pb, Pr are all 0.5~1volt(p-p), 75 ohm input impedance

Synchronization input signals

separate horizontal and vertical,

3.3V CMOS or 5V TTL level, positive or negative sync.

SOG (Sync on green)

AC input voltage/frequency/current

100 to 240 VAC/50 or 60 Hz +3 Hz/2.5A (Max.)

Inrush current

120V: 40A (Max.)

240V: 80A (Max.)

Physical Characteristics

The following table lists the physical characteristics:

Connector type

lD-sub: blue connector

lDVI-D: white connector

lDisplayPort: black connector

lComposite

lComponent

lHDMI

Signal cable type

lD-sub: Detachable, Analog, 15pin, shipped attached to the monitor

lDVI-D: Detachable, Digital, 24pin, shipped detached from the monitor

lDisplayPort: Detachable, Digital, 20pin, shipped detached from the monitor

lComposite

lComponent

lHDMI

NOTE: The composite, component and HDMI cables are not included with the monitor.

Dimensions (with stand)



Height (Compressed)

427.83 mm (16.84 inches)

Height (Extended)

517.83 mm (20.39 inches)

Altri manuali per UltraSharp U2711

Indice

Altri manuali Dell Monitor

Dell

Dell P1917S Manuale utente

Dell

Dell SE2717H Istruzioni per l'installazione

Dell

Dell U2723QE Manuale utente

Dell

Dell 2407WFP - UltraSharp - 24" LCD Monitor Manuale utente

Dell

Dell P2222H Istruzioni per l’uso

Dell

Dell UltraSharp 2208WFP Manuale utente

Dell

Dell UltraScan 0476T Manuale utente

Dell

Dell UltraSharp 2009W Manuale utente

Dell

Dell Ultrasharp U2724DB Manuale utente

Dell

Dell XPS 17 9720 Manuale di istruzioni

Dell

Dell SP2008WFP - 20" LCD Monitor Manuale utente

Dell

Dell P2419HCB Istruzioni per l’uso

Dell

Dell 1708FP - UltraSharp - 17" LCD Monitor Manuale utente

Dell

Dell UltraSharp U2711 Manuale utente

Dell

Dell S2719DM Manuale utente

Dell

Dell Crystal Manuale utente

Dell

Dell SE2422HR Manuale utente

Dell

Dell G2724D Manuale utente

Dell

Dell U2421M Manuale utente

Dell

Dell SE2419H Manuale utente

Dell

Dell 1401FP Manuale utente

Dell

Dell P2721Q Manuale utente

Dell

Dell P3223DE Manuale utente

Dell

Dell 3007WFP-HC - UltraSharp - 30" LCD Monitor Manuale utente

Manuali Monitor popolari di altre marche

Linear Acoustic

Linear Acoustic LQ-1000 Manuale utente

AOC

AOC I2579V Manuale utente

Gateway

Gateway FPD1520 Manuale utente

Furuno

Furuno Mu 120c Manuale utente

Asus

Asus VB171D - 17" LCD Monitor Manuale utente

Philips

Philips 107C64 Manuale utente

EverFocus

EverFocus EN-7517E Manuale utente

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuale utente

LG 50PM1M - - 50" Plasma Panel Manuale utente

Bosch

Bosch DDU 9 Manuale utente

Acer

Acer A231HL Manuale utente

Philips

Philips 86BDL4152T Manuale utente

NEC

NEC AccuSync LCD5V Manuale utente

Emay

Emay SleepO2 Manuale utente

IBM

IBM 6360 Istruzioni per l'installazione

LG M1950D-PZ Manuale utente

Sceptre

Sceptre D40 Manuale utente

Hunt Electronic

Hunt Electronic HCD-15AH Manuale utente
