Dell™ PowerVault™ 725N NAS Systems

Information Update for

Systems With Hardware RAID

2X008ebk0.book Page 1 Friday, July 11, 2003 1:38 PM

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you

how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury,

or death.

____________________

Information in this document is subject to change without notice.

Reproductioninanymannerwhatsoever without the written permissionofDellComputerCorporationisstrictlyforbidden.

Trademarks used in this text: Dell, the DELL logo, and PowerVault are trademarks of Dell Computer Corporation.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and

names or their products. Dell Computer Corporation disclaims any proprietary interest in trademarks and trade names

other than its own.

July 2003 P/N 2X008 Rev. A00

2X008ebk0.book Page 2 Friday, July 11, 2003 1:38 PM

Information Update 1-1

This document provides updated information on the following topics for your Dell™

PowerVault™ 725N NAS system:

• Removing and installing the CERC (Cost-Effective RAID Controller) 4-channel IDE

RAID controller card

• Removing and installing the power supply

Removing and Installing the CERC Card

The CERC card is a half-length PCI adapter card that provides four master RAID-capable

IDE channels.

CAUTION: See your System Information Guide for complete information about

safety precautions, working inside the computer, and protecting against

electrostatic discharge.

1Turn off the system and attached peripherals, and disconnect the system from the

electrical outlet.

2Loosen the thumbscrew at the back of the system. See Figure 1-1.

3Slide the system cover backward about 2.5 cm (1 inch), grasp the cover on both sides,

and carefully lift the cover away from the system.

2X008ebk0.book Page 1 Friday, July 11, 2003 1:38 PM

1-2 Information Update

www.dell.com | support.dell.com

Figure 1-1. Removing the System Cover

4Remove the cooling shroud. See Figure 1-2.

5Carefully lift the blower assembly and fan assembly out of the chassis, ensuring that

the connectors disconnect from the system board. See Figure 1-2 and Figure 1-3.

thumbscrew

system cover

2X008ebk0.book Page 2 Friday, July 11, 2003 1:38 PM

Information Update 1-3

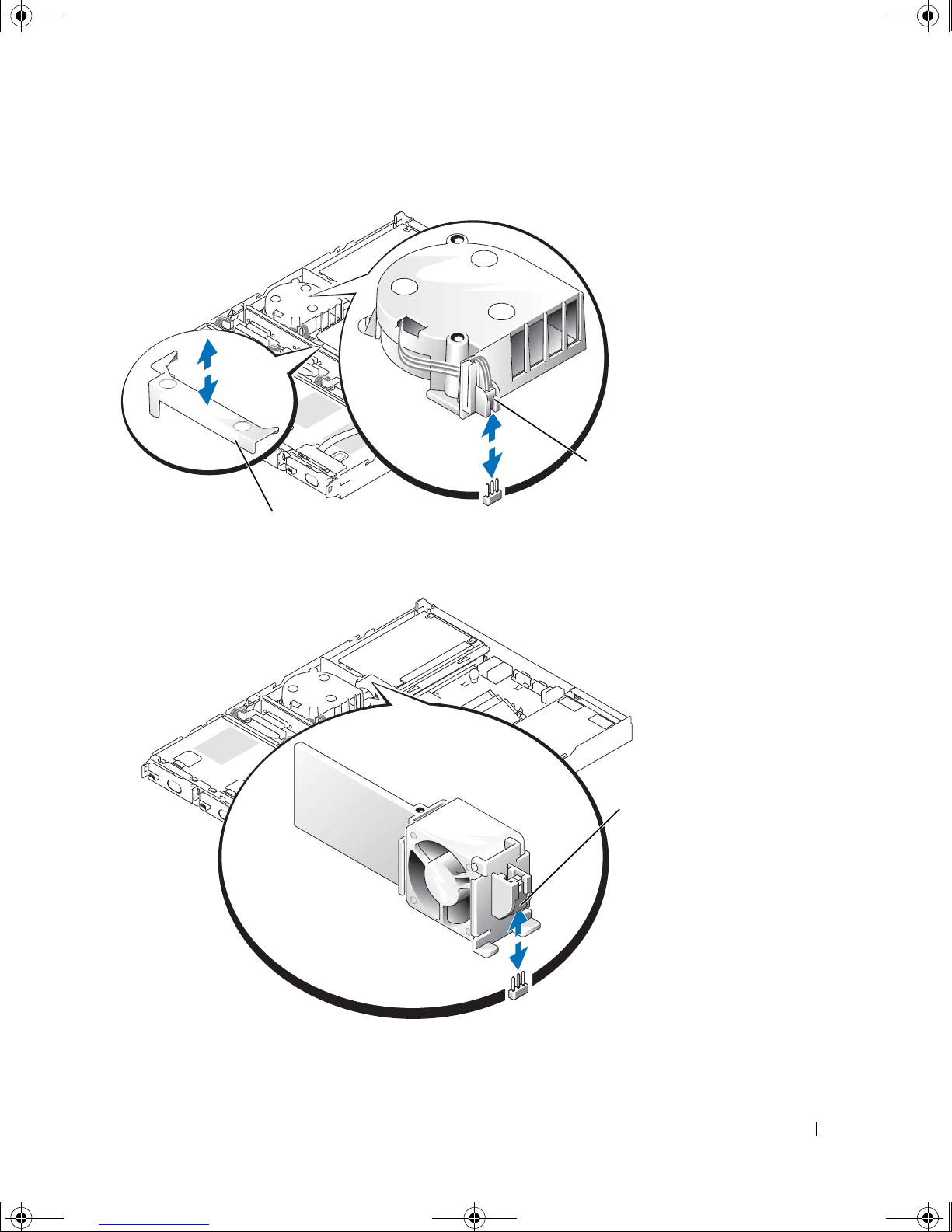

Figure 1-2. Removing the Blower Assembly

Figure 1-3. Removing the Fan Assembly

blower-assembly

connector

cooling

shroud

fan-assembly

connector

2X008ebk0.book Page 3 Friday, July 11, 2003 1:38 PM

1-4 Information Update

www.dell.com | support.dell.com

6Disconnect the CERC card’s cable from the backplane.

7Remove the plastic insert adjacent to the expansion slots. See Figure 1-4.

Figure 1-4. Removing the Plastic Insert

8Grasp the expansion card and carefully pull it away from the riser-card connector.

9Disconnect the cable from the CERC card.

10 Connect the cable that was supplied with the replacement CERC card to the four

connectors on the bottom of the replacement card in the order shown in Figure 1-5.

11 Route the CERC card’s cable between the guide tabs and the side of the chassis as you

lower the card into the system. See Figure 1-5.

plastic insert PCI slot 1

PCI slot 2

2X008ebk0.book Page 4 Friday, July 11, 2003 1:38 PM

Information Update 1-5

Figure 1-5. Connecting and Routing the CERC Card Cable

guide tabs (2)

CERC card

cable

CERC connector

on backplane

2X008ebk0.book Page 5 Friday, July 11, 2003 1:38 PM

1-6 Information Update

www.dell.com | support.dell.com

12 Insert the CERC card firmly into the expansion-card connector on the riser board

until the card is fully seated, being careful not to disconnect the riser board from the

system board. See Figure 1-6.

Figure 1-6. Installing the CERC Card

13 Place the bottom edge of the cable into the guide slot directly under the connector on

the left side of the backplane (as viewed from the front of the system), and then attach

the cable to the connector on the backplane. See Figure 1-5.

14 Replace the plastic insert adjacent to the expansion slots. See Figure 1-4.

15 Align the blower assembly and fan assembly with the connectors on the system board

and the pegs on the chassis.

16 Push down on the blower assembly and fan assembly until they are properly seated on

the chassis pegs.

CERC card

expansion-card connector

(on riser board)

PCI slot 1

system board

2X008ebk0.book Page 6 Friday, July 11, 2003 1:38 PM

Information Update 1-7

17 Attach the blower assembly and fan assembly connectors to the three-pin connectors

on the system board. See Figure 1-2 and Figure 1-3.

18 Replace the cooling shroud. See Figure 1-2.

19 Ensure that you did not leave tools or parts inside the system.

20 Place the cover over the sides of the chassis, and slide the cover forward until it snaps

into place. See Figure 1-1.

21 Tighten the thumbscrew at the back of the system to secure the cover. See Figure 1-1.

22 Reconnect the system and peripherals to the electrical outlet and turn on the system.

Removing and Installing the Power Supply

The system supports a single power supply located behind IDE hard drive 3.

To replace a failed power supply, perform the following steps.

CAUTION: See your System Information Guide for complete information about

safety precautions, working inside the computer, and protecting against

electrostatic discharge.

1Turn off the system and attached peripherals, and disconnect the system from the

electrical outlet.

2Unplug the power cable from the receptacle on the system’s back panel.

3Loosen the thumbscrew at the back of the system. See Figure 1-1.

4Slide the system cover backward about 2.5 cm (1 inch), grasp the cover on both sides,

and carefully lift the cover away from the system.

5Remove the plastic insert that secures the power supply inside the system. See

Figure 1-7.

6Disconnect the power-supply cable from the converter board. See Figure 1-7.

7Grasp the front of the power supply, push it toward the back of the system, and lift it

out of the chassis.

8Remove the two screws on the converter board, slide the board toward the back of the

system about 1 cm (0.5 inch), and lift it off the guide pins and out of the chassis. See

Figure 1-7.

2X008ebk0.book Page 7 Friday, July 11, 2003 1:38 PM

1-8 Information Update

www.dell.com | support.dell.com

9Install the replacement converter board:

aAlign the holes in the board with the guide pins on the bottom of the chassis,

lower the board into the system, and slide the board forward 1 cm (0.5 inch).

bReplace the two screws that you removed in step 8.

10 Install the replacement power supply by inserting the guide pins on the power supply

into the guide-pin slots on the chassis, lowering the power supply into the chassis, and

then pushing the power supply toward the front of the system. See Figure 1-7.

Figure 1-7. Removing and Replacing the Power Supply

power supply

converter

board

plastic insert

power-supply

guide pins (2)

guide-pin slots (2)

power-supply cable

screws (2)

hard drive 3

chassis guide

pins (2)

2X008ebk0.book Page 8 Friday, July 11, 2003 1:38 PM
