Using Your Projector: Dell™ 2300MP Projector

Control Panel

Remote Control

On-Screen Display

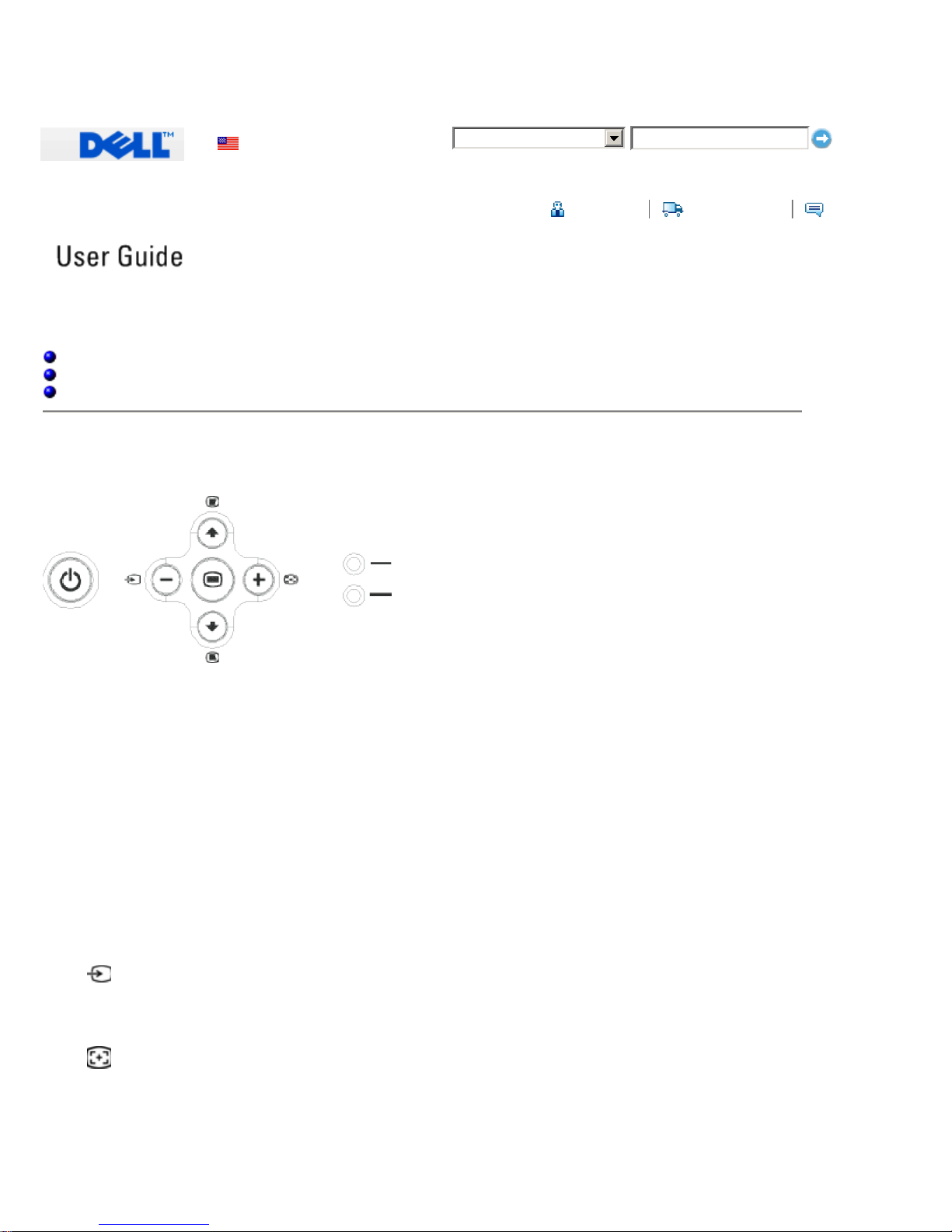

Control Panel

Power

See "Powering On/Off the Projector."

Volume

Increase or decrease the speaker volume.

Video Mode

Switch the display mode within PC Mode, Movie Mode,Game Mode, sRGB Mode, User Mode per your

preference.

Source

Press to step through Analog RGB, Composite, Component-i, S-video, and Analog YPbPr sources when

multiple sources are connected to the projector.

Resync

Press to synchronize the projector to the input source.

Resync will not operate if the OSD (On-Screen Display) is displayed.

Press to activate the OSD. Use the directional keys and Menu button to navigate through the OSD.

Four Directional Keys

The four directional keys can be used to toggle through the tabs in the OSD.

Keystone Adjustment

Press or button to adjust image distortion caused by tilting the projector. (±16 degrees)

Remote Control

Power

See "Power On/Off the Projector."

Source

Press the Source button to switch between Analog RGB, Digital RGB, Composite, Component-i, S-video, and

Analog YPbPr sources.

Resync

Press Resync to synchronize the projector to the input source.

Resync will not operate if the OSD (On-Screen Display) is displayed.

Directional Keys

Use or to select OSD items, use "left" and "right" button to make adjustments.

Hide

OSD.

4:3/16:9

Press 4:3/16:9 button to switch aspect ratio 1:1, 16:9, 4:3 as described below.

Volume +/-

Press the Vol+ button to increase the volume, press the Vol- button to reduce the volume.

Keystone

Adjusts image distortion caused by tilting the projector. (±16 degrees)

On-Screen Display

The projector has a multi-language On-Screen Display (OSD) that can be displayed with or without an

input source present.

The OSD allows you to make image adjustments and change a variety of settings. If the source is a

computer, the OSD allows changes to the Computer Image tab. When using a video source, the OSD

allows changes to the Video Image tab. The projector automatically detects the source.

When the OSD is on the screen, press or to navigate through the OSD tabs.

Example: All Images--> Computer Image--> Audio--> Management--> Language--> Factory Reset. To

make a selection in a tab, press on keypad or "Menu" on remote controller.

Press or to make a selection and adjust the settings by pressing or on keypad or Left

and Right button on the remote controller. When an item is selected, the color of the item will change to

dark gray.

To exit the OSD, go to "Exit" tab and press button on keypad or "Menu" on remote controller.

All Images Menu

Brightness

Adjust the brightness of the image.

Press to darken the image.

Press to lighten the image.

Contrast

Control the degree of difference between the brightest and darkest parts of the

picture. Adjusting the contrast changes the amount of black and white in the image.

Press to increase the contrast.

Color Temp.

Adjust the color temperature. With the higher temperature, the screen looks more

blue; with the lower temperature, the screen looks more red. User mode activates

the values in the "color setting" menu.

Color Setting

This mode allows for manual adjustment of red, green, and blue color settings.

Modifying these values will automatically change the color temperature to "user".

Keystone

Adjusts image distortion caused by tilting the projector. (±16 degrees)

Aspect Ratio

Select this function to fit 1:1, 16:9 or 4:3 aspect ratio. In order to use the 1:1 aspect

ratio, the input must be a computer signal (through VGA cable) less than XGA (1024

x 768), component 576p/ 480i / 480p, S-Video, or Video (composite). If the input

signal is a computer signal greater than XGA or component 1080i / 720p, only 16:9

or 4:3 aspect ratio will be available. When an icon is selected, the color of the icon

will change to dark blue.

1:1: The input source will be displayed without scaling.

16:9: The input source will be displayed in wide screen mode (16:9). The source will

be scaled to fit the width of the screen.

4:3: The input source will be scaled to fit the screen.

Video Mode

Select this function to optimize the display image for home use (Movie Mode or

Game Mode), conference use (PC Mode) or as user preferable settings (User

Mode), or use sRGB mode for more accurate color representation. When an icon is

selected, the color of the icon will change to dark blue. Adjusting the settings of

White Intensity or Degamma tab, will select User Mode automatically.

White Intensity

White Intensity can be adjusted between 0 and 10.

Setting 10 will maximize the brightness.

Setting 0 will maximize color reproduction quality.

Degamma

Degamma can be adjusted between 1 and 4. Default setting is 3 (Recommended).

Adjustment of the setting will change the color performance of the display.

Audio Menu

Audio

Volume

Press to decrease the volume.

Press to increase the volume.

Mute

Select the left icon to mute the volume.

Select the right icon to un-mute the volume.

Management Menu

Management

Menu Location

Select the location of the OSD on the screen.

Projection Mode

Front Projection-Desktop

The default setting.

Rear Projection-Desktop

The projector reverses the image so you can project from behind a

translucent

screen.

Front Projection-Ceiling Mount

The projector turns the image upside down for ceiling-mounted projection.

Rear Projection-Ceiling Mount

The projector simultaneously reverses and turns the image upside down. You

can project from behind a translucent screen with a ceiling-mounted

projection.

Signal Type

Manually select signal type RGB, YCbCr, YPbPr.

Lamp Hour

Display operating hours since lamp timer reset.

Lamp Reset

Use this function only after a new lamp is installed in the projector. Select the left

Lamp Reset icon (light bulb and arrow under the icon), and press the Enter button

to reset the lamp timer.

Power Saving Menu

Power Saving

Use this function to select the power saving delay period. Press "Yes" to go into the

"set time" sub menu.

Set Time (Min)

Set the power saving delay period as you prefer. When the projector is not receiving

an input signal for the selected period of time, the projector will automatically enter

power saving mode, and turn off the lamp. After a one-minute cooling period, the

projector will turn back on with detection of an input signal

or by pressing the "Power"

button. After two hours the projector will turn off and must be turned on by pressing

the power button on the control panel or remote.

Auto Source

The projector will always automatically search for available input signals when Auto

Source is On, which is the default setting. Press the Source button with Auto

Source On to automatically search for the next available input signal. Selecting Off

will lock on the current input source. Set Auto-Source to Off to step through the

different input signals manually.

Eco Mode

Select On to operate the projector in lower power (150 Watts) for providing

longer lamp life and quiter operation with dimmer luminance output on the

screen.

Select Off to resume the operation in normal power (200 Watts).

Language Menu
