Dell M109s - DLP Projector Manuale utente

www.dell.com | support.dell.com

Dell M109S Projector

User’s Guide

Model: M109S

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of

your projector.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data

and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury,

or death.

____________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell

Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; DLP and DLP®

logo are trademarks of TEXAS INSTRUMENTS INCORPORATED; Microsoft, and Windows are

either trademarks or registered trademarks of Microsoft Corporation in the United States and/or

other countries.

Other trademarks and trade names may be used in this document to refer to either the entities

claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in

trademarks and trade names other than its own.

Model M109S

August 2008

Rev. A00

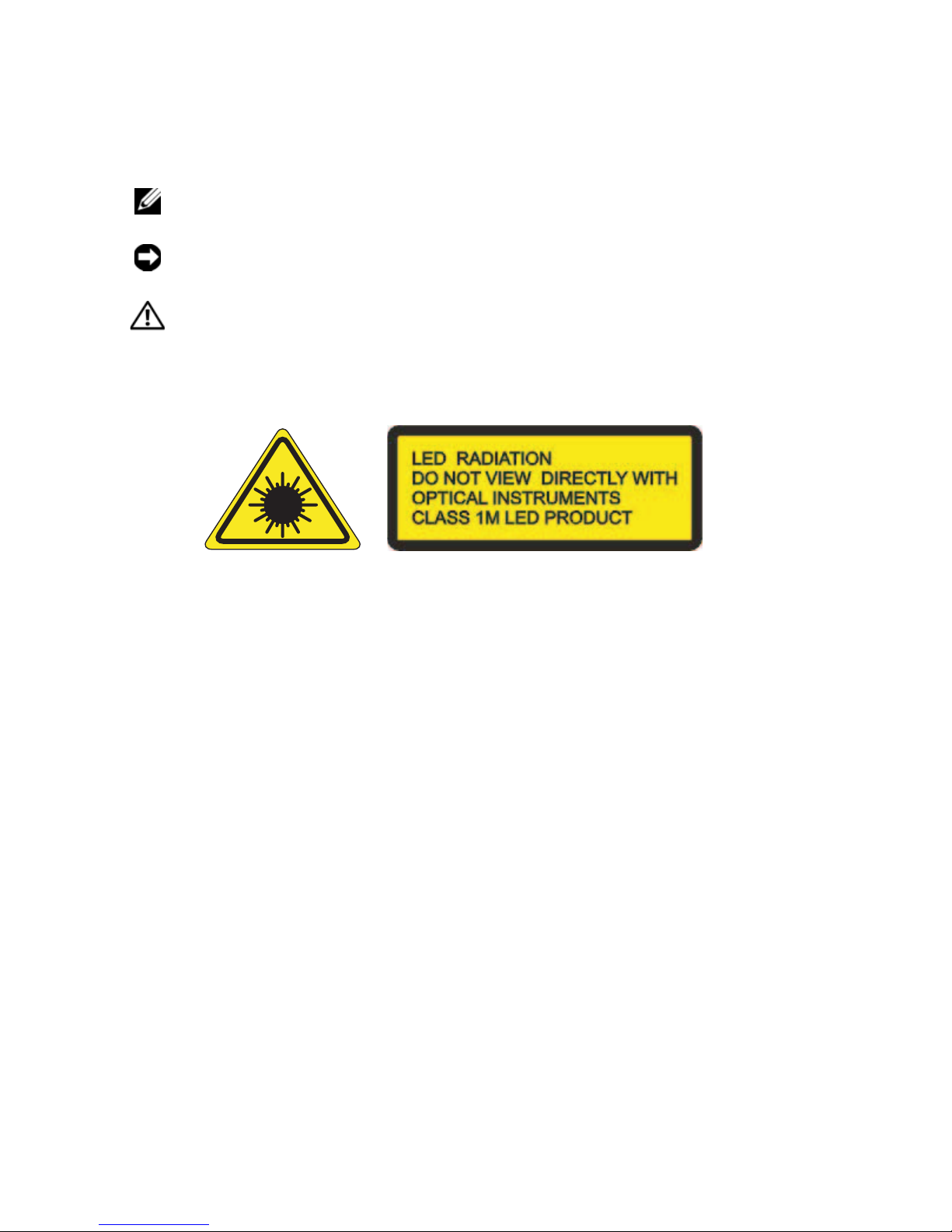

Complies with IEC 60825-1:1993+A11997+A2:2001 and EN 60825-1:

1994+A1:2002+A2:2001

RED: 634 nm, Green: 518nm, Blue: 456nm maximum: 5.38 mW

Contents 3

Contents

1 Your Dell™ Projector . . . . . . . . . . . . . . . . . 5

About Your Projector . . . . . . . . . . . . . . . . . 6

2 Connecting Your Projector . . . . . . . . . . . . 7

Connecting a Computer . . . . . . . . . . . . . . . . . . 8

Connecting a Computer using a VGA Cable . . . . . 8

Connecting a DVD Player . . . . . . . . . . . . . . . . . 9

Connecting a DVD Player using a Composite Cable . 9

3 Using Your Projector . . . . . . . . . . . . . . . . 11

Turning Your Projector On . . . . . . . . . . . . . . . . 11

Turning Your Projector Off . . . . . . . . . . . . . . . . 11

Adjusting the Projector Focus . . . . . . . . . . . . . . 12

Adjusting Projection Image Size . . . . . . . . . . . . 13

Using the Control Panel . . . . . . . . . . . . . . . . . 14

Using the On-Screen Display . . . . . . . . . . . . . . 16

Main Menu . . . . . . . . . . . . . . . . . . . . . 16

AUTO-ADJUST . . . . . . . . . . . . . . . . . . . 16

INPUT SOURCE . . . . . . . . . . . . . . . . . . . 16

PICTURE (in PC Mode) . . . . . . . . . . . . . . . 17

PICTURE (in Video Mode) . . . . . . . . . . . . . 18

4Contents

DISPLAY (in PC Mode) . . . . . . . . . . . . . . . 19

DISPLAY (in Video Mode) . . . . . . . . . . . . . . 20

SET UP . . . . . . . . . . . . . . . . . . . . . . . 20

OTHERS . . . . . . . . . . . . . . . . . . . . . . . 22

4 Troubleshooting Your Projector . . . . . . . 23

5 Specifications . . . . . . . . . . . . . . . . . . . . . 25

6 Contacting Dell™ . . . . . . . . . . . . . . . . . . . 29

7 Appendix: Glossary . . . . . . . . . . . . . . . . . 31

Your Dell™ Projector 5

Your Dell™ Projector

Your projector comes with all the items shown below. Ensure that you have all the

items, contact Dell if anything is missing.

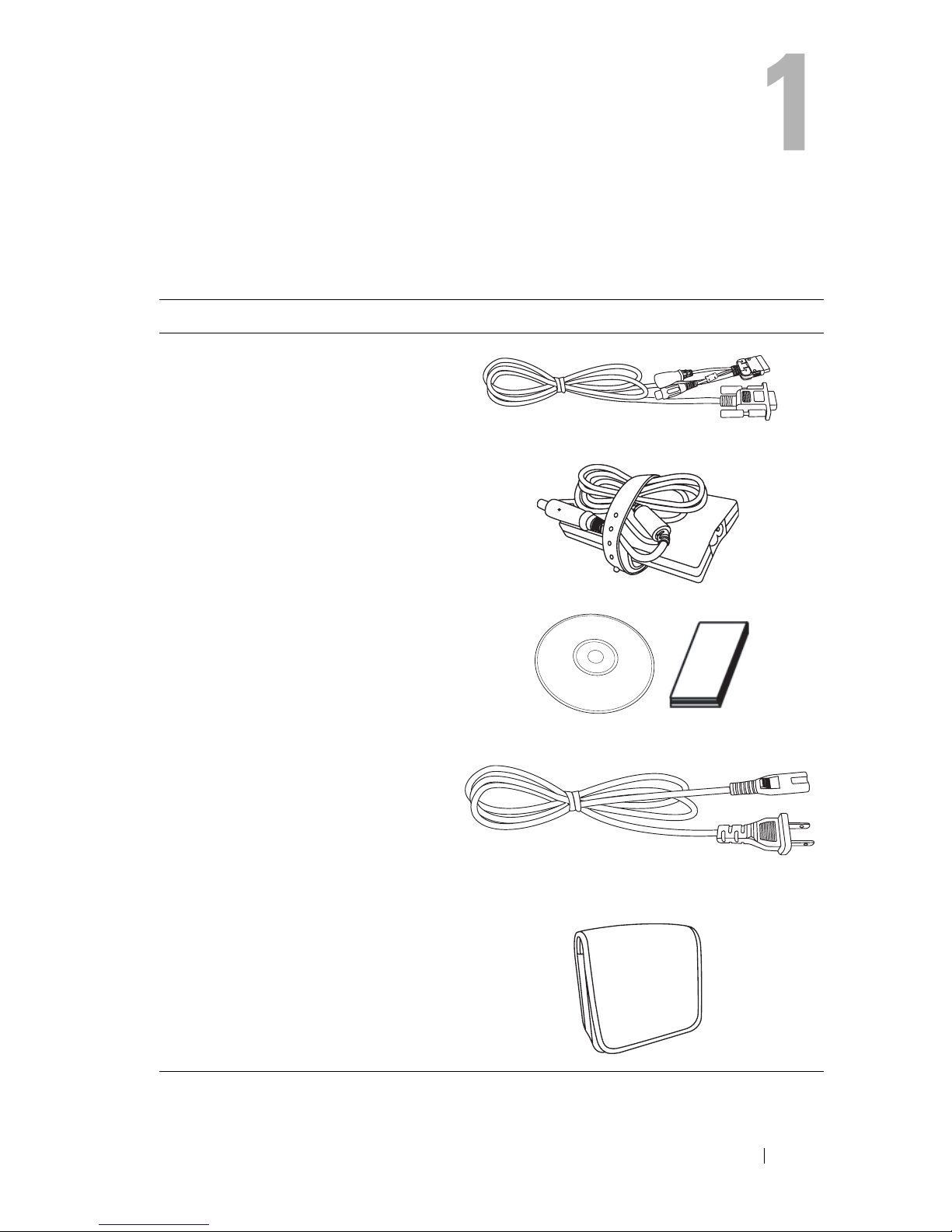

Package Contents

Multi-input cable

AC adapter

User’s guide media &

Documentation

Power cable

Pouch

6Your Dell™ Projector

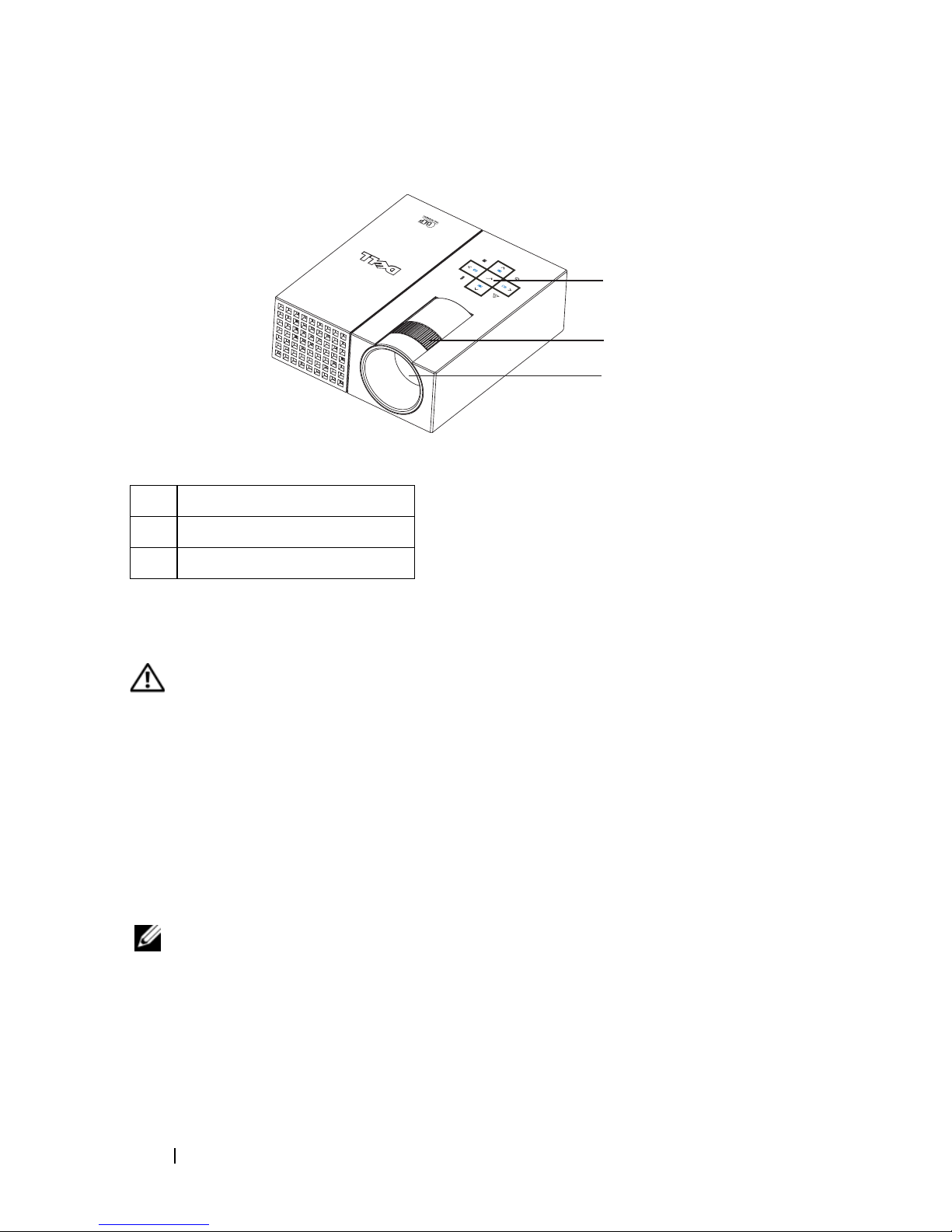

About Your Projector

CAUTION: Safety Instructions

Do not use the projector near appliances that generate a lot of heat.

Do not use the projector in areas where there is an excessive amount of dust. The dust

may cause the system to fail and projector will automatically shutdown.

Ensure that the projector is placed in a well-ventilated area.

Do not block the ventilation slots and openings on the projector.

Ensure the projector operates between ambient temperatures (5

C to 35

C).

NOTE: For more information, see the Product Information Guide that ships with

your projector.

1Control panel

2Focus ring

3Lens

Connecting Your Projector 7

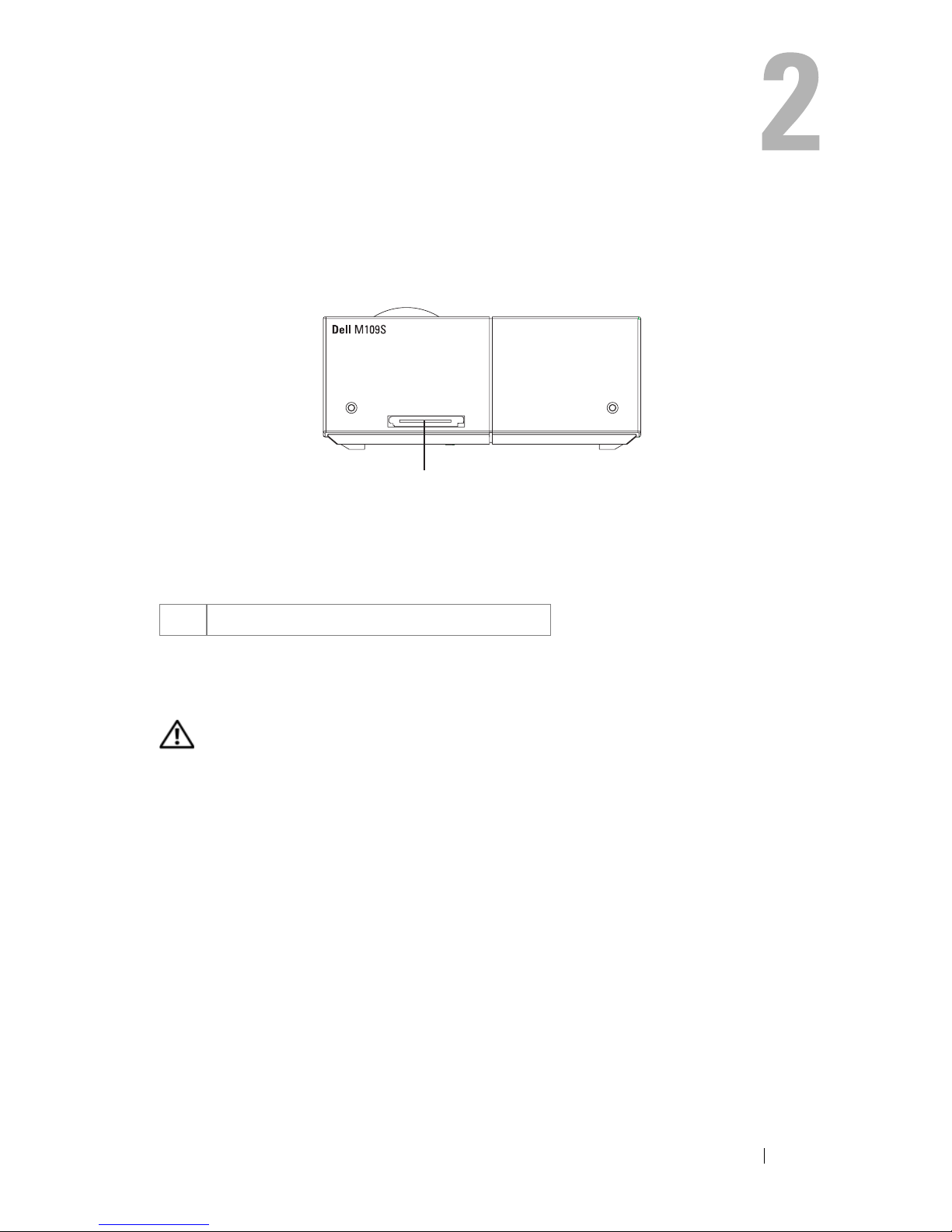

Connecting Your Projector

CAUTION: Before you begin any of the procedures in this section, follow the

Safety Instructions as described on page 6.

1Multi-input connector

8Connecting Your Projector

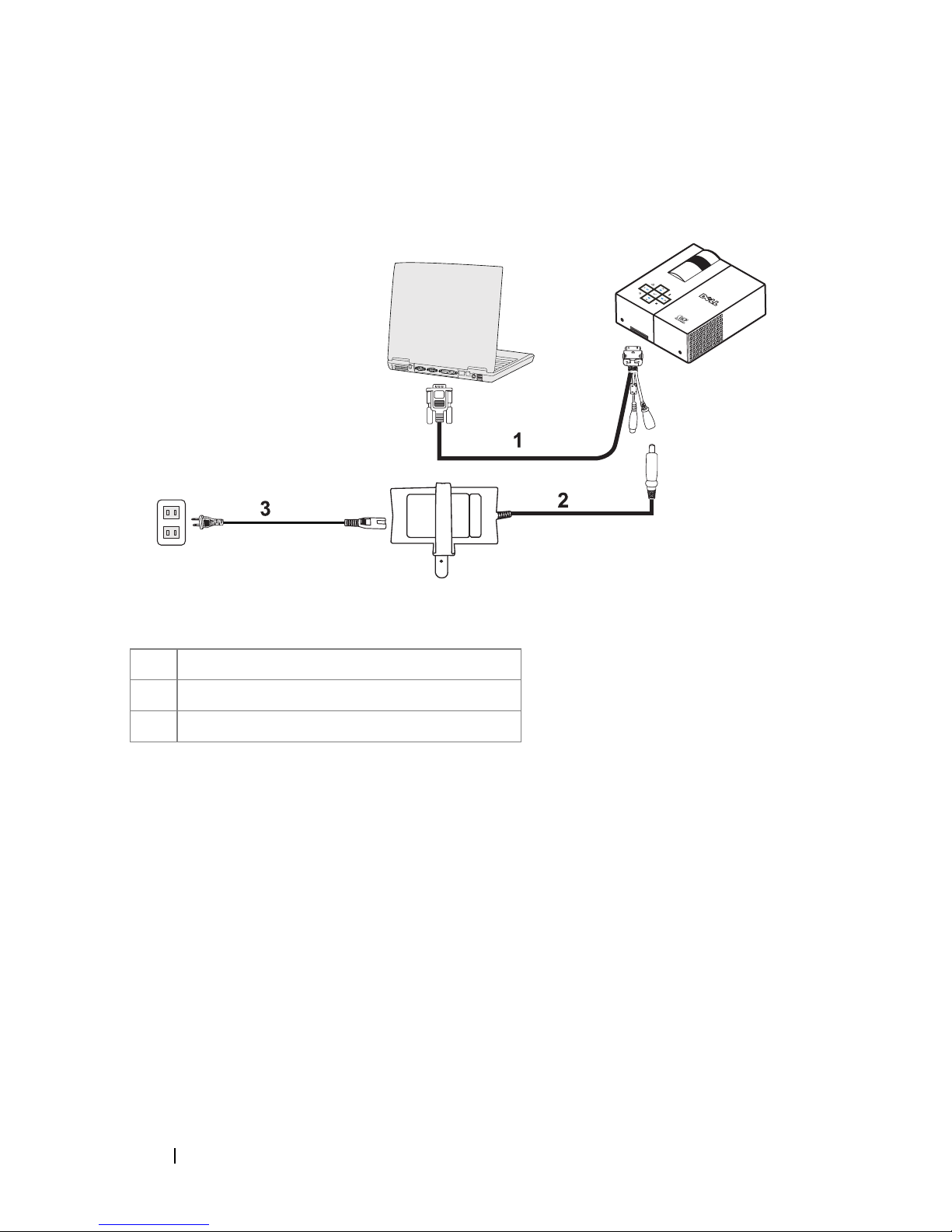

Connecting a Computer

Connecting a Computer using a VGA Cable

1Multi-input cable

2AC adapter

3Power cord

Connecting Your Projector 9

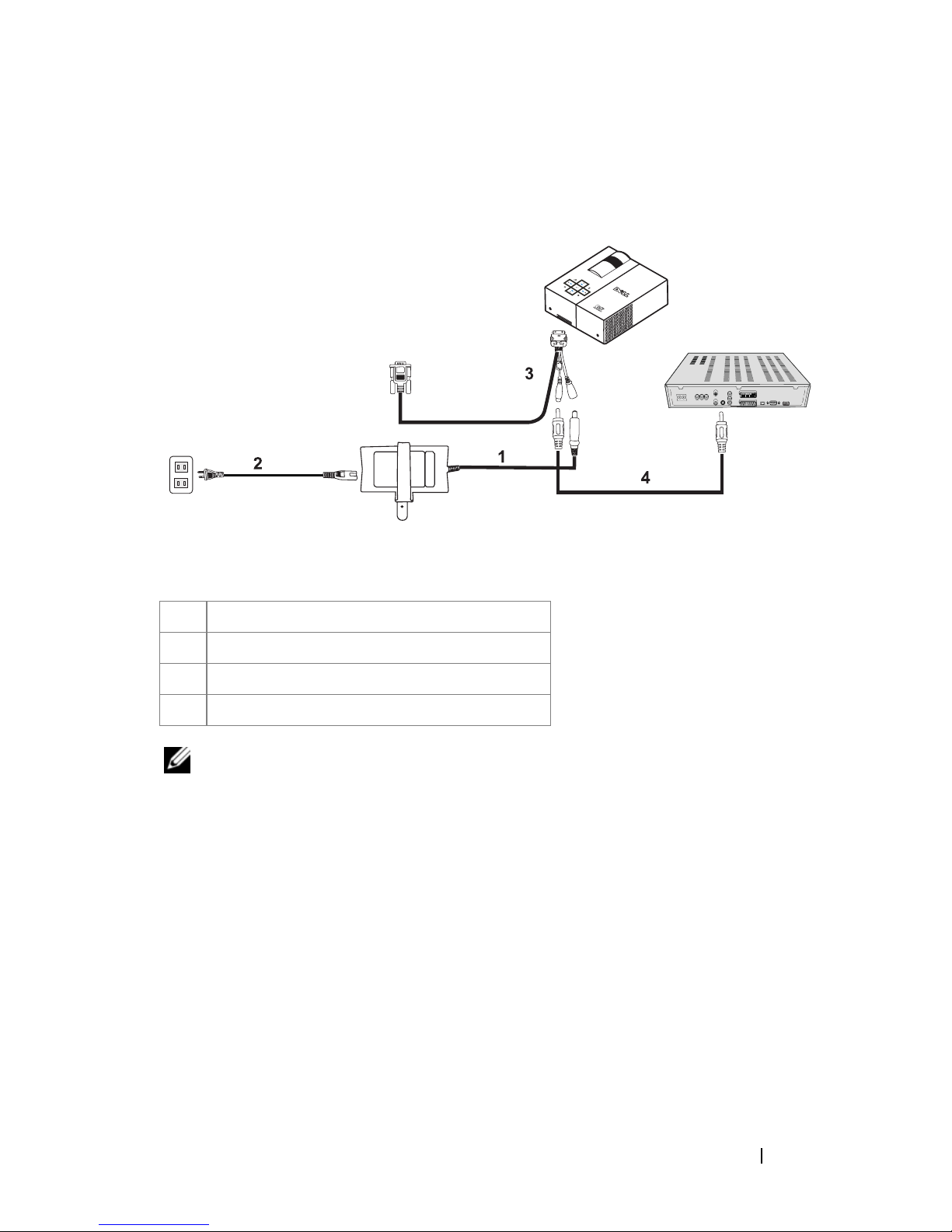

Connecting a DVD Player

Connecting a DVD Player using a Composite Cable

NOTE: The composite video cable is not provided by Dell.

1AC adapter

2Power cord

3Multi-input cable

4Composite video cable

10 Connecting Your Projector
