Dell OptiPlex 780-USFF Manuale utente
1/15
DellTM OptiPlexTM 780-USFF All In One (AIO) Stand
The Dell OptiPlex 780-USFF All-in-One Stand is a unique
mounting solution with integrated cable management
designed to adapt to your unique environment.
User's Guide
dell.com/regulatory_compliance
2/15
Hazard Symbols Review
These symbols alert the user about a safety condition that demands attention. All users of the
product should be able to recognize and understand the significance of the following safety
hazards if encountered on the product or within product documentation.
NOTE A NOTE indicates important information that helps you make
better use of your Dell AIO Stand.
CAUTION A CAUTION indicates potential damage to hardware or loss of
data and tells you how to avoid the problem.
WARNING
A
WARNING indicates a potential for property damage, personal
injury, or death.
ELECTRICAL An ELECTRICAL indicates an impending electrical hazard
which, if not avoided, may result in personal injury, fire and/or
death.
____________________________________________________________________________________________________________________________________________________
Information in this document is subject to change without notice.
© 2009 Dell™ Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and OptiPlex are trademarks of Dell Inc.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or
their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
____________________________________________________________________________________________________________________________________________________
Model ARAIO
October 2009 Rev. A00
Symbol Signal Word Level of Hazard
WARNING：Risk of electric
shock. Do not expose
electric parts to liquids.
WARNING：To reduce risk of injury
and/or equipment damage, theAIO
Stand must be placed on a level,
stable surface.
3/15
Contents
1 About your Dell OptiPlex 780-USFF AIO Stand ……………………………………………….. 4
2 Setting up the Dell OptiPlex 780-USFF AIO Stand ……………………………………………. 6
3 Specifications …………………………………………………………………………................... 15
4 Finding Information ……………………………………………………………………................. 15
4/15
About your Dell OptiPlex 780-USFF AIO Stand
1 DELL Monitor: P190S/1909W/P2210
2 DELL Quick Release Monitor Mounting Plate
3 System Sleeve
4 System Chassis: Dell OptiPlex 780-USFF
5 Cable Tray
6 Cable Channels
7 Swiveling Base - 360oPan
8 Front Cable Cover
9 Provided Cables: VGA and USB
1
5/15
10 Handle
11 System Cable Cover Lock Switch
12 System Label Carrier
13 System Cable Cover
14 Padlock Ring
15 Network Cable Slot
16 Wall Power Cord Slot
17 System Lock Switch
18 Kensington Security Slot
6/15
Setting up the Dell OptiPlex 780-USFF AIO Stand
Components
AIO Stand, Cable Cover, System Sleeve, VGA / USB Cable
NOTE：Refer to the Monitor and System Instruction Guides, packaged separately.
______________________________________________________________________________________
Place the AIO Stand on a level, stable surface.
2
1
WARNING：To reduce risk of injury and/or
equipment damage, theAIO Stand must be
placed on a level, stable surface.
7/15
Determine which monitor cable will be used (VGA or DisplayPort), and follow appropriate
instructions.
Locate the provided VGA cable.
Route the VGA cable through the cable tray.
Locate the system-end of the cable in the cable tray.
Remove the front cable cover to locate the monitor-end of the cable.
2
VGA
DisplayPort
a
b
a
b
8/15

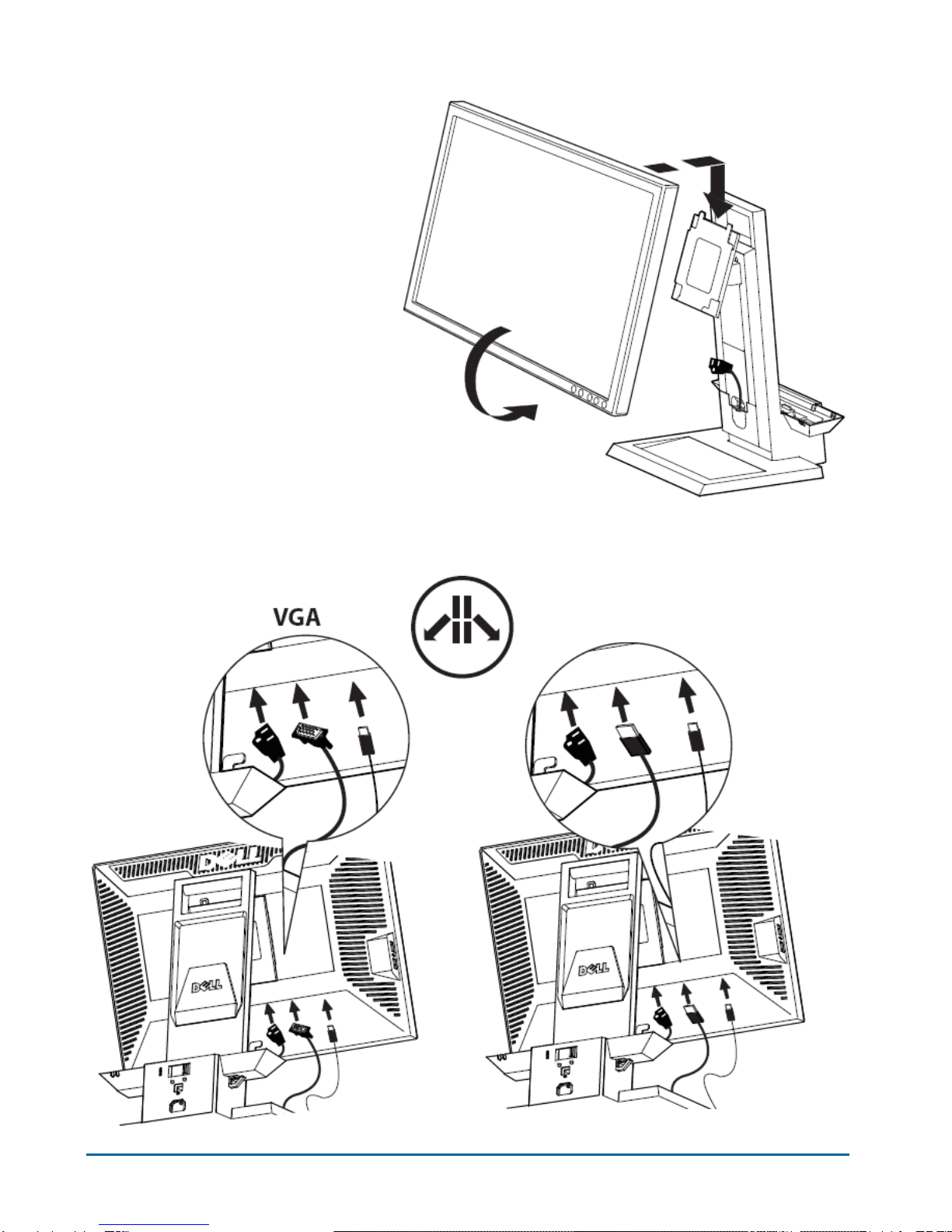

Attach the monitor to theAIO stand.
Connect the power plug, the monitor cable (VGA or DisplayPort), and the USB cable to the
monitor.
3
4
DisplayPort
9/15
Route the accessory cable (keyboard, mouse, speakers, etc.) through the cable tray.
Ensure the system sleeve is unlocked (orange tab will show).
5
6
10/15
Extend the system label carrier.
If applicable, remove mylar from front surface(s) of chassis prior to sleeve installation.
Insert the system into the system sleeve in the orientation illustrated below.
Slide the switch to lock the system sleeve.
7
b
a
CAUTION：
Do not reverse the
insertion orientation! NOTE：When inserted
properly, the CD end of
the system will reach
the end of the system
sleeve.
8
