Dell Precision M6500 Manuale utente

Jog Shuttle For Dell Precision

Workstations

The Jog Shuttle feature allows you to configure a Dell Touchpad shortcut to

perform complex and redundant tasks involving multiple keystrokes or mouse

click combinations.

Example: Invoking the Delete Browsing Histroy dialog box involves pressing

<CTRL> + <SHIFT> + <DEL> in Internet Explorer. This action can be

replicated by pressing a single control on the touchpad.

NOTE: The Jog Shuttle feature may not be included if you did not order it.

NOTE: The Jog Shuttle feature is available only on specific Dell Precision

workstations.

Accessing The Jog Shuttle

Jog Shuttle feature is part of the Dell Touchpad utility. You can use the Mouse

Control Panel or System Tray to launch the Dell Touchpad utility.

Launching Dell Touchpad Using System Tray

Double-click the

Touchpad

icon to launch the Dell Touchpad window.

September 2010

JogShuttle.fm Page 9 Monday, September 27, 2010 10:01 AM

Launching Dell Touchpad Using Mouse Control Panel

Click



Control Panel



Mouse

. The

Mouse Properties

window

appears.

JogShuttle.fm Page 10 Monday, September 27, 2010 10:01 AM

On the

Dell Touchpad

tab, click the large touchpad icon to launch the Dell

Touchpad window.

The

Dell Touchpad

window appears.

JogShuttle.fm Page 11 Monday, September 27, 2010 10:01 AM

Enabling Jog Shuttle

To enable Jog Shuttle using Dell Touchpad:

On the

Dell Touchpad

window, click

Jog Shuttle Settings

Click

Enable Jog Shuttle Mode

JogShuttle.fm Page 12 Monday, September 27, 2010 10:01 AM

Configuring Jog Shuttle

You can configure the Jog Shuttle by selecting an application profile and control,

and recording a corresponding macro. The options displayed in the Operation

drop-down list depend on the selection of the Profile and Controls.

The following table displays the controls and corresponding operations.

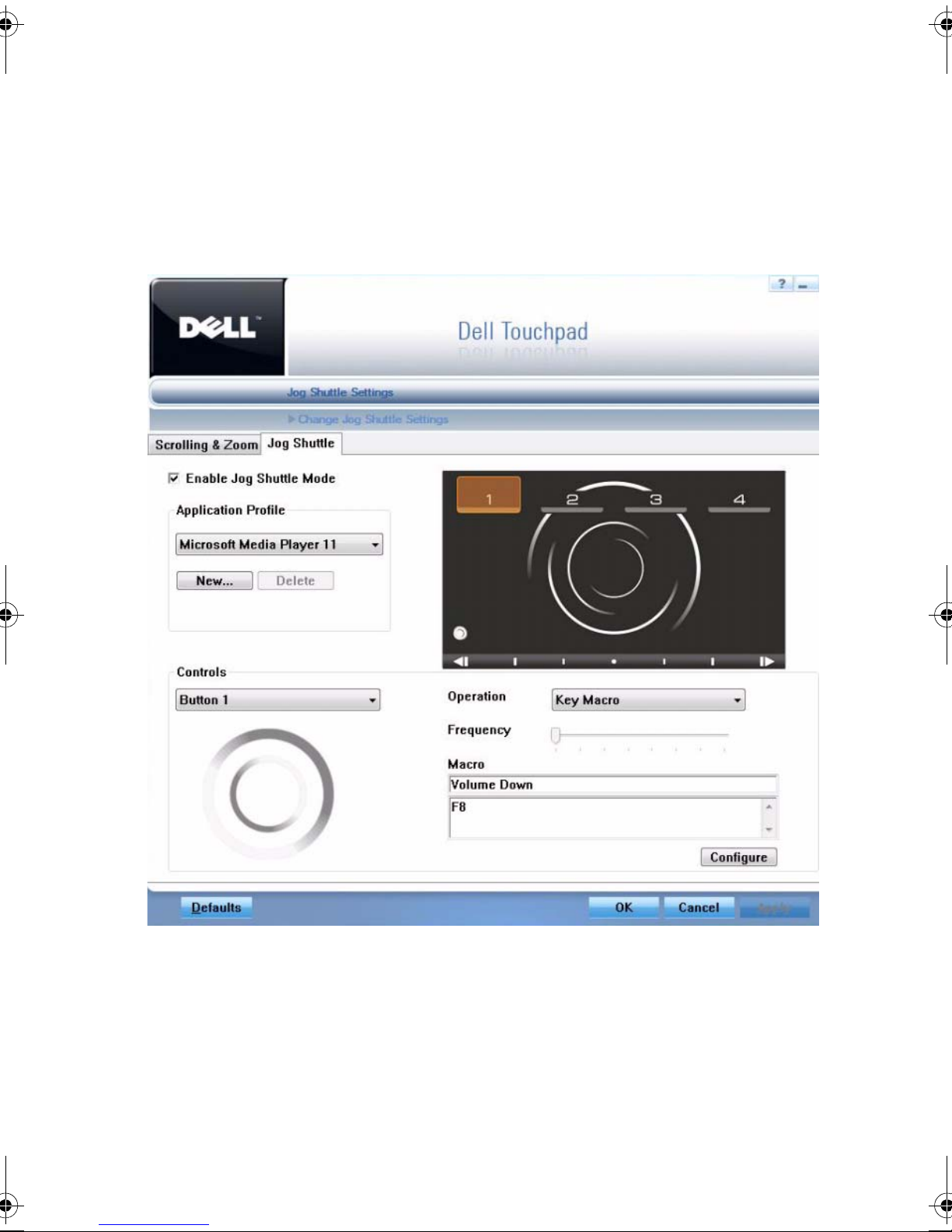

On the

Jog Shuttle

tab, select the application from the

Application Profile

drop-down list.

NOTE: You can also add and delete application profiles if required.

For more information, see "Adding And Deleting Application Profiles" on page 15.

Select an option from the

Controls

drop-down list.

Select

Key Macro

from the

Operation

drop–down list.

Click

Configure

Record a Sequence of Keystrokes

dialog box appears.

Click

Start

Press the keystrokes that will perform an action.

Selecting Displays

Button 1 — 4 Key Macro and Mouse Macro

Jog Right, Jog Left, Shuttle Left or Shuttle

Right

Key Macro, Mouse Macro and Scrolling

JogShuttle.fm Page 13 Monday, September 27, 2010 10:01 AM

Click

Stop

Type a name in the

Description

field.

Click

. The macro is recorded and displayed in the Macro section.

Example: Invoking the Delete Browsing History dialog box in Internet Explorer

Select the following:

•

Application Profile

: Internet Explorer

•

Control

: Button 1

•

Operation

: Key Macro

Perform steps 4 and 5, press <CTRL> + <SHIFT> + <DEL>.

Perform steps 7 through 9. The macro is defined.

Configuring A Mouse Macro

On the

Jog Shuttle

tab, select the application from the

Application Profile

drop-down list.

Select an option from the

Controls

drop-down list.

Select

Mouse Macro

from the

Operation

drop-down list.

Click

Configure

Select a Sequence of Mouse actions

dialog box appears.

Select an option from the

Select mouse button

drop-down list.

Select the

Keyboard modifiers

(optional).

Type a name in the

Description

field.

JogShuttle.fm Page 14 Monday, September 27, 2010 10:01 AM

Click

. The macro is recorded and displayed in the Macro section.

Configuring The Scrolling Operation

On the

Jog Shuttle

tab, select an option from the

Application Profile

drop-

down list.

Select an option from

Controls

drop-down list.(last four options)

Select

Scrolling

from the

Operation

drop–down list.

Configure the

Frequency

using the slider.

Click

Adding And Deleting Application Profiles

Jog Shuttle allows you to add new applications profiles.

To create a profile:

On the

Jog Shuttle

tab, click

New

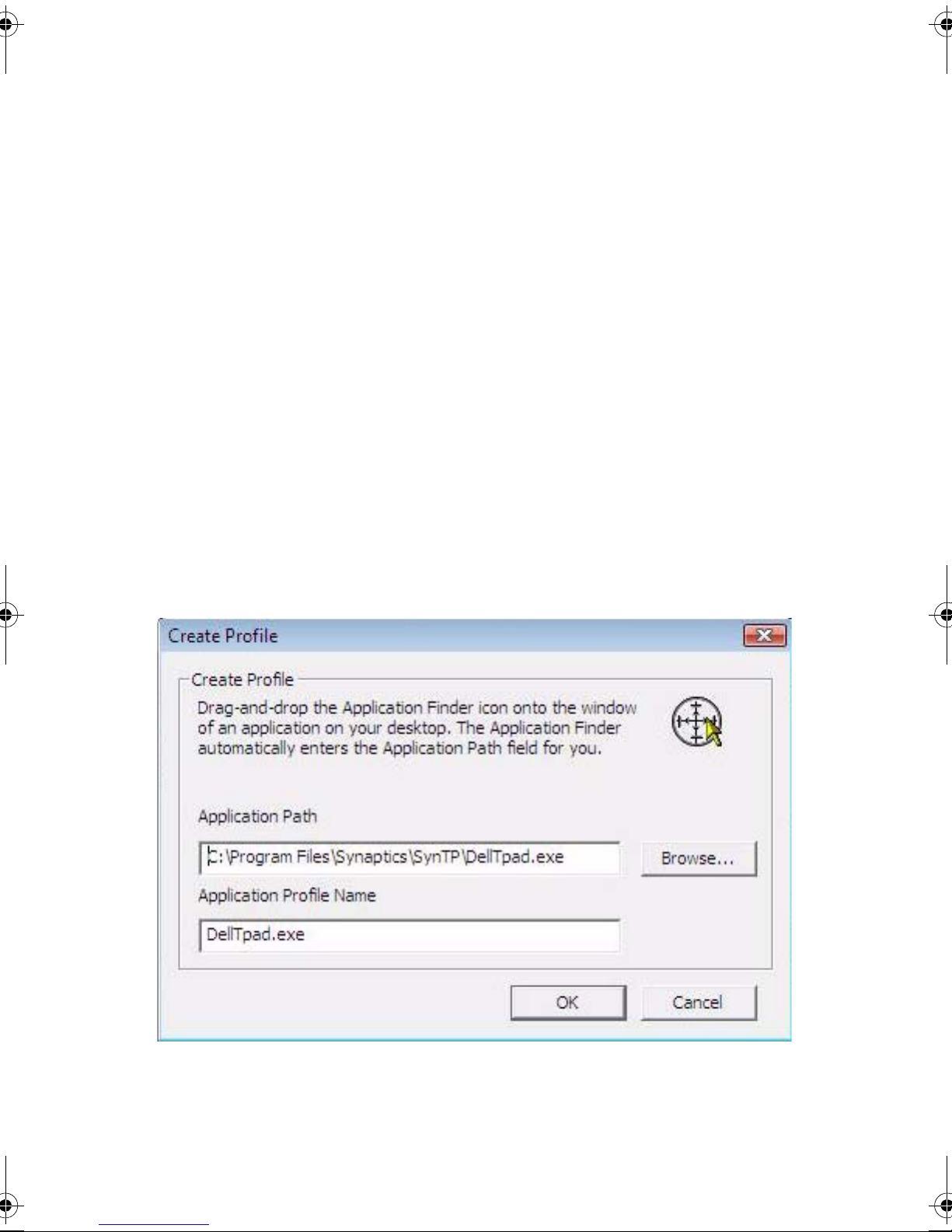

. The

Create Profile

Window appears.

Click

Browse

and select the application path.

JogShuttle.fm Page 15 Monday, September 27, 2010 10:01 AM

Alternatively, drag the

Drag and Drop Application

finder icon over the

application you want to add. The path appears in the application path field.

Example:

Open an

Internet Explorer

window.

Drag the icon over the Internet Explorer Window.

The path

C:\Program Files\InternetExplorer\iexplore.exe

appears in the

Application Path

field and

iexplore.exe

appears in the

Application Profile

Name

field.

To delete a profile:

On the

Jog Shuttle

tab, select an option from the

Application Profile

drop-

down list.

Click

Delete

Using The Jog Shuttle

NOTE: Configure the profile with the required control and operation before proceeding.

Press the Jog Shuttle icon on the bottom left corner of the touchpad.

The back-lit touchpad is visible with the controls.

Open the application. Example: Internet Explorer.

Press the control. The task defined for that control is perfomed.

NOTE: All regular touchpad buttons and scrolling features are disabled if Jog Shuttle is

active.

JogShuttle.fm Page 16 Monday, September 27, 2010 10:01 AM

Applications Supported By Jog Shuttle

• Adobe Acrobat Professional 7.0 and 8.0

• Adobe Audition 2.0 and CS3

• Adobe Encore DVD 1.5, DVD 2.0 and CS3

• Adobe Illustrator CS2 and CS3

• Adobe Premiere Pro 1.5, 2.0 and CS3

• Adobe Soundbooth CS3

• Autodesk 3D Studio Max 2009

• Cakewalk Sonar Producer Edition 7.0

• Cakewalk Sonar Studio Edition 7.0

• Microsoft Internet Explorer 6.x and 7.x

• Windows Movie Maker

• Adobe Acrobat Reader 7.0 and 8.0

• Adobe After Effects 6.5, 7.0 and CS3

• Adobe Flash CS3

• Adobe Photoshop 7.0, CS2 and CS3

• Apple iTunes

• Apple QuickTime

• Autodesk Maya 8.0

• Cyberlink Power DVD 8.0

• DigiDesign Pro Tools

• Microsoft Media Player 10.x and 11.x

• Windows Photo Gallery
