Dell PowerVault MD1000 Istruzioni per l'installazione

Dell™ PowerVault™ MD Systems Support

Matrix

This document provides information on supported software and hardware for Dell™ PowerVault™

MD1000 and MD3000 systems.

NOTE: For the latest driver and firmware releases, see the Downloads section at support.dell.com.

NOTE: The PowerVault MD1000 supported software and hardware is directly tied to the RAID controller to which it

is attached.

Supported Servers

NOTE: For the latest BIOS information, see the specific server website on support.dell.com.

PERC 5/E Adapter with MD1000

Table 1. Supported PowerEdge™ Servers for PowerVault MD1000 Systems

Server Notes

PowerEdge 840

PowerEdge 860

PowerEdge 1850

PowerEdge 1900

PowerEdge 1950

PowerEdge 2850

PowerEdge 2900

PowerEdge 2950

PowerEdge 2970

PowerEdge 6800

PowerEdge 6850

PowerEdge 6950

July 2007

MD3000 Storage Array (MD1000 Optional)

Supported Controllers

PERC 5/E Adapter with MD1000

Table 2. Supported Servers and Storage for PowerVault MD3000 Systems

Server Notes

PowerEdge 1800

PowerEdge 1850

PowerEdge 1900

PowerEdge 1950

PowerEdge 2800

PowerEdge 2850

PowerEdge 2900

PowerEdge 2950

PowerEdge 6800

PowerEdge 6850

PowerEdge 6950

PowerVault NX1950

Table 3. PERC 5/E Minimum Revision Requirements for PowerVault MD1000 Systems (SAS/SATA)

Component Minimum Revision Notes

Firmware 5.1.1.0040 Firmware

Microsoft®Windows®2000 Server and

Windows Server 2003

2.8.0.32 Driver

Microsoft Windows Server®2003 x64 2.8.0.64 Driver

Red Hat®Enterprise Linux®version 3

(x86)

00.00.03.09 Driver

Red Hat Enterprise Linux version 4

(x86 and x86-64)

00.00.03.09 Driver

Red Hat Enterprise Linux version 5

(x86 and x86-64)

00.00.03.09 Driver

SUSE®Linux Enterprise Server 9 (x86-64) 00.00.03.09 Driver

SUSE Linux Enterprise Server 10 (x86-64) 00.00.03.09 Driver

. NOTE: The MD1000 does not support SAS 5/E.

MD3000 Storage Array (MD1000 Optional)

NOTE: All Microsoft Windows 2003 Server requires hotfix KB916048.

NOTE: The MD3000 does not support PERC 5/E or SATA hard drives.

Table 4. PowerVault MD3000 RAID Controller

Component Minimum Revision Notes

Firmware 06.17.77.60 The MD3000 RAID Controllers are located within the

MD3000 enclosure and connect to the host system using the

SAS 5/E Adapter. Refer to the Supported Hardware

Configurations section of this document for additional details.

Table 5. SAS 5/E Minimum Revision Requirements for PowerVault MD3000 Systems

Component Minimum Revision Notes

Firmware 00.10.49.00 Firmware

BIOS 06.12.02.00 BIOS

Windows 2000 Server and Windows

Server 2003

1.24.04.00 Driver

Windows Server 2003 x64 1.24.04.00 Driver

Red Hat Enterprise Linux version 3 (x86) 2.06.48.02-2 Driver

Red Hat Enterprise Linux version 4

(x86 and x86-64)

3.02.83.12-5 Driver

Red Hat Enterprise Linux version 5

(x86 and x86-64)

4.00.00.01-4 Driver

SUSE Linux Enterprise Server 9 (x86-64) 3.02.83.12-5 Driver

SUSE Linux Enterprise Server 10

(x86-64)

4.00.00.01-4 Driver

SUSE Linux Enterprise Server 10 SP1

(x86-64)

3.04.02-suse Native OS Driver. Do not use

4.00.00.01-4 with SP1.

Supported Operating Systems

PERC 5/E Adapter with MD1000

MD3000 Storage Array (MD1000 Optional)

Table 6. Supported Operating Systems for PowerVault MD1000 Systems

Operating System Minimum Revision Notes

Microsoft Windows Server 2000

Standard, Enterprise

Service Pack 4

Microsoft Windows Server 2003

Standard, Enterprise

Service Pack 1

Microsoft Windows Server 2003

Standard, Enterprise x64

Service Pack 1

Microsoft Cluster Server (MSCS) Not Supported Clustering not supported

Red Hat Enterprise Linux version 3

(x86, 64)

Update 6

Red Hat Enterprise Linux version 4 (x86)

Red Hat Enterprise Linux version 4

(x86-x64)

Red Hat Enterprise Linux version 5

(x86 and x86-x64)

SUSE Linux Enterprise Server 9 (x86-64) SP3

SUSE Linux Enterprise Server 10 (x86-64)

Table 7. Supported Operating Systems for PowerVault MD3000 Systems

Operating System Minimum Revision Notes

Microsoft Windows Server 2003, Standard,

Enterprise

Service Pack 1

Microsoft Windows Server 2003,

Standard, Enterprise x64

Service Pack 1

Microsoft Windows Storage Server 2003 Service Pack 1

Microsoft Windows Unified Data Storage

Server 2003,

Standard, Enterprise x64

Service Pack 1

Microsoft Cluster Server (MSCS) Microsoft Windows 2003

Support Only

NOTE: Some servers do not support all the operating systems.

NOTE: Windows 2003 Server requires hotfix KB916048.

Supported Management Software

PERC 5/E Adapter with MD1000

MD3000 Storage Array (MD1000 Optional)

Microsoft Windows Server 2000,

Standard, Advanced

Service Pack 4

Red Hat Enterprise Linux version 3

(x86, x64)

Update 6

Red Hat Enterprise Linux version 4

(x86, x64)

Update 2

Red Hat Enterprise Linux version 5

(x86 and x86-x64)

SUSE Linux Enterprise Server 9 (x86-64) SP2

SUSE Linux Enterprise Server 10 (x86-64)

Table 8. Supported Management Software for PowerVault MD1000 Systems

Software Release, Revision Notes

Dell OpenManage™ 5.2.0

Table 9. Supported Management Software for PowerVault MD3000 Systems

Software Release, Revision Notes

Dell Modular Disk Storage

Manager Package

02.17.G6.27 02.17.G6.26 is the minimum

revision for NX1950

Dell Modular Disk Storage

Manager VDS/VSS

09.19.G6.00

Microsoft Windows MPIO 01.01.36.19 Multipath software

Linux 2.4 Kernel:MPP 09.00.A6.01 Multipath software

Linux 2.6 Kernel:MPP (prior to

2.6.16-37)

09.01.B6.16 Multipath software

Table 7. Supported Operating Systems for PowerVault MD3000 Systems (continued)

Operating System Minimum Revision Notes

Supported Hard Drives

PERC 5/E Adapter with MD1000

Linux 2.6 Kernel:MPP (2.6.16-37

and greater)

09.01.C6.02 Multipath software

Table 10. Supported Hard Drives for PowerVault MD1000 Systems

Drive Minimum Firmware Revision Notes

Maxtor SAS 73 GB 10K RPM BP05

Maxtor SAS 146 GB 10K RPM BP05

Maxtor SAS 300 GB 10K RPM BP05

Maxtor SAS 36 GB 15K RPM BP05

Maxtor SAS 73 GB 15K RPM BP05

Maxtor SAS 146 GB 15K RPM BP05

Fujitsu SAS 36 GB 15K RPM D206

Fujitsu SAS 73 GB 15K RPM D206

Fujitsu SAS 146 GB 15K RPM D206

Seagate (15K.4) SAS 36 GB 15K

RPM

S410

Seagate (15K.4) SAS 73 GB 15K

RPM

S410

Seagate (15K.4) SAS 146 GB 7.2K

RPM

S410

Seagate SATA 250 GB 7.2K RPM 3BKE

Seagate SATA 500 GB 7.2K RPM 3BKE

Seagate SATA 750 GB 7.2K RPM 3BKE

Western Digital (WD2500JS)

SATA 250 GB 7.2K RPM

2E04

Western Digital (WD2500YS)

SATA 250 GB 7.2K RPM

6C05

Western Digital SATA 500 GB

7.2K RPM

2E0A

Table 9. Supported Management Software for PowerVault MD3000 Systems (continued)

Software Release, Revision Notes

MD3000 Storage Array (MD1000 Optional)

Hitachi SATA 500 GB 7.2K RPM AB5A

Table 11. Supported Hard Drives for PowerVault MD3000 Systems

Drive Minimum Firmware Revision Notes

Fujitsu SAS 36 GB 15K RPM D206

Fujitsu SAS 73 GB 15K RPM D206

Fujitsu SAS 146 GB 15K RPM D206

Hitachi SAS 36 GB 15K RPM A480

Hitachi SAS 73 GB 15K RPM A480

Hitachi SAS 146 GB 15K RPM A480

Seagate (15K.4) SAS 36 GB 15K RPM S411

Seagate (15K.4) SAS 73 GB 15K RPM S411

Seagate (15K.4) SAS 146 GB 15K

RPM

S411

Seagate (15K.5) SAS 73GB 15K RPM S512

Seagate (15K.5) SAS 146 GB 15K

RPM

S512

Seagate (15K.5) SAS 300 GB 15K

RPM

S512

Seagate (T10) SAS 73GB 10K

Performance

T106

Seagate (T10) SAS 146 GB 10K

Performance

T106

Seagate (T10) SAS 300 GB 10K

Performance

T106

Table 10. Supported Hard Drives for PowerVault MD1000 Systems (continued)

Drive Minimum Firmware Revision Notes

Supported Hardware Configurations

NOTE: The following MD1000 and MD3000 hardware configurations are supported only on Dell-qualified

hardware.

MD1000 Configurations

Figure 1 shows typical hardware configurations for the PowerVault MD1000 enclosure. Figure 2 shows

the maximum configuration in a single PERC5/E controller (3 enclosures per PERC5/E port in unified

mode) with both parts connected.

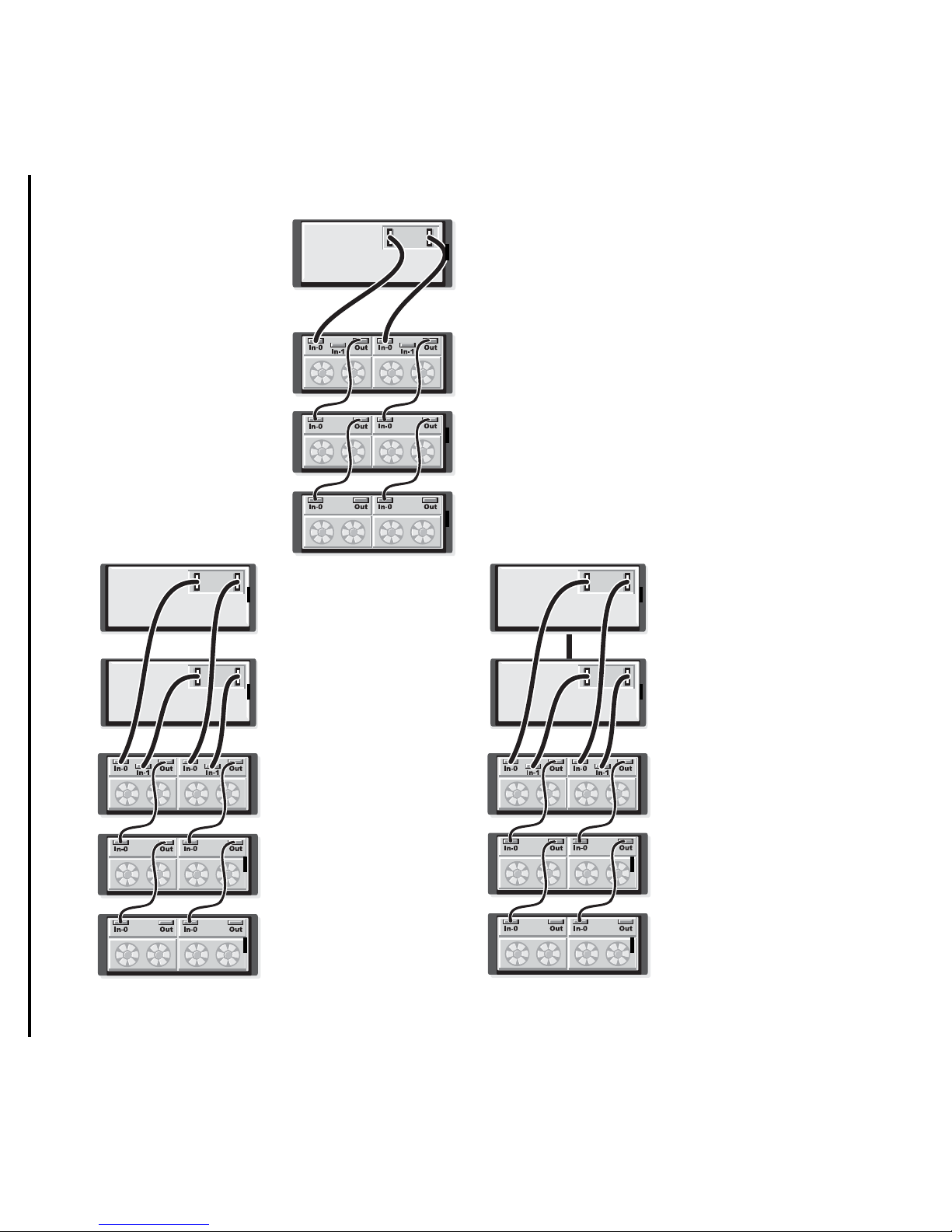

Figure 1. Supported Hardware Configuration (MD1000)

Figure 2. Max Configuration on a Single PERC 5/E Controller (both parts connected) (MD1000)

MD3000 Configurations

Redundant Configurations

The configurations shown in Figure 3 are supported only on Linux operating systems. Windows support

for these configurations will be added in a later MD3000 release.

NOTE: For Dell PowerVault NX1950 storage systems only, the single-HBA host server configuration

(top illustration) in Figure 1 is supported using Windows operating systems.

Unified Mode

single-HBA host server

Figure 3. Redundant Data Paths for Single-HBA Host Servers (Linux Only)

MD3000 RAID Enclosure

single-HBA host server

MD1000 Expansion Enclosure

MD3000 RAID Enclosure

single-HBA host server

MD1000 Expansion Enclosure

MD1000 RAID Enclosure

MD1000 Expansion Enclosure
