Dell PowerConnect M8428-k Manuale utente

Dell 10Gb Ethernet Pass Through -k for M1000e

User Manual

Rev 1.0

16 Port Pass Through Module

Document Number: 3303

Rev 1.0

____________________

Information in this SXEOLFDWLRQ is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, and PowerEdge™ are trademarks of Dell Inc.

Other trademarks and trade names may be used in this SXEOLFDWLRQ to refer to either the entities claiming the mark and names or their

products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

Dec. 2010 Rev: A00

Dell -10GbE PTM Rev 1.0

Table of Contents

Intended Audience 5

Conventions 5

Chapter 1 Overview 6

1.1 Features 6

1.2 Serial Number and Product Version Information 7

Chapter 2 Installation and Basic Operation 8

2.1 Unpacking the Pass Through Module 8

2.2 Insertion and Removal of the PTM 8

2.2.1 PTM Insertion 8

2.2.2 PTM Removal 9

2.3 Connecting the External Ports 9

2.3.1 10 Gigabit Ethernet SFP+ Modules 9

2.3.2 Installation and Removal of Optical Transceiver Modules 9

2.4 LED Indicators 10

2.4.1 System LEDs 10

2.4.2 Port LEDs 10

2.4.3 Installation Safety Warnings 12

2.4.4 Mechanical Installation 13

2.4.5 Cable Installation 13

Chapter 3 Troubleshooting 14

Appendix A Specifications 15

A.1 Mechanical Drawing with Dimensions 17

Appendix B Supported Cables and Media Types 18

Appendix C EMC Certification Statements 19

C.1 FCC Statements (USA) 19

C.2 EN Statements (Europe) 19

C.3 ICES Statements (Canada) 20

C.4 VCCI Statements (Japan) 20

C.5 KCC Certification (Korea) 20

Appendix D Interface Connector Pinouts 22

D.1 SFP+ Interface 22

Rev 1.0

Related Documentation

The documentation set accompanying the DEll Pass Through Module includes the following:

Table 1 - Reference Documents and Web Sites

Revision History

Firmware and Firmware Update Tools support.dell.com

Dell Pass Through Module SoftwareUser Manual support.dell.com

Latest Supported Cables and Optical Modules See Supported Cables and Media Types on page 18

in this document

Table 2 - Revision History

Revision Date Description

1.0 April 01st,

2011 Initial Release

Dell -10GbE PTM Rev 1.0

About this Manual

This manual describes the installation and basic use of the Dell 10Gb Ethernet Pass Through -k 16

port module for blade servers.

Intended Audience

This manual is intended for users and system administrators responsible for installing and setting

up the Dell 10Gb Ethernet Pass Through -k module for blade servers.

Conventions

The terms downlink (internal–from servers) and uplink (external–out to the world) are used

throughout the document.

The term PTM is used to indicate the Dell 10Gb Ethernet Pass Through -k module.

Caution: This symbol indicates the possibility of physical injury to the user or

installer.

OverviewRev 1.0

1Overview

The PTM is an I/O module designed for the PowerEdge M1000e Dell Chassis. The product pro-

vides 10Gigabit connectivity for blade servers to Ethernet LANs. The product supports the follow-

ing Ethernet protocols.

Each front panel port provides connectivity to the blade with the corresponding number in the

chassis.

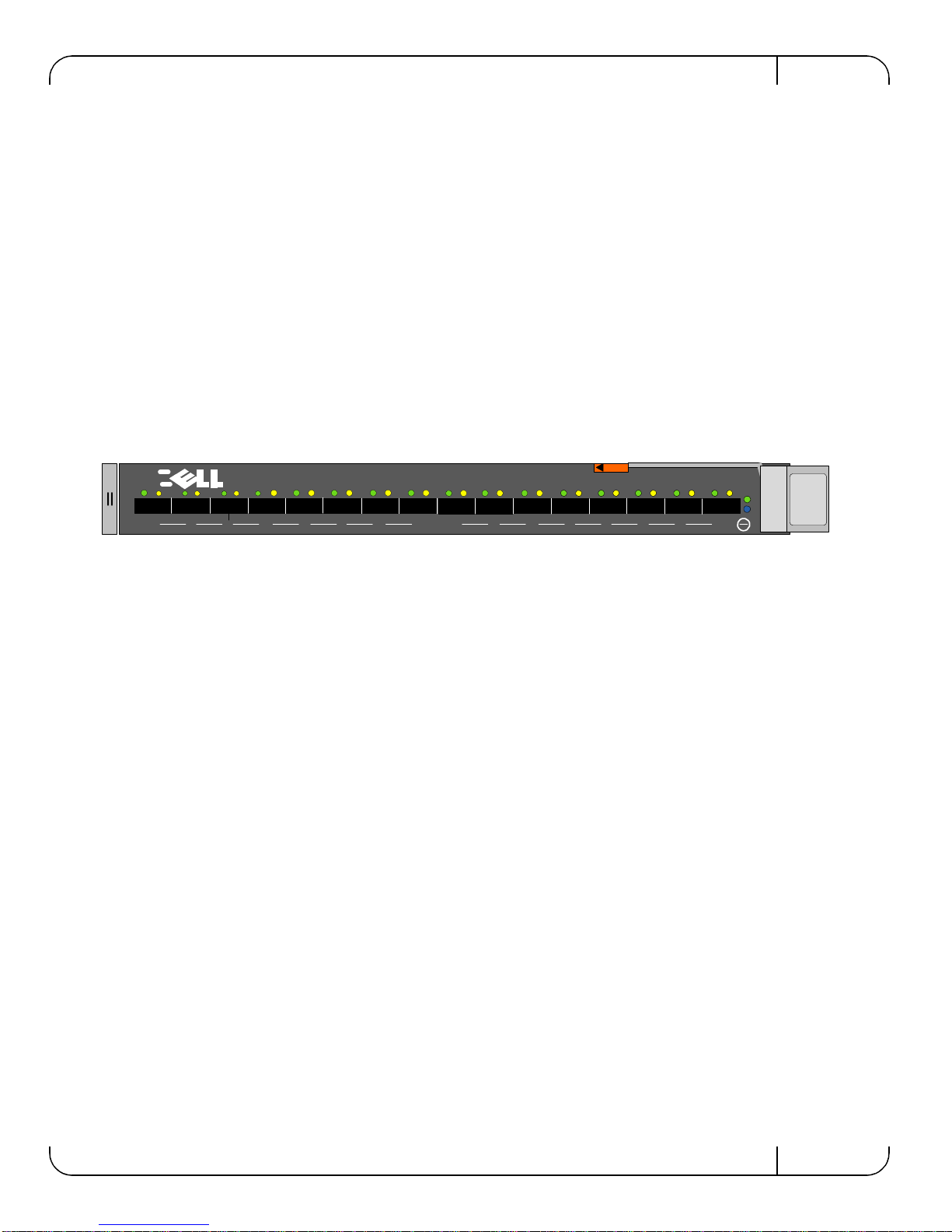

Figure 1: Dell 10Gb Ethernet Pass Through -k module Front Panel

1.1 Features

The PTM feature set includes:

Internal Links

• 16 ports of 10Gb Ethernet 10GBASE-KR through the backplane

External links

• 16 SFP+ front panel ports of 10Gb Ethernet

IEEE and Other Ethernet Standards Compliance

• IEEE 802.3ae 10Gigabit Ethernet support

• IEEE 802.3ap Ethernet Operation over Electrical Backplanes

• Including KR startup protocol and Forward Error Correction (FEC) support

• Supports KR auto-negotiation

• Jumbo Frames up to 9K support

Connectors and Cabling

• Twin Axial Pair connector

• Optical modules for SR and LR

• All ports support active cables

Table 3 - Protocols

Physical Connections Pass Through -k Protocol

Blade Servers to PTM (Internal Links) KR

Front Panel Ports (External Links) 10G XFI

10 Gb Ethernet Pass Through -k

Dell -10GbE PTM Rev 1.0

Front Panel Indicators

• Per port status LEDs: Link Up, Link Activity

• System status LEDs: Power Supply, Status

1.2 Serial Number and Product Version Information

The serial number and product version information are found on the label seen in the figure below.

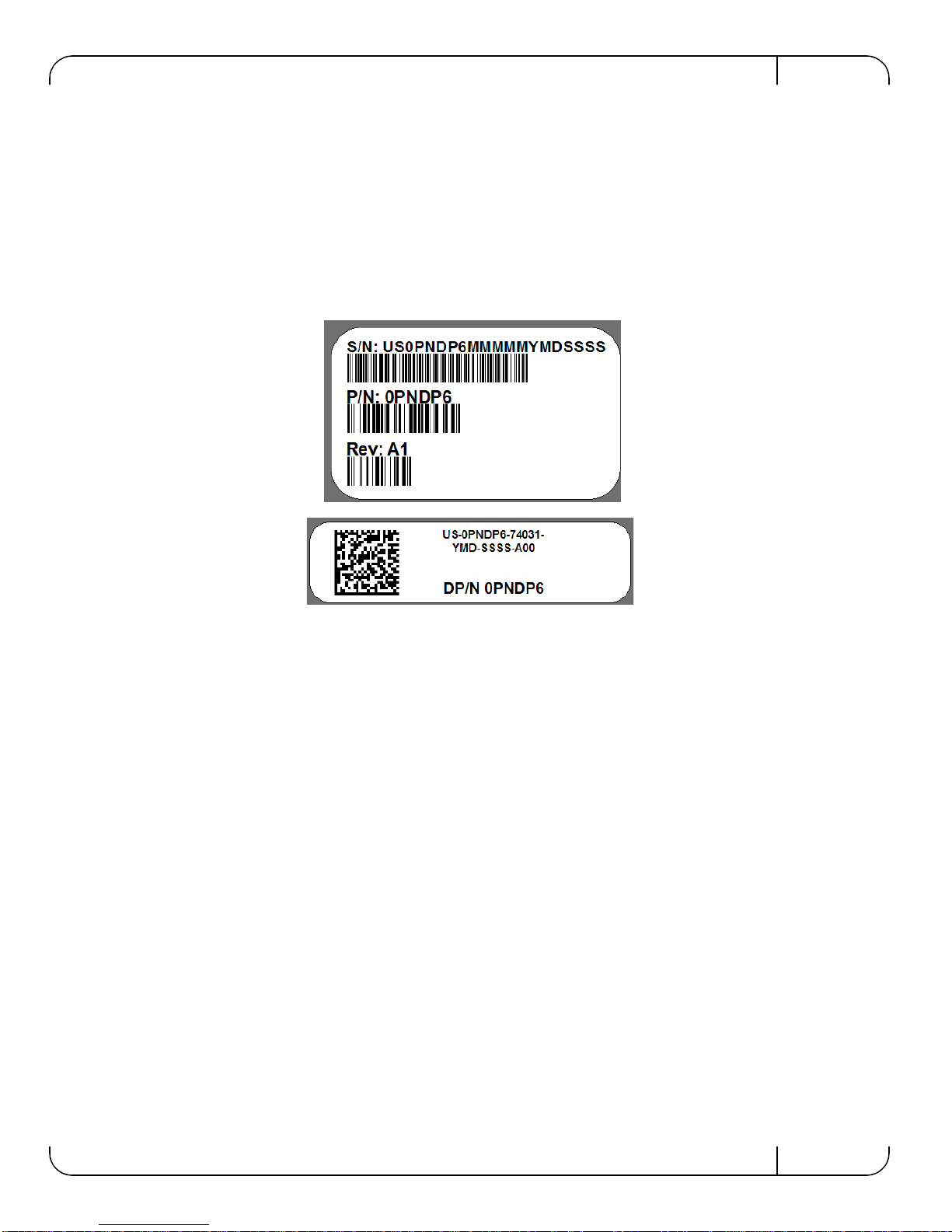

Figure 2: Generic Product label

Installation and Basic OperationRev 1.0

2Installation and Basic Operation

2.1 Unpacking the Pass Through Module

Before you install your new PTM, unpack it and make sure that there is no visible damage that

may have occurred during shipping. Your package should contain the following items:

• Dell 10Gb Ethernet Pass Through -k module for Blade Servers

• This Users Manual

The PTM is shipped without optical modules.

If anything in the package is damaged or missing, please contact your customer representative

immediately.

2.2 Insertion and Removal of the PTM

The Dell 10Gb Ethernet Pass Through -k module may be plugged into fabric slots A1, A2, B1, B2,

C1, and C2.

Determine which slot to use, based on desired system configuration.

2.2.1 PTM Insertion

Insert the PTM into the chassis as shown in the following diagram:

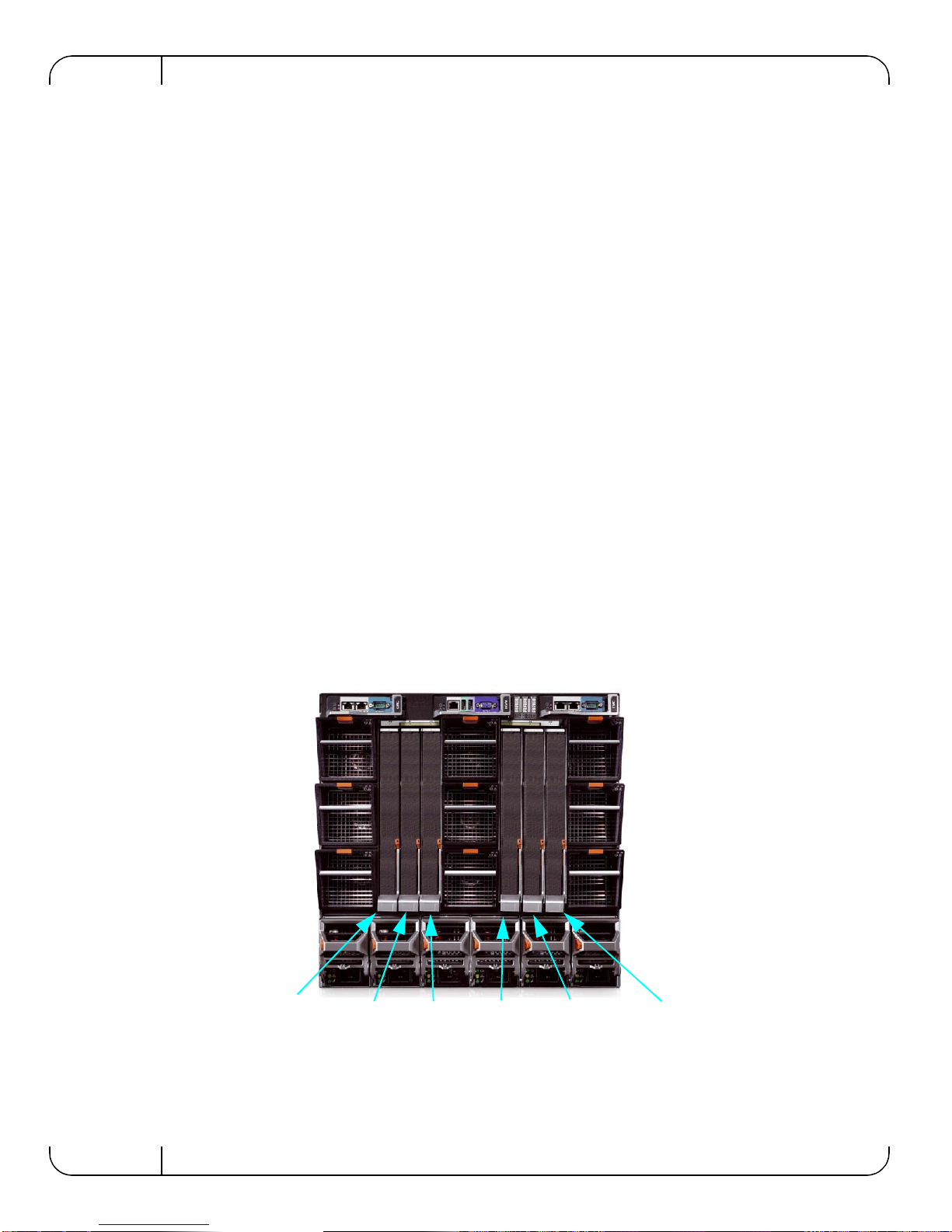

Figure 3: Dell Chassis Slots for the PTM

Slot A1 Slot B1 Slot C1 Slot A2

Slot B2Slot C2

Dell -10GbE PTM Rev 1.0

The PTM supports hot-insertion into the chassis. If the PTM is inserted to a powered chassis, the

power LED (green) should turn on immediately.

2.2.2 PTM Removal

The PTM supports hot-removal. It may be removed when the chassis is powered on or off.

The PTM must not be removed during a firmware update process.

Note: Firmware update is in progress when the Yellow LED is blinking.

2.3 Connecting the External Ports

The PTM front panel presents 16 SFP+ ports. Each port provides connectivity to a server with the

respective number. Figure 4 shows the front panel view of the PTM.

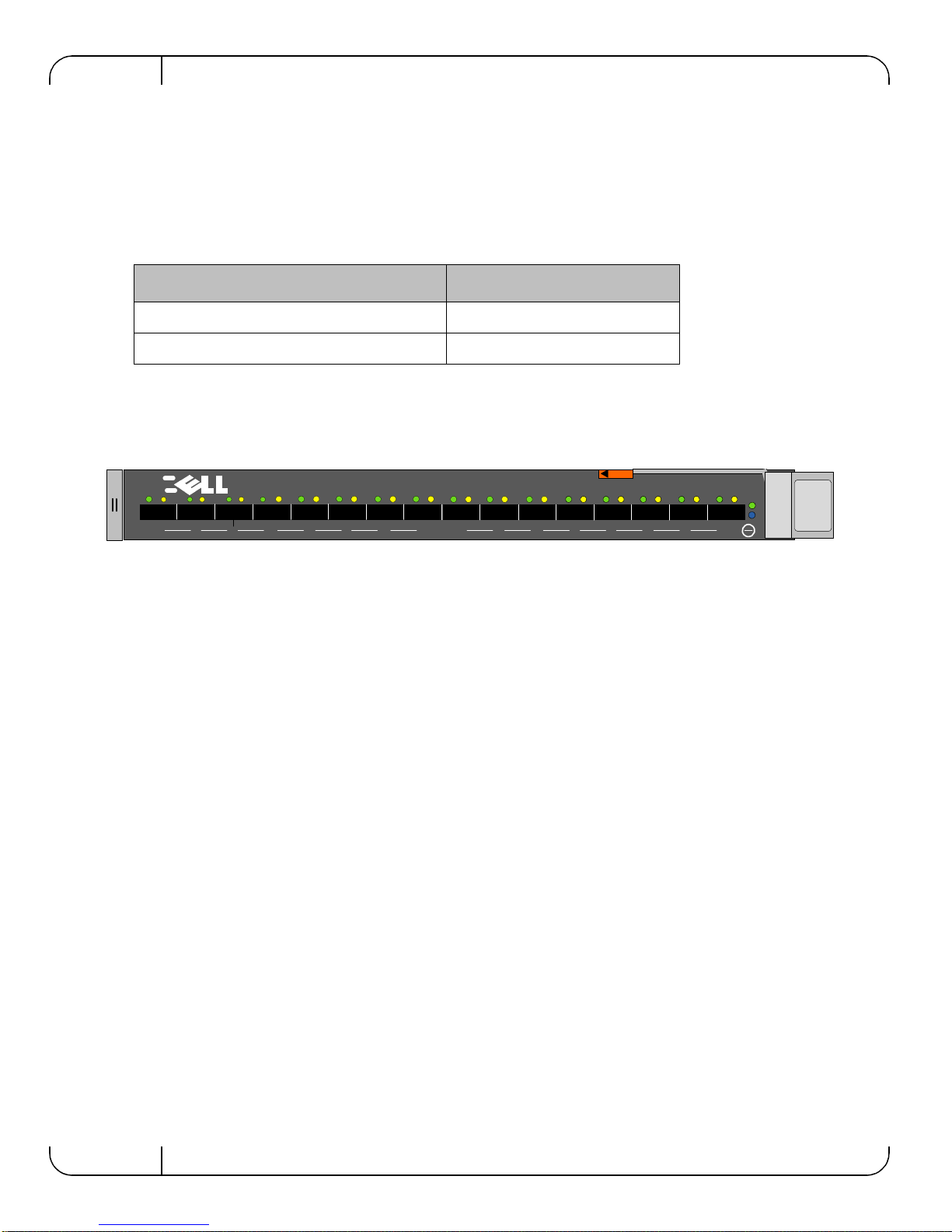

Figure 4: Dell 10Gb Ethernet Pass Through -k module Front Panel

2.3.1 10 Gigabit Ethernet SFP+ Modules

The PTM supports SFP+ modules for 10 Gigabit Ethernet, with 10GBASE-SR and 10GBASE-LR

PHYs. SFP+ modules must be approved for use with this PTM. Modules not approved may not

work. See Supported Cables and Media Types on page 19 for lists of approved Direct Attached

Copper cables (DACs) and optical modules.

2.3.2 Installation and Removal of Optical Transceiver Modules

Optical transceiver modules have a locking mechanism which can be opened or closed.

To insert the module into the cage:

1. Open the module’s locking mechanism.

2. Make sure that the male connectors on the module aligns with the female connector inside of

the cage. Also check that there is no dirt or foreign matter in the module or in the cage.

3. Insert the module into the adapter card module cage.

4. Close the locking Mechanism.

To remove the module from the cage:

1. Unlock the locking mechanism by opening the handle.

2. Pull the module out of the cage.

D10 Gb Ethernet Pass Through -k

Installation and Basic OperationRev 1.0

2.4 LED Indicators

2.4.1 System LEDs

The system status LEDs indicate whether the PTM is receiving power from the chassis, and the

state of the PTM.

There are two system LEDs on the end of the module. The LED indications and meanings are

explained in the figure and table below.

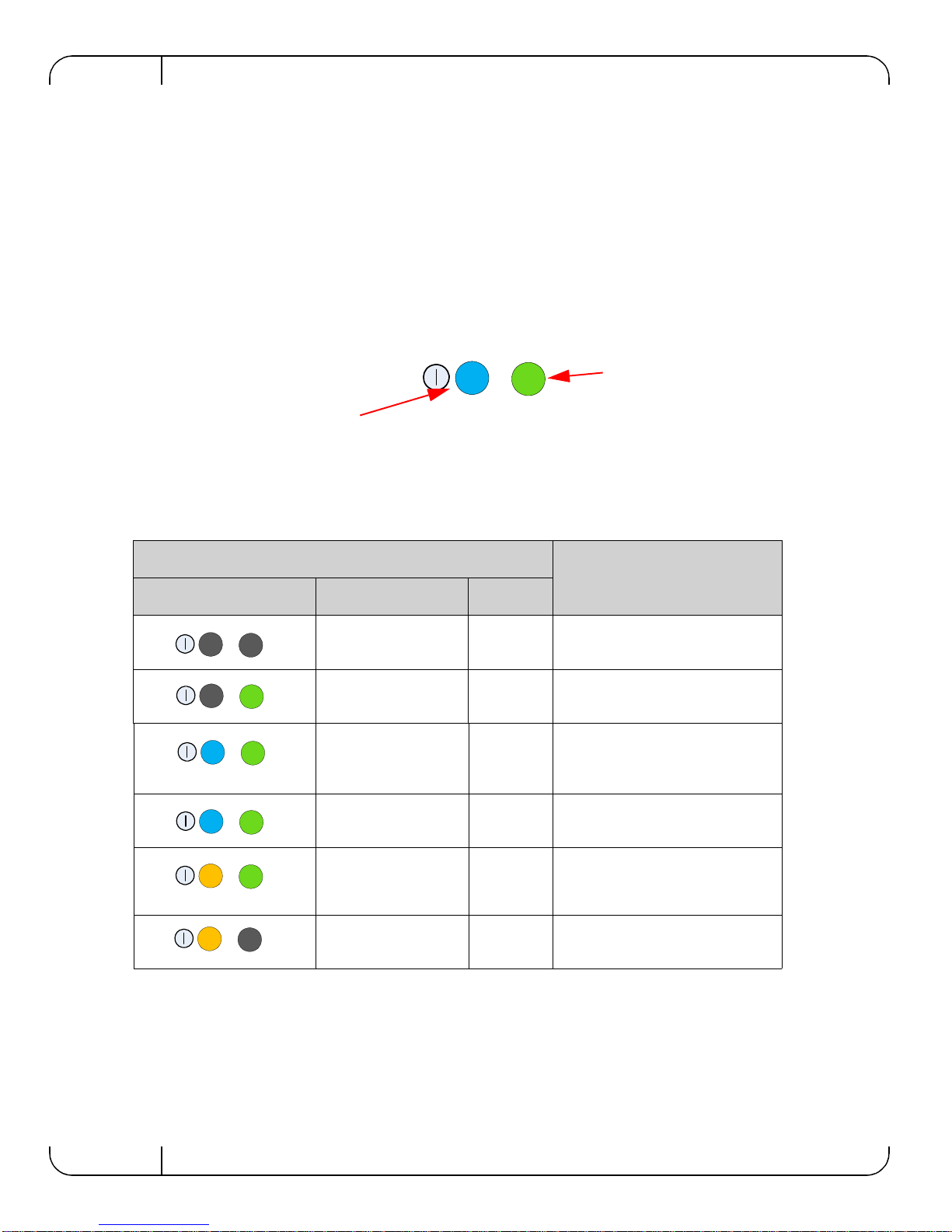

Figure 5: Indicator LEDs

Table 4 - PTM states and LED configurations:

2.4.2 Port LEDs

The PTM has two I/O LEDs per port. The I/O LEDs are located on the I/O panel. The green LED,

when lit, indicates that the driver is running and a valid physical connection between nodes exists.

If the green LED is blinking, it indicates a problem with the physical link. The yellow LED when

lit, indicates a valid data activity link, this is the logical link. The yellow LED illuminates when the

LED Module Status

Indication Status Power

OFF OFF OFF

OFF ON Boot in Progress

PTM not ready

Blinking Blue

BLINKING BLUE ON The CMC is identifying

the newly installed PTM

ON BLUE ON PTM is on and operating Normally

ON or BLINKING

Yellow ON FW update is in progress or

Fault in System

Self-diagnosed

ON or BLINKING

Yellow OFF Fault in System

CMC-detected

The IO Module is on and

ready when this LED is

green.

This LED can be blue or Yel-

low. A fault is indicated when

the Yellow LED is blinking.

See Table 4.
