INSTALLATION and SERVICE INSTRUCTIONS

USE and CARE INSTRUCTIONS

BUILT-IN GAS

HOBS

Models: DE30W - DE320G

Dear Customer,

Thank you for having purchased and given your

preference to our product.

The safety precautions and recommendations reported

below are for your own safety and that of others. They

will also provide a means by which to make full use of

the features offered by your appliance.

Please keep this booklet in a safe place. It may be

useful in future, either to yourself or to others in the

event that doubts should arise relating to its operation.

This appliance must be used only for the task it has

explicitly been designed for, that is for cooking

foodstuffs. Any other form of usage is to be considered

as inappropriate and therefore dangerous.

The manufacturer declines all responsibility in the

event of damage caused by improper, incorrect or

illogical use of the appliance or be faulty installation.

PRODUCT LABEL

IMPORTANT PRECAUTIONS AND RECOMMENDATIONS FOR

USE OF ELECTRICAL APPLIANCES

Use of any electrical appliance implies the necessity to follow a series of fundamental

rules. In particular:

■Never touch the appliance with wet hands or feet;

■do not operate the appliance barefooted;

■do not allow children or other incapable people to use the appliance

without supervision.

The manufacturer cannot be held responsible for any damages caused by improper,

incorrect or illogical use of the appliance.

This cooktop has been designed and constructed in accordance with the following

codes and specifications:

AGA101 (AS 4551) Approval Requirements for Domestic Gas cooking appliances

AS/NZS 60335-1 General Requirements for Domestic electrical appliances

AS/NZS 60335-2-6 Particular Requirements for Domestic electrical cooking appliances

AS/NSZ 1044 Electromagnetic Compatibility Requirements.

IMPORTANT PRECAUTIONS AND RECOMMENDATIONS

After having unpacked the appliance, check to ensure that it is not damaged.

In case of doubt, do not use it and consult your supplier or a professionally qualified

technician.

Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should

not be left around within easy reach of children, as these may cause serious injuries.

■Do not attempt to modify the technical characteristics of the appliance as this

may become dangerous to use.

■Do not carry out cleaning or maintenance operations on the appliance without

having previously disconnected it from the electric power supply.

■After use, ensure that the knobs are in off position.

■Do not allow children or other incapable people to use the appliance without

supervision.

■During and after use of the hob, certain parts will become very hot. Do not

touch hot parts.

■Keep children away from the appliance when it is in use.

■Some appliances are supplied with a protective film on steel and aluminium

parts. This film must be removed before using the appliance.

■The manufacturer declines all liability for injury to persons or damage to proper-

ty caused by incorrect or improper use of the appliance.

INSTALLATION

CAUTION:

■

This appliance must be installed in accordance with these installation

instructions, local gas fitting regulations, municipal building codes,

water supply regulations, electrical wiring regulations, AS5601 / AG 601

- Gas Installations and ony other relevant statutory regulations.

■

This appliance shall be only be serviced by authorized personnel.

■

This appliance is to be installed only by an authorised person.

■

Incorrect installation, for which the manufacturer accepts no

responsibility, may cause personal injury of damage.

■

Always disconnect the appliance from mains power supply before carrying

out any maintenance operations or repairs.

■

In the room where the appliance is installed, there must be enough air to

allow the gas to burn correctly, according to the current local

regulations.

ELECTRICAL REQUIREMENTS

■The appliance must be connected to the mains checking that the voltage

corresponds to the value given in the rating plate and that the electrical

cable sections can withstand the load specified on the plate.

■The plug must be connected to an earthed socket in compliance with safety

standards.

■If the appliance is supplied without plug, fit a standard plug which is

suitable for the power consumed by the appliance.

■The wires in the power cable are coloured in accordance with the following

code: Green/Yellow = Earth, Blue = Neutral, Brown = Active.

If the colours of the wires in the power cable to the appliance do not

correspond with the coloured markings identifying the terminals in the

junction terminal, proceed as follows:

1.The wire which is coloured green and yellow must be connected to the

terminal marked E (Earth) or coloured Green.

2.The wire which is coloured blue must be connected to the terminal marked

N (Nuetral) or coloured Black.

3.The wire which is coloured brown must be connected to the terminal

marked L (Live) or A (Active) or coloured Red.

■The appliance must be connected directly to the mains placing a two pole

switch with minimum opening between the contacts of 3 mm between the

appliance and the mains.

■The power supply cable must not touch the hot parts and must be

positioned so that it does not exceed 50°C above ambient.

■Once the appliance has been installed, the switch or socket must always be

accessible.

■

If the supply cord is damaged it must be replaced by the manufacturer or it’s

Service Agent or a similarly qualified person in order to avoid a hazard.

N.B. The connection of the appliance to earth is mandatory.

If the installation requires alterations to the domestic electrical system call a qualified

electrician.

He should also check that the socket cable section is suitable for the power drawn

by the appliance.

Replacing the power cord must be done by a qualified electrician in

accordance with the instructions supplied by the manufacturer and in

compliance with established electrical regulations.

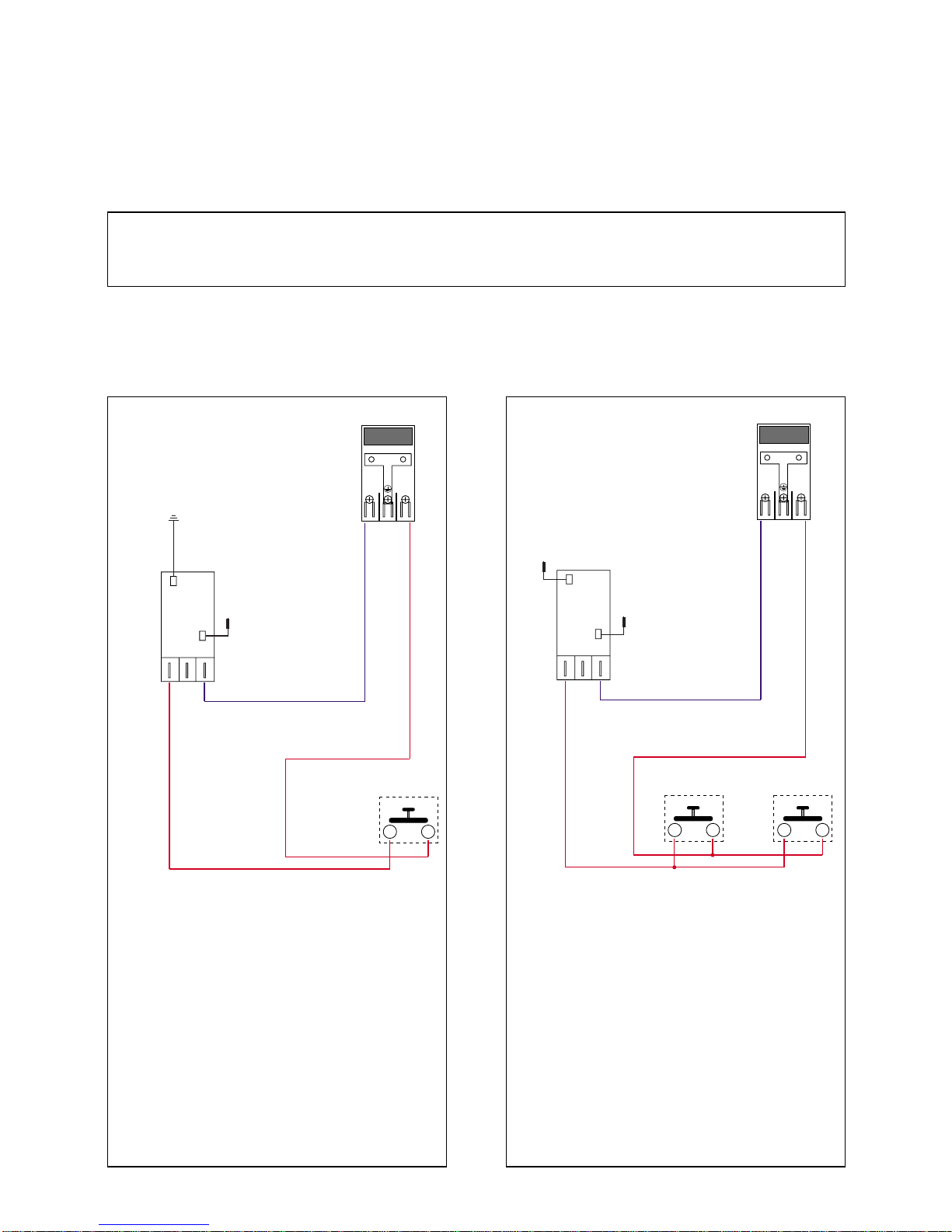

1 BURNER COOKING HOB

ELECTRIC DIAGRAM KEY

A Ignition coil

PA Ignition switch

CA Spark electrode

M Terminal block

Figure 1

PAPA

2 BURNER COOKING HOB

ELECTRIC DIAGRAM KEY

A Ignition coil

PA Ignition switches group

CA Spark electrode

M Terminal block

Figure 2

Figure 3

CLEARANCES:

Installation clearances and protection of combustible surfaces shall comply with the

current local regulations e.g. AG 601 (AS 5601) - Gas Installations code.

DIMENSIONS:

(Note: Also refer to Figure 3)

General Dimensions

Width 288 mm

Depth 510 mm

Depth Below Mounting Surface 30 mm

Cut-out Dimensions

Width 270 mm

Depth 490 mm

Important note:

This appliance shall not be used as a space heater, especially if installed in marine

craft or caravans.

– 2

510

288

490

+ 0

–2

270

+ 0

–2

510

288

490

+ 0

– 2

270

+ 0

– 2

750 mm

50 mm min

100 mm min

500 mm

450 mm

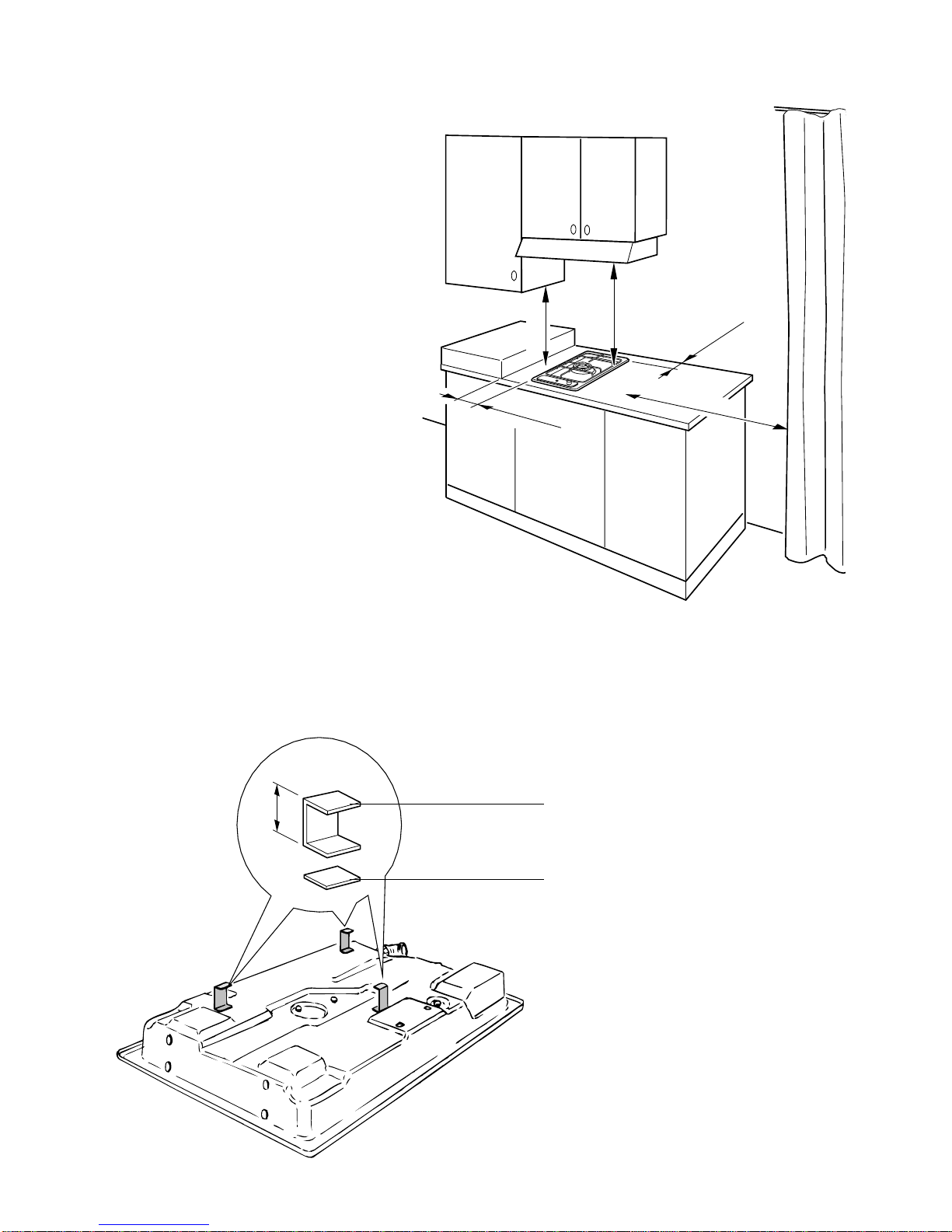

The installation shall comply

with the dimensions in Figures

3 and 4, bearing in mind that:

■A minimum clearance

of 20 mm has to be

kept between the bottom

of the cooking hob and

the top of an appliance

or a shelf.

To ensure this clear-

ance mount the spac-

ers supplied with the

appliance as shown in

the figure 5.

■A partition between the

base of the hob and the

cupboard below should

be fitted 100 mm

below the workbench

surface if the cupboard is

to be used for storage.

Figure 4

20 mm

Double-sided

adhesive tape

Spacer

■Overhead clearances -

In no case shall the clear-

ance between the highest

part of the hob and a

range hood be less than

600 mm, or for an over-

head exhaust fan, 750

mm. Any other down-

ward facing combustible

surface less than 600 mm

above the highest part of

the hob shall be protect-

ed for the full width and

depth of the cooking sur-

face area in accordance

with local regulations in

force. However, in no

case shall this clearance

to any surface be less

than 450 mm.

Figure 5

FASTENING THE COOKTOP

(fig. 6)

Each cooktop is supplied with a set of

tabs and screws to fasten it on units

with a working surface from 2 to 4 cm

deep.

The kit includes 4 tabs “A” and 4 self-

threading screws “B”.

■Cut the unit.

■Stretch gasket “D” over the edge of

the hole made, being careful to

overlay the junction edges.

■Turn the cooktop over and put tabs

“A” (fig. 6) into the mountings; only

tighten screws “B” a few turns.

Make sure that the tabs are mounted

correctly as shown in the figure 7.

■Put the cooktop into the hole cut

into the unit and position it correct-

ly.

■Put tabs “A” into place, tooth “C” of

the tabs should go into the hole.

■Tighten screws “B” until the cook-

top is completely secured.

■Using a sharp tool cut off the part

of gasket “D” which protrudes from

the cooktop.

■Side clearances - Where the dimensions from the periphery of the nearest

burner to any vertical combustible surface is less than 200 mm, the surface

shall be protected in accordance with local regulations in force to a height

of not less than 150 mm above the hob for the full dimension (width or

depth) of the cooking surface area.

Where the dimensions from the periphery of the nearest burner to any hori-

zontal combustible surface is less than 200mm, the horizontal surface shall

be greater than 10mm below the surface of the hob, or the horizontal sur-

face requirement above.

■Protection of combustible surfaces - Local regulations in force specifies

that where required protection shall ensure that the surface temperature of

the combustible surface does not exceed 65 °C above ambient. The fixing of

5 mm thick ceramic tiles to the surface or attaching fire resistant material to

the surface and covering with sheet metal with minimum thickness of 0.4

mm should be satisfactory.

Figure 6

Figure 7

20 mm min.

40 mm max.

Take care not to

damage the countertop.

GAS SUPPLY:

■This appliance is suitable for use with Natural Gas or ULPG. (Check the

“gas type” sticker attached to the appliance).

■For Natural Gas the gas supply must be regulated to obtain a pressure of 1 kPa

with the two largest burners operating.

■For ULPG models connect the gas supply directly to the appliance test

point adaptor (supplied with the conversion kit) and ensure that the supply pres-

sure is regulated to 2.75 kPa.

■Do NOT force the ”elbow“ rotation prior to loosening nut.

■Do NOT over tighten the nut at the ”elbow“.

Gas connection for

NATURAL GAS

Figure 9

Figure 8

Gas connection for

ULPG

Gas inlet pipe

Gasket

Brass conical adaptor

(Thread tight: use

suitable seal)

Test point adaptor

Gasket

Brass conical adaptor

(Thread tight: use

suitable seal)

Gas regulator

Gas inlet pipe

Test

point

Test

point

1. After connecting the gas supply, check the piping and connections for leaks

using a soap and water solution. The presence of bubbles indicates a leak, tight-

en or replace connections as appropriate.

Warning: Do not use any naked flame to check for leaks.

2. The operation of the appliance MUST be tested before leaving.

3. Adjust the test point pressure or supply pressure to the value which is appropri-

ate for the gas type.

4. Turn on the appliance gas controls and light each burner. Check for a well

defined blue flame without any yellow tipping. If any abnormality is evident then

check that the burner cap is located properly and the injector nipple is aligned

correctly.

5. Check the minimum burner setting by quickly rotating the gas control knob from

the maximum to the minimum position, the flame must not go out. If adjust-

ment is required carry out the “minimum burner setting adjustment" procedure

described below.

6. If satisfactory performance cannot be obtained, the installer shall check the instal-

lation and notify the local gas supply authority for a gas supply problem, or if it

is an appliance problem, our Customer Service Centre should be called to obtain

the nearest authorized Delonghi Service Agent.

7. Where the appliance data plate cannot be easily read with the appliance in the

installed position the duplicate data plate must be attached to adjacent surface

and the duplicate Natural gas / ULPG conversion label should also be included

where a Natural gas / ULPG conversion has been completed.

Figure 10

■If this appliance has to be installed with a hose assembly, the installer shall

refer to the network operator or gas supplòier for confirmation of the gas type,

if in doubt.

INSTALLATION WITH A FLEXIBLE HOSE ASSEMBLY

■The gas supply connection point shall be accessible when the appliance is

installed.

■Installation with a flexible hose assembly shall be carried out by using a hose

with internal diameter of 16 mm minimum.

The thread connection shall be Rp 1/2" (ISO 7-1) male.

■IMPORTANT WARNING: After connection the installer must check that the hose

is not kinked, subjected to abrasion or permanently deformed.

The installer must check also that the hose is not near (or in contact) with any

hot surfaces e.g. base of metal hotplate, underbench oven etc.

■The hose assembly shall be as short as practicable and comply with relevant

AS 5601/601 requirements.

■IMPORTANT WARNING: The installer shall ensure the hose assembly is restrained

from accidental contact with the flue outlet of an underbench oven.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali DeLonghi Piano cottura

DeLonghi

DeLonghi P70 Series Manuale operativo

DeLonghi

DeLonghi Domino Guida rapida

DeLonghi

DeLonghi DEGH90W Guida rapida

DeLonghi

DeLonghi dihs602 Guida rapida

DeLonghi

DeLonghi DEGH60BG Guida all'installazione

DeLonghi

DeLonghi DTCH80 Manuale utente

DeLonghi

DeLonghi CR 265 ST Istruzioni operative

DeLonghi

DeLonghi DOMINO DE302HB Guida rapida

DeLonghi

DeLonghi DEGHBG90 Guida rapida

DeLonghi

DeLonghi DE30WGB Guida all'installazione

DeLonghi

DeLonghi DEGH90WF Guida all'installazione

DeLonghi

DeLonghi Domino DE302IB Guida rapida

DeLonghi

DeLonghi DEGH60ST Manuale utente

DeLonghi

DeLonghi DEGH70W Guida all'installazione

DeLonghi

DeLonghi DGHS70W Guida rapida

DeLonghi

DeLonghi DIHS62 Manuale utente

DeLonghi

DeLonghi GH160 Istruzioni operative

DeLonghi

DeLonghi P60 Manuale utente

DeLonghi

DeLonghi DEGMATIK90 Istruzioni operative

DeLonghi

DeLonghi NSL 460 NCM Guida rapida

DeLonghi

DeLonghi DIHS604 Guida rapida

DeLonghi

DeLonghi DEIND64P Guida rapida

DeLonghi

DeLonghi GHS 260 Istruzioni operative

DeLonghi

DeLonghi DOMINO DE302HB Guida all'installazione

Manuali Piano cottura popolari di altre marche

Siemens

Siemens EX875KYV1E Scheda tecnica

AEG

AEG CERAMIC HOB 6010 K Manuale utente

VALERA

VALERA CT 70A Manuale utente

Zanussi

Zanussi ZGF 6420 Manuale utente

Gaggenau

Gaggenau CI 273 Manuale utente

G3 Ferrari

G3 Ferrari Energy Manuale utente

Pkm

Pkm IN4B Manuale utente

Award

Award H903BG Manuale utente

Zanussi

Zanussi VCH 5005 RZ Manuale utente

Miele

Miele KM 523 Manuale utente

Hotpoint

Hotpoint IS67V8CCXT/E Manuale utente

AEG

AEG HK854870XB Manuale utente

Cookology

Cookology SEP600BK Manuale utente

Bauknecht

Bauknecht Hob Manuale utente

Zanussi

Zanussi ZGM 782 Manuale utente

dipo INDUCTION

dipo INDUCTION DIBK218S Manuale utente

Miele

Miele KM 5987 Manuale utente

Miele

Miele KM 360 G Manuale utente
