DELTA DORE Tywatt 5400 Manuale utente

Tywa 5400 - 5600

Tywatt 5400

Smart modular power consumption sensor

Tywatt 5600

Smart electricity, water and energy (OMS)

consumption sensor

2 3

1 - Recommendations

- Device intended for single-phase installations

- Mounted on a DIN rail in the electrical cabinet

- 16A max. circuit breaker required.

- Position this product as far away as possible

from other units that generate strong electrical

interference.

Prerequisites

- A smart home hub connected

to the Internet router.

- The Tydom application

(available in Play Store

and Apple Store).

16A

max.

2 - Connection

Switch off the installation power supply.

2.1 Connection instructions

for the terminals

- Strip the wires while respecting

the strip length

specied on the product.

- Push the wire fully into

the terminal.

8 mm

0,75 - 1,5 mm

Removal

recommendations

- Switch off the power

supply.

- Use a screwdriver to press

the button of the terminal

before removing the wire.

If you do not have access to Internet, you can set

up your Tywatt with the Tydom application using

a Wi-Fi router.

4 5

2.2 Connection

LED alert:

- Solid green: Power supply OK.

- Flashing red:

Customer Information System (CIS) connection

fault

Connection of the open loop current

transformer (Ti)

Connection of the secondary:

- Connect the blue wire of the Ti to terminal 3

and the white wire to the terminal 6 of the Tywatt.

Connection of the primary:

- Open the current

transformer casing.

- Insert the substation’s

phase conductor or

conductors in keeping

with the direction of

circulation of the current

from source to load.

- Close the Ti casing and

make sure that it is

suitably locked.

ON KL

click

Source

Load

(1) Ability to connect 3 TIs in parallel at inputs 3

and 6, in order to facilitate the routing of various

measurement cables (single accumulation display

of the 3 TIs available in the Tydom application).

Up to 3 TI (1) in parallel.

Heating

Hot

water

Cooling

Outlets

Hot water

Cold water

Calories

LED

Conguration

button

*: Up to 3 OMS meters

(within the limit of max. 1

per substation to be measured).

OMS*

TYWATT 5600

TIC

35270-Bonnemain-FR

TYWATT 56

4 5 6

1 2 3

N L Ti

230V~

2 VA

6 7

Customer Information System connection.

Connect the Customer Information System (CIS) of the

electronic meter to terminals 4 and 5 of the Tywatt.

Switch the system on again.

3 - Association

3.1 Linking with the Tydom app

From the Tydom application, select:

Settings > My home > My devices >

Add a device >

Consumption > Tywatt 5400 / 5600 > then follow the

on-screen instructions.

After pairing, select the Tywatt to congure the

substation measured by the TI (heating, hot water,

outlets, cooling).

Remember to specify the type of substation

measured on the plate of the electrical cabinet.

For installations equipped with an EM.IC (consumption

information transmitter), pair the EM.IC with the Tywatt via

the Tydom application.

Using the Tydom application, select:

Settings > My home > My devices > Consumption > Then

select your previously paired Tywatt with which you wish to

pair the EM.IC and follow the instructions.

3.2 Deleting pairing with the Tydom

application

In the Tydom application, select:

- Settings > My home > My devices >

Consumption > Select the Consumption device

corresponding to the Tywatt 5400/5600 >

Press "Delete".

3.3 Deleting pairing with a paired EM.IC

In the Tydom application, select:

- Settings > My home > My devices >

Consumption > then select the Tywatt with

which the EM.IC is paired.

- In the EM.IC window, press "Unpair".

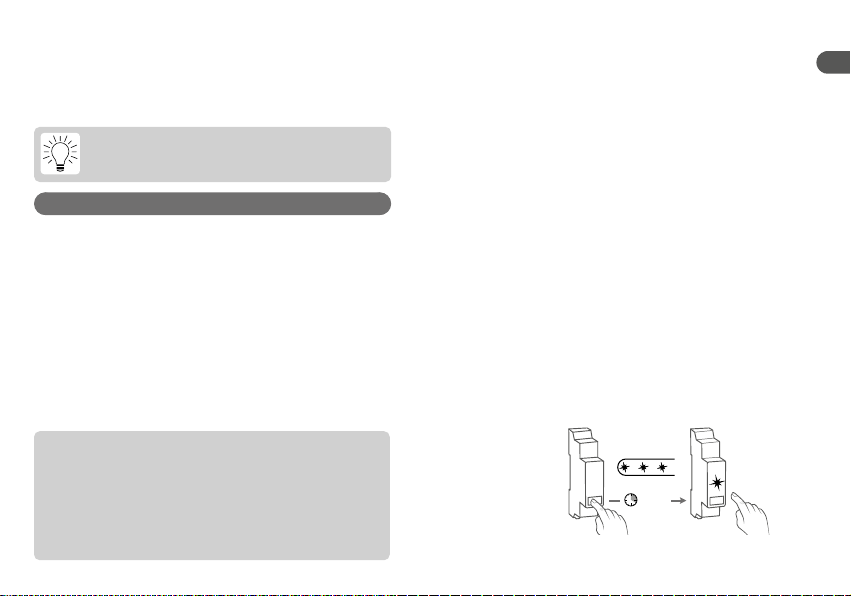

3.4 Reset to factory settings

- Hold the button pressed for 20 seconds.

The red LED ashes, then lights up solid.

- Release.

... ... ...

>20s

Red

8 9

3.5 Conguration of the OMS meter

(only for Tywatt 5600)

Compatibility

Scan the QR code to verify

the compatibility of your meter.

Each meter is identied by means of a unique

8-digit code (marking or labelling on the meter),

which you must enter in the Tywatt conguration

menu, along with the nature of the measured

substation (cold water, hot water, or heating), via

the Tydom application.

Take the nal 8 gures of the bar code or the

datamatrix.

Location on DIEHL meters

12345678

Example:

Location on Engelmann meters

WaterStar_M model

SensoStar_U model

12345678

Example:

BDAB 000180

12345678

Example:

10 11

Technical specications

Modular unit

- Power supply : 230 V~ 2 VA

- Class II insulation

- Type 1 action

- Rated impulse withstand voltage: 4000 V

- Ball test temperature:

Housing: 75°C

Terminal block: 100°C

- Storage temperature: -10°C / +70°C

- Operating temperature: 0°C / +55°C

- IP 30

- Dimensions: 1 module - 18 x 90 x 71 mm

- X3D wireless remote control device:

868.7 MHz to 869.2 MHz

- Maximum wireless power < 10 mW

- Category 2 receiver

- CIS: compatible with historical and standard CIS

of a Linky meter

Open loop current transformer:

- Dimensions: 30 x 46 x 29 mm

- Internal diameter: 16 mm

- Primary current: 70 A max.

- Secondary current: 140 mA max.

04/23

www.deltadore.com
