Delta STS30002SR00035 Manuale utente
www.deltapowersolutions.com
Delta Infrasuite
Power Management
User Manual
The power behind competitiveness
Rack Static Transfer Switch
TEST
O/P
S1 S1-ON
S2 S2-ON
RESET
NETWORK
TEST
O/P
S1 S1-ON
S2 S2-ON
NETWORK
RESET
LOCAL
TEST
O/P
S1 S1-ON
S2 S2-ON
NETWORK
RESET
LOCAL
II
Infrasuite Power Management
SAVE THIS MANUAL
This manual contains important instructions and warnings that you should
follow during the installation, operation, storage and maintenance of this
product. Failure to heed these instructions and warnings will void the warranty.
Copyright © 2022 by Delta Electronics Inc. All Rights Reserved. All rights of this
User Manual (“Manual”), including but not limited to the contents, information,
and figures are solely owned and reserved by Delta Electronics Inc. (“Delta”).
The Manual can only be applied to the operation or the use of this product. Any
disposition, duplication, dissemination, reproduction, modification, translation,
extraction, or usage of this Manual in whole or in part is prohibited without the prior
written permission of Delta. Given that Delta will continuously improve and develop
the product, changes may be made to the information in this Manual at any time
without obligation to notify any person of such revision or changes. Delta will make
all possible efforts to secure the accuracy and the integrity of this Manual. Delta
disclaims any kinds or forms of warranty, guarantee, or undertaking, either expressly
or implicitly, including but not limited to the completeness, faultlessness, accuracy,
non-infringement, merchantability or tness for a particular purpose of the Manual.
Table of Contents
III
Table of Contents
Chapter 1 : Important Safety Instructions --------------------------- 1
1.1 Important Safety Notes ---------------------------------------- 1
1.2 Electrical Warnings---------------------------------------------- 1
1.3 Standard Compliance ------------------------------------------ 2
1.4 Storage------------------------------------------------------------- 2
Chapter 2 : Introduction --------------------------------------------------- 3
2.1 General Overview ----------------------------------------------- 3
2.2 Package List ------------------------------------------------------ 3
2.3 Features ----------------------------------------------------------- 4
2.4 Model Type-------------------------------------------------------- 5
Chapter 3 : Installation----------------------------------------------------- 7
3.1 Installation_ Model: STS30002SR00035------------------ 7
3.2 Installation_ Model: STS30002SR10035------------------ 8
3.3 Installation_ Model: STS30002SR10135------------------ 9
Chapter 4 : Wiring ----------------------------------------------------------10
4.1 Wiring_ Model: STS30002SR00035-----------------------10
4.2 Wiring_ Model: STS30002SR10035-----------------------10
4.3 Wiring_ Model: STS30002SR10135----------------------- 11
Chapter 5 : Front Panel ---------------------------------------------------13
Chapter 6 : Operation -----------------------------------------------------17
Chapter 7 : InsightPower SNMP IPv6 for rSTS--------------------18
7.1 Introduction of InsightPower SNMP IPv6 for rSTS-----18
IV
Infrasuite Power Management
7.2 SNMP IPv6 Features ------------------------------------------18
7.3 Top View and Front View of SNMP IPv6 -----------------19
7.4 Console Management-----------------------------------------20
7.5 Upgrade-----------------------------------------------------------24
7.6 rSTS Command Settings -------------------------------------26
7.7 Key Generation for SSH --------------------------------------30
Chapter 8 : Troubleshooting --------------------------------------------32
Appendix 1 : Specications ---------------------------------------------33
Appendix 2 : Warranty ----------------------------------------------------34
Chapter 1 Important Safety Instructions
1
Chapter 1 : Important Safety Instructions
1.1 Important Safety Notes
z Only qualied personnel can service this equipment.
zFollow the following precautions when working on this unit.
1. Remove watches, rings, or other metal objects.
2. Use tools with insulated handles.
3. Examine the packing container. Notify the carrier immediately if any damage
is present.
4. Do not disassemble the unit.
5. Do not operate the unit near water or in an area with excessive humidity.
6. Keep liquid and foreign objects from getting inside the unit.
7. Do not operate the unit close to gas or re.
zUpstream circuit breaker must be added for each input. The recommended break-
er is D curve 30A for STS30002SR00035 and D curve 32A for STS30002SR10035
and STS30002SR10135.
zVerify whether the branch circuit breaker or fuse on service feed is correct.
zVerify line voltage requirements and the supplied line voltage prior to installation.
1.2 Electrical Warnings
zWhen servicing this equipment, you will need to remove its protective covers and
disconnect the input power. Please observe great caution during these proce-
dures. Only qualied personnel can service this equipment.
zCheck that power cords, plugs, and outlets are in good condition.
2
Infrasuite Power Management
1.3 Standard Compliance
zSafety
UL (US) : UL 62368-1 (only for STS30002SR00035)
CE (EU) : IEC/EN 62368-1
zEMI
CISPR 22 Class A and FCC Class A
zEMS
IEC 61000-4-2 IEC 61000-4-6
IEC 61000-4-3 IEC 61000-4-8
IEC 61000-4-4 IEC 61000-4-11
IEC 61000-4-5
zIPv6 Certication
IPv6 Ready Logo Phase 2 (Core for Host, Logo ID 02-C-000624)
1.4 Storage
Please store the rSTS in its original package and in a dry place. Keep the storage
temperature between -15 ~ 50°C (5 ~122°F).
Chapter 2 Introduction
3
Chapter 2 : Introduction
2.1 General Overview
The rack static transfer switch, hereafter referred to as rSTS, is designed to guar-
antee uninterrupted operation of sensitive equipment. It is powered by two indepen-
dent power sources and automatically makes a rapid switch from one source to the
other when the original power supplying to its connected load fails.
User can know the power ow and rSTS’s status from the front panel’s LED indica-
tors and monitor the rSTS via the built-in InsightPower SNMP IPv6. The unit has a
network interface for users to read and write parameters and the network interface
can be implemented via the Ethernet protocol through an RJ45 connector. The rSTS
is designed to be efcient and reliable.
2.2 Package List
1 1
1
2 3 4 5
STS30002SR00035 STS30002SR10035
STS30002SR10135
TEST
O/P
S1 S1-ON
S2 S2-ON
NETWORK
RESET
LOCAL
TEST
O/P
S1 S1-ON
S2 S2-ON
NETWORK
RESET
LOCAL
TEST
O/P
S1 S1-ON
S2 S2-ON
RESET
NETWORK LOCAL
4
Infrasuite Power Management
No. Item Q’ty
1rSTS 1 PC
2Bracket Ear 2 PCS
3Bracket Screw 8 PCS
4Rack Screw 4 PCS
5Rack Nut 4 PCS
NOTE :
1. If there is any damage or anything missing, please immediately contact
the dealer from whom you purchased the unit.
2. If the rSTS needs to be returned, carefully repack the rSTS and all of the
accessories using the original packing material that came with the unit.
2.3 Features
zFlexible installation
Front installation and rear installation are applicable.
zSelf-test function
Power-on self-test
Manual self-test
zWithstands high inrush current
SCR design withstands high inrush current during transferring process.
Chapter 2 Introduction
5
2.4 Model Type
There are three models. Please see the following table and pictures.
Model No.
Input Output
Type Length Type Length
STS30002SR00035 L6-30P 3600 mm
(141.73'') L6-30R 450 mm
(17.72'')
STS30002SR10035 IEC309-32A 4000 mm
(157.48'') IEC309-32A 1000 mm
(39.37'')
STS30002SR10135 HP-T4049S-
3P-L2 N/A HP-T4049S-
3P-L2 N/A
zModel: STS30002SR00035
TEST
O/P
S1 S1-ON
S2 S2-ON
RESET
NETWORK LOCAL
6
Infrasuite Power Management

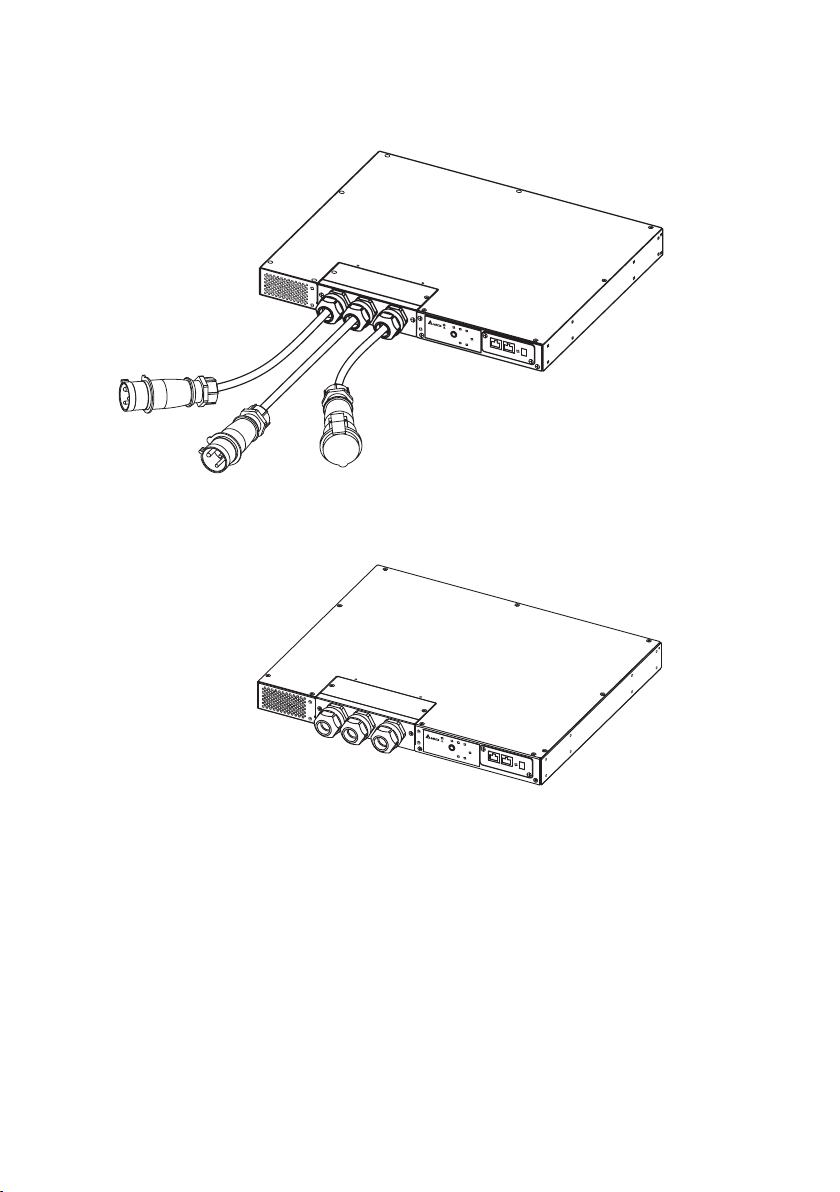

zModel: STS30002SR10035
TEST
O/P
S1 S1-ON
S2 S2-ON
NETWORK
RESET
LOCAL
zModel: STS30002SR10135
TEST
O/P
S1 S1-ON
S2 S2-ON
NETWORK
RESET
LOCAL
