Denon AVR-689 Manuale utente

AVR-689 / AVR-589

Speakers

A/V Receiver

R L R L

FL FR

5421 10008 009D

Need more information?

DVD Player

Getting Started

Cable/Satellite

• Cables are NOT included.

INPUT

PRE OUT

FL: Front Left Speaker

FR:

Front Right Speaker

C : Center Speaker

SL: Surround Left Speaker

SR:

Surround Right Speaker

SW:Subwoofer

Cable colors are for

illustration purpose only.

Make sure “q” or “w”

marking on your cable.

NOTE :For Surround back connectivity. (AVR-689)

< illustration : AVR-689 >

VIDEO INPUT

Cable / Satellite

DVD Player VIDEO OUTPUT

VIDEO OUTPUT

Digital

Audio Output

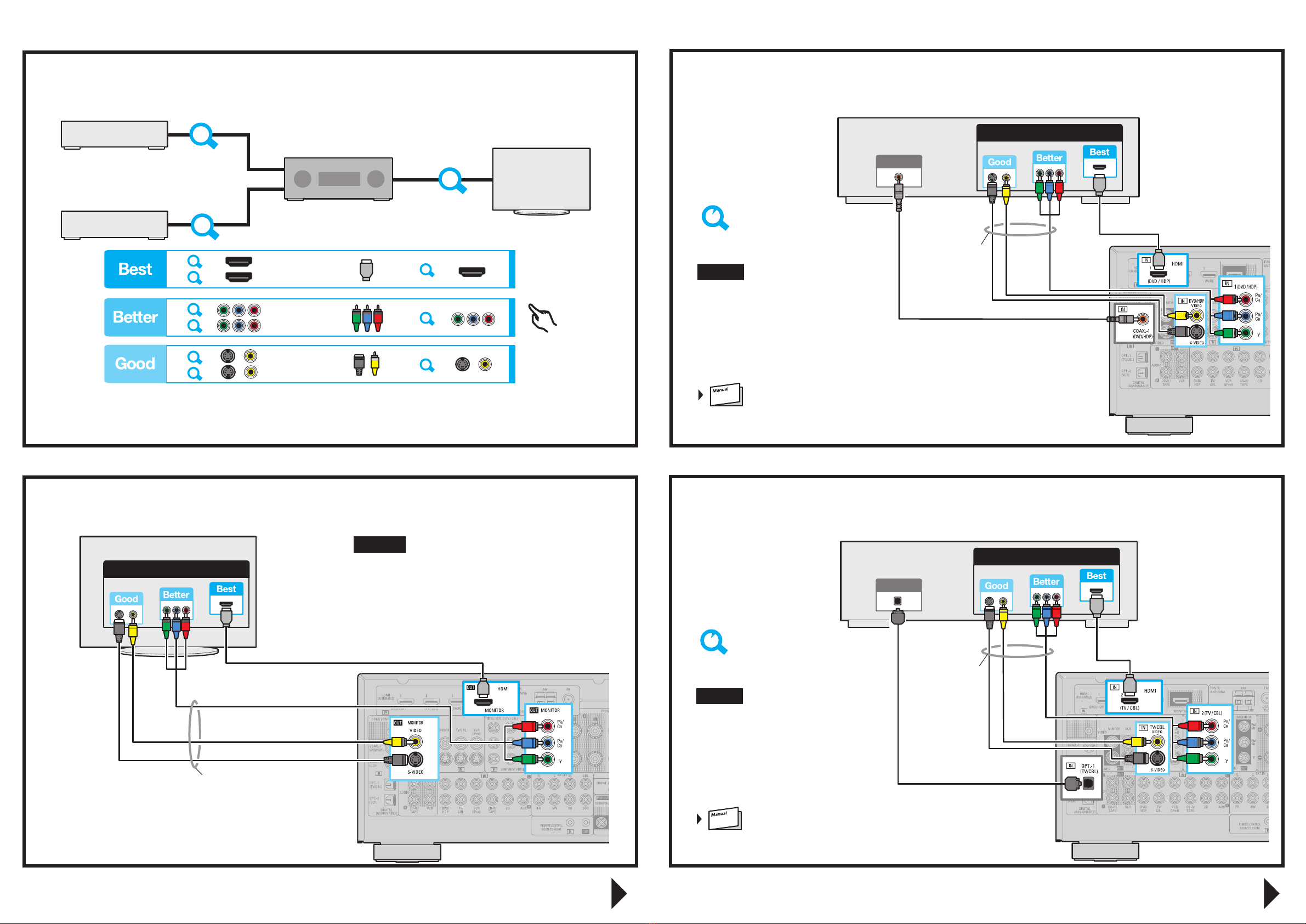

Check & choose your VIDEO connection.

Cable / Satellite

DVD Player

Check TV

Check

A/V Receiver

Choose

HDMI

Component

Video or

S-Video

NOTE

Digital Video

Digital Audio

Analog Video

Digital Video

Digital Audio

Analog Video

• Follow 1-3 according to your choice of connection.

There are multiple ways to connect video.

Please choose the option that is best for you.

(Read Instruction Manual of your TV set.)

Check

NOTE

Please make sure your video connection

matches to the TV connection (STEP-1).

Audio connections are required

with all

video connections.

The audio signal input to the HDMI input connector

cannot be played on the receiver. Input the audio

signal to the digital audio input connector.

When using other digital audio input connector,

you will need to change the digital input setup on

the receiver.

“System Setup”-“Input Setup”-“Digital In Assign”

NOTE

Please make sure your video connection

matches to the TV connection (STEP-1).

Audio connections are required

with all

video connections.

The audio signal input to the HDMI input connector

cannot be played on the receiver. Input the audio

signal to the digital audio input connector.

When using other digital audio input connector,

you will need to change the digital input setup on

the receiver.

“System Setup”-“Input Setup”-“Digital In Assign”

< illustration : AVR-689 >

Digital

Audio Output
