Procedure to enter the “Protection History Display Mode”.

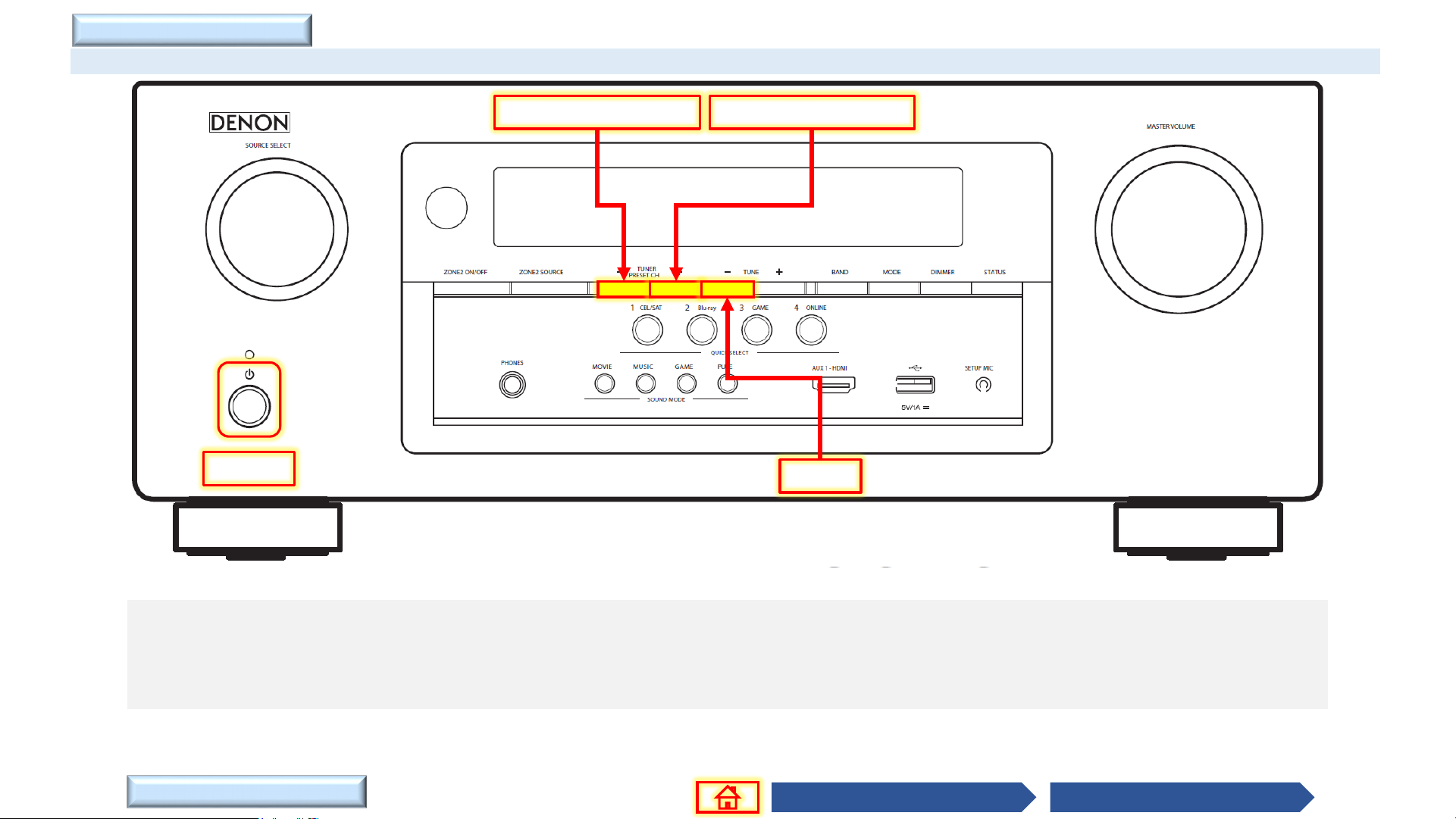

1. Hold down buttons “TUNER PRESET CH-”, “ TUNE-” and “TUNER PRESET CH+” at the same time and press the power button to turn on the power.

2. Select "PROTECTION" using the “TUNER PRESET CH+/-“ button, and press the “STATUS" button.

3. Press the "STATUS" button again and the unit will display the Protection History condition.

TUNER PRESET CH+TUNER PRESET CH-

TUNE-

POWER

PROTECTION HISTORY DISPLAY MODE CLEARING THE PROTECTION HISTORY

MODEL INFO. INDEX

Protection History Mode records and displays an event in which the THERMAL, CURRENT, ASO or DC protection was activated.

MODEL INFO. INDEX

1. If no protections have occurred, “No Protect” is displayed

2. if last protection was ASO/DC, “ASO/DC” is displayed.

Cause: A short circuit occurred between the speaker terminals, or speakers with an impedance outside the rating were connected.

DC output of the power amplifier is abnormal.

If the power is turned on during this abnormality, protection is activated after around 6 seconds and the power is turned off.

3. If the last protection was THERMAL(A) or THERMAL(B),

“THERMAL A or THERMAL B” is displayed.

Cause: Abnormal heat sink temperature.

If the power is turned on during this abnormality, protection is activated after around 6 seconds and the power is turned off.

4. When the last protection incident was CURRENT protection,

“CURRENT” is displayed

FLD NO PROTECT

FLD PRT:ASO/DC

FLD :CURRENT

Caution : These protections may also be activated due to other factors such as disconnection of connectors or operations

around the microcomputer.

After viewing the above protection history, press the "STATUS" button to return to the normal display.

FLD Fluorescent Display

PRT Protection

FLD PRT:THERMAL A

FLD PRT:THERMAL B

AVR-S700W (2 of 3)

CLEARING THE PROTECTION HISTORY

FRONT PANEL –BUTTONS LOCATION

MODEL INFO. INDEX

Press and hold the “DIMMER" button for 3 seconds.

Press and hold the “DIMMER“ button again for 3 seconds and

“CLEAR” is displayed followed by “NO PROTECT”. The unit’s

Protection History is now cleared.

Clearing the Protection History

If the unit is in “Protection History Display Mode”, just press and hold the “ENTER” button for 3 seconds. Note: If you do not mind erasing your settings from this unit, you can

also “Initialized/Micro Reset the unit to clear the Protection History from the unit’s memory.

If the unit is not in “Protection History Display Mode”, enter the “Protection History Display Mode”:

1. Hold down buttons “TUNER PRESET CH-”, “ TUNE-” and “TUNER PRESET CH+” at the same time and press the “POWER” button to turn on the power.

2. Select "PROTECTION" using the “TUNER PRESET CH+/-“ buttons, and press the “STATUS" button.

3. Press the "STATUS" button again and the unit will display the Protection History condition.

FLD PRT:DC

FLD PRT:CLEAR

FLD NO PROTECT

Warning Displays by POWER LED

If the power is turned off while a protection is detected, the POWER LED (red) flashes in the following ways as a warning according to the protection status.
