Denon AVR-X1100W Manuale utente

AVR-X1100W

INTEGRATED NETWORK AV RECEIVER

Owner’s Manual

You can print more than one page of a PDF onto a single sheet of paper.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Accessories 7

Inserting the batteries 8

Operating range of the remote control unit 8

Features 9

High quality sound 9

High performance 9

Easy operation 12

Part names and functions 13

Front panel 13

Display 16

Rear panel 18

Remote control unit 21

Connections

Connecting speakers 25

Speaker installation 25

Speaker connection 28

Speaker configuration and Amp Assign settings 31

Connecting a TV 38

Connection 1 : TV equipped with an HDMI connector and

compatible with the ARC (Audio Return Channel) 39

Connection 2 : TV equipped with an HDMI connector and

incompatible with the ARC (Audio Return Channel) 40

Connection 3 : TV equipped without an HDMI connector 41

Connecting a playback device 42

Connecting a DVD player or Blu-ray Disc player 43

Connecting a set-top box (Satellite tuner/cable TV) 44

Connecting a video camcorder or game console 45

Connecting an iPod or USB memory device to the USB port 46

Connecting an FM/AM antenna 48

Connecting to a home network (LAN) 50

Wired LAN 50

Wireless LAN 51

Connecting the power cord 52

Playback

Basic operation 54

Turning the power on 54

Selecting the input source 54

Adjusting the volume 55

Turning off the sound temporarily (Muting) 55

Playback a DVD player/Blu-ray Disc player 55

Contents Connections Playback Settings Tips Appendix

Contents

Front panel Display Rear panel Remote Index

Playing an iPod 56

Listening to music on an iPod 57

iPod Browse Mode settings 58

Performing repeat playback 60

Performing random playback 60

Playing a USB memory device 61

Playing files stored on USB memory devices 62

Listening to music on a Bluetooth device 64

Pairing with a Bluetooth device 65

Playing a Bluetooth device 66

Pairing with the Pairing Mode 68

Listening to FM/AM broadcasts 69

Listening to FM/AM broadcasts 70

Tuning in by entering the frequency (Direct Tune) 71

RDS search 72

PTY search 72

TP search 73

Radio Text 74

Changing the tune mode (Tune Mode) 74

Tuning in to stations and presetting them automatically (Auto

Preset) 75

Presetting the current broadcast station (Preset Memory) 75

Listening to preset stations 76

Specify a name for the preset broadcast station (Preset Name) 77

Skipping preset broadcast stations (Preset Skip) 78

Cancelling Preset Skip 79

Listening to Internet Radio 80

Listening to Internet Radio 81

Playing the last played Internet Radio station 82

Using vTuner to add Internet Radio stations to favorites 83

Playing back files stored on a PC and NAS 84

Applying media sharing settings 85

Playing back files stored on a PC and NAS 86

Viewing photographs on the Flickr site 88

Viewing photographs shared by particular users 89

Viewing all photographs on Flickr 91

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

AirPlay function 92

Playing songs from your iPhone, iPod touch or iPad 93

Playing iTunes music with this unit 93

Selecting multiple speakers (devices) 94

Perform iTunes playback operations with the remote control unit

of this unit 94

Spotify Connect function 95

Playing Spotify music with this unit 95

Convenience functions 96

Performing repeat playback 97

Performing random playback 97

Registering to Favorites 98

Playing back content added to the “Save to Favorite” 98

Deleting content added to favorites 99

Searching content with keywords (Text Search) 99

Playing back music and a favorite picture at the same time

(Slideshow) 100

Setting the Slideshow Interval 101

Adjusting the volume of each channel to match the input source

(Ch Level Adjust) 102

Adjusting the tone (Tone) 103

Displaying your desired video during audio playback (Video

Select) 104

Playing the same music in all zones (All Zone Stereo) 105

Selecting a sound mode 106

Selecting a sound mode 107

Direct playback 108

Auto surround playback 108

HDMI control function 117

Setting procedure 117

Sleep timer function 118

Using the sleep timer 119

Quick select plus function 120

Calling up the settings 121

Changing the settings 122

Web control function 123

Controlling the unit from a web control 123

Playback in ZONE2 (Separate room) 125

Connecting ZONE2 125

Playback in ZONE2 126

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Settings

Menu map 128

Menu operations 131

Inputting characters 132

Using the keyboard screen 133

Audio 134

Dialog Level 134

Subwoofer Level 134

Surr.Parameter 135

Restorer 139

Audio Delay 140

Volume 140

Audyssey 141

Manual EQ 143

Video 145

HDMI Setup 145

On Screen Disp. 147

TV Format 148

Inputs 149

Input Assign 149

Source Rename 151

Hide Sources 151

Source Level 151

Input Select 152

Speakers 153

Audyssey® Setup 153

Procedure for speaker settings (Audyssey® Setup) 155

Error messages 161

Retrieving Audyssey® Setup settings 162

Manual Setup 163

Amp Assign 163

Speaker Config. 164

Distances 166

Levels 167

Crossovers 168

Bass 169

Front Speaker 170

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Network 171

Information 171

Connection 171

Wi-Fi Setup 172

Settings 174

IP Control 175

Friendly Name 176

Diagnostics 176

Maintenance Mode 177

General 178

Language 178

ECO 178

ZONE2 Setup 180

Zone Rename 181

Quick Sel.Names 181

Front Display 181

Information 182

Usage Data 183

Firmware 184

Setup Lock 186

Tips

Tips 188

Troubleshooting 190

Resetting factory settings 206

Appendix

About HDMI 207

Playing back a USB memory devices 210

Playing back a Bluetooth device 211

Playing back a file saved on a PC or NAS 212

Playing back Internet Radio 213

Personal memory plus function 213

Last function memory 213

Sound modes and channel output 214

Sound modes and surround parameters 215

Types of input signals, and corresponding sound modes 218

Explanation of terms 221

Trademark information 231

Specifications 233

Index 238

License 241

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Thank you for purchasing this Denon product.

To ensure proper operation, please read this owner’s manual carefully before using the product.

After reading this manual, be sure to keep it for future reference.

Accessories

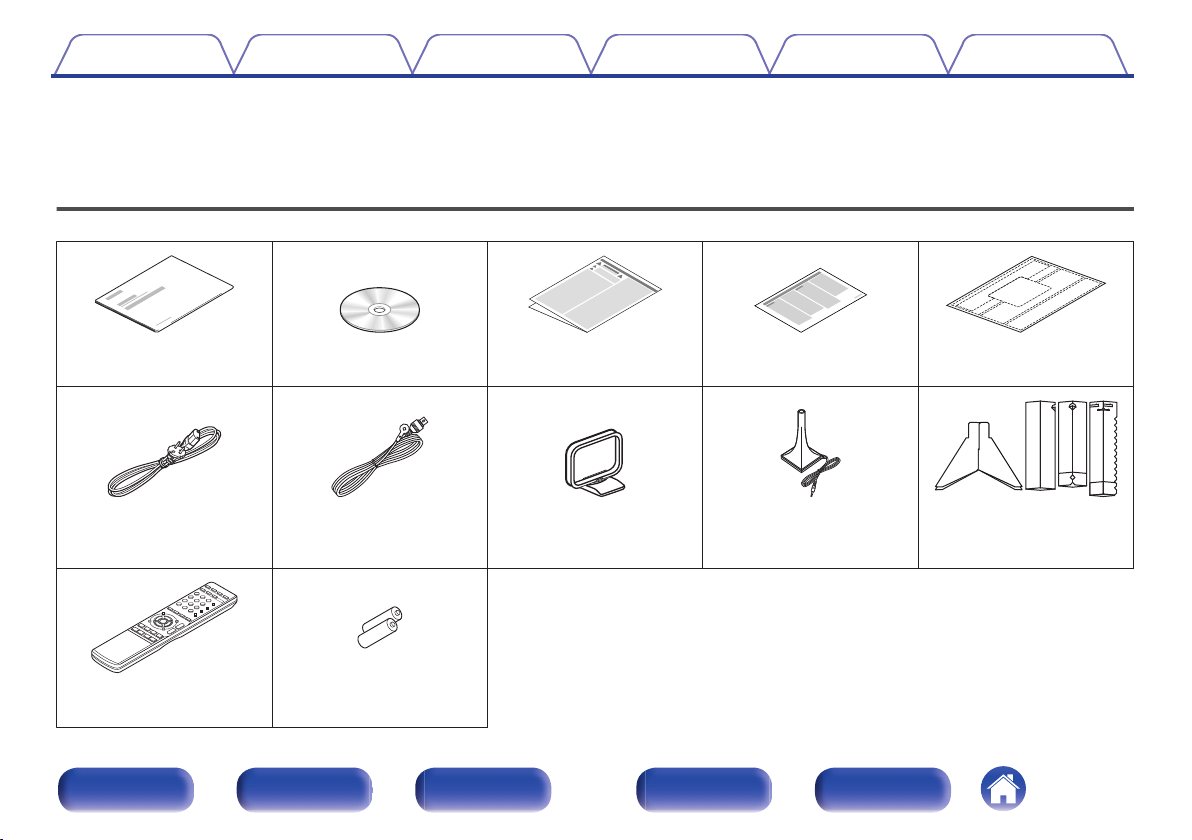

Check that the following parts are supplied with the product.

. . . .

Quick Start Guide CD-ROM

(Owner’s Manual) Safety Instructions Notes on radio Cable labels

.. . . .

Power cord FM indoor antenna AM loop antenna Sound calibration

microphone

(ACM1HB)

Microphone stand

Remote control unit

(RC-1189) R03/AAA batteries

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

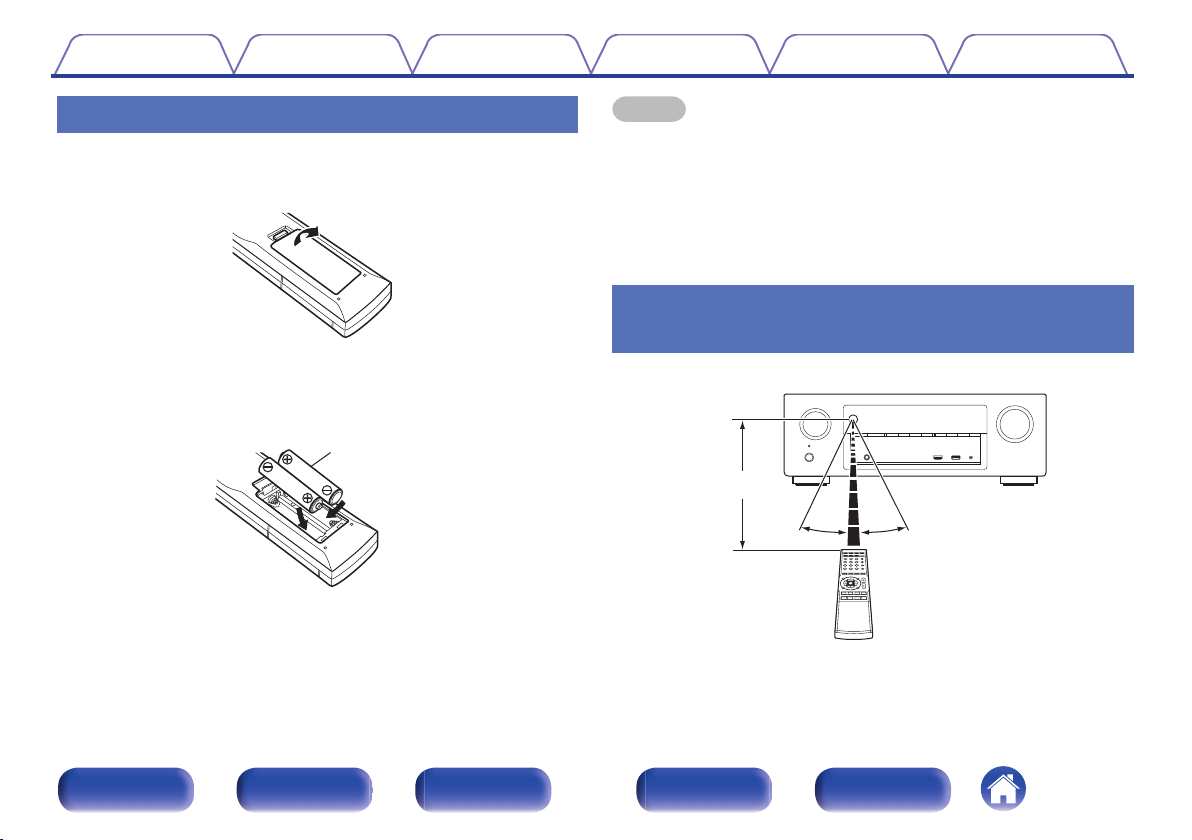

Inserting the batteries

1Remove the rear lid in the direction of the arrow and

remove it.

2Insert two batteries correctly into the battery

compartment as indicated.

R03/AAA batteries

3Put the rear cover back on.

NOTE

0To prevent damage or leakage of battery fluid:

0Do not use a new battery together with an old one.

0Do not use two different types of batteries.

0Remove the batteries from the remote control unit if it will not be in use for long

periods.

0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery

compartment and insert new batteries.

Operating range of the remote control

unit

Point the remote control unit at the remote sensor when operating it.

Approx. 7 m

30° 30°

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Features

High quality sound

0With discrete circuit technology, the power amplifier provides

identical quality for all 7-channels (120 Watts x 7-channels)

For optimum realism and stunning dynamic range, the power amplifier

section features discrete power devices (not integrated circuitry).

By using high current, high power discrete power devices, the amplifier

is able to easily drive high quality speakers.

High performance

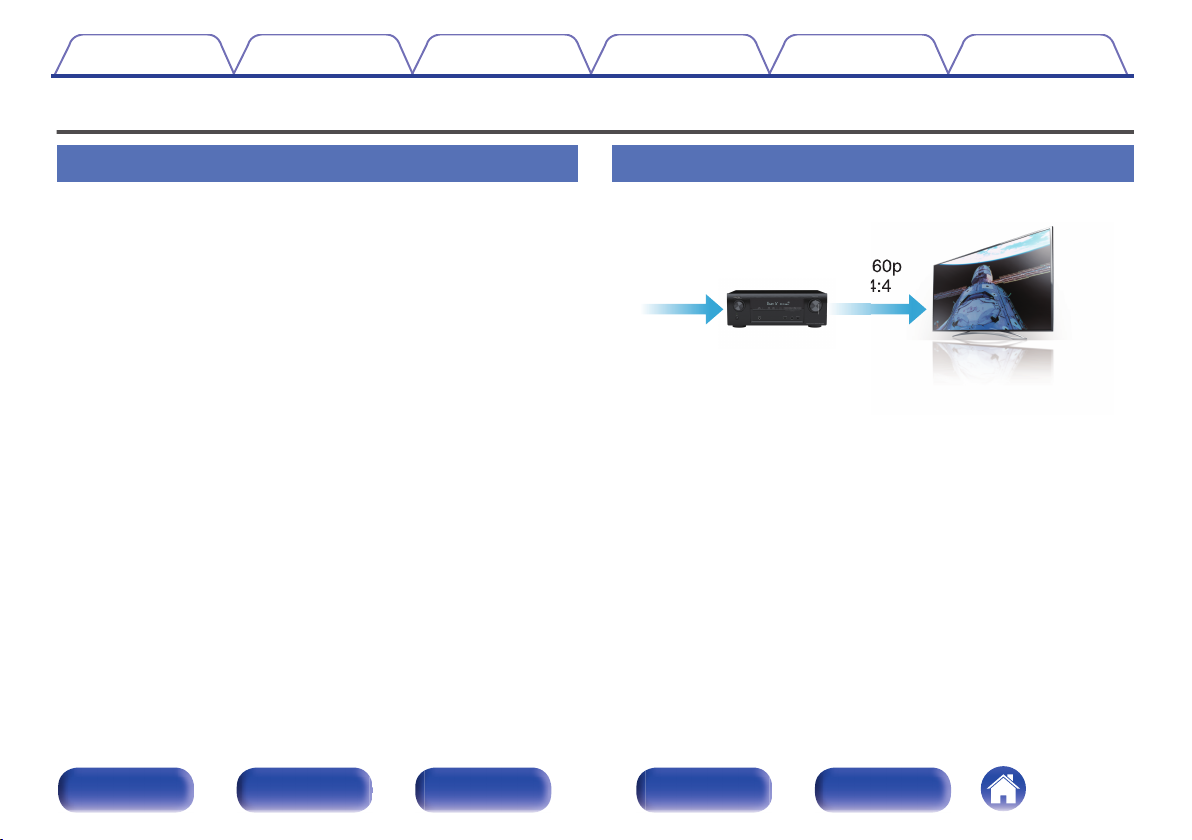

04K 60Hz input/output supported

4K 60p

4:4:4

4K 60p

4:4:4

When 4K Ultra HD (High Definition) is used, an input/output speed of 60

frames per second (60p) is achieved for video signals. When connected

to 4K Ultra HD and 60p video signal input compatible TV, you can enjoy

the sense of realism only available from high-definition images, even

when viewing fast-moving video.

This unit also supports image processing for 4K 60p, 4:4:4 and 24-bit

videos. By processing the video at the original resolution, this unit lets

you enjoy flawless, high-definition picture quality.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

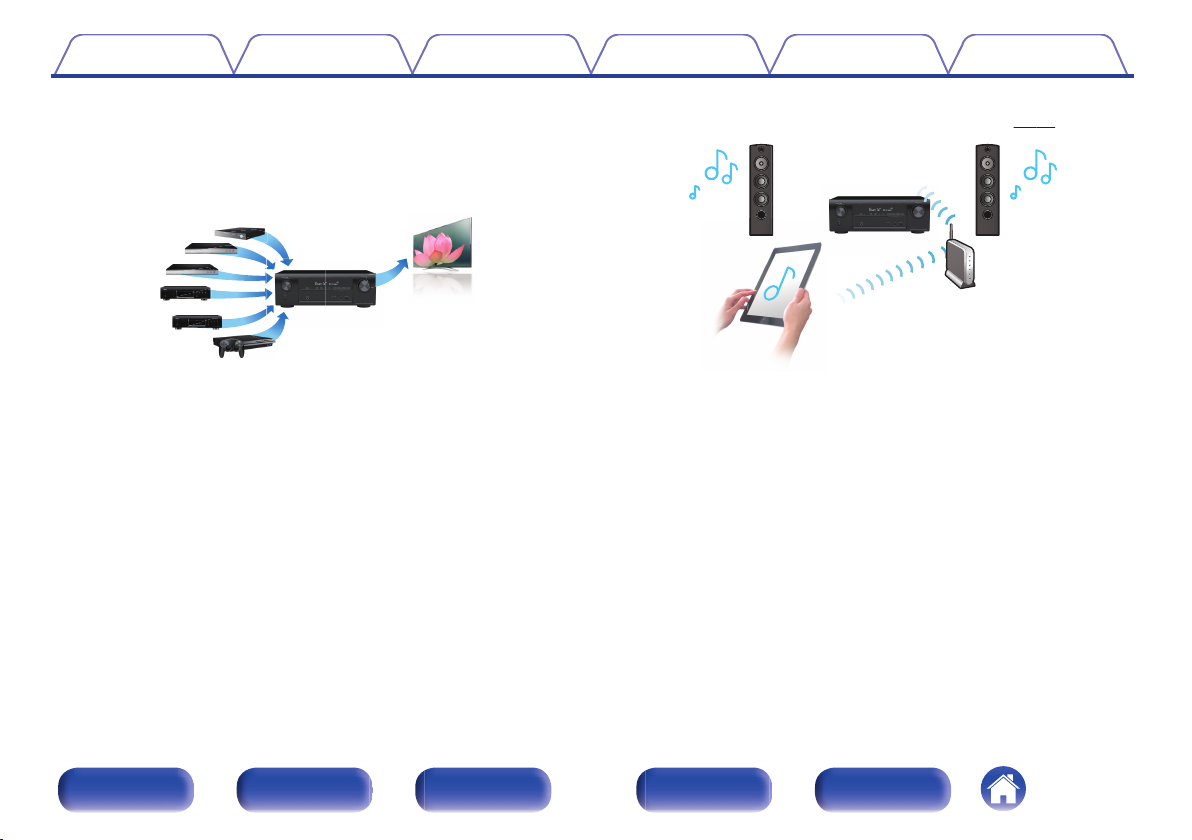

0HDMI connections enable connection to various digital AV

devices (6 inputs, 1 output)

In Out

This unit is equipped with 6 HDMI inputs and 1 HDMI output enabling

connection to various HDMI compatible devices such as Blu-ray Disc

players, game consoles and HD video camcorders.

0The device is equipped with a AirPlay® function in addition to

network functions such as Internet radio etc. (v p. 92)

You can enjoy a wide variety of content, including listening to Internet

Radio, playing audio files stored on your PC, and displaying

photographs stored on your PC on our television.

This unit also supports Apple AirPlay which lets you stream your music

library from an iPhone®, iPad®, iPod touch® or iTunes®.

0Playback of DSD and FLAC files via USB and networks

This unit supports the playback of high resolution audio formats such as

DSD (2.8 MHz) and FLAC 192 kHz files. It provides high quality

playback of high resolution files.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Altri manuali per AVR-X1100W

Indice

Altri manuali Denon Ricevitore

Denon

Denon AVR-1603 Manuale utente

Denon

Denon AVR 1508 - AV Receiver Manuale utente

Denon

Denon DRA-800H Manuale utente

Denon

Denon AVR-1611 Manuale utente

Denon

Denon AVR-685S Manuale utente

Denon

Denon AVR2310CI - Multi-Zone Home Theater Receiver Dimensioni

Denon

Denon AVR-87 Manuale utente

Denon

Denon avr-s720w Manuale utente

Denon

Denon AVR-1803/883 Manuale utente

Denon

Denon AVR-1602 Manuale utente

Denon

Denon AVR-3806 Manuale utente

Denon

Denon AVR-X4100W Manuale utente

Denon

Denon AVR-1713 Manuale utente

Denon

Denon AVR-X2100W Manuale utente

Denon

Denon AVC-A1XV Manuale utente

Denon

Denon AVR-2307CI Manuale utente

Denon

Denon AVR-X7200W Manuale utente

Denon

Denon AV SURROUND RECEIVER AVR-891 Manuale utente

Denon

Denon AVR-X520BT Manuale utente

Denon

Denon AVR-588 Manuale utente

Denon

Denon AVR-X3200W Manuale utente

Denon

Denon ADV-M71 Manuale utente

Denon

Denon AVR-2105 Manuale utente

Denon

Denon AVR-X2400H Manuale utente

Manuali Ricevitore popolari di altre marche

Garmin

Garmin GA 23 Manuale utente

Aiphone

Aiphone PS-12F Manuale utente

IMES

IMES TCS-01CA-PMI Manuale utente

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuale

AMIMON

AMIMON AMN12310 WHDI Manuale utente

Dual

Dual DMCPA79BT Istruzioni operative

Sound Associates

Sound Associates SA652P Manuale utente

Sherwood

Sherwood NewCastle R-772 Manuale utente

Audio

Audio A10-RX Series Manuale utente

AllSee

AllSee PushShare PSRV1.1 Manuale utente

DEMAG

DEMAG DRC-DR D2 Manuale utente

Teleco

Teleco TVRCL868A02 Manuale utente

Bosch

Bosch RF3222E Manuale utente

Kramer

Kramer 631R Manuale utente

Xpress

Xpress xmc10 Manuale utente

JVC

JVC KD-MR1BTS Manuale utente

Omega Engineering

Omega Engineering UWTC-REC3 Manuale utente

e-survey

e-survey E300 Pro Manuale utente
