DENVER DPF-407

Digital Picture Frame

User Manual

CONTENTS :

DENVER DPF-407 .......................................................................................................................... 1

Digital Picture Frame ..................................................................................................................... 1

User Manual .................................................................................................................................... 1

CONTENTS : ........................................................................................... 2

FEATURES: ............................................................................................. 3

MAIN UNIT BUTTONS: ........................................................................ 4

REMOTE: ................................................................................................. 5

USER OPERATION GUIDE: ................................................................ 6

1. FUNCTION SELECT .................................................................................................................................. 6

2. CARD OR USB SELECT MENU .................................................................................................................. 7

3. FILE LIST SCREEN ................................................................................................................................. 8

4. PLAYBACK SCREENS ............................................................................................................................. 11

4.1 Movie pla back screen ............................................................................................................. 11

4.2 Picture displa screen .............................................................................................................. 13

4.3 Music pla back screen ............................................................................................................. 14

5. CALENDAR .......................................................................................................................................... 15

6. ALARM SCREEN ................................................................................................................................... 17

7. SETUP MENU ..................................................................................................................................... 18

PRESS ESC TO RETURN TO SELECT MENU. SET HIGHLIGHT ICON AT SET UP, PRESS ENTER . EXHIBIT 13) ............. 18

Features:

•Playback photo, music, or video files stored in data storage

devices through dual High-Speed USB 2. or various card-

reader port.

•Supported data storage devices included USB disk, memory

card, MP3 player etc.

•Supports up to 8 x8 mega pixel image files (JPEG

format)

•Compatible with most digital cameras stored JPEG images

including Motion JPEG files

•Automatic slideshow with multiple transition effects and

adjustable display time speed.

•Dedicated hardware JPEG decoder.

•Plays together with MP3 music in the JPEG images background

•Plays MPEG-I (VCD) or MPEG-IV video files stored on

supported memory cards or external USB devices.

•Support SD, MS, MMC memory cards and USB

•Build in speaker

•Build in calendar and pre set alarm.

Main unit buttons:

Up button:

a) Move up the cursor at the menu

b) Open brightness/contrast/color adjustment at

playing the JPEG file

c). Choose the files after press ENTER to confirm the

play mode

d) Shift down when zoom in picture

Down button:

a) Move down the cursor at the menu

b) Choose the files after press ENTER to confirm the

play mode

c) Shift up when zoom in picture

Left button:

a) Move the cursor to left at the menu

b) Shift to right when zoom in picture

Right button:

a) Move the cursor to right at the menu

b) Shift to left when zoom in picture

ENTER button:

a) Confirm/open the perform selected item

OSD button：

To turn on/off the function bar.

MENU Button: EXIT

Power switch:

Turn on/off the power.

Connection Jack:

SD MMC MS： SD/MMC/MS card slot

USB : USB connection

DC 12V : DC (DC 12 V)input jack

AV OUT : Video output

PHONE : Head phone output

Remote:

DOWN

LEFT

RIGHT

Enter Confirm Selected items

OSD Turn on/off the Function bar

Mute Mute ON/OFF

Vol + Audio volume plus

Vol - Audio volume minus

Esc Exit

Zoom Zoom in the picture

AV AV output Press the AV button on the remote

to select to AV output when the screen on the

Exhibit 2 - Function select menu)

Mode select 4:3 or 16:9 on screen in JPEG

file

Skip to Next music/films/picture

Skip to previous

music/films/picture

Search forward music/films

Search backward music/films

User Operation Guide:

Assemble the Multimedia Digital Photo Frame bracket to prop the

unit up, insert the adaptor DC plug into the Digital Photo Frame

player first, then plug the AC/DC adaptor into the wall outlet.Press

the POWER switch to “I” position to turn on the unit.

Then the screen will display“LOADING…”interface（Exhibit 1）.

Exhibit 1 - Loading

1. Function select

In the function select menu, you can Press / / / to select to

play picture, music, movie, combo, text, setup or calenda mode.

then Press ENTER to confirm, and the SD/MMC, MS, XD and USB

will be shown screen, except the setup and the calenda mode, press

the ENTER to start the playback. NOTED: Please make sure the data

has been stored in the SD,MMC,MS card or USB, and rightly/fully

plug in the card slot or USB. And you can also select to edit the

files, setup the system or display the calendar. （Exhibit 2.）

Exhibit 2 - Function select menu

2. Card or USB select menu

In the Card/USB select menu, you can press / to select to the

highlight icon which shows the card or USB is inserted. ( Exhibit

3.）Press ENTER to shown the file list in the card or USB, press

ENTER button again to start playback. Press MEUN button(on the

unit) or ESC button on remote to return to function select menu.

Noted:

1. Before remove the CARD & USB, Press the ESC button to

return to the Function select menu, then remove the CARD or

USB.

2. When the unit load with the CARD or USB, then power off the

unit, please take out the CARDs or USB and plug in again after

power on.

Exhibit 3 – Card/USB select menu

3. File List Screen

The USB device/Memory CARDs rightly inserted into the socket

on the main unit, In the function select menu,Press the / to

Edit mode, Press Enter two times, volume label list on displays.

(Exhibit 4)

Actions:

a) Press to return to previous directory.

b) Press / to select a volume label (file/folder), then press

ENTER to enter the file list and start playing. (Exhibit 5)

c) Press ESC to return to CARD/USB select menu.

Exhibit 4 - Volume Label List

Exhibit 5 - File Play List

To copy a selected file from card to USB:

1) In the function select menu, Press / to Edit mode, Press

Enter to the Card/USB select menu

2) To copy a file from CARD to USB, Move highlight icon to

SD/MMC, Press Enter. Select a file to be copy, Press ,A* (copy

marking)will appeared in the from of the file name to indicating

the file has been selected(Exhibit 6).

3) Press to card select menu, Press highlight icon to USB,

Press Enter, press OSD, Then press to select copy mode, press

enter again, the selected file from card is copied to USB and the

(Exhibit 7 - File Copy) will shown display. Press enter to confirm

and return to volume label list (Exhibit 4).

4) To copy a selected file from USB to CARD, Reply the above

step but need select the file from USB first.

Noted: When you copy the file, more than 5 Mbyte file may not

be support.

Delete the file from CARD or USB:

1) In the function select menu, Press / to Edit mode, Press

Enter to the Card/USB select menu.

2) To delete a file from CARD or USB, Move highlight icon to

SD/MMC or USB, Press Enter then press the / to select a file

which you want to delete, Press ,A* marking will appeared in

the from of the file name to indicating the file has been selected.

3) Press OSD, then press to select the delete mode, press

enter, Selected file from card or USB is deleted ,Press enter to

confirm and return to volume label list (Exhibit 4).

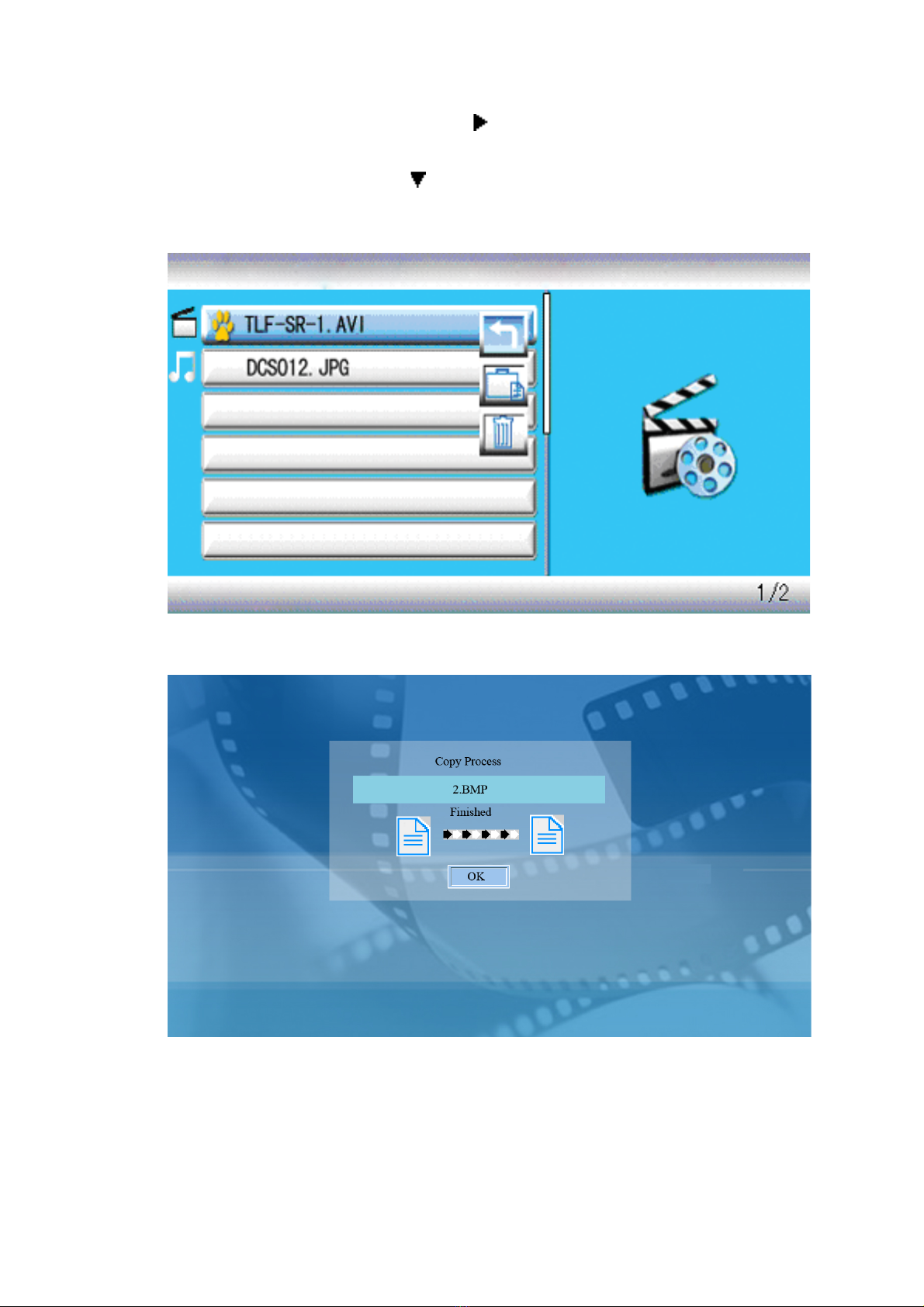

Exhibit 6 - File Operation

Exhibit 7 - File Copy
